Flat Surface Mount for Garmin Striker 4 Series & More - RAM-B-101-G4

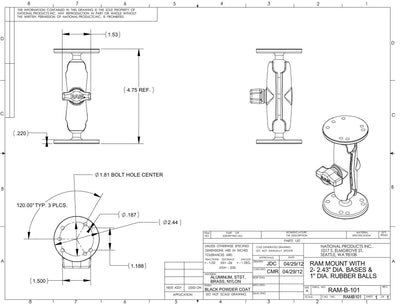

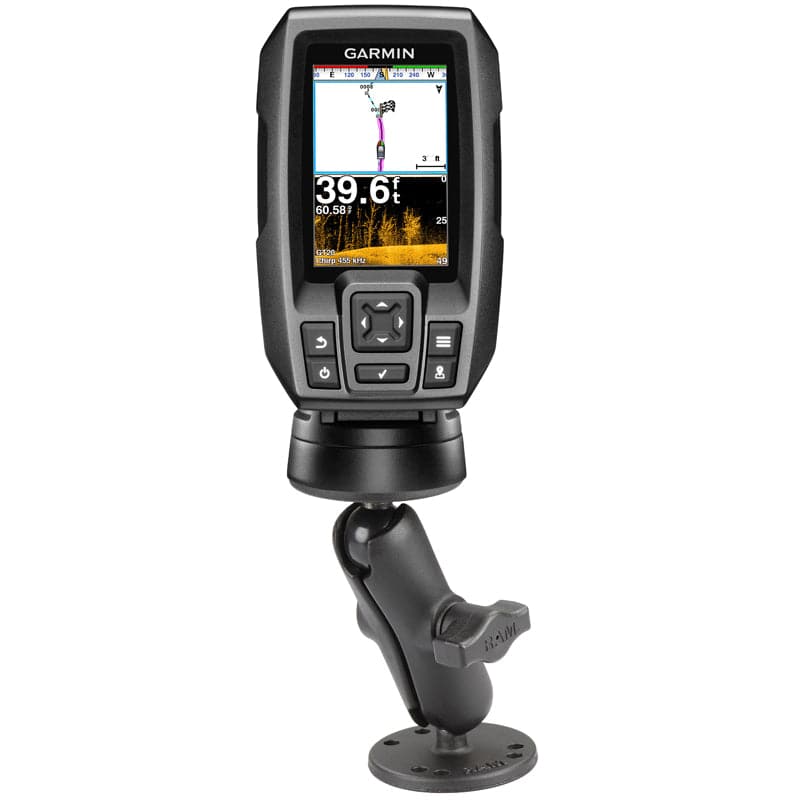

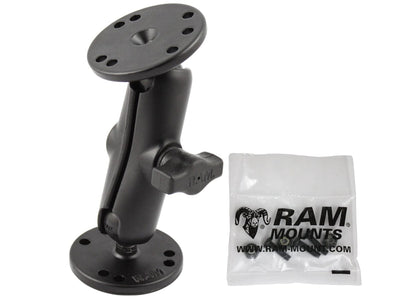

The RAM-B-101-G4 consists of a double socket arm, 2.5" diameter round base with the universal AMPS hole pattern and round adapter base that attaches directly to the bottom of the Garmin echo^™ and Striker^™ 4 Series. Designed into the mount is a 1" diameter patented rubber ball and socket system with adjustment points at both socket ends of the arm; this with RAM's rubber ball and socket technology allows for almost infinite adjustment and perfect viewing angles. Included is hardware that is used to attach the Garmin echo^™ to the RAM Mount.

Material:
Powder Coated Marine Grade Aluminum

Ball Size:
1" Rubber "B" Ball Size

Note:
Part number reflects product packaged in clear clam shell for store shelf display.

Weight:
0.75 lbs.

RAM B Size 1" Track Ball™ Quick Release Track Base (Track Dimensional Range: .250" - .562") - RAP-B-383U

RAM Flex Adhesive Base with 1" Ball - RAP-B-378U

RAM Diamond Plate 2.43" x 1.31" with B Size 1" Ball - RAM-B-238U

RAM B Size 1" Balland Rectangular Plate with 1.5" x 2" 4-Hole Pattern - RAM-B-202U-225

RAM Press-N-Lock™ Base with 12" Long Tube and 1" Diameter Ball - RAP-B-385-12U

RAM Press-N-Lock™ Base with 18" Long Tube and 1" Diameter Ball - RAP-B-385-18U

• Garmin Striker 4
• Garmin STriker 4dv
• Garmin echo 100
• Garmin echo 150
• Garmin echo 300c
• Garmin Echomap 44DV
