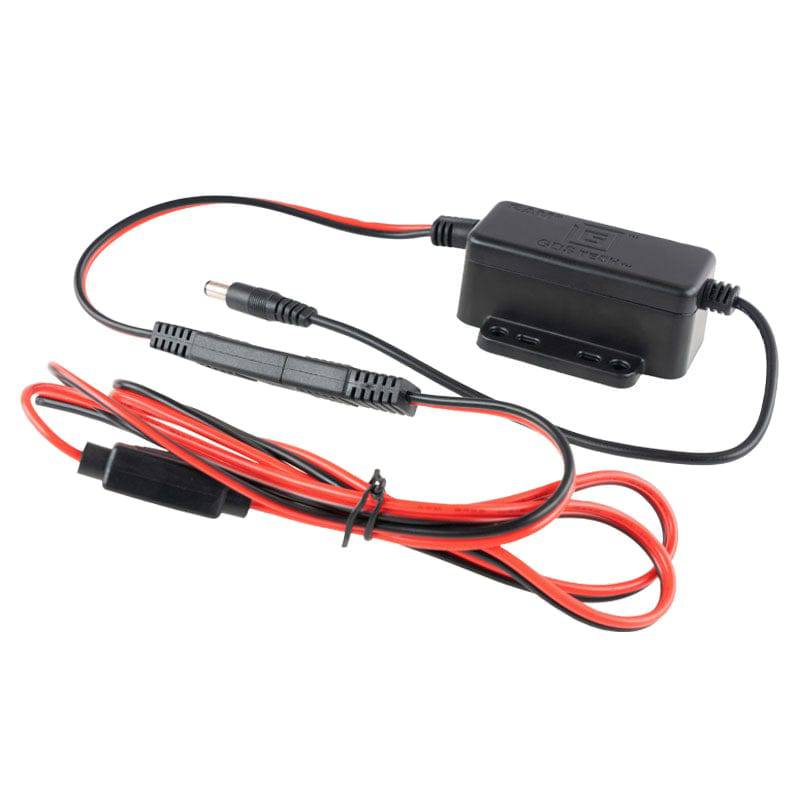

GDS® 10-32VDC Input (19VDC Output) Hardwire Charger with Male DC 5.5mm - RAM-GDS-CHARGE-V11U

• Hardwire charger includes male 5.5mm barrel connector; 10V-32V DC input range, 19VDC output
• When upgrading devices, avoid rewiring by unplugging power connector and attaching new charger components
• Part of the GDS® Ecosystem™ to keep devices protected, connected, and charged in nearly any application
• Backed by a 3-year warranty

OVERVIEW

The GDS^® Modular Hardwire Charger with 5.5mm Male DC cable is the ideal solution for providing power to any RAM^® or GDS^® DC powered docking station. When it comes time to upgrade, avoid any rewiring by simply unplugging the power connector and attaching the new charger components. This hardwire charger has an input of 10-32VDC input, 19VDC output making it ideal for most any vehicle applications.

PACKAGING TYPE

Poly Bag

INPUT VOLTAGE

10V-32V DC

OUTPUT VOLTAGE

19VDC

OUTPUT CURRENT

3.5A max

INPUT CONNECTOR

Male 5.5mm OD x 2.5mm ID Barrel Connector

INPUT CABLE LENGTH

1.2 Meters including 2 Pole Flat Marine Connector

OUTPUT CABLE LENGTH

.2 Meters

OPERATING TEMPERATURE

-10°C to +70°C

STORAGE TEMPERATURE

-40°C to +70°C

COMPLIANCE

Over Voltage Protection
Short Circuit Protection
Reverse Polarity Protection
RoHS Compliance
WEEE Compliance
SAE J-1113-5 Load Dump (Transient Voltage)
Moisture Resistant

CERTIFICATIONS

CE Certification
e-Mark Certification
RCM Certification
FCC Certification

WEIGHT

0.3 lbs.

WARRANTY STATUS

3 year warranty
