RAM-GDS-CHARGE-V6U

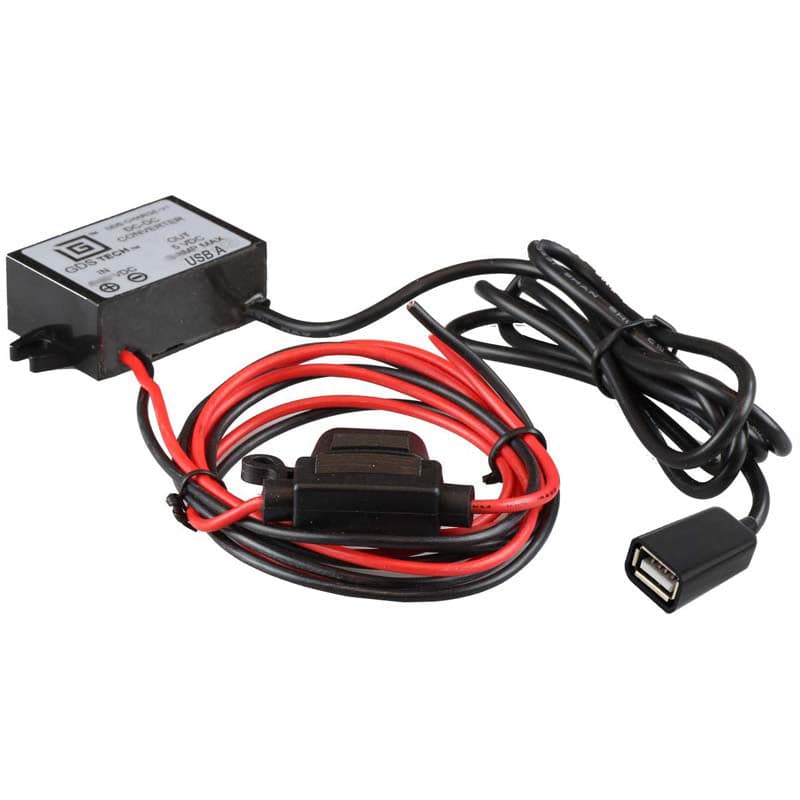

GDS® 8V-40V DC to 5V-9V DC Step Down Converter Charger with Female USB Type-A Connector - RAM-GDS-CHARGE-V6U

This item has been replaced by the RAM-GDS-CHARGE-V7BU - PDF Spec Sheet: Click Here

The GDS® Step Down Converter/Charger is the ideal solution for providing power to any 5V device in a variety of applications, including fleet vehicles, consumer automobiles, ATVs, motorcycles and more. This charger features a Female USB Type-A Female connector that can connect directly to any standard USB cable. The Step Down Converter/Charger will charge most 5V devices, and supports both Qualcomm® Quick Charge 2.0 and 3.0 as well as Apple iOS 2.1A and 2.4A.

- Input Voltage Range: 8V - 40V DC
- Output Voltage: 5VDC (USB 2.0) & 9VDC (QC only)
- Output Current: 2.5 Amps Max.
- Output Connector Type: USB 2.0 Female
- Output Cable Length: 1.2 Meters
- Input Cable Length: 1.2 Meters
- Operating Temperature Range: -10°C to +70°C
- Storage Temperature Range: -40°C to +70°C
- Overvoltage/Load Dump Compliance: Meets SAE J-1113
- Integrated Short Circuit Protection
- FCC, CE and ROHS Compliant
- USB 2.0 BC 1.2 DCP Support
- Qualcomm Quick Charge 2.0 and 3.0 Support
- Apple iOS 2.1A and 2.4A Support

Note:
The "U" in the part number reflects product packaged in poly bag.

Weight:
0.35 lbs.

Compatible Devices:
Any 5V device with a current requirement of 2.5A or less
