GDS® Cool-Dock™ + Data Sync for Samsung Tab A 8.4 SM-T307 - RAM-GDS-DOCKF-SAM67CU

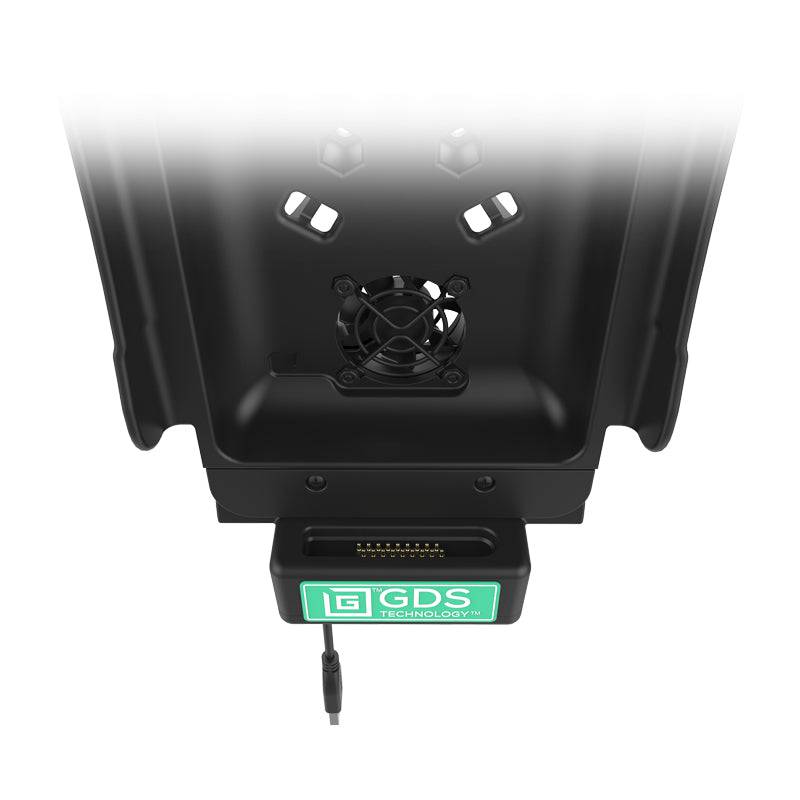

• Spring-loaded vehicle dock featuring GDS® Technology™ for data and charging capabilities with USB Type-C

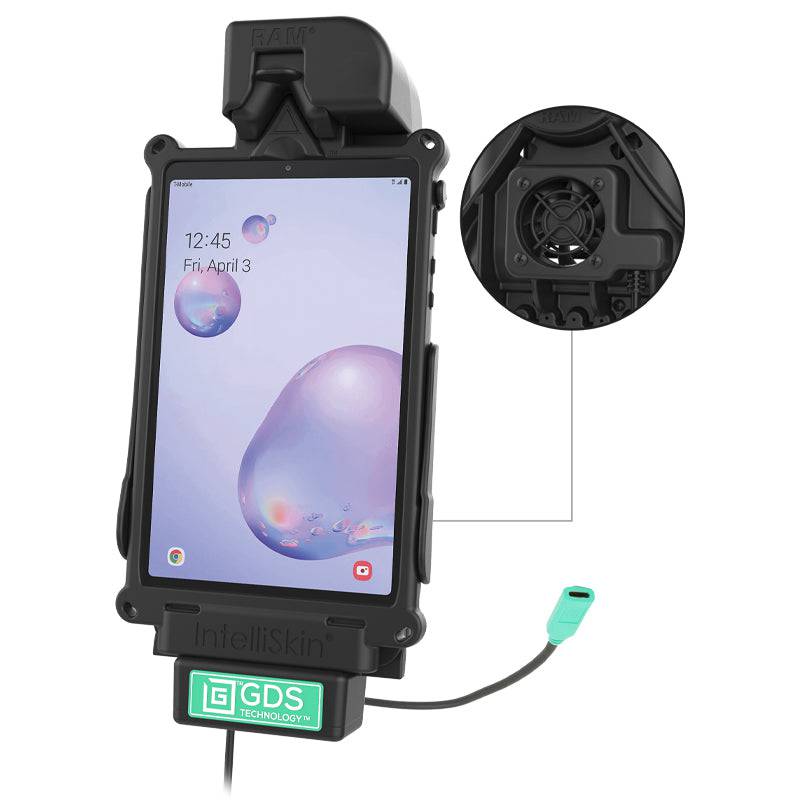

• Designed specifically for the Samsung Galaxy Tab A 8.4 (2020) in an IntelliSkin® Next Gen protective sleeve

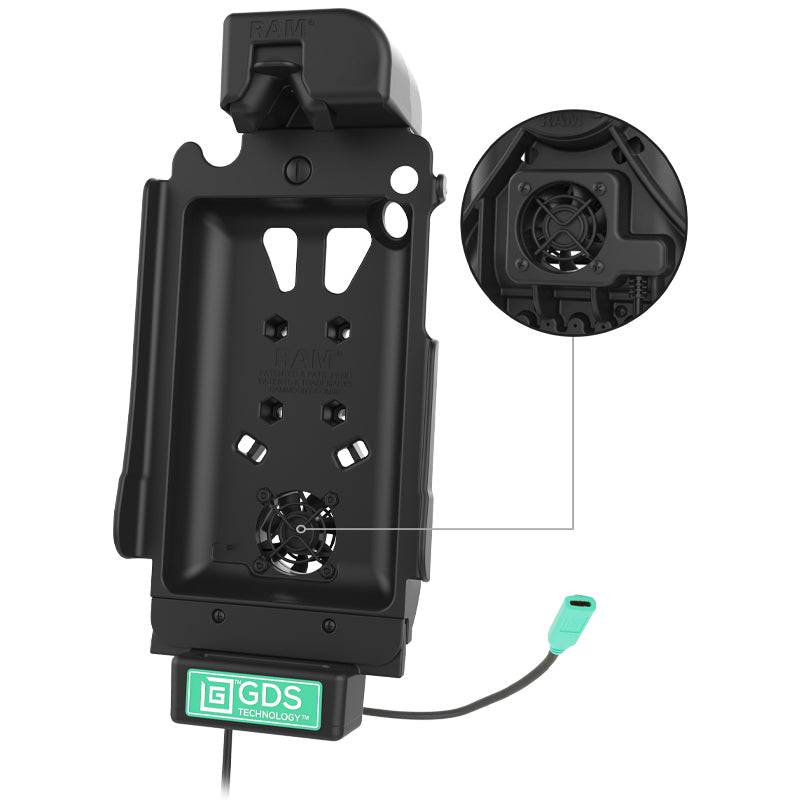

• Includes built-in 12-VDC Axial cooling fan with 2.2m long hardwire power cable and SAE quick disconnect for hardwire installation
• RAM® Mounts Compatible™ and compatible with the GDS® Hand-Stand™ Hand Strap and Kickstand attachment

OVERVIEW

The GDS^® Cool-Dock^™ is the upgraded version of the GDS^® Tough-Dock^™ including a built-in 12-VDC Axial cooling fan with a 2.2 meter long hardwire power cord. The GDS^® Cool-Dock^™ is the turnkey vehicle dock in the GDS^® Tech^™ line of vehicle docks designed to support the Samsung Galaxy Tab A 8.4 (2020) in a Next Gen IntelliSkin^® protective sleeve for your fleet. Using a USB Type-C connector, the GDS^® Cool-Dock^™ supports data sync and fast charging capabilities for the Samsung Galaxy Tab A 8.4 (2020). The GDS^® Cool-Dock^™ contains a 4-hole AMPS pattern; compatible with RAM^® ball and socket mounting systems. The GDS^® Cool-Dock^™ is backed by a 3-year warranty. Get the Heat Out!^™ with GDS^® Cool-Dock^™.

HARDWARE INCLUDED

(4) #8-32 x 5/8" Machine Screws
(4) #8-32 Nylock Nuts

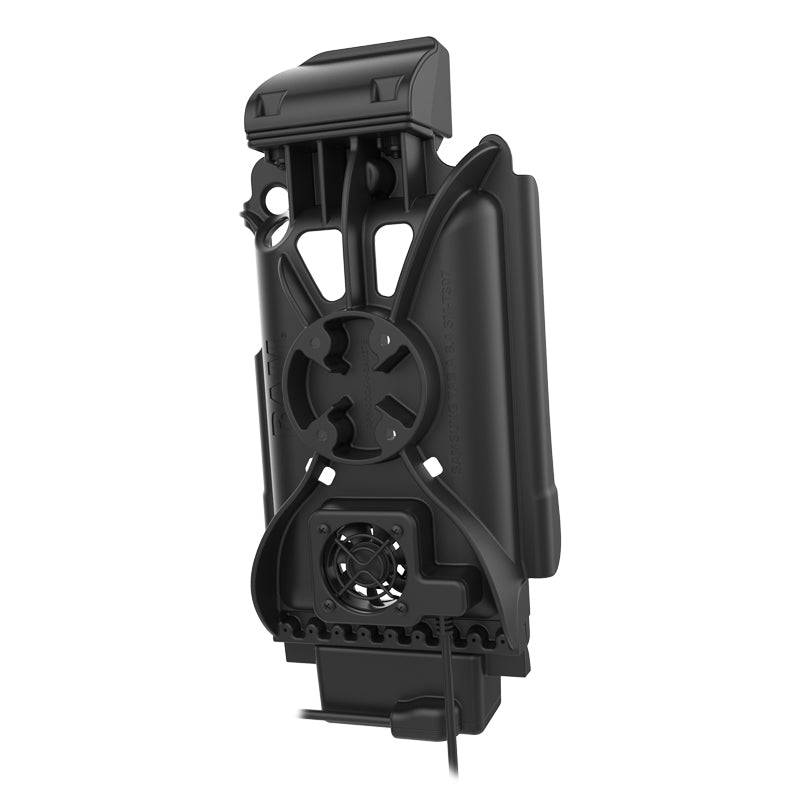

HOLL PATTERN

4-Hole AMPS: 1.181" x 1.496"

MATERIALS

High strength composite

PACKAGING TYPE

Poly Bag

OUTPUT VOLTAGE

5V - 20V @ 3A

POWER OUTPUT

60W

INPUT CONNECTOR

USB Type-C

TRANSFER SPEED

5Gbps

WEIGHT

1.19 lbs.

WARRANTY STATUS

3 year warranty

ADDITIONAL INFORMATION

The 3.5mm audio jack is blocked while in the dock. If access to this port is needed, see RAM-GDS-DOCKL-V9-SAM67CU.
