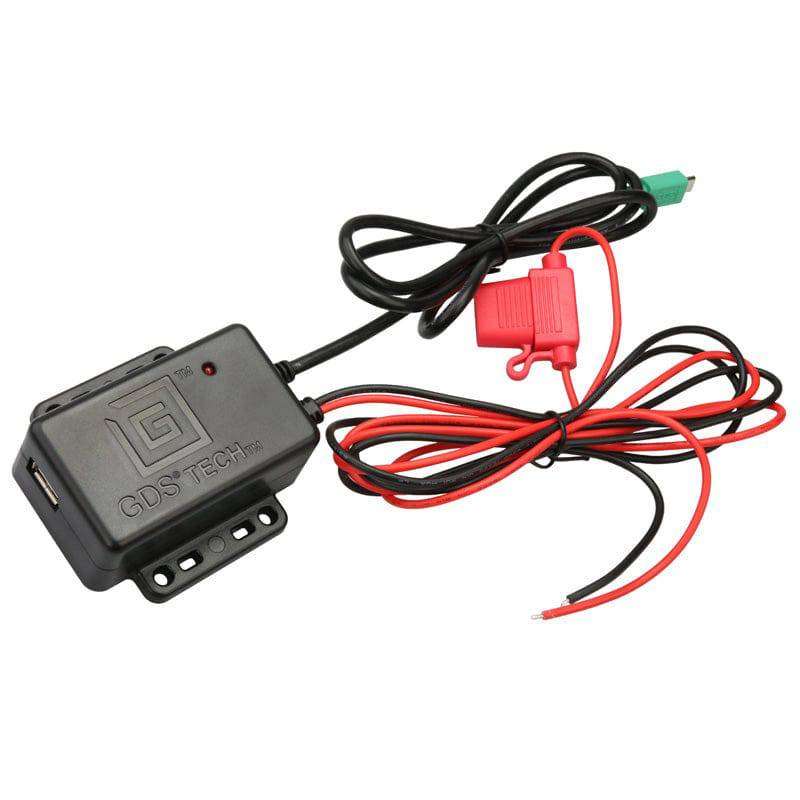

GDS® Hardwire Charger with mUSB Plug and Type-A Port - RAM-GDS-CHARGE-OTGAU

Leveraging the USB 2.0 OTG mode, the RAM-GDS-CHARGE-OTGAU adapter enables phones and tablets to charge and utilize the OTG accessory mode at the same time. This allows for the use of accessories such as keyboards, a mouse, USB 2.0 Flash drive, barcode scanners, printers, and other devices supported in the USB-IF OTG specification. Eliminating the need for a separate charger, the adapter allows the tablet to be in both host mode and accept a charge of up to 1.67A (at ~5V). The internal charger supports USB 2.0 BC1.2 mode as a DCP mode charger to the host device. The adapter solves the desire to support peripherals and charge through the single Micro-USB port on the host device.

GDS® Specifications:
Input Range: 8V - 40V DC

Output Voltage: 5VDC
Output Current: 2.5A max
Output Connector Types: Male Micro-USB
Input Cable Length: 1.2 Meters
Output Cable Length: 1 Meter
Includes USB 2.0 Type-A port on housing to connect a USB 2.0 Type A Male peripheral
USB 2.0 480Mbps Peripheral Port Speed
Operating Temperature Range: -30°C to +70°C
Storage Temperature Range: -40°C to +85°C
Overvoltage Protection (OVP)
Integrated Short Circuit Protection (SCP)
FCC, Industry Canada, CE, RCM, WEEE, and ROHS Compliant
USB 2.0 BC 1.2 DCP Support
USB 2.0 Type A Female Port Max. Current 500mA

 GDS® Hardwire Charger with mUSB Plug and Type-A Port - PDF

• Samsung Galaxy Tab A (8.0", 9.7", 10.1")
• Samsung Galaxy Tab E 8.0 SM-T377
• Samsung Galaxy Tab E 9.6
• Samsung Galaxy Tab S2 (8.0", 9.7")
• Samsung Galaxy Tab 4 (8.0", 10.1")
• Samsung Galaxy Tab S (8.4", 10.5")
