GDS® Locking Vehicle Dock for Samsung Tab A 8.0 (2018) Dash Mount Bundle - RAM-GDS-B-101LB-SAM40-V7B1U

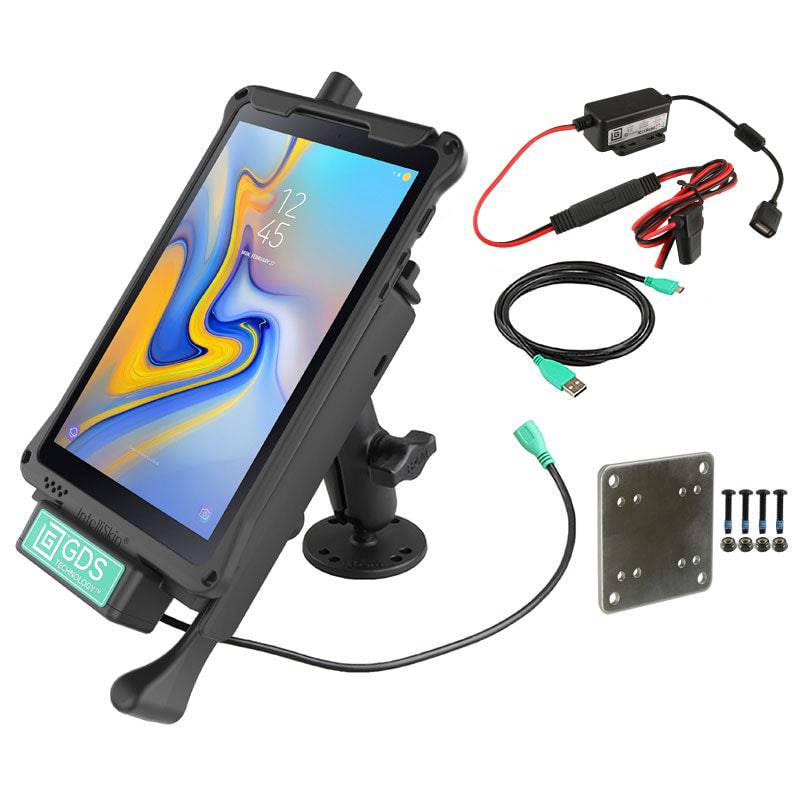

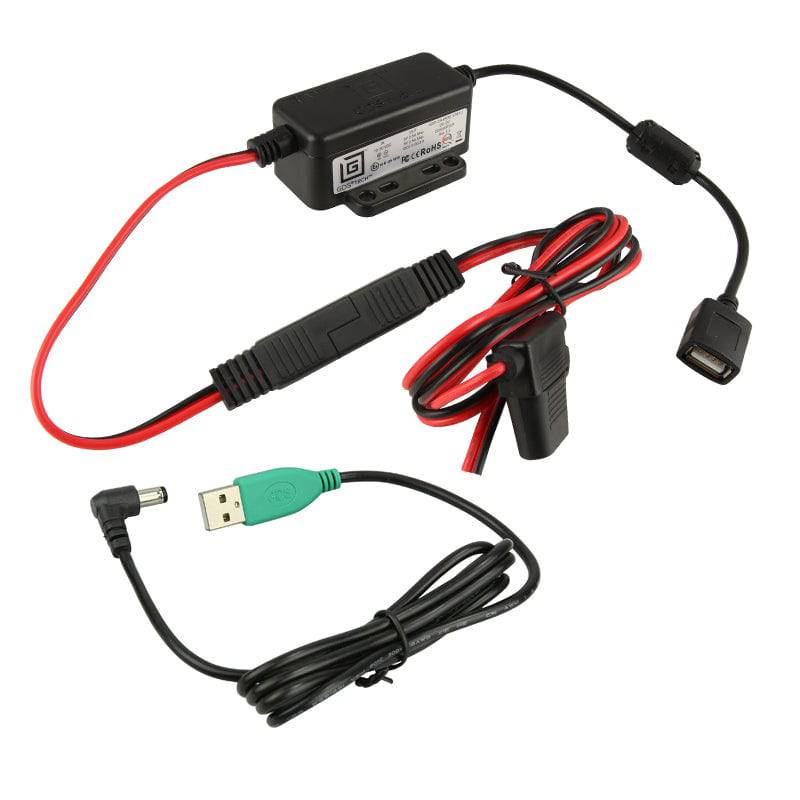

This transportation bundle for the Samsung Tab A 8.0 (2018) has everything needed to keep your device charged, protected, and connected while on the road. Included in the bundle is an IntelliSkin^® sleeve (RAM-GDS-SKIN-SAM40), GDS^® locking vehicle dock (RAM-GDS-DOCKL-V2-SAM40U), universal B size double ball mount with two round plates (RAM-B-101U), dashboard backing plate adapter (RAM-202-225BU), and GDS^® modular hardwire charger (RAM-GDS-CHARGE-MUSB-V7B1U).

This anti-slip mounting solution isolates and dampens shock and vibration, allowing for the perfect viewing angle while protecting the Samsung tablet. The vehicle dock allows for easy removal of the device, and the IntelliSkin^® sleeve provides certified MIL-STD-810G drop protection. When it comes time to upgrade devices, the universal GDS^® connector allows for scalability by simply switching the top cup of your vehicle dock.

HARDWARE INCLUDED

Assembly Hardware
(2) Keys
(1) 3" x 3" Steel Backing Plate
(4) #10-24 x 1" Thread Locking Screws
(4) #10-24 Nylock Nuts

SOCKET-TO-SOCKET LENGTH

3"

HOLE PATTERN

4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter

BALL/SOCKET SIZE

B Size (1")

WEIGHT CAPACITY

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

MATERIALS

Steel
Marine-grade aluminum
High strength composite

PACKAGING TYPE

Poly Bag

INPUT VOLTAGE

5V - 12V @ 2A

WEIGHT

2.9 lbs.

WARRANTY STATUS

3 year warranty

ADDITIONAL INFORMATION

• mUSB products supporting USB 2.0/3.0 will have a max current of 1.67A
