RAM-GDS-CHARGE-V8BU

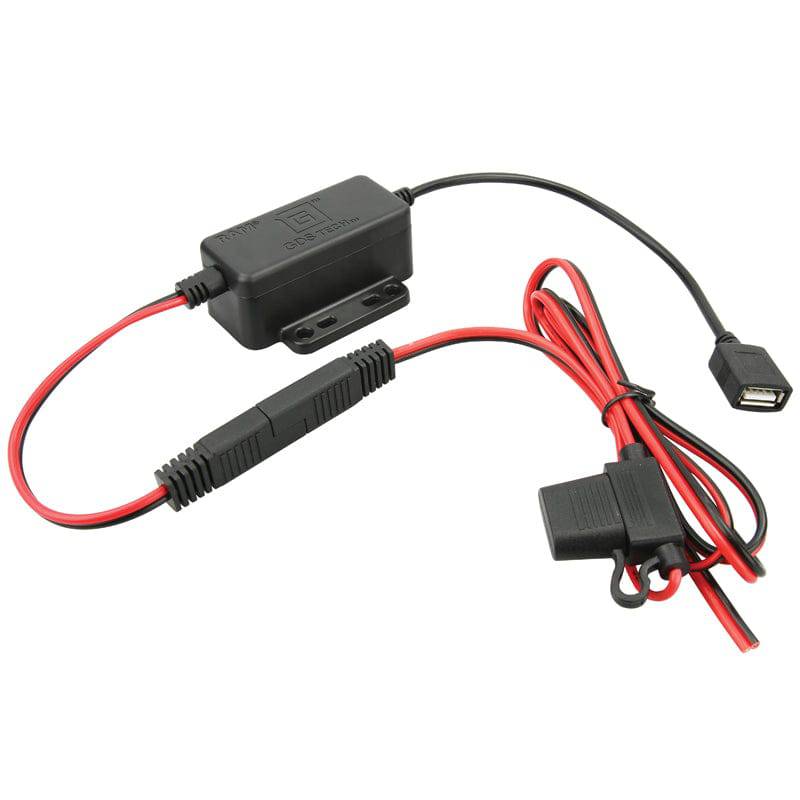

GDS® Modular 30-64V Hardwire Charger with Female USB Type A Connector - RAM-GDS-CHARGE-V8BU

In Stock  - Ships for Free!

  • Hardwire charger includes USB Type-A female connector; 30V-64V input range, 5V output
  • When upgrading devices, avoid rewiring by unplugging power connector and attaching new charger components
  • Part of the GDS® Ecosystem™ to keep devices protected, connected, and charged in nearly any application
  • Backed by a 3-year warranty

OVERVIEW

The GDS® Modular Hardwire Charger with Female USB Type A Connector is the ideal solution for providing power to any GDS® vehicle solution. With the quick disconnect feature, easily connect any USB Type A charging cable. When it comes time to upgrade, avoid any rewiring by simply unplugging the power connector and attaching the new charger components. Compatible with any 5V device with a 30V-64V input range.

PACKAGING TYPE

Poly Bag


INPUT VOLTAGE

30V-64V DC


OUTPUT VOLTAGE

5-9VDC


OUTPUT CURRENT

2.5A max


INPUT CONNECTOR

Female USB Type A


INPUT CABLE LENGTH

1.2 Meters including 2 Pole Flat Marine Connector


OUTPUT CABLE LENGTH

.2 Meters


OPERATING TEMPERATURE

-10°C to +70°C


STORAGE TEMPERATURE

-40°C to +70°C


COMPLIANCE

Over Voltage Protection
Short Circuit Protection
Reverse Polarity Protection
RoHS Compliance
WEEE Compliance
SAE J-1113-5 Load Dump (Transient Voltage)
Moisture Resistant

CERTIFICATIONS

CE Certification
e-Mark Certification
RCM Certification
FCC Certification


WEIGHT

0.3 lbs.


WARRANTY STATUS

3 year warranty
