RAM-GDS-CHARGE-V7-M55U

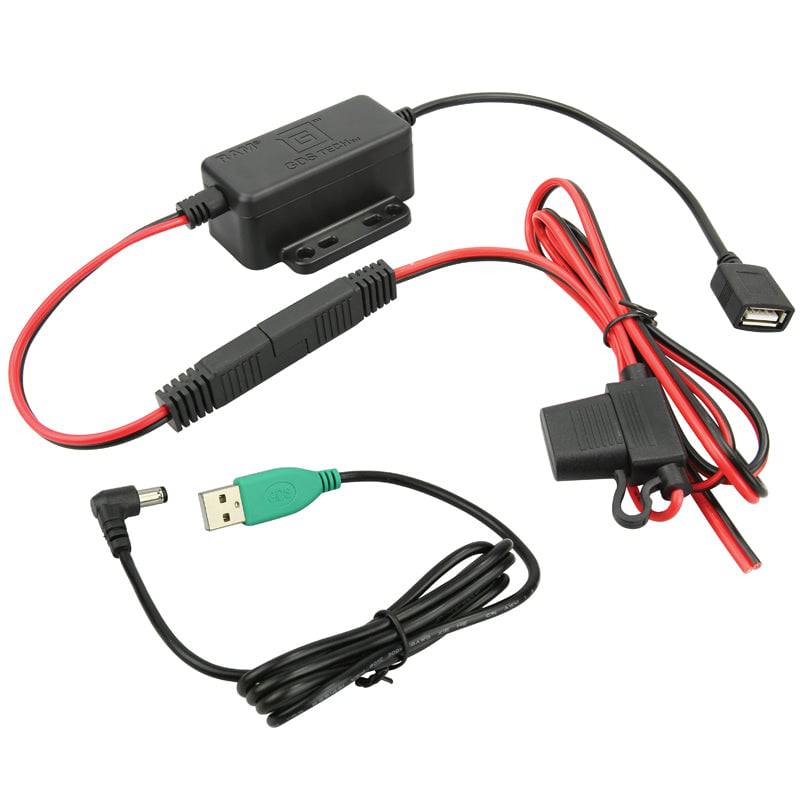

GDS® Modular Hardwire Charger - RAM-GDS-CHARGE-V7-M55U

The GDS® Modular Hardwire Charger with DC cable is the ideal solution for providing power to any GDS®vehicle solution. With the quick disconnect feature, easily connect any USB Type A charging cable. When it comes time to upgrade, avoid any rewiring by simply unplugging the power connector and attaching the new charger components.

Compatible Devices:
Any 5V device with a current requirement of 2.5A or less

- Input Range: 8V - 40V DC
- Output Voltage: 5VDC
- Output Current: 2.5A max
- Output Connector Type: 90° DC plug
- Input Cable Length: 1.2 Meters overall length including 2 Pole Flat Marine Connector
- Output Cable Length: 1.2 Meters (w/ included 1M Type-A Male to 5.5mm OD/2.5mm ID 90° DC cable)
- Operating Temperature Range: -10°C to +70°C
- Storage Temperature Range: -40°C to +70°C
- Overvoltage/Load Dump Compliance: Meets SAE J-1113
- Integrated Short Circuit Protection
- FCC, CE, WEEE, and ROHS Compliant
- USB 2.0 BC 1.2 DCP Support

Note:
The "U" in the part number reflects product packaged in poly bag.

Weight:
0.39 lbs.
