GDS® Tough-Dock™ Locking Vehicle Bundle for Samsung Tab A7 Lite 8.7" - RAM-GDS-101LB-SAM80-V7B1U

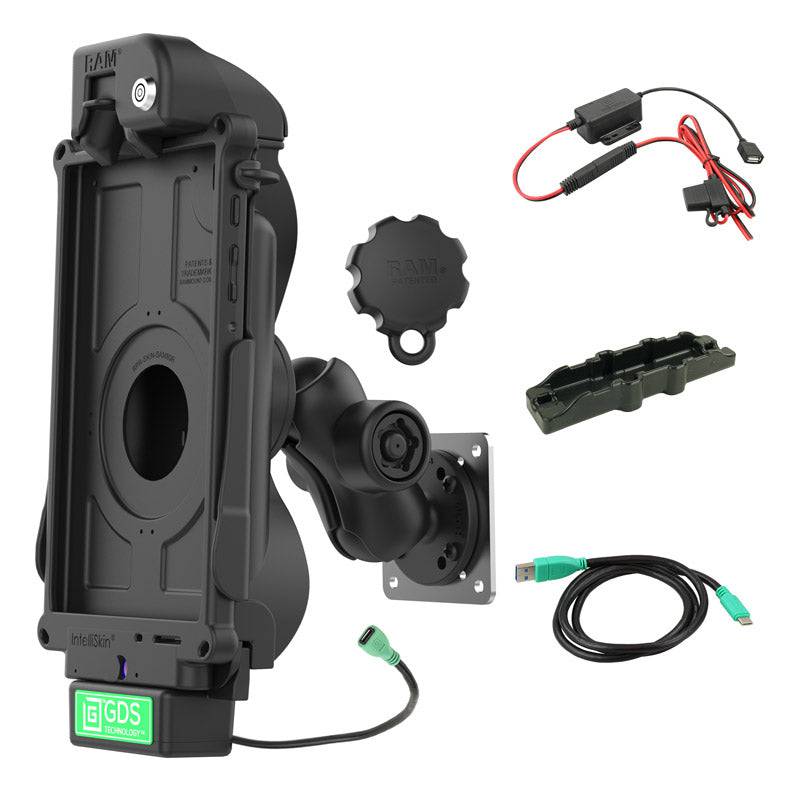

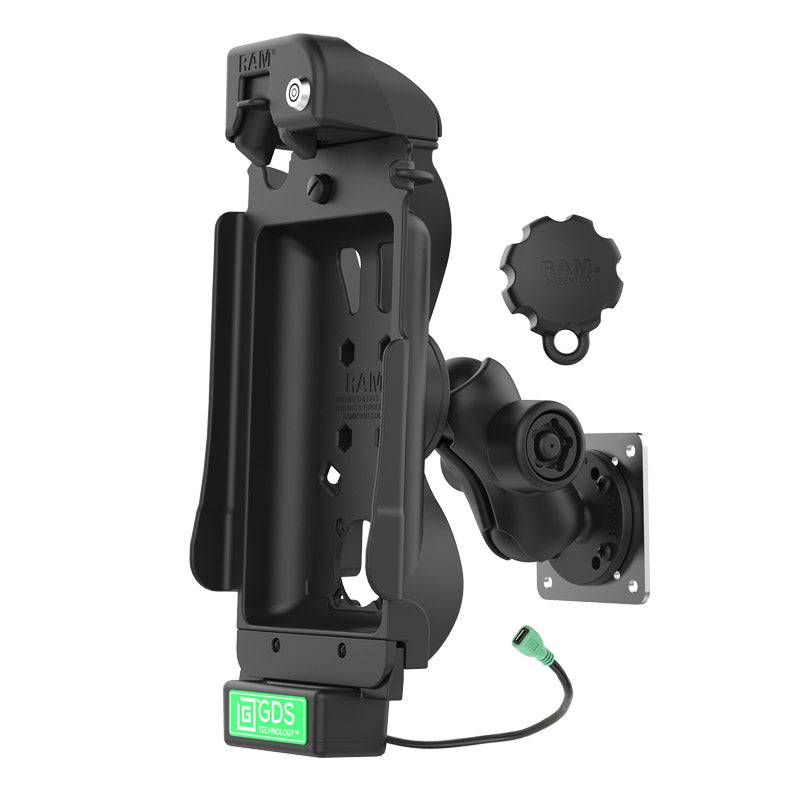

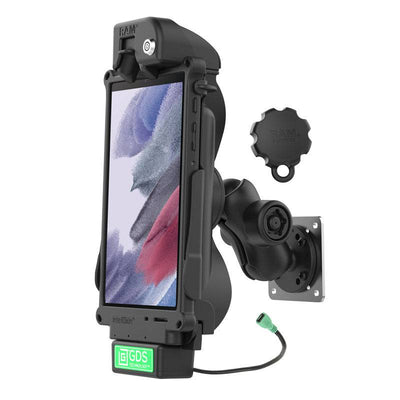

This security bundle is the ideal locking solution for transportation and large fleet vehicles paired with your new Samsung Galaxy Tab A7 Lite 8.7" (SM-T220 & SM-T225). This bundle includes key locking GDS^® Tough-Dock^™, IntelliSkin^® Next Gen for Samsung Galaxy Tab A7 Lite 8.7" (SM-T220 & SM-T225), hardwire charger with USB Type A connector, C Size double ball mount with short arm, backing plate adapter, RAM^® Pin-Lock^™ security knob for socket arm and x2 cable clamps. This bundle is also ELD compliant providing a turnkey solution for your fleet.

HARDWARE INCLUDED

Assembly Hardware
(2) Dock Keys
(1) Knob Key
(1) 3" x 3" Steel Backing Plate
(4) #10-24 x 1" Thread Locking Screws
(4) #10-24 Nylock Nuts
(1) mUSB Cable Clamp
(1) USB Type-A Cable Clamp
(1) 1.2 Meter mUSB Cable
(1) Vehicle Hardwire Charger

SOCKET-TO-SOCKET LENGTH

2.5"

HOLE PATTERN

4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter

BALL/SOCKET SIZE

C Size (1.5")

MATERIALS

Steel
Marine-grade aluminum
High strength composite

PACKAGING TYPE

Poly Bag

OUTPUT VOLTAGE

5V - 12V @ 2A

INPUT CONNECTOR

mUSB 2.0 Female

COMPLIANCE

Over Voltage Protection
Short Circuit Protection
Reverse Polarity Protection
RoHS Compliance
WEEE Compliance
SAE J-1113-5 Load Dump (Transient Voltage)
Moisture Resistant

CERTIFICATIONS

CE Certification
e-Mark Certification
RCM Certification
FCC Certification

WARRANTY STATUS

3 year warranty

ADDITIONAL INFORMATION

• mUSB products supporting USB 2.0/3.0 will have a max current of 1.67A
