      Home / Products / GDS® Tough-Dock™ Vehicle Bundle for Samsung Tab A7 Lite 8.7” - RAM-GDS-101B-SAM80-V7B1U
      GDS® Tough-Dock™ Vehicle Bundle for Samsung Tab A7 Lite 8.7” - RAM-GDS-101B-SAM80-V7B1U - OC Mounts
      GDS® Tough-Dock™ Vehicle Bundle for Samsung Tab A7 Lite 8.7” - RAM-GDS-101B-SAM80-V7B1U - OC Mounts
      GDS® Tough-Dock™ Vehicle Bundle for Samsung Tab A7 Lite 8.7” - RAM-GDS-101B-SAM80-V7B1U - OC Mounts
      GDS® Tough-Dock™ Vehicle Bundle for Samsung Tab A7 Lite 8.7” - RAM-GDS-101B-SAM80-V7B1U - OC Mounts
      GDS® Tough-Dock™ Vehicle Bundle for Samsung Tab A7 Lite 8.7” - RAM-GDS-101B-SAM80-V7B1U - OC Mounts
      GDS® Tough-Dock™ Vehicle Bundle for Samsung Tab A7 Lite 8.7” - RAM-GDS-101B-SAM80-V7B1U - OC Mounts

      RAM-GDS-101B-SAM80-V7B1U

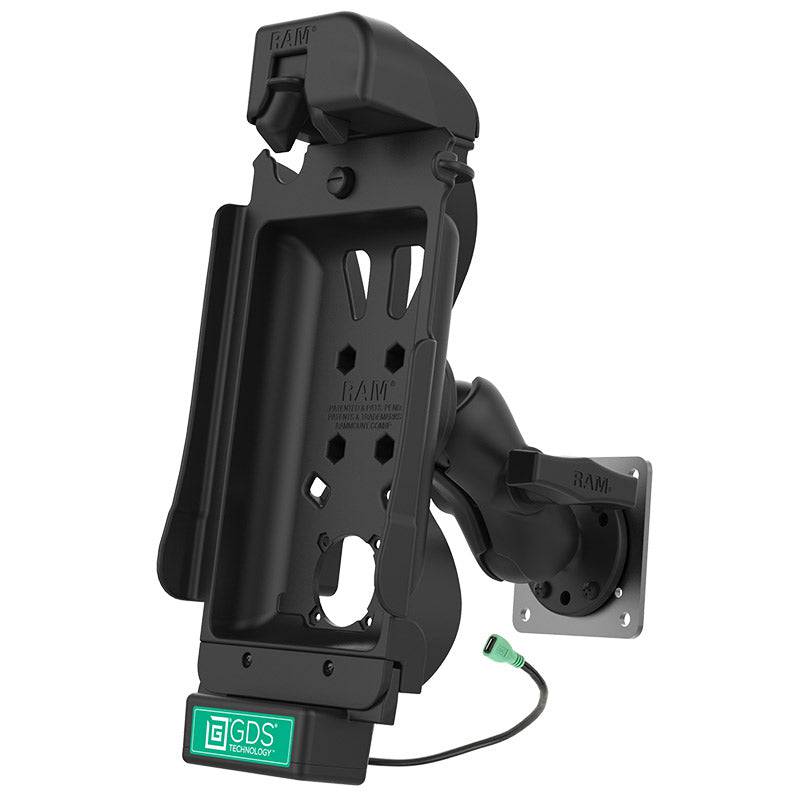

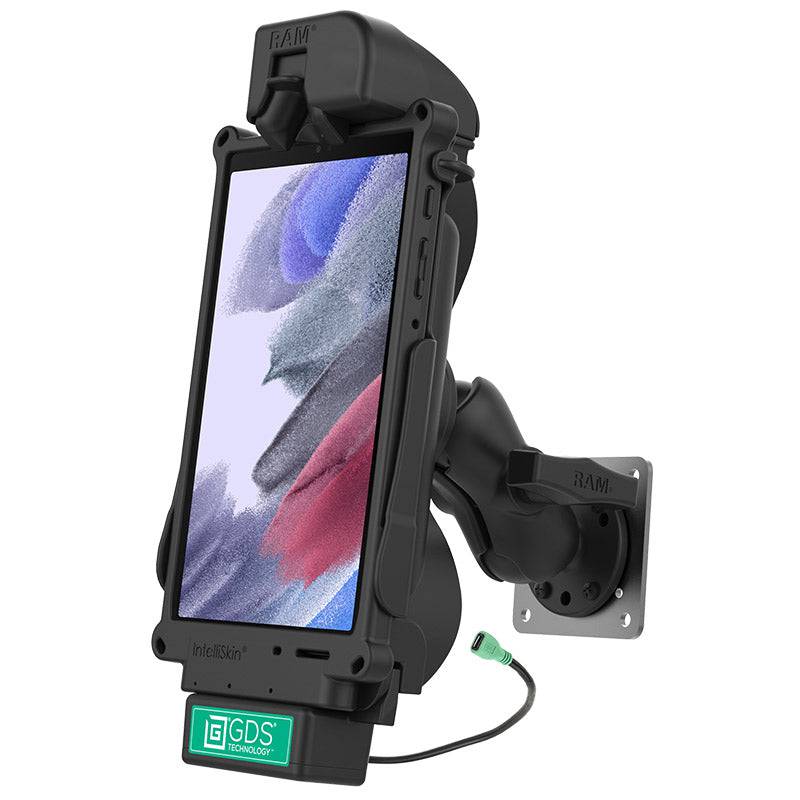

      GDS® Tough-Dock™ Vehicle Bundle for Samsung Tab A7 Lite 8.7” - RAM-GDS-101B-SAM80-V7B1U

      Out of Stock    ( Chat Live to get an ETA )

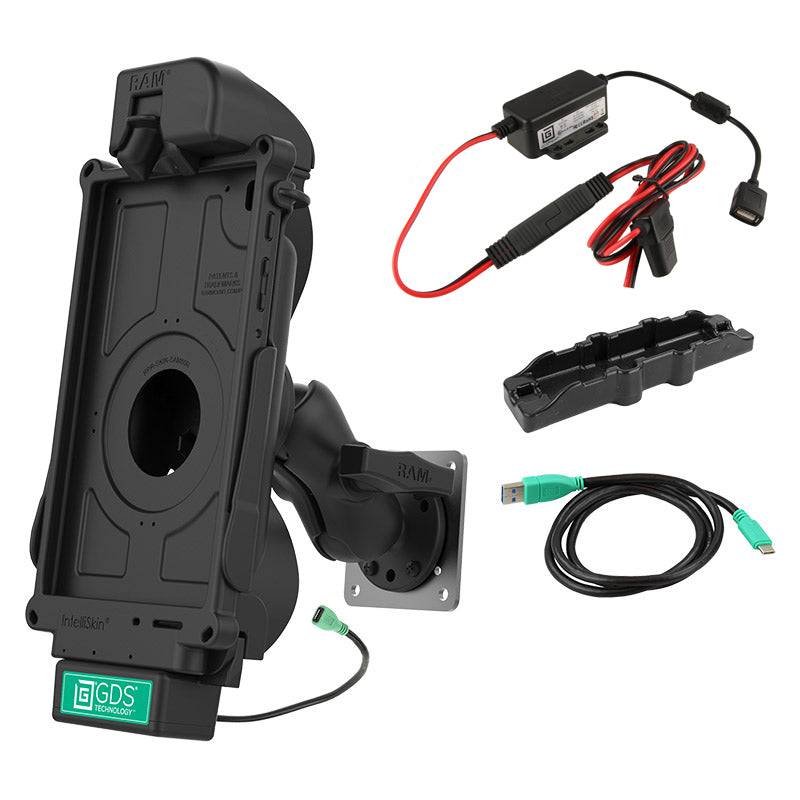

      • Bundle includes non-locking GDS® Tough-Dock™, IntelliSkin® Next Gen for Samsung Galaxy Tab A7 Lite 8.7" (SM-T220 & SM-T225), hardwire charger with USB Type A connector, low-profile double ball mount with C size (1.5") ball, mUSB extension cable, backing plate adapter and cable clamp
      • Dock features GDS® Technology™ for charging capabilities; uses 1.2 meter cable and mUSB port to connect to power
      • RAM® Mounts Compatible™ and compatible with the GDS® Hand-Stand™ Hand Strap and Kickstand attachment
      • Backed by a 3-year warranty

      OVERVIEW

      Ideal for transportation and large fleet vehicles, this bundle is all you need to pair with your new Samsung Galaxy Tab A7 Lite 8.7" (SM-T220 & SM-T225). This bundle includes non-locking GDS® Tough-Dock™, IntelliSkin® Next Gen for Samsung Galaxy Tab A7 Lite 8.7" (SM-T220 & SM-T225), hardwire charger with USB Type A connector, C Size double ball mount with short arm, mUSB extension cord, backing plate adapter and cable clamp. This bundle is also ELD compliant providing a turnkey solution for your fleet.

      HARDWARE INCLUDED

       Assembly Hardware
      (1) 3" x 3" Steel Backing Plate
      (4) #10-24 x 1" Thread Locking Screws
      (4) #10-24 Nylock Nuts
      (1) mUSB Cable Clamp
      (1) USB Type-A Cable Clamp
      (1) 1.2 Meter mUSB Cable
      (1) Vehicle Hardwire Charger


      SOCKET-TO-SOCKET LENGTH

       2.5"


      HOLE PATTERN

       4-Hole AMPS: 1.181" x 1.496"
      3-Hole 120-Degree: 1.812" Diameter


      BALL/SOCKET SIZE

       C Size (1.5")


      MATERIALS

       Steel
      Marine-grade aluminum
      High strength composite


      PACKAGING TYPE

       Poly Bag


      OUTPUT VOLTAGE

       5V - 12V @ 2A


      INPUT CONNECTOR

       mUSB 2.0 Female


      COMPLIANCE

       Over Voltage Protection
      Short Circuit Protection
      Reverse Polarity Protection
      RoHS Compliance
      WEEE Compliance
      SAE J-1113-5 Load Dump (Transient Voltage)
      Moisture Resistant


      CERTIFICATIONS

       CE Certification
      e-Mark Certification
      RCM Certification
      FCC Certification


      WEIGHT

       3.25 lbs.


      WARRANTY STATUS

       3 year warranty

      IntelliSkin® Next Gen For Samsung Tab A7 Lite 8.7” - RAM-GDS-SKIN-SAM80-NG

      GDS® Tough-Dock™ For Samsung Tab A7 Lite 8.7” - RAM-GDS-DOCK-SAM80U

      RAM C Size 1.5" Ball Mount With Short Double Socket Arm & 2/2.5" Round Plate AMPs Hole Pattern - RAM-101U-B

      3 X 3 Backer Plate W/ AMPS And 1.5" X 2" Hole Patterns With Hardware - RAM-202-225BU

      GDS® Modular 10-30V Hardwire Charger With Female USB Type A Connector - RAM-GDS-CHARGE-V7B1U

      Samsung

      Galaxy Tab A7 Lite 8.7" (SM-T220 & SM-T225) with IntelliSkin® Next Gen

      Instructions for Modular Hardwire Charger - PDF

      RAM® HandStand™ Tablet Hand Strap And Kick Stand - RAM-GDS-HS1U

      GDS® Hand-Stand™ Magnetic Hand Strap And Kick Stand For Tablets - RAM-GDS-HS1MU

      RAM Shoulder Strap Accessory For IntelliSkin® Products - RAM-GDS-SS1U

      IntelliSkin® Contact Brush - RAM-GDS-BRUSH-01U

      GDS® Desktop Dock With USB Type-C For IntelliSkin® HD™ - RAM-GDS-DOCK-D2C-NDU

      GDS® 6-Port Desktop Charger For IntelliSkin® Next Gen - RAM-GDS-DOCK-6G1P-NGU

      RAM Snap-Con™ GDS® To Type-C USB Adaptor - RAM-GDS-AD3CU

      RAM® Microphone With Steel Mounting Clip - RAM-MIC-A01

      GDS® Audio™ Amplified Speaker - RAM-SPEAK-A01

      GDS® Audio™ Amplified Speaker With PTT Breakout Feature - RAM-SPEAK-A02

      Short RAM® Speaker/Microphone Bracket Adapter - RAM-101-MIC1U

      Standard RAM® Speaker/Microphone Bracket Adapter - RAM-101-MIC2U
