GDS® Uni-Conn™ Vehicle Bundle + Single USB-C for Samsung Tab A9+ - RAM-GDS-U1-SAM88-KIT4

The GDS® Uni-Conn™ Vehicle Bundle + Single USB-C for Samsung Tab A9+ (RAM-GDS-U1-SAM88-KIT4) is a comprehensive kit of everything needed to deploy the Tab A9+ in your fleet. It contains one GDS® Uni-Conn™ dock, Uni-Conn™ adapter, IntelliSkin® for the Tab A9+, and short double ball mount with backing plate. The dock uses a USB Type-C female power connector while the USB-C pigtail allows you to connect one input device such as a mouse, keyboard, scanner gun, & more.

The integrated pogo pins connect to the IntelliSkin®-wrapped device, providing power while docked. This dock features an easy docking and undocking process, simply place the IntelliSkin®-wrapped device into the base of the dock and push it to snap into place. When undocking, a simple push of a lever releases the tablet. The GDS® Uni-Conn™ is backed by a 3-year warranty. Warranty is void if the lever stop is not installed. Always Protected. Always Connected.® One Dock to Connect Them All™

Specs & Features

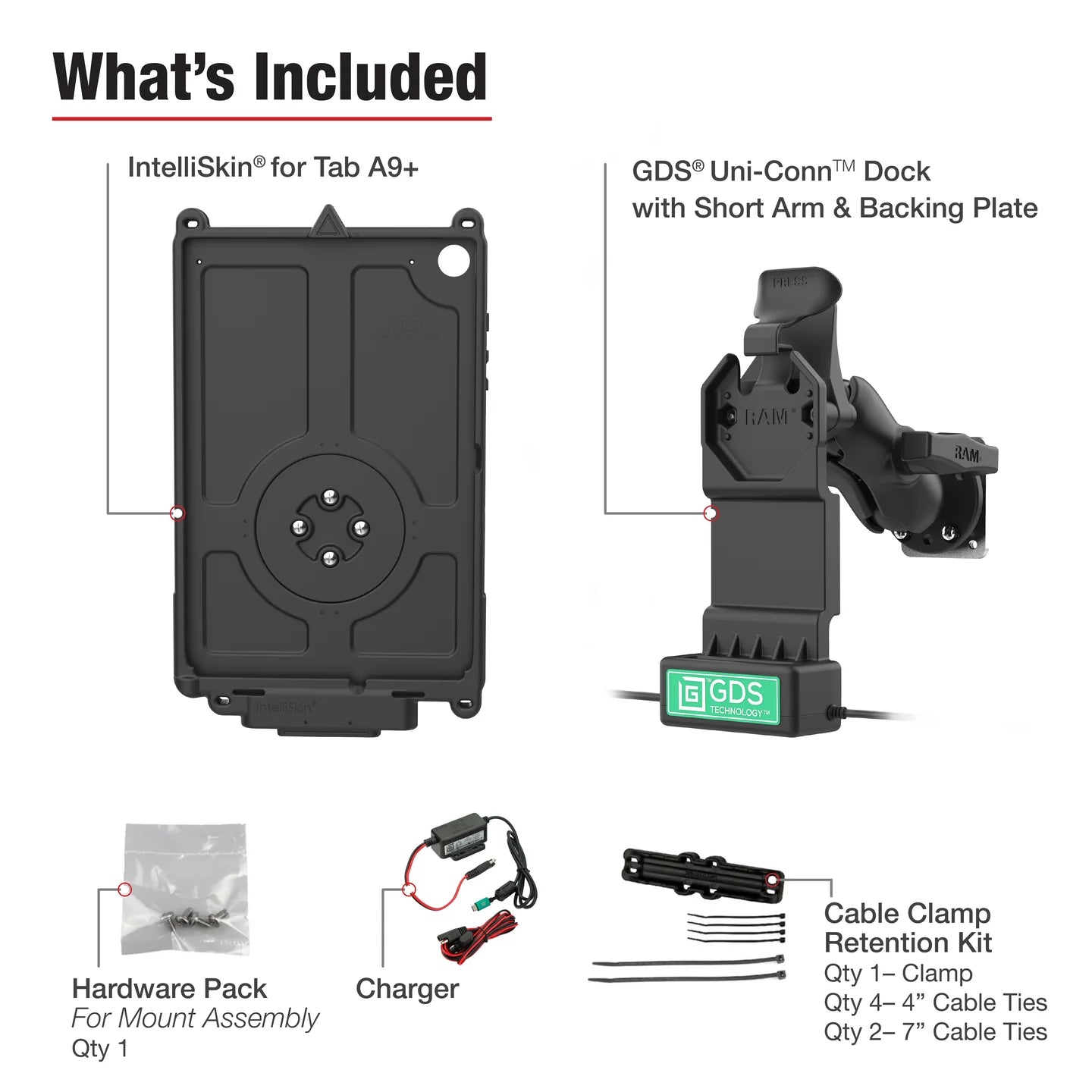

• Bundle includes the GDS® Uni-Conn™ dock, Uni-Conn adapter, IntelliSkin® Next Gen for Samsung Tab A9+, C size double ball mount with short arm, backing plate adapter, and cable clamp

• Dock features GDS® Technology™ for charging and data sync capabilities; one USB-C port connects to power and one USB-C port connects one input device

• Uni-Conn™ dock features an easy device insertion and removal

• Backed by a 3-year warranty

hardware included:
Assembly Hardware
(1) 2.10" x 2.60" Steel Backing Plate
(4) #8-32 x 1" Screws
(4) #8 Split Lock Washers
(4) #8 Flat Washers
(2) Cable Clamps
(1) Vehicle Hardwire Charger

socket to socket length:
2.5"

ball size:
C Size (1.5")

materials:
Steel
Marine-grade aluminum
High strength composite

output voltage:
5V - 12V @ 3A max

power output:
15W

input connector:
USB Type-C
USB Type-C for 1 Peripheral

input cable length:
215mm

output cable length:
215mm

peripheral output:
500mAh

Weight:
3.96 lb
