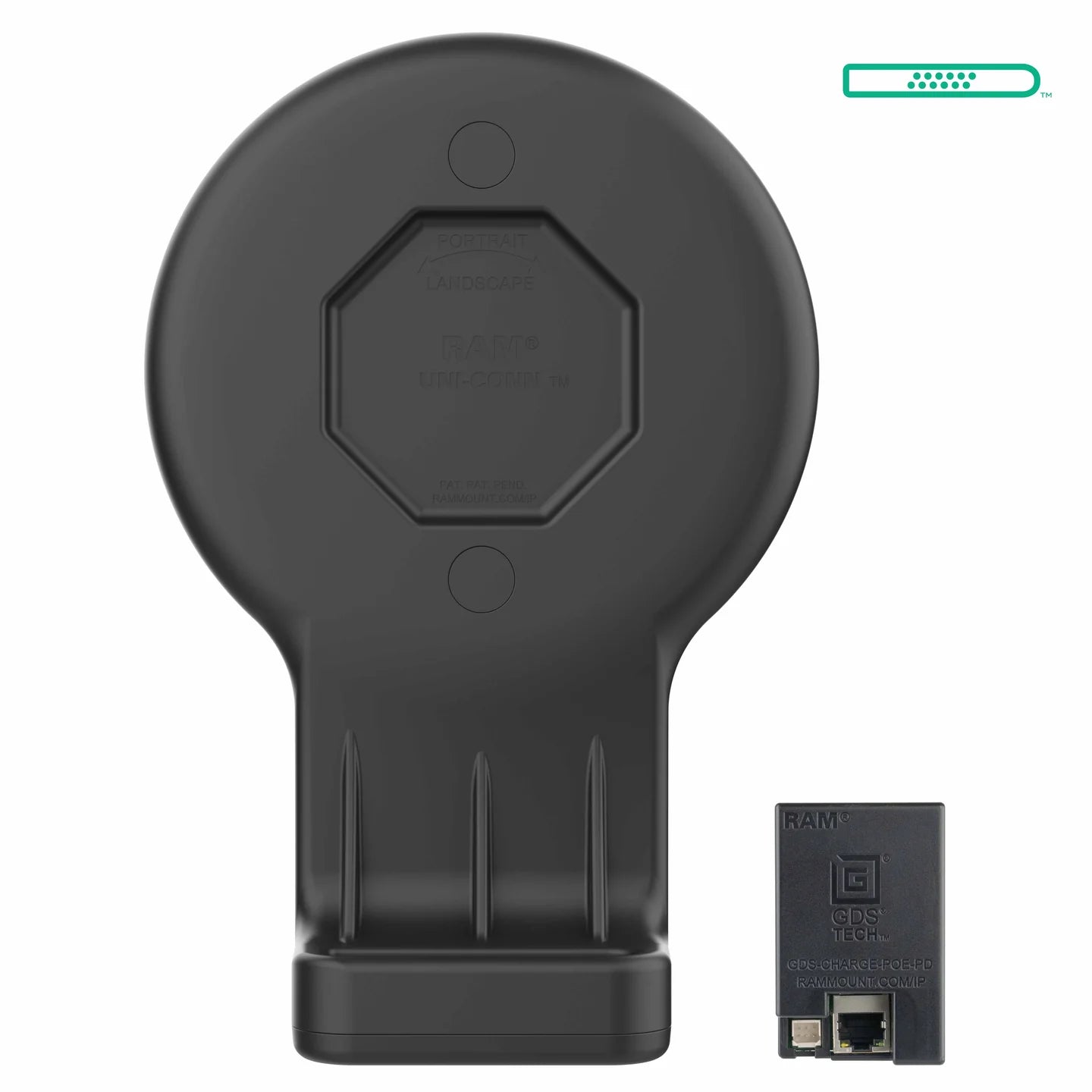

GDS® Uni-Conn™ Wall Dock with Magnetic Receiver & PoE - RAM-GDS-DOCK-W3-POE

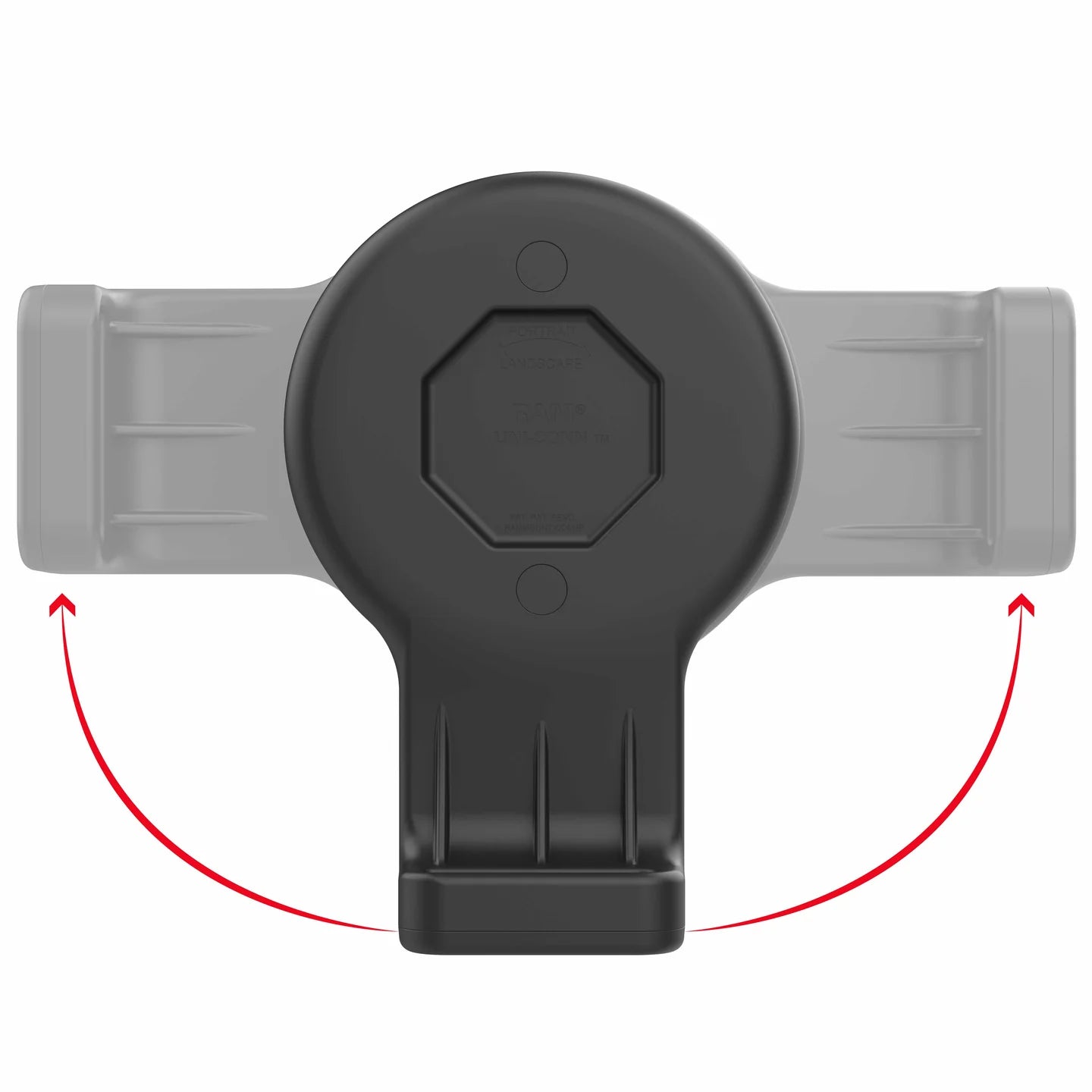

The GDS® Uni-Conn™ Wall Dock with Magnetic Receiver & PoE (RAM-GDS-DOCK-W3-POE) is an adjustable wall dock that swivels 180 degrees to enable landscape and portrait mounting. This dock is designed for devices enclosed in an IntelliSkin® Thin-Case™. Easily dock and undock your device with the assistance of the magnetic attachment mechanism.

Power over Ethernet (PoE) is provided to the pogo pins integrated into the GDS® Uni-Conn™ adapter via RJ45 (Ethernet) connector. This dock installation requires a standard rectangle electrical outlet box (not included). One Dock to Connect Them All™ Always Protected. Always Connected.®

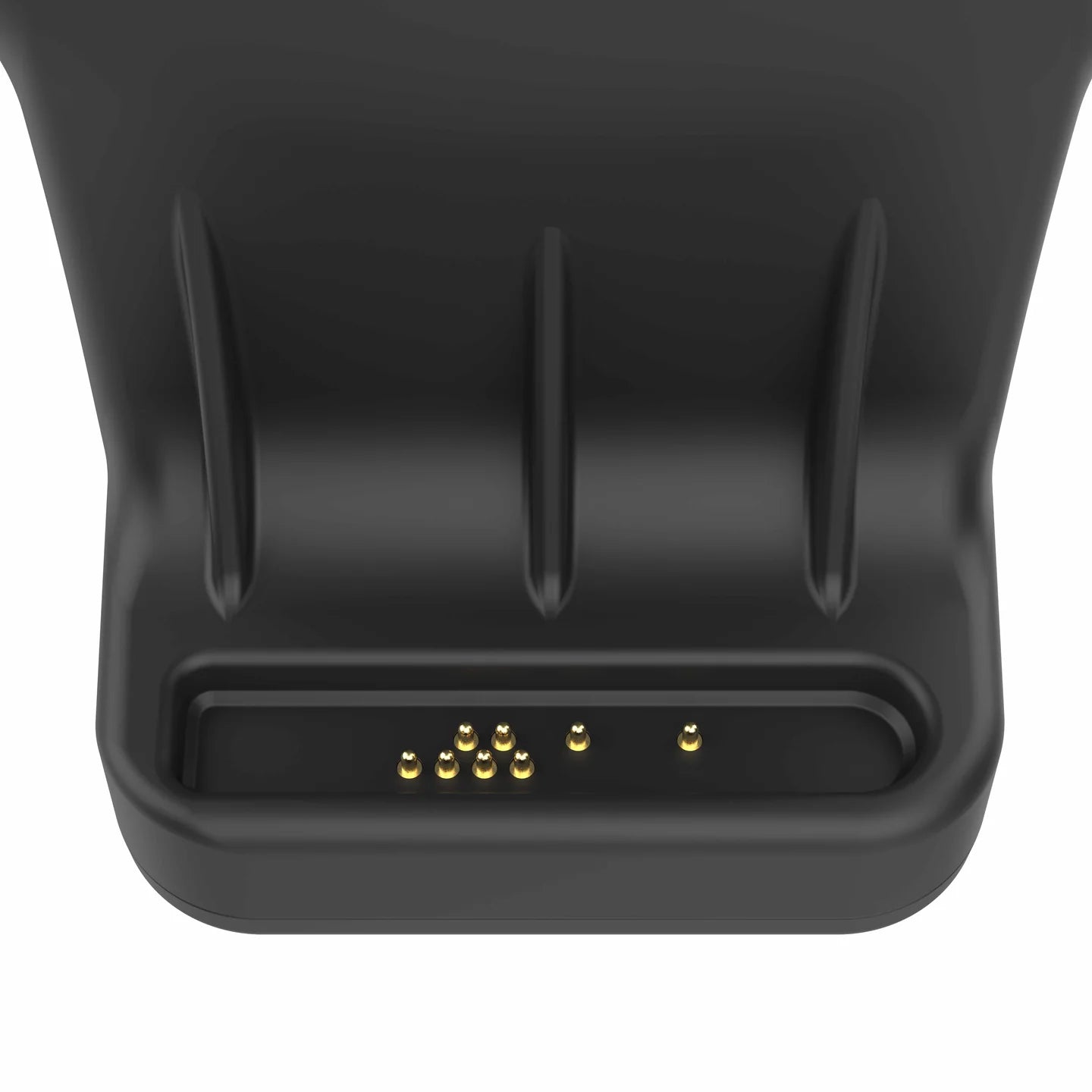

• Magnetic wall dock featuring GDS® Technology™ uses integrated pogo pins to provide PoE (Power over Ethernet) charging capabilities; allows for secure software updates during downtime

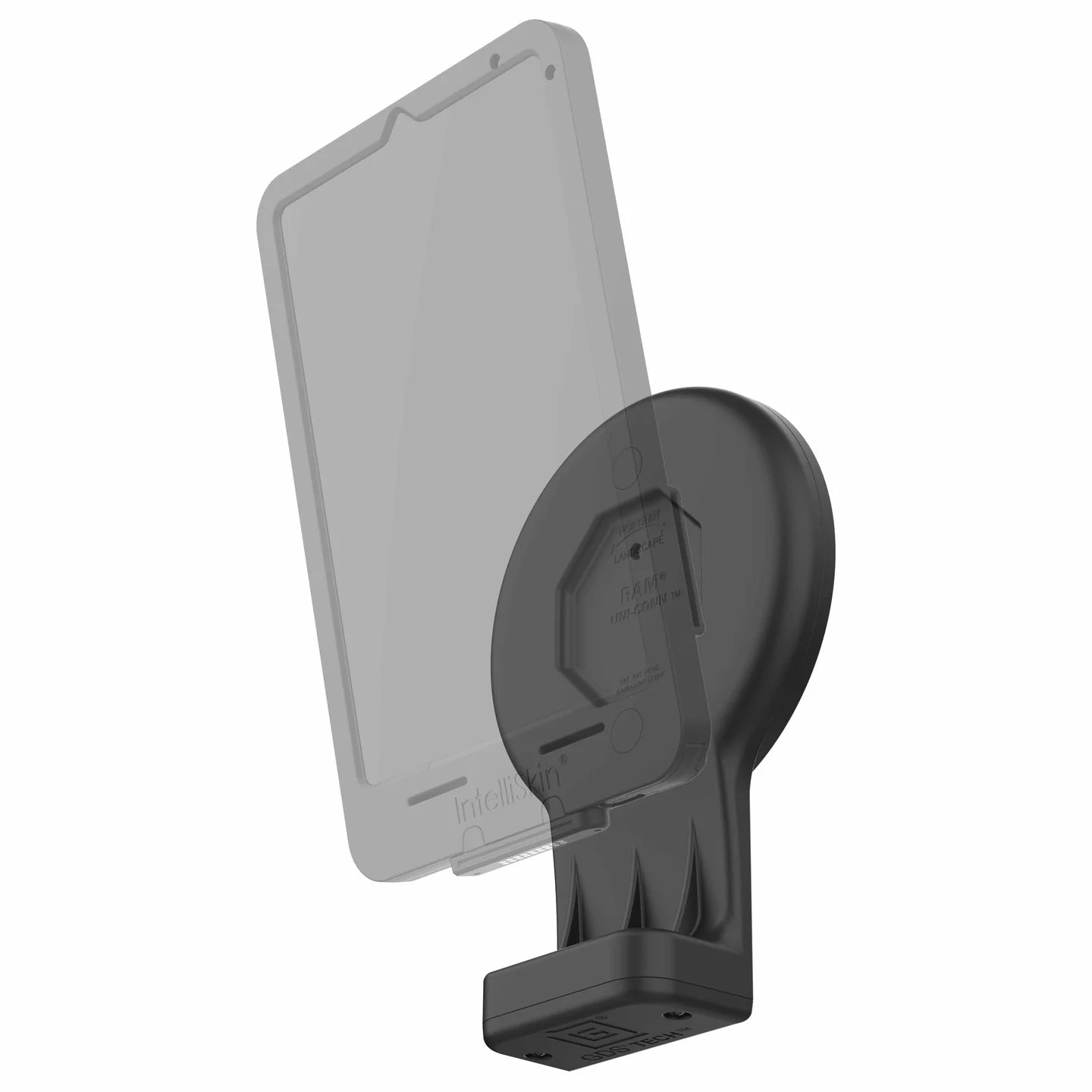

• Designed for devices enclosed in the IntelliSkin® Thin-Case™

• Magnetic attachment mechanism allows for quick docking and undocking

• Installation requires standard rectangle electrical outlet box

• Backed by a 3-year warranty

Hardware Included

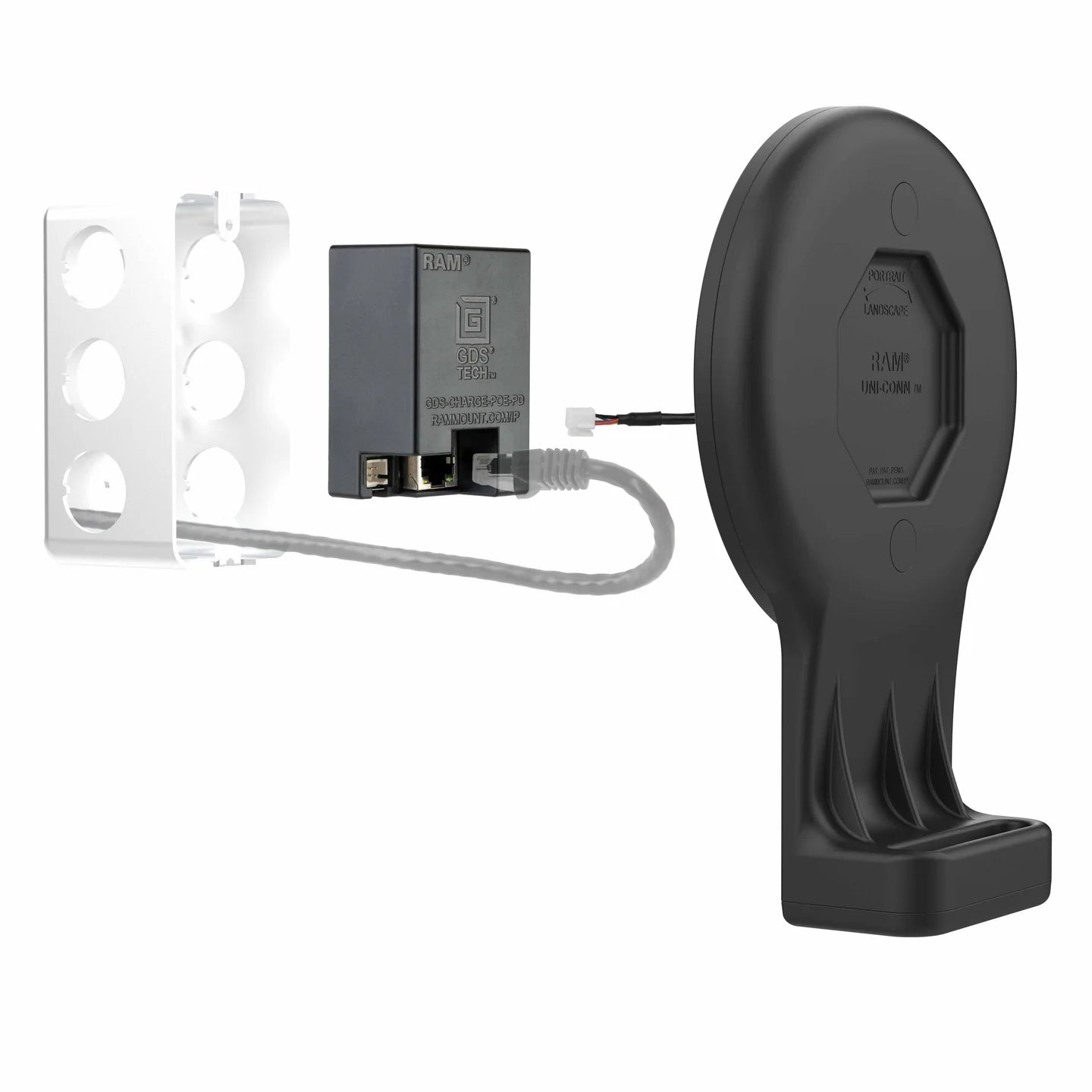

(1) PoE to Power Delivery Charging Module
(1) Steel Insert for Uni-Conn™ Button
(2) #6-32 x 1 1/4" Machine Screws
(2) Screw Caps

Hole Pattern
2-Hole: 3.281" (Standard Electrical Box)

Materials
High strength composite

Output Voltage
5V @ 3A
3.3V - 11.3V @ 2A
9V @ 2A
12V @ 2A
15V @ 1.5A

Warranty
3 year warranty

Weight
1.21 lb

Installation Instructions for RAM^® Steel Adhesive Plate
