      RAM-GDS-MON-13-1

      GDS® View™ 13.3" Touch Screen Monitor - GDS® View™ 13.3" Touch Screen Monitor - RAM-GDS-MON-13-1

      Out of Stock    ( Chat Live to get an ETA )

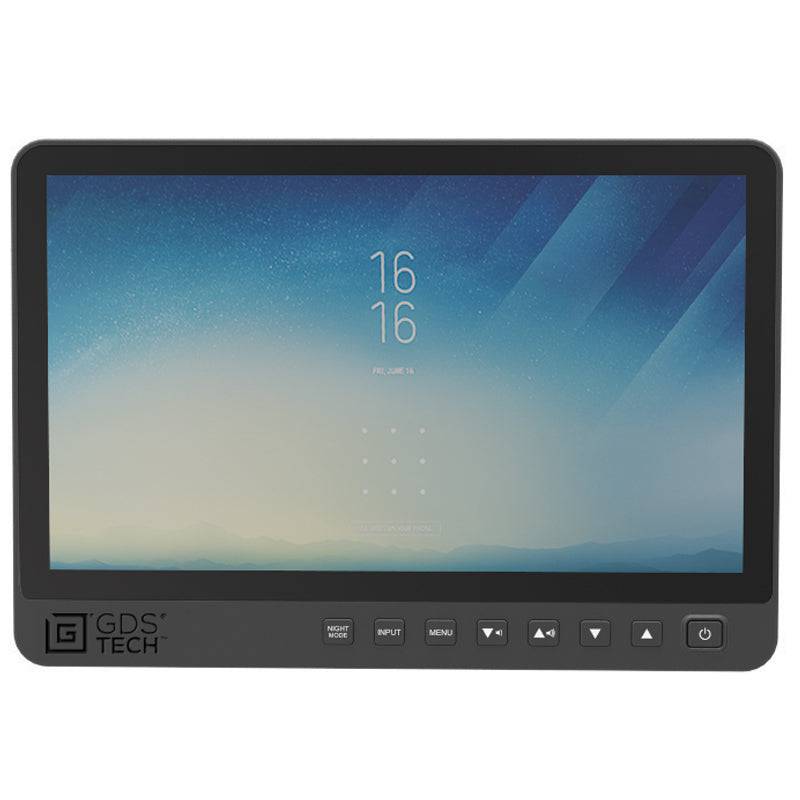

      • Two-point capacitive 13.3" touch screen monitor with anti-glare and anti-fingerprint treatment
      • MIL-STD-810G 514.5 vibration tested to ensure performance in the most demanding environments
      • Includes 75 x 75mm VESA hole pattern for attachment to compatible RAM® ball plates; double ball and socket technology allows for ideal placement
      • Backed by a 1-year warranty

      OVERVIEW

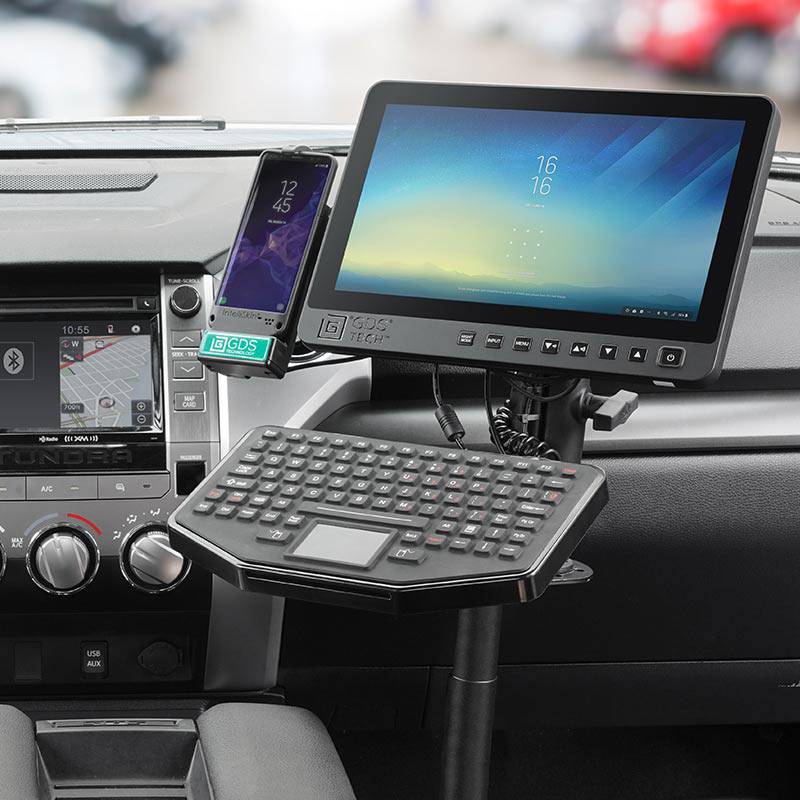

      The GDS® View™ 13.3” touchscreen monitor lets you take the PC experience on the road. Featuring VESA hole patterns compatible with the RAM-2461U and RAM-D-2461U mounting plates, create a mobile workstation that takes advantage of the GDS® Ecosystem™ for data sync and charging capabilities. The GDS® View™ monitor has undergone MIL-STD-810G 514.5 vibration testing, ensuring performance in the most demanding environments. This two-point capacitive touchscreen monitor allows you to pinch, zoom, and select – and includes an anti-glare and anti-fingerprint treatment. Control buttons on the front of the monitor are easy to access, while a red monochrome night mode helps to reduce eyestrain. In addition, two integrated 2W speakers allow for audio. Includes HDMI, VGA, three USB-A Ports, one USB-B Port, and USB Type-B to USB Type-A cables.

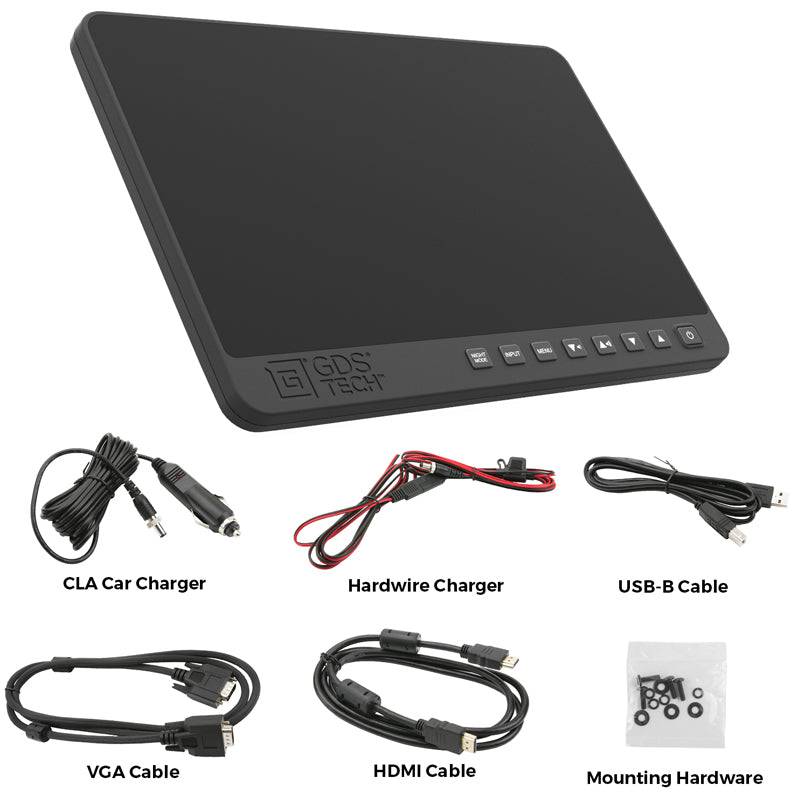

      HARDWARE INCLUDED

      (4) #10-24 x 5/8" Machine Screws
      (4) #10 Stainless Steel Washers
      (4) #10 Lock Washers
      (1) HDMI Cable
      (1) VGA Cable
      (1) USB Type-B to USB Type-A Cable
      Vehicle hardwire and cigarette lighter chargers

      MONITOR SPECIFICATIONS

      Screen Size: 13.3"
      Anti-glare and Anti-fingerprint treatment applied on LCD
      Max Resolution: 1920 x 1080 high resolution
      Aspect ratio: 16:9
      Tough Panel: 2-point capacitive touch
      Audio: (2) 2W Speakers
      Brightness: 800nits
      Contrast ratio: 1000:1
      Red monochrome night mode to reduce eye strain for night viewing
      Control buttons on front of monitor for easy access
      Zip tie attachment loops for cable management

      HOLE PATTERN

      75 x 75mm VESA

      PACKAGING TYPE

      Retail Box

      INPUT VOLTAGE

      10-30V DC

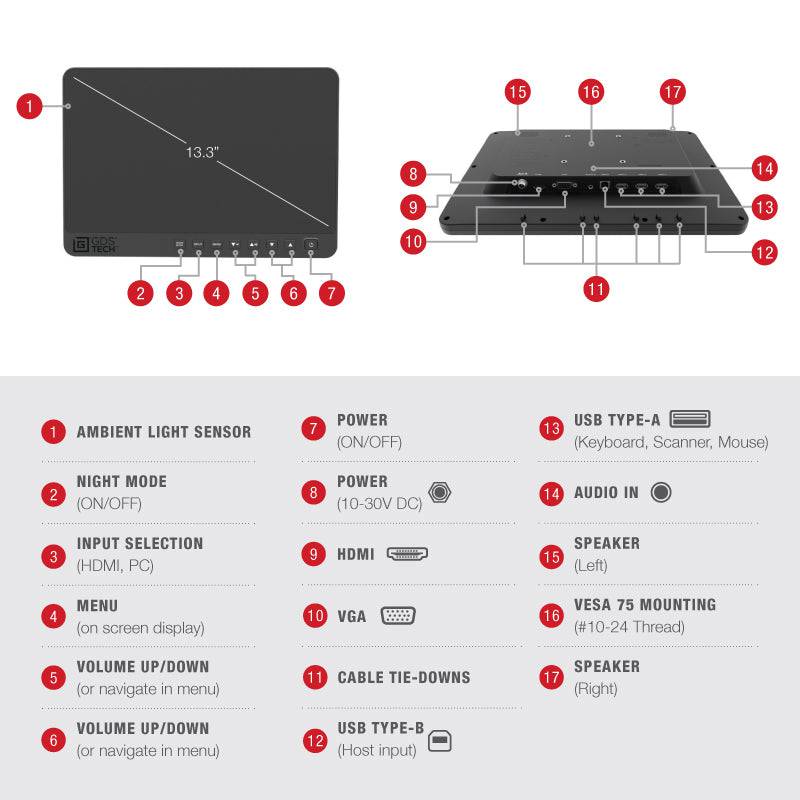

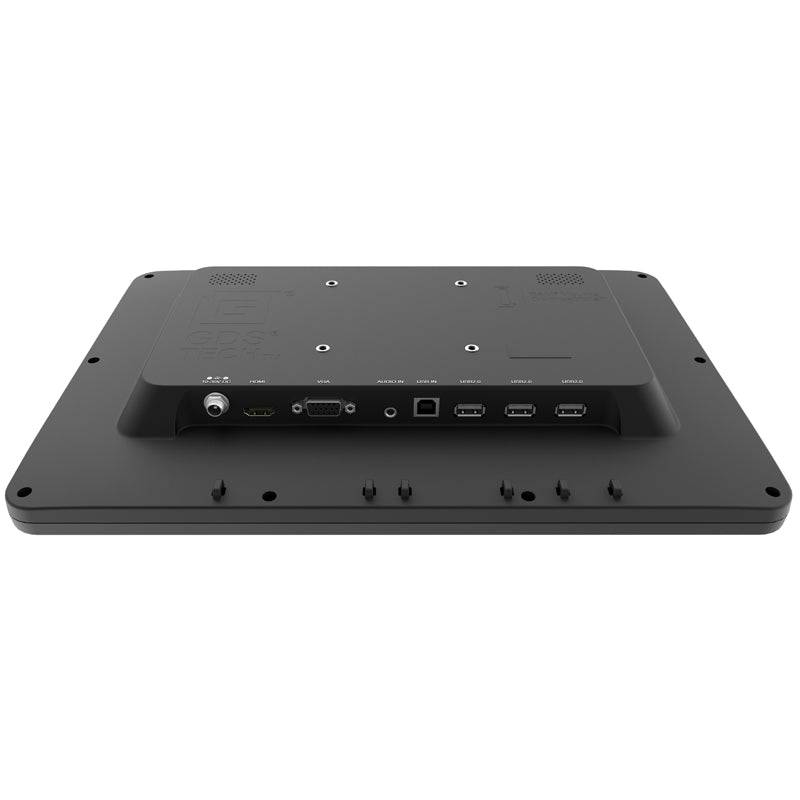

      PORTS

      (1) Power Input
      (1) HDMI
      (1) VGA
      (1) 3.5mm Audio Output
      (1) USB Type-B (Host Input)
      (3) USB Type-A (Peripheral Outputs)

      COMPLIANCE

      Meets SAE J-1113
      Integrated Short Circuit Protection (SCP)

      CERTIFICATIONS

      MIL-STD-810G 514.5 Vibration Tested
      FCC, CE, IC, RCM, WEEE, e-Mark, ISO 7637-2, and RoHS

      WEIGHT

      6.18 lbs.

      WARRANTY STATUS

      1 year warranty

       Sell Sheet - PDF

       Instruction Guide for GDS® View™ 13.3" Touch Screen Monitor - PDF
