      Home / Products / GDS® 20-60VDC Input (12VDC Output) Hardwire Charger with Male DC 5.5mm - RAM-GDS-CHARGE-V9U
      GDS® 20-60VDC Input (12VDC Output) Hardwire Charger with Male DC 5.5mm - RAM-GDS-CHARGE-V9U - OC Mounts

      RAM-GDS-CHARGE-V9U

      GDS® 20-60VDC Input (12VDC Output) Hardwire Charger with Male DC 5.5mm - RAM-GDS-CHARGE-V9U

      Out of Stock    ( Chat Live to get an ETA )

      • Hardwire charger includes male 5.5mm barrel connector; 20-60VDC input range, 12VDC output
      • When upgrading devices, avoid rewiring by unplugging power connector and attaching new charger components
      • Part of the GDS® Ecosystem™ to keep devices protected, connected, and charged in nearly any application
      • Backed by a 3-year warranty

      OVERVIEW

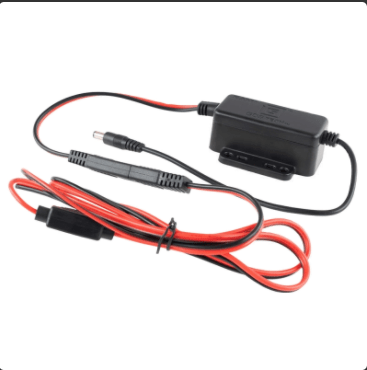

      The GDS® Modular Hardwire Charger with 5.5mm Male DC cable is the ideal solution for providing power to any RAM® or GDS® DC powered docking station. When it comes time to upgrade, avoid any rewiring by simply unplugging the power connector and attaching the new charger components. This hardwire charger has an input of 20-60VDC input, making it ideal for forklift mounts and material handling applications.

      PACKAGING TYPE

      Poly Bag

      INPUT VOLTAGE

      20V-60V DC

      OUTPUT VOLTAGE

      12VDC

      OUTPUT CURRENT

      3.5A max

      INPUT CONNECTOR

      Male 5.5mm OD x 2.5mm ID Barrel Connector

      INPUT CABLE LENGTH

      1.2 Meters including 2 Pole Flat Marine Connector

      OUTPUT CABLE LENGTH

      .2 Meters

      OPERATING TEMPERATURE

      -10°C to +70°C

      STORAGE TEMPERATURE

      -40°C to +70°C

      COMPLIANCE

      Over Voltage Protection
      Short Circuit Protection
      Reverse Polarity Protection
      RoHS Compliance
      WEEE Compliance
      SAE J-1113-5 Load Dump (Transient Voltage)
      Moisture Resistant

      CERTIFICATIONS

      CE Certification
      e-Mark Certification
      RCM Certification
      FCC Certification

      WEIGHT

      0.3 lbs.

      WARRANTY STATUS

      3 year warranty
