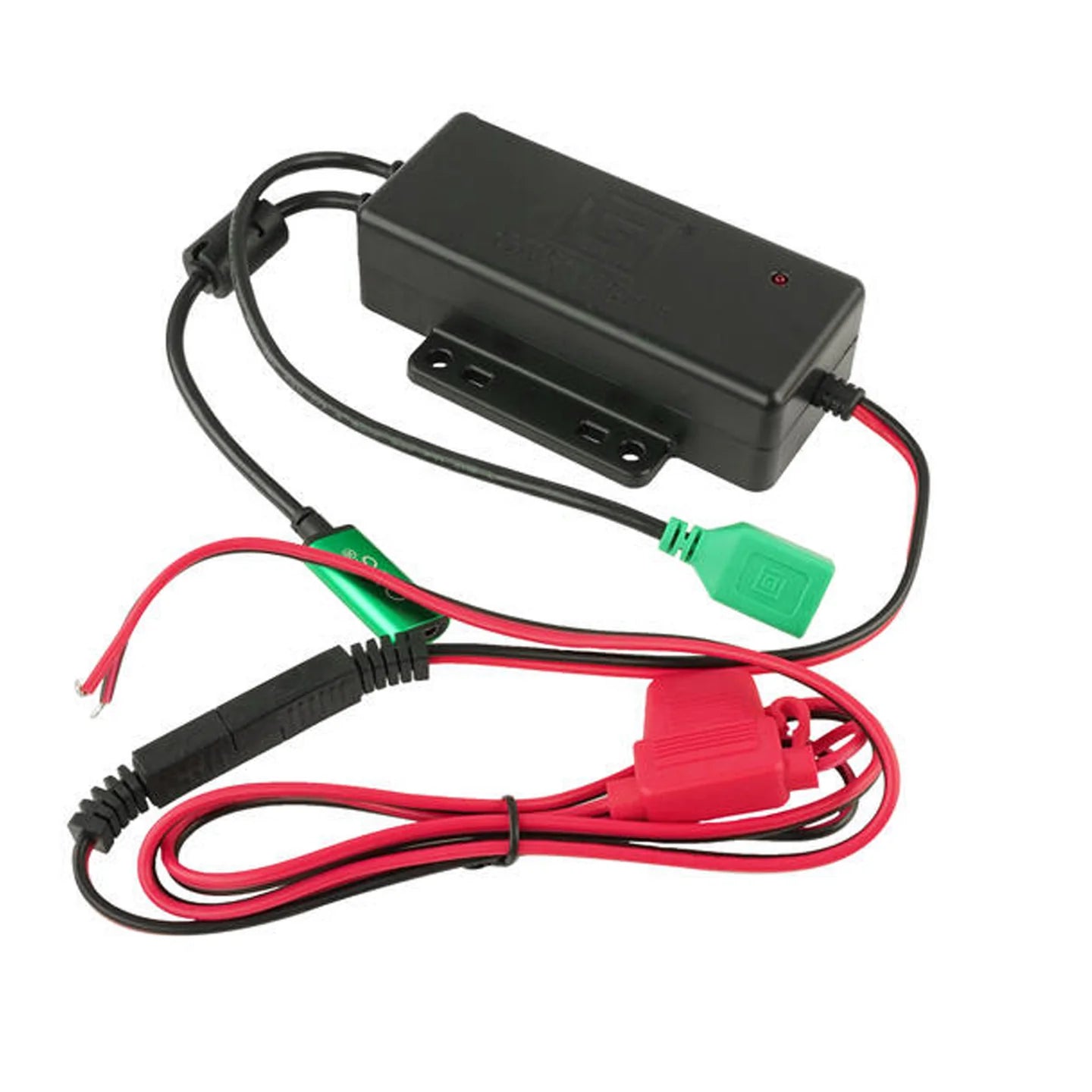

GDS® Hardwire Charger with USB Type-C Connector & USB Type A Port - RAM-GDS-CHARGE-V3FCA-2U

The GDS® hardwire charger with USB Type-C female connector and USB Type-A port is the ideal solution for providing power to any USB Type-C GDS® vehicle solution, while also allowing for the use of a USB Type-A peripheral – such as a keyboard, mouse, or barcode scanner. By connecting directly to the power source of your vehicle, the GDS® Charge™ accessory delivers USB Type-C power to your device with an input voltage of 10-28V, and allows you to connect a USB 2.0 accessory. Avoid rewiring when changing or upgrading devices by simply unplugging the power connector and installing a new GDS® Charge™ accessory. Always Protected. Always Connected.®

• Hardwire charger includes USB Type-C female connection and USB Type-A female connection with an input voltage of 10-28V

• Connect a peripheral to USB Type-A port such as a keyboard, mouse, barcode scanner, or vehicle dock

• When upgrading devices, avoid rewiring by unplugging power connector and attaching new charger components

• Part of the GDS® Ecosystem™ to keep devices protected, connected, and charged in nearly any application

• Backed by a 3-year warranty

packaging type:
Poly Bag

input voltage:
10-28VDC

output voltage:
5V @ 1A (5W)
9V @ 2A (18W)
12V @ 2A (24W)

input connector:
Power: Female USB Type-C
Data: USB Type A (500ma)

input cable length:
1.2 Meters including 2 Pole Flat Marine Connector

output cable length:
150mm

operating temperature:
-20°C to +70°C

storage temperature:
-40°C to +85°C

regulatory:
Meets SAE J-1113 5a, Integrated Short Circuit Protection (SCP), Integrated Over Voltage Protection (OVP)

certifications:
FCC, IC, CE RCM, WEEE, RoHS Compliant
USB Power Delivery 2.0 and 3.0 Support

Warranty:
3 year warranty

Weight:
0.47 lb

To determine which hardwire charger is most suitable for your application, please see Hardwire Charger Compatibility Guide.

Instructions for Modular Hardwire Charger
