      Home / Products / GDS® Tough-Dock™ Universal PTT Vehicle Bundle for Tab A7 Lite 8.7 - RAM-GDS-101B2-SAM80-PTT1U
      GDS® Tough-Dock™ Universal PTT Vehicle Bundle for Tab A7 Lite 8.7 - RAM-GDS-101B2-SAM80-PTT1U
      GDS® Tough-Dock™ Universal PTT Vehicle Bundle for Tab A7 Lite 8.7 - RAM-GDS-101B2-SAM80-PTT1U
      GDS® Tough-Dock™ Universal PTT Vehicle Bundle for Tab A7 Lite 8.7 - RAM-GDS-101B2-SAM80-PTT1U
      GDS® Tough-Dock™ Universal PTT Vehicle Bundle for Tab A7 Lite 8.7 - RAM-GDS-101B2-SAM80-PTT1U
      GDS® Tough-Dock™ Universal PTT Vehicle Bundle for Tab A7 Lite 8.7 - RAM-GDS-101B2-SAM80-PTT1U
      GDS® Tough-Dock™ Universal PTT Vehicle Bundle for Tab A7 Lite 8.7 - RAM-GDS-101B2-SAM80-PTT1U

      RAM-GDS-101B2-SAM80-PTT1U

      GDS® Tough-Dock™ Universal PTT Vehicle Bundle for Tab A7 Lite 8.7 - RAM-GDS-101B2-SAM80-PTT1U

      Out of Stock    ( Chat Live to get an ETA )

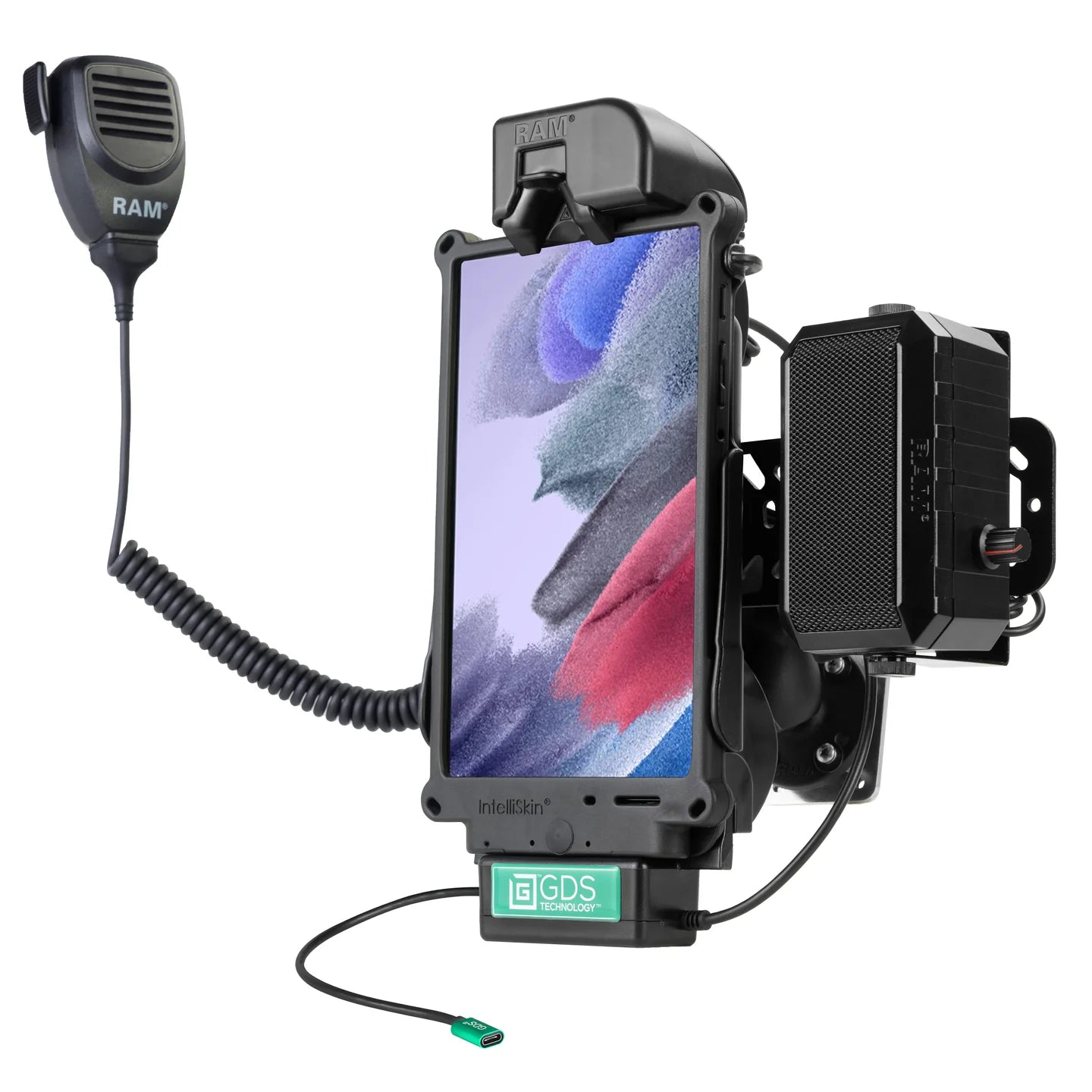

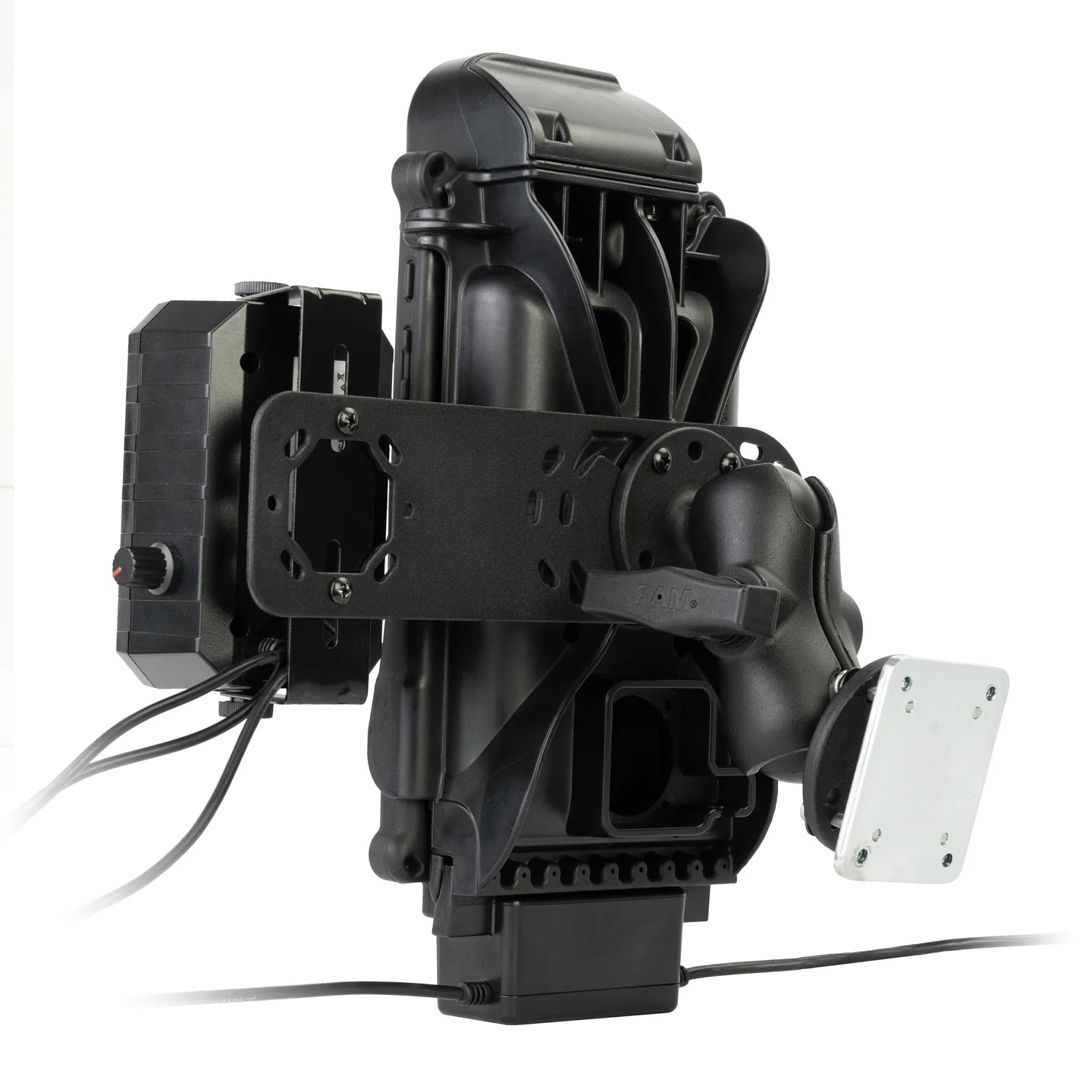

      The GDS® Tough-Dock™ Universal PTT Vehicle Bundle for Tab A7 Lite 8.7" (RAM-GDS-101B2-SAM80-PTT1U) is a vehicle dock designed to support the Samsung Galaxy Tab A7 Lite 8.7" in an IntelliSkin® Next Gen protective sleeve and provide push-to-talk capabilities, ideal for fleets of vehicles. The GDS® Tough-Dock™ uses a USB Type-C power connector to support high speed charging capabilities for the Tab A7 Lite and a single USB Type-A peripheral connector for the RAM® microphone.

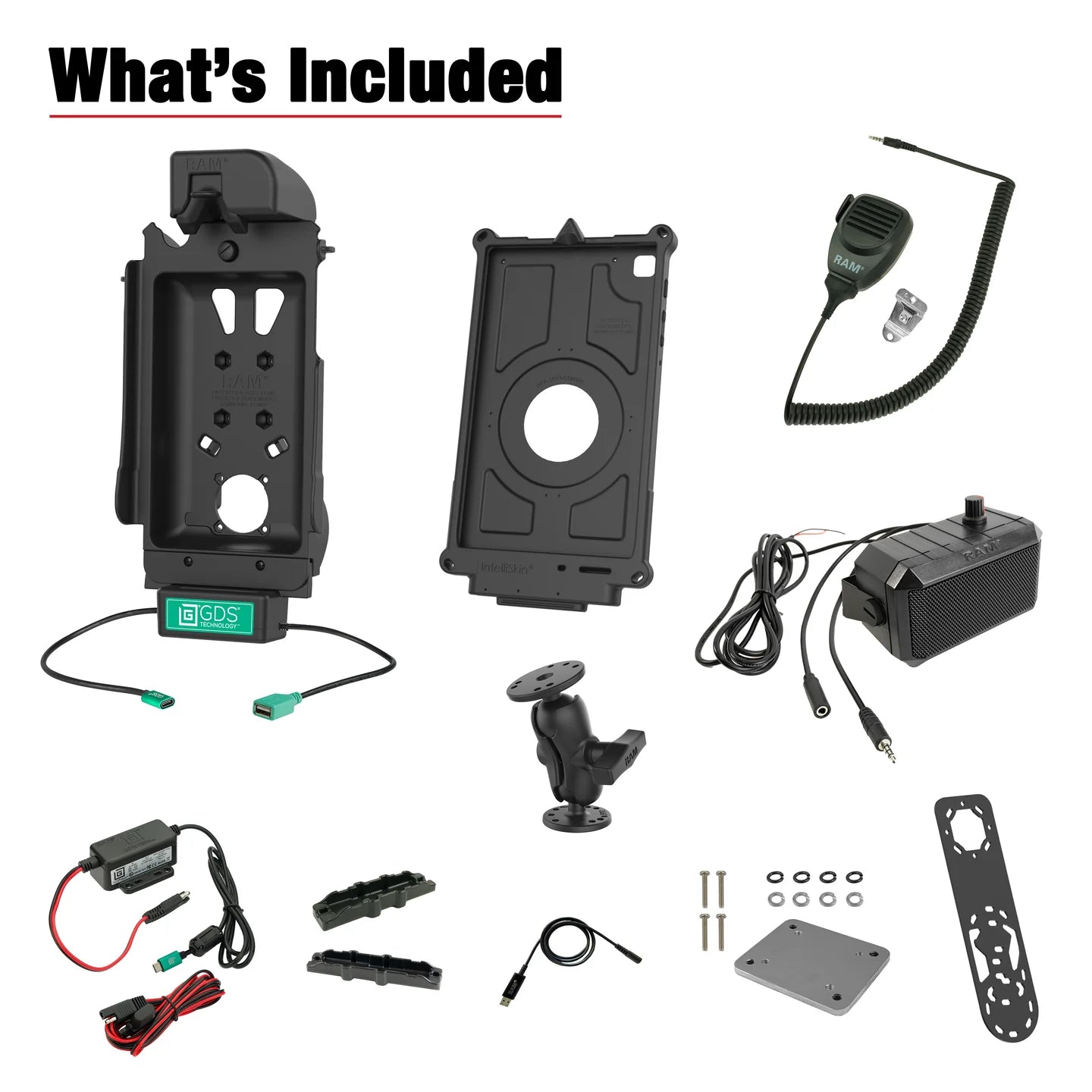

      This turnkey solution includes the GDS® Tough-Dock™, IntelliSkin® Next Gen for Samsung Tab A7 Lite 8.7", GDS® Modular 10-30V Hardwire Charger, C Size double ball mount with short arm, backing plate adapter, bracket adapter, audio adapter cable (3.5mm to USB Type-A), GDS® Audio™ amplified speaker, RAM® microphone, and cable clamps. The GDS® Tough-Dock™ is backed by a 3-year warranty




      • Bundle includes the GDS® Tough-Dock™, IntelliSkin® Next Gen for Samsung Tab A7 Lite 8.7", GDS® Modular 10-30V Hardwire Charger, C Size double ball mount with short arm, backing plate adapter, bracket adapter, audio adapter cable (3.5mm to USB Type-A), GDS® Audio™ amplified speaker, RAM® microphone, and cable clamps

      • Features Push-To-Talk capabilites via GDS® Audio™ Amplified Speaker with PTT breakout feature

      • Dock features GDS® Technology™ for charging capabilities; uses USB-C port to connect to power

      • RAM® Mounts Compatible™ and compatible with the GDS® Hand-Stand™ Hand Strap and Kickstand attachment

      • Backed by a 3-year warranty

      HARDWARE INCLUDED
      Assembly Hardware
      (1) 2.10" x 2.60" Steel Backing Plate
      (4) #8-32 x 1" Screws
      (4) #8 Split Lock Washers
      (4) #8 Flat Washers
      (2) Cable Clamps
      (1) Vehicle Hardwire Charger

      SOCKET TO SOCKET LENGTH
      2.5"

      HOLE PATTERN
      4-Hole AMPS: 1.181" x 1.496"
      3-Hole 120-Degree: 1.812" Diameter

      BALL SIZE
      C Size (1.5")

      MATERIALS
      Steel
      Marine-grade aluminum
      High strength composite

      PACKAGING TYPE
      Box

      OUTPUT VOLTAGE
      Type-C Tablets: 5V - 12V @ 3A max
      mUSB Tablets: 5V @ 1.5A max
      Peripheral: 5V @ 900mA max

      POWER OUTPUT
      15W

      INPUT CONNECTOR
      USB Type-C
      USB Type A for 1 Peripheral

      INPUT CABLE LENGTH
      .21 Meters

      OUTPUT CABLE LENGTH
      .21 Meters

      WEIGHT
      6.4 lb



      Samsung

      • Galaxy Tab A7 Lite 8.7" (SM-T220 & SM-T225) with IntelliSkin® Next Gen





      IntelliSkin<sup>®</sup> Next Gen for Samsung Tab A7 Lite 8.7”

      IntelliSkin® Next Gen for Samsung Tab A7 Lite 8.7” - RAM-GDS-SKIN-SAM80-NG

      GDS<sup>®</sup> Tough-Dock<sup>™</sup> + Single USB-A for Samsung Tab A7 Lite 8.7"
      GDS® Tough-Dock™ + Single USB-A for Samsung Tab A7 Lite 8.7" - RAM-GDS-DOCK-SAM80CDU

      RAM<sup>®</sup> Short Bracket Adapter for Speakers & Microphones
      RAM® Short Bracket Adapter for Speakers & Microphones - RAM-101-MIC1U

      RAM<sup>®</sup> Microphone with Steel Mounting Clip
      RAM® Microphone with Steel Mounting Clip - RAM-MIC-A01

      GDS<sup>®</sup> Audio<sup>™</sup> Amplified Speaker with PTT Breakout Feature
      GDS® Audio™ Amplified Speaker with PTT Breakout Feature - RAM-SPEAK-A02

      RAM<sup>®</sup> Drill-Down Dashboard Mount with Backing Plate - C Size Short
      RAM® Drill-Down Dashboard Mount with Backing Plate - C Size Short - RAM-101-B-225B2U

      GDS<sup>®</sup> Modular 10-30V Hardwire Charger with Male USB Type-C
      GDS® Modular 10-30V Hardwire Charger with Male USB Type-C - RAM-GDS-CHARGE-V7CU

      PDF Icon Assembly Instructions for PTT Speaker Bundle

      PDF Icon Cable Clamp Instructions
