      Home / Products / GDS® Tough-Dock™ Vehicle Bundle for Samsung Tab A 8.4 - RAM-GDS-101B-SAM67-V7B1U
      GDS® Tough-Dock™ Vehicle Bundle for Samsung Tab A 8.4 - RAM-GDS-101B-SAM67-V7B1U - OC Mounts
      GDS® Tough-Dock™ Vehicle Bundle for Samsung Tab A 8.4 - RAM-GDS-101B-SAM67-V7B1U - OC Mounts
      GDS® Tough-Dock™ Vehicle Bundle for Samsung Tab A 8.4 - RAM-GDS-101B-SAM67-V7B1U - OC Mounts
      GDS® Tough-Dock™ Vehicle Bundle for Samsung Tab A 8.4 - RAM-GDS-101B-SAM67-V7B1U - OC Mounts
      GDS® Tough-Dock™ Vehicle Bundle for Samsung Tab A 8.4 - RAM-GDS-101B-SAM67-V7B1U - OC Mounts
      GDS® Tough-Dock™ Vehicle Bundle for Samsung Tab A 8.4 - RAM-GDS-101B-SAM67-V7B1U - OC Mounts

      RAM-GDS-101B-SAM67-V7B1U

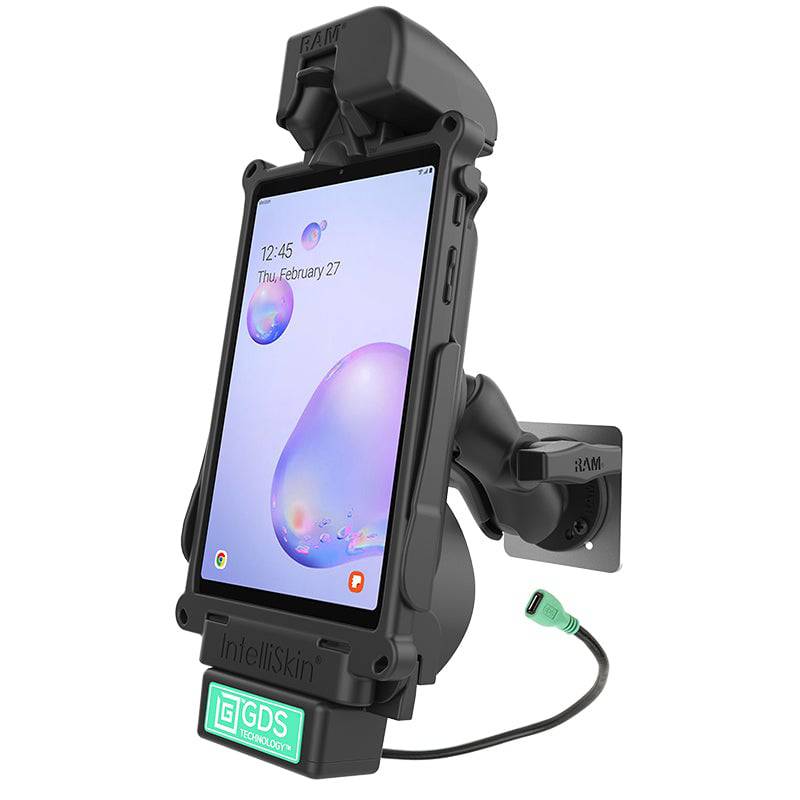

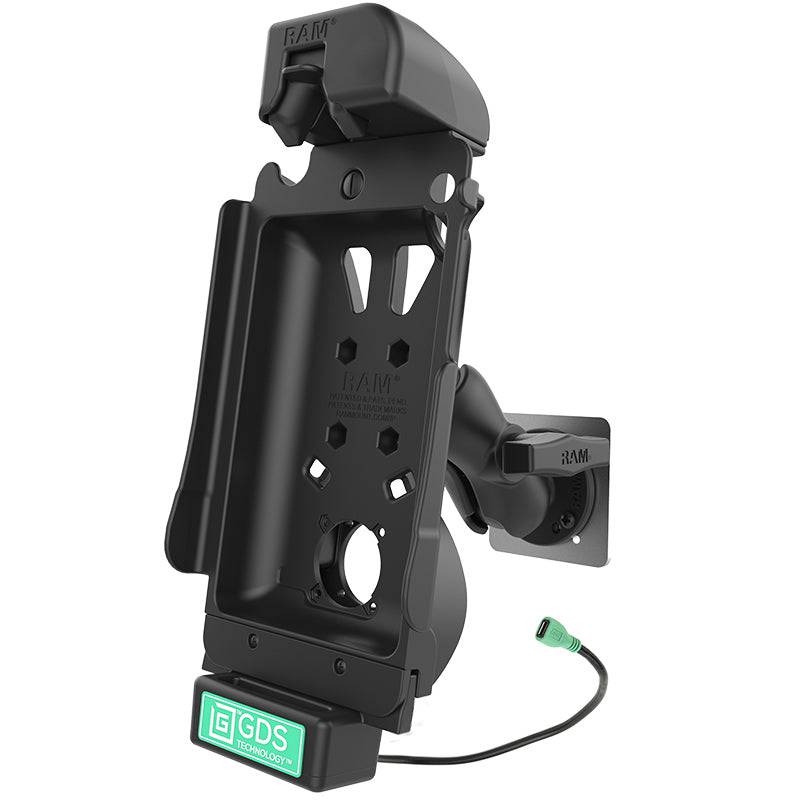

      GDS® Tough-Dock™ Vehicle Bundle for Samsung Tab A 8.4 - RAM-GDS-101B-SAM67-V7B1U

      Out of Stock    ( Chat Live to get an ETA )

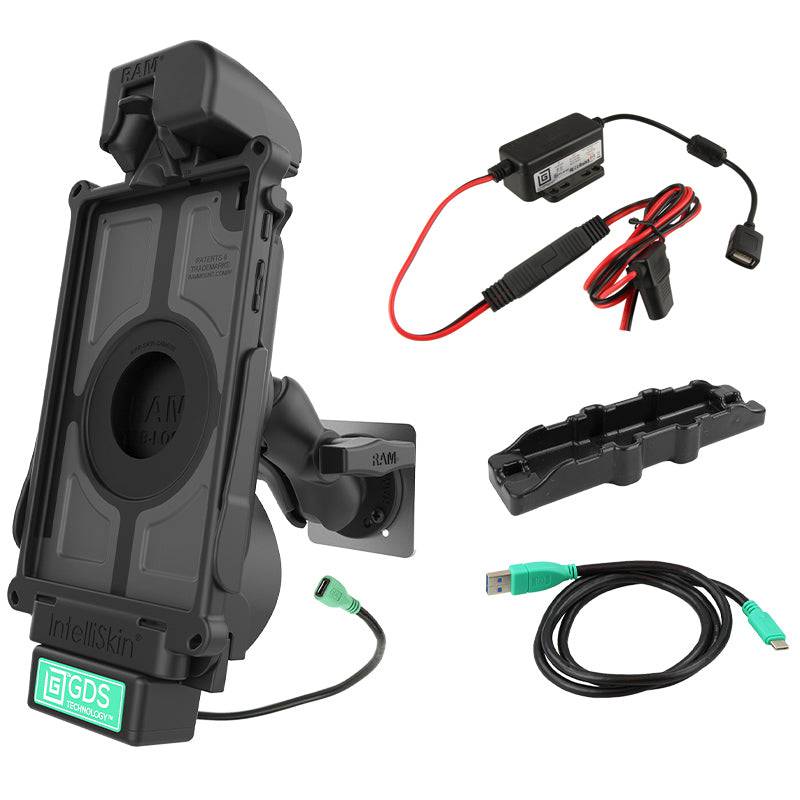

      • Bundle includes non-locking GDS® Tough-Dock™, IntelliSkin® Next Gen for Samsung Galaxy Tab A 8.4 (2020), hardwire charger with USB Type A connector, low-profile double ball mount with C size (1.5") ball, backing plate adapter and two cable clamps
      • Dock features GDS® Technology™ for charging capabilities; uses 1.2m cable and mUSB port to connect to power
      • RAM® Mounts Compatible™ and compatible with the GDS® Hand-Stand™ Hand Strap and Kickstand attachment
      • Backed by a 3-year warranty

      OVERVIEW

      Ideal for transportation and large fleet vehicles, this bundle is all you need to pair with your Samsung Galaxy Tab A 8.4 (2020). This bundle includes a non-locking GDS® Tough-Dock™, IntelliSkin® Next Gen for Samsung Galaxy Tab A 8.4 (2020), hardwire charger with USB Type A connector, low-profile double ball mount with C size (1.5") ball & socket components, mUSB extension cable, backing plate adapter and two cable clamps. This bundle is also ELD compliant providing a turnkey solution for your fleet.

      HARDWARE INCLUDED

       Assembly Hardware
      (1) 3" x 3" Steel Backing Plate
      (4) #10-24 x 1" Thread Locking Screws
      (4) #10-24 Nylock Nuts
      (1) mUSB Cable Clamp
      (1) USB Type-A Cable Clamp
      (1) 1.2 Meter mUSB Cable
      (1) Vehicle Hardwire Charger


      SOCKET-TO-SOCKET LENGTH

       2.5"


      HOLE PATTERN

       4-Hole AMPS: 1.181" x 1.496"
      3-Hole 120-Degree: 1.812" Diameter


      BALL/SOCKET SIZE

       C Size (1.5")


      MATERIALS

       Steel
      Marine-grade aluminum
      High strength composite


      PACKAGING TYPE

       Poly Bag


      OUTPUT VOLTAGE

       5V - 12V @ 2A


      INPUT CONNECTOR

       mUSB 2.0 Female


      COMPLIANCE

       Over Voltage Protection
      Short Circuit Protection
      Reverse Polarity Protection
      RoHS Compliance
      WEEE Compliance
      SAE J-1113-5 Load Dump (Transient Voltage)
      Moisture Resistant


      CERTIFICATIONS

       CE Certification
      e-Mark Certification
      RCM Certification
      FCC Certification


      WEIGHT

       3.5 lbs.


      WARRANTY STATUS

       3 year warranty
