GDS® Uni-Conn™ Vehicle Bundle for Samsung Tab A9 - RAM-GDS-U1-SAM95-KIT1

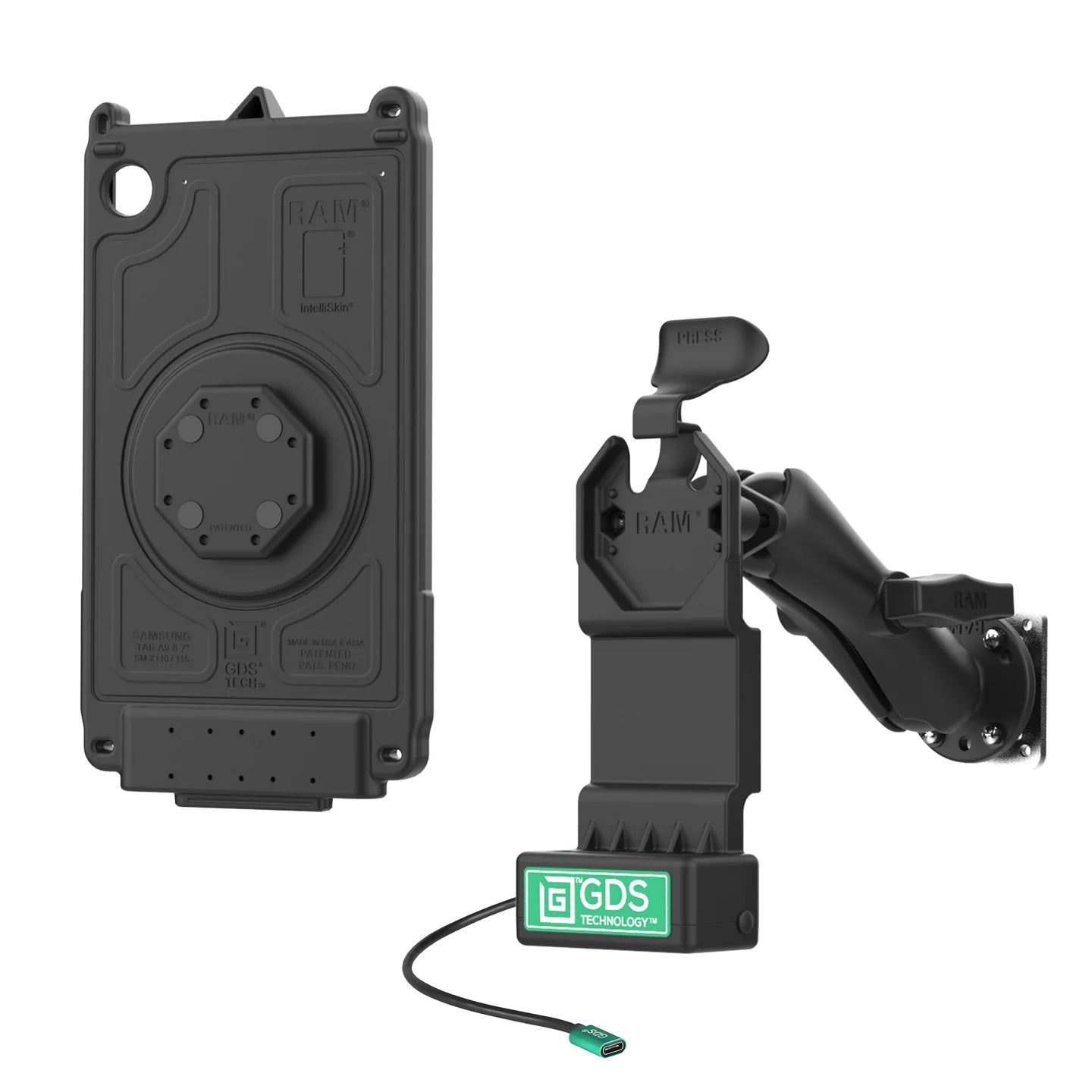

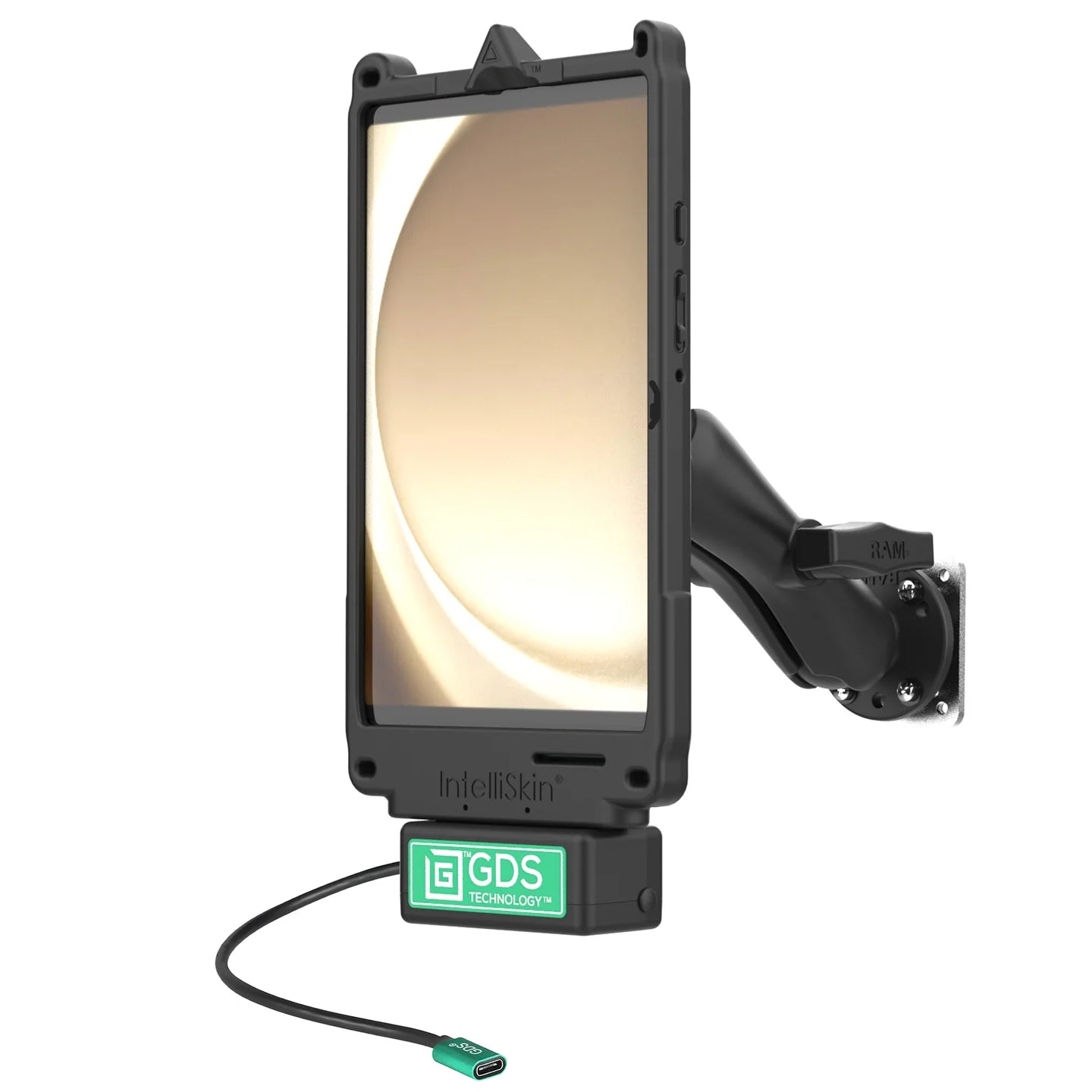

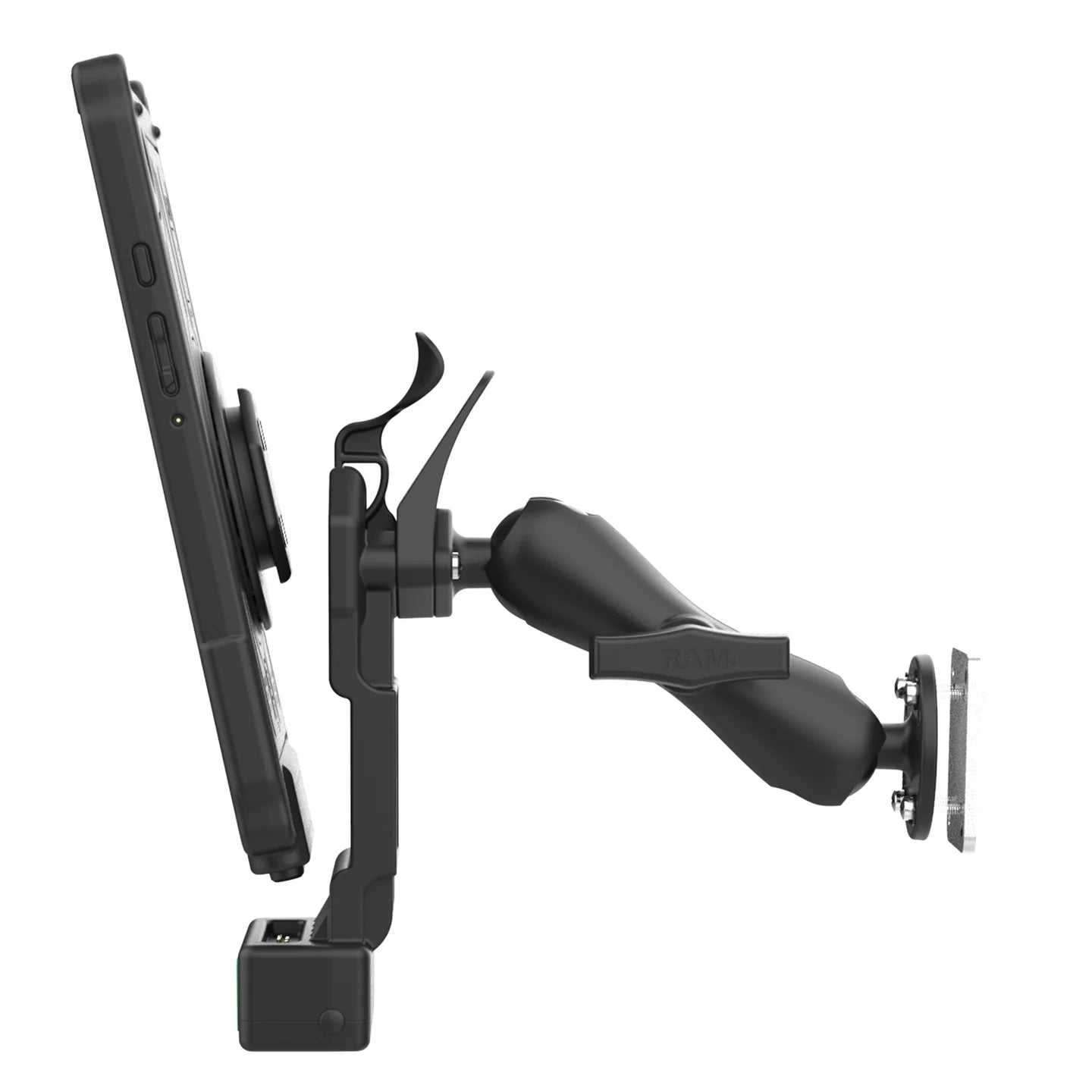

The GDS® Uni-Conn™ Vehicle Bundle for Samsung Tab A9 (RAM-GDS-U1-SAM95-KIT1) is a comprehensive kit of everything needed to deploy the Tab A9 in your fleet. It contains one GDS® Uni-Conn™ dock, Uni-Conn™ adapter, IntelliSkin® for the Tab A9, and double ball mount with backing plate.

The dock uses a USB Type-C female power connector and integrated pogo pins to provide power to the device while docked. It also features an easy docking and undocking process, simply place the IntelliSkin®-wrapped device into the base of the dock and push it to snap into place. When undocking, a simple push of a lever releases the tablet. The GDS® Uni-Conn™ is backed by a 3-year warranty. Warranty is void if the lever stop is not installed. Always Protected. Always Connected.® One Dock to Connect Them All™

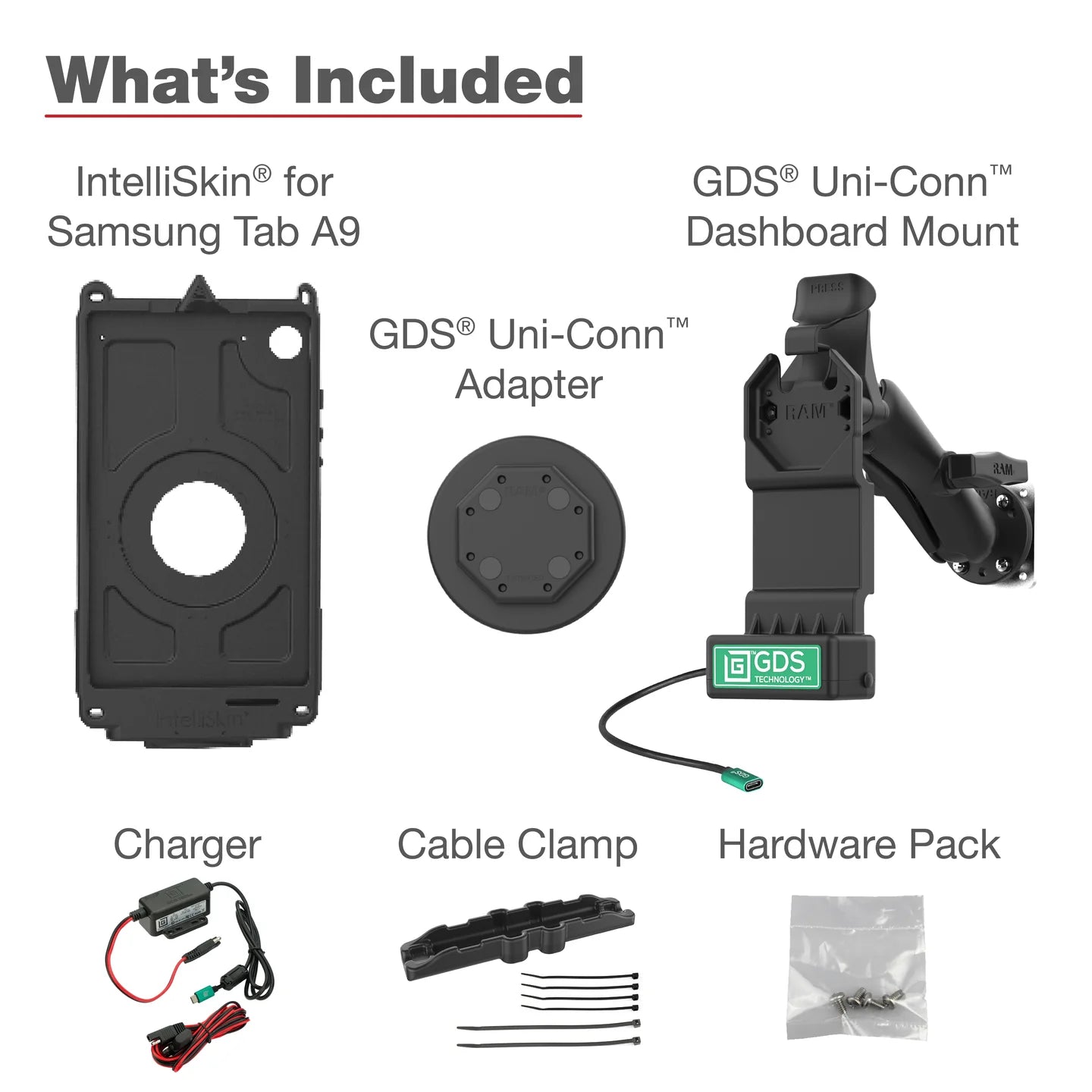

• Bundle includes the GDS® Uni-Conn™ dock, Uni-Conn adapter, IntelliSkin® Next Gen for Samsung Tab A9, C size double ball mount with medium arm, backing plate adapter, and cable clamp

• Dock features GDS® Technology™ for charging capabilities; uses USB-C port to connect to power

• Uni-Conn™ dock features an easy device insertion and removal

• Backed by a 3-year warranty

hardware included:
Assembly Hardware
(1) 2.10" x 2.60" Steel Backing Plate
(4) #8-32 x 1" Screws
(4) #8 Split Lock Washers
(4) #8 Flat Washers
(2) Cable Clamps
(1) Vehicle Hardwire Charger

socket to socket length:
4.66"

ball size:
C Size (1.5")

materials:
Steel
Marine-grade aluminum
High strength composite

packaging type:
Poly Bag

output voltage:
5V - 12V @ 3A max

power output:
15W

Warranty:
3 year warranty

Weight:
2.89 lb

IntelliSkin® Next Gen for Samsung Tab A9 - RAM-GDS-SKIN-SAM95-NG

GDS® Uni-Conn™ Adapter for IntelliSkin® - RAM-GDS-U1U

GDS® Uni-Conn™ Powered Dock - RAM-GDS-DOCK-U1CPU

RAM 2.43" x 1.31" Diamond Base with 1.5" - Ball - RAM-238U

RAM Medium Length Double Socket Arm for C Size 1.5" Balls - RAM-201U

RAM® Drill-Down Dashboard Ball Base with Backing Plate - C Size - RAM-202-225-2U

GDS® Modular 10-30V Hardwire Charger with Male USB Type-C - RAM-GDS-CHARGE-V7CU

Samsung Galaxy Tab A9
