RAM-GDS-CHARGE-V8CU

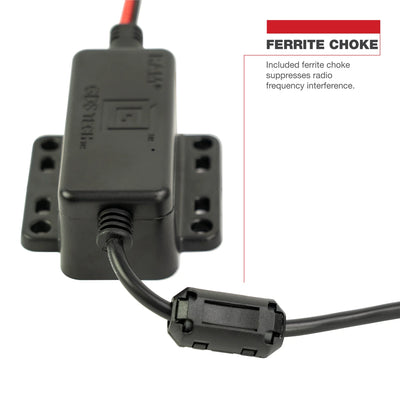

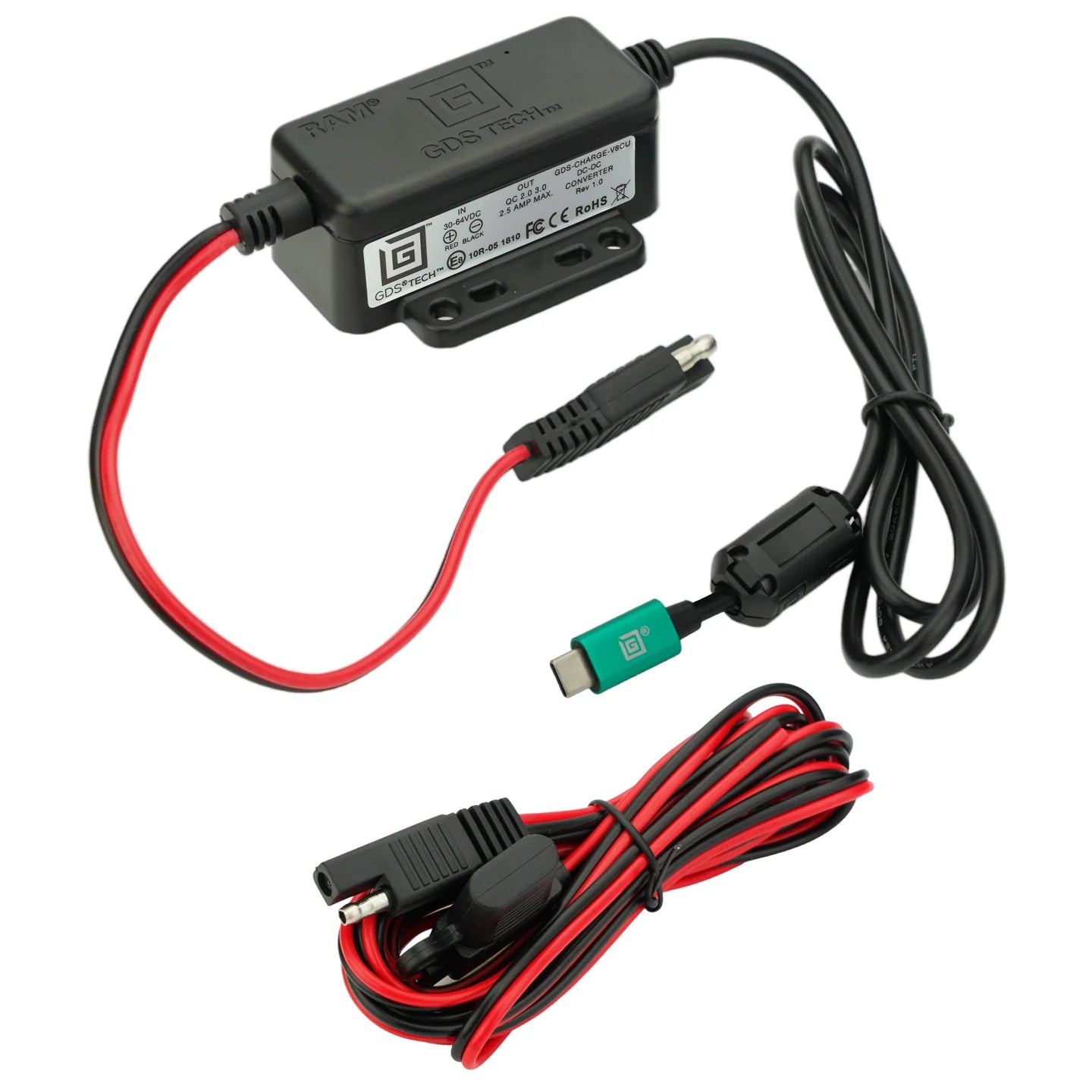

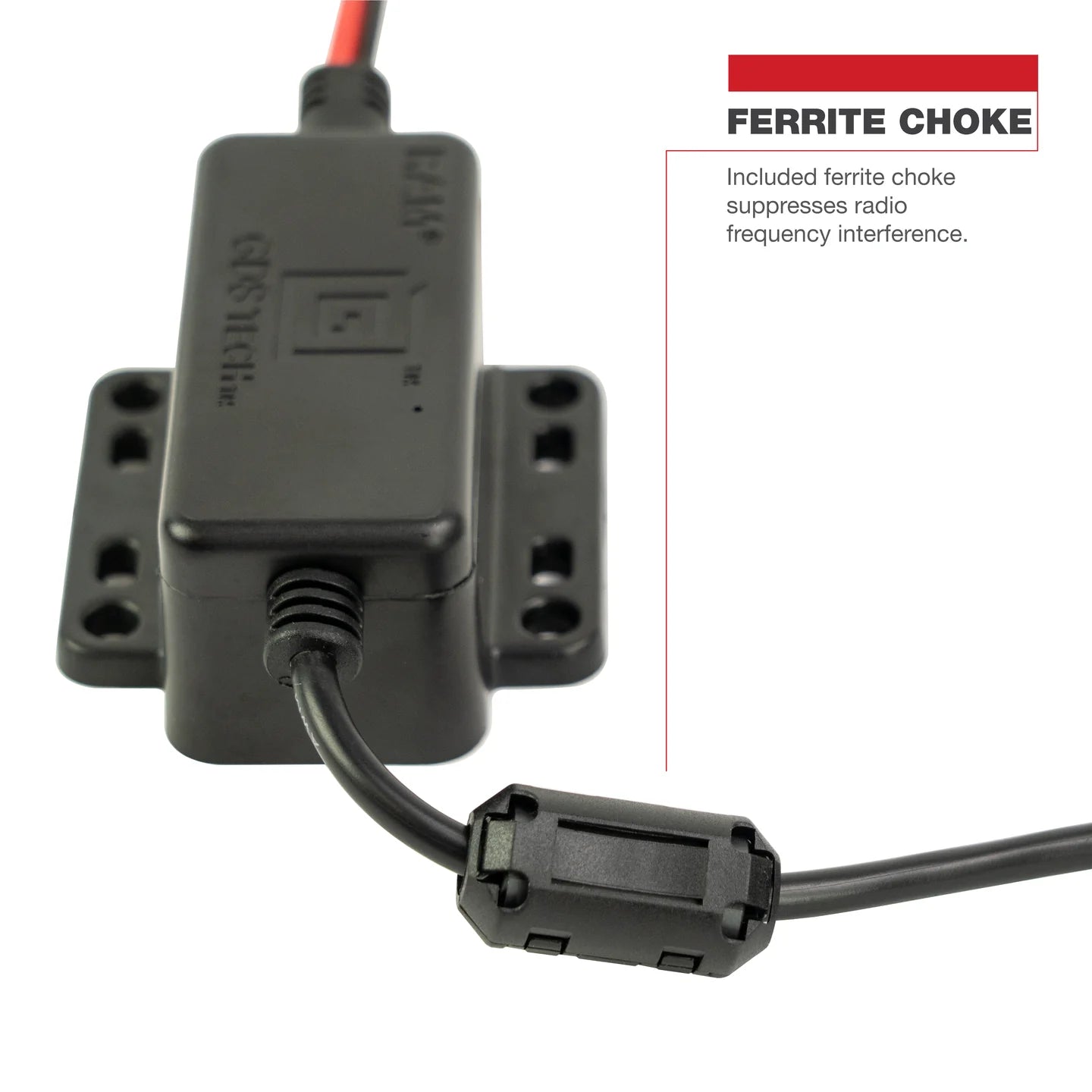

GDS® Modular 30-64V Hardwire Charger with Male USB Type-C - RAM-GDS-CHARGE-V8CU

The GDS® Modular Hardwire Charger is the ideal solution for providing power to any USB Type-C GDS® vehicle solution. By connecting directly to the power source of your vehicle, the GDS®Charger delivers up to 9V of USB Type-C power to your device. When it comes time to upgrade, avoid any rewiring by simply unplugging the power connector and attaching the new charger components. This charger does not support Power Delivery.

FEATURES

  • Hardwire charger includes USB Type-C male connection with input of 30-64VDC and output of 5.42-9.0VDC

  • When upgrading devices, avoid rewiring by unplugging power connector and attaching new charger components

  • Part of the GDS® Ecosystem to keep devices protected, connected, and charged in nearly any application

  • Backed by a 3-year warranty

INPUT VOLTAGE
30-64VDC

OUTPUT VOLTAGE
5.42-9VDC

OUTPUT CURRENT
2.5A max

INPUT CONNECTOR
Bare Wire

INPUT CABLE LENGTH
2.5 Meters

OUTPUT CONNECTOR
USB Type-C Male

OUTPUT CABLE LENGTH
1 Meter

OPERATING TEMPERATURE
-10°C to +70°C

STORAGE TEMPERATURE
-40°C to +85°C

COMPLIANCE
Over Voltage Protection
Short Circuit Protection
Reverse Polarity Protection
RoHS Compliance
WEEE Compliance
SAE J-1113-5 Load Dump (Transient Voltage)
Moisture Resistant

CERTIFICATIONS
CE Certification
RCM Certification
FCC Certification
UL 62368-1 Certification

WARRANTY
3 year warranty

WEIGHT
0.46 lb



This charger will not support Power Delivery. For a Power Delivery version, see RAM-GDS-CHARGE-V3CH-2U.
