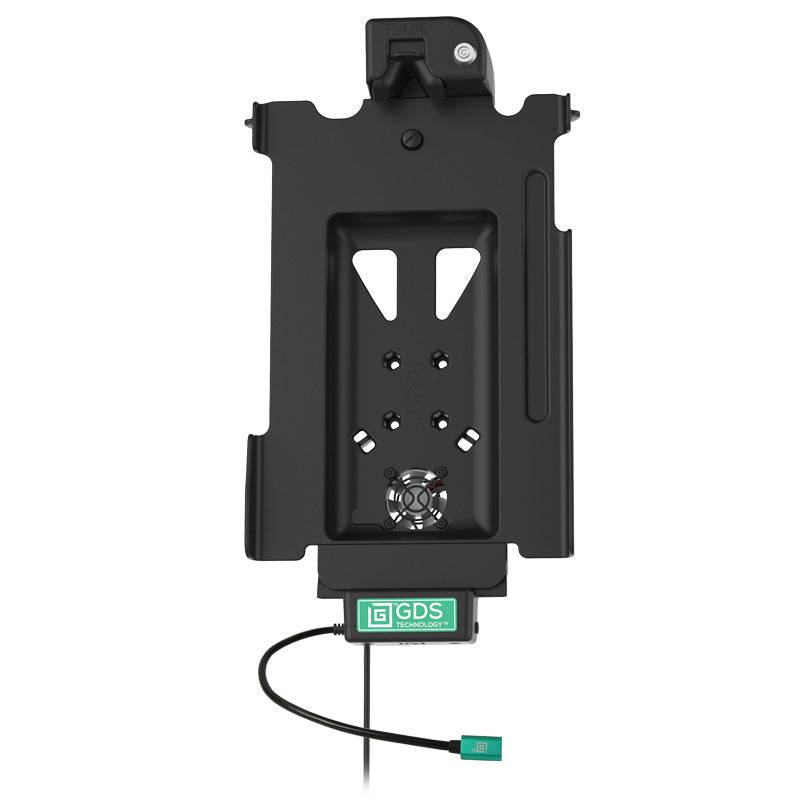

Locking GDS® Cool-Dock™ with USB Type-C for Samsung Tab S7+ & S7 FE - RAM-GDS-DOCKLF-SAM78CPU

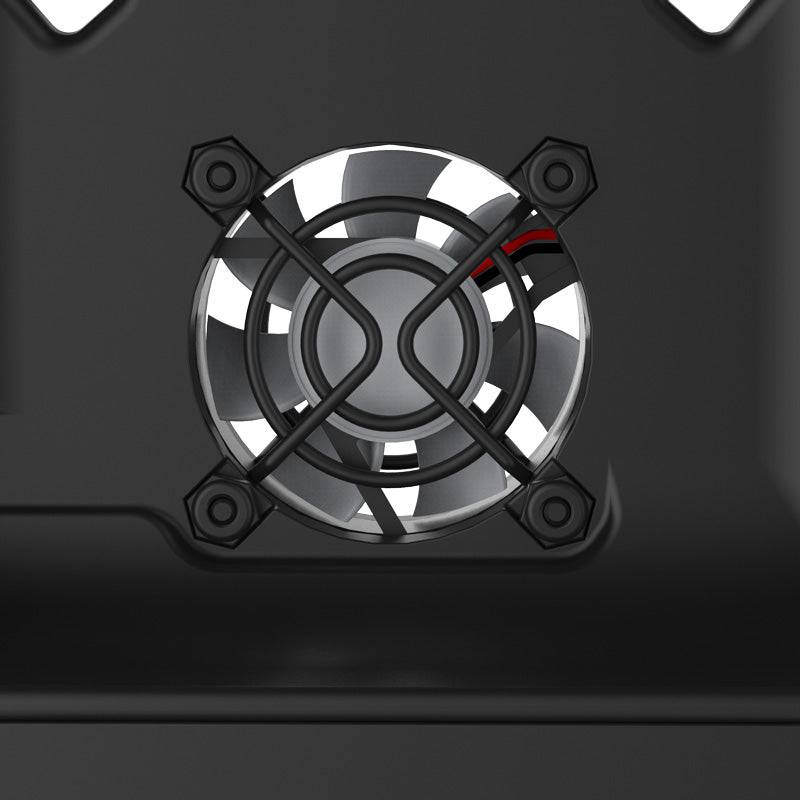

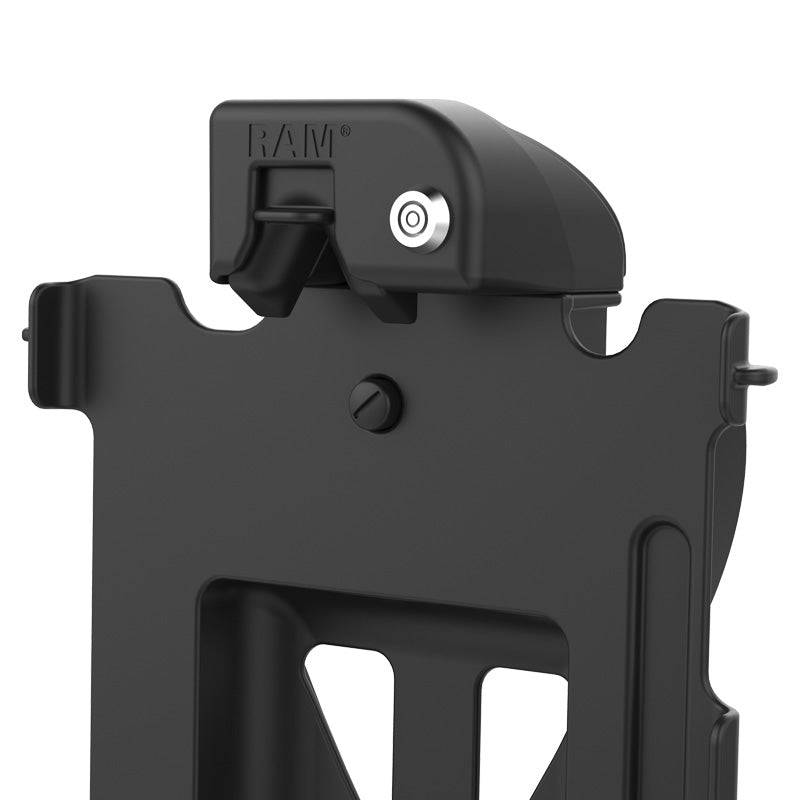

• Spring-loaded key-locking vehicle dock featuring GDS® Technology™ uses an integrated pogo pin connector to provide high speed charging; Includes built-in 12-VDC Axial cooling fan with 2.2m long hardwire power cable and SAE quick disconnect for hardwire installation

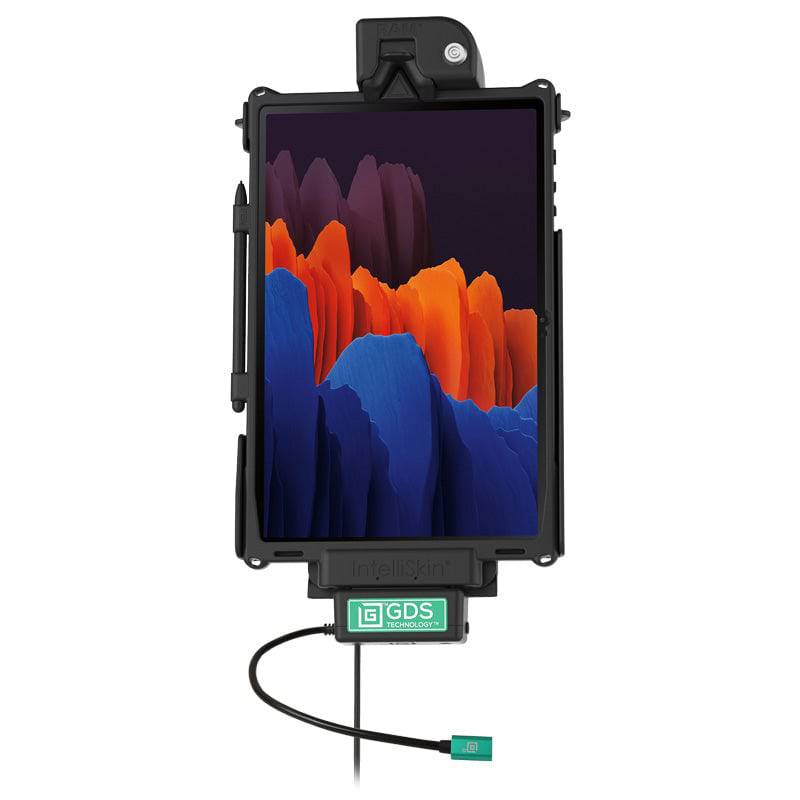

• Designed specifically for the Samsung Galaxy Tab S7+ 12.4" (SM-T970) and S7 FE (SM-T736B) wrapped in an IntelliSkin® Next Gen protective sleeve
• Incorporated into the bottom docking cup is a USB Type-C Female connector for providing high speed charging to the dock
• RAM® Mounts Compatible™ and compatible with the GDS® Hand-Stand™ Hand Strap and Kickstand attachment
• Backed by a 3-year warranty

OVERVIEW

The GDS^® Cool-Dock^™ is the upgraded version of the GDS^® Tough-Dock^™ including a key-locking system and a built-in 12-VDC Axial cooling fan with a 2.2 meter long hardwire charge. The GDS^® Cool-Dock^™ is the turnkey vehicle dock in the GDS^® Tech^™ line of vehicle docks designed to support the Samsung Galaxy Tab S7+ 12.4" (SM-T970) and S7 FE (SM-T736B) in a IntelliSkin^® Next Gen protective sleeve for your fleet. Using a USB Type-C power connector, the GDS^® Cool-Dock^™ supports high speed charging capabilities for the Samsung Galaxy Tab S7+ 12.4" (SM-T970) and S7 FE (SM-T736B). The GDS^® Cool-Dock^™ is compatible with RAM^® ball and socket systems and requires a 4-hole AMPS pattern ball adapter. The GDS^® Cool-Dock^™ is backed by a 3-year warranty.

HARDWARE INCLUDED

(4) #8-32 x 5/8" Machine Screws
(4) #8-32 Nylock Nuts
(2) Keys

HOLE PATTERN

4-Hole AMPS: 1.181" x 1.496"

MATERIALS

High strength composite

PACKAGING TYPE

Poly Bag

OUTPUT VOLTAGE

5V - 12V @ 3A

POWER OUTPUT

15W

INPUT CONNECTOR

USB Type-C

WEIGHT

1.85 lbs.

WARRANTY STATUS

3 year warranty
