Locking GDS® Tough-Dock™ + USB-C Data for Tab Active5 & 3 - RAM-GDS-DOCKL-SAM62C-CU

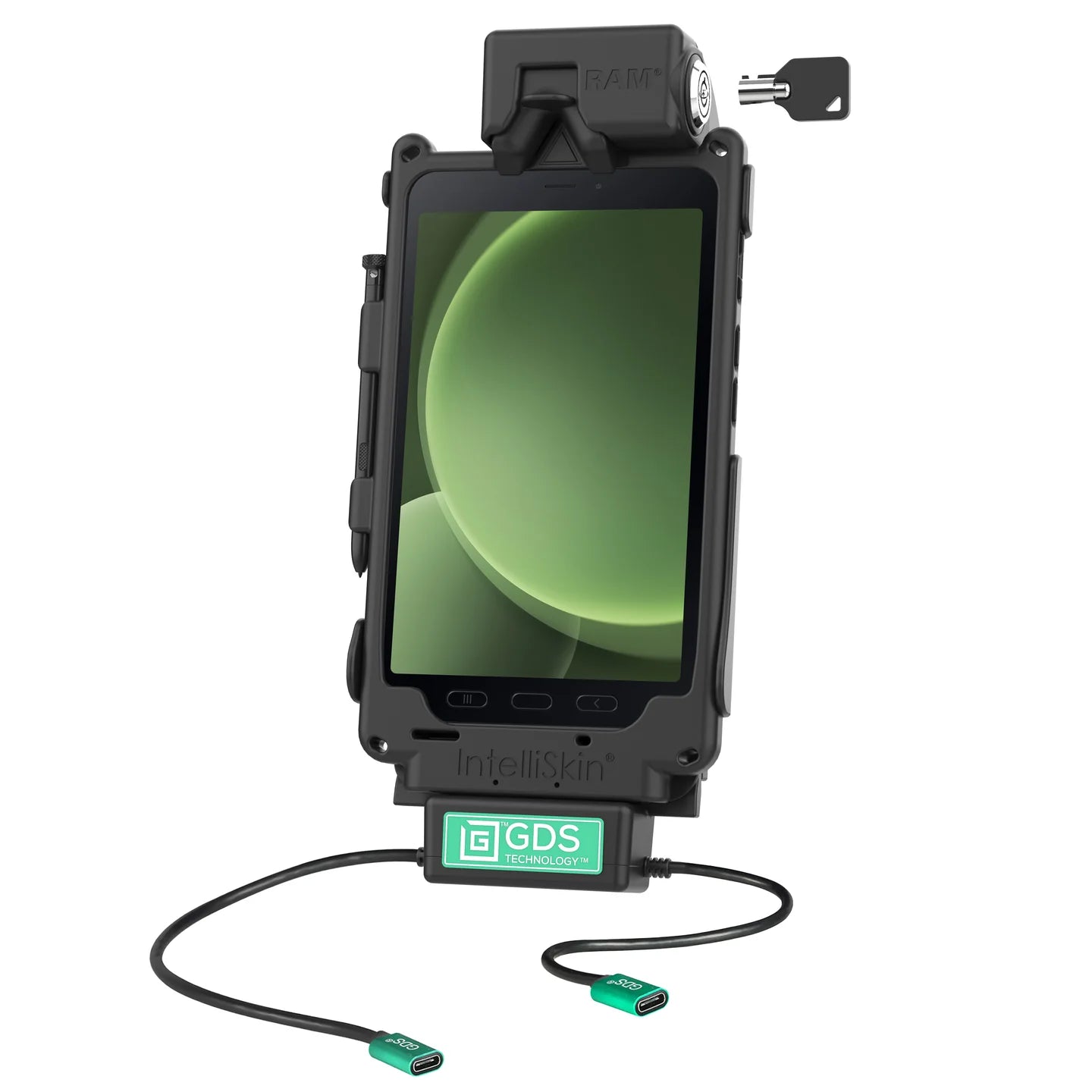

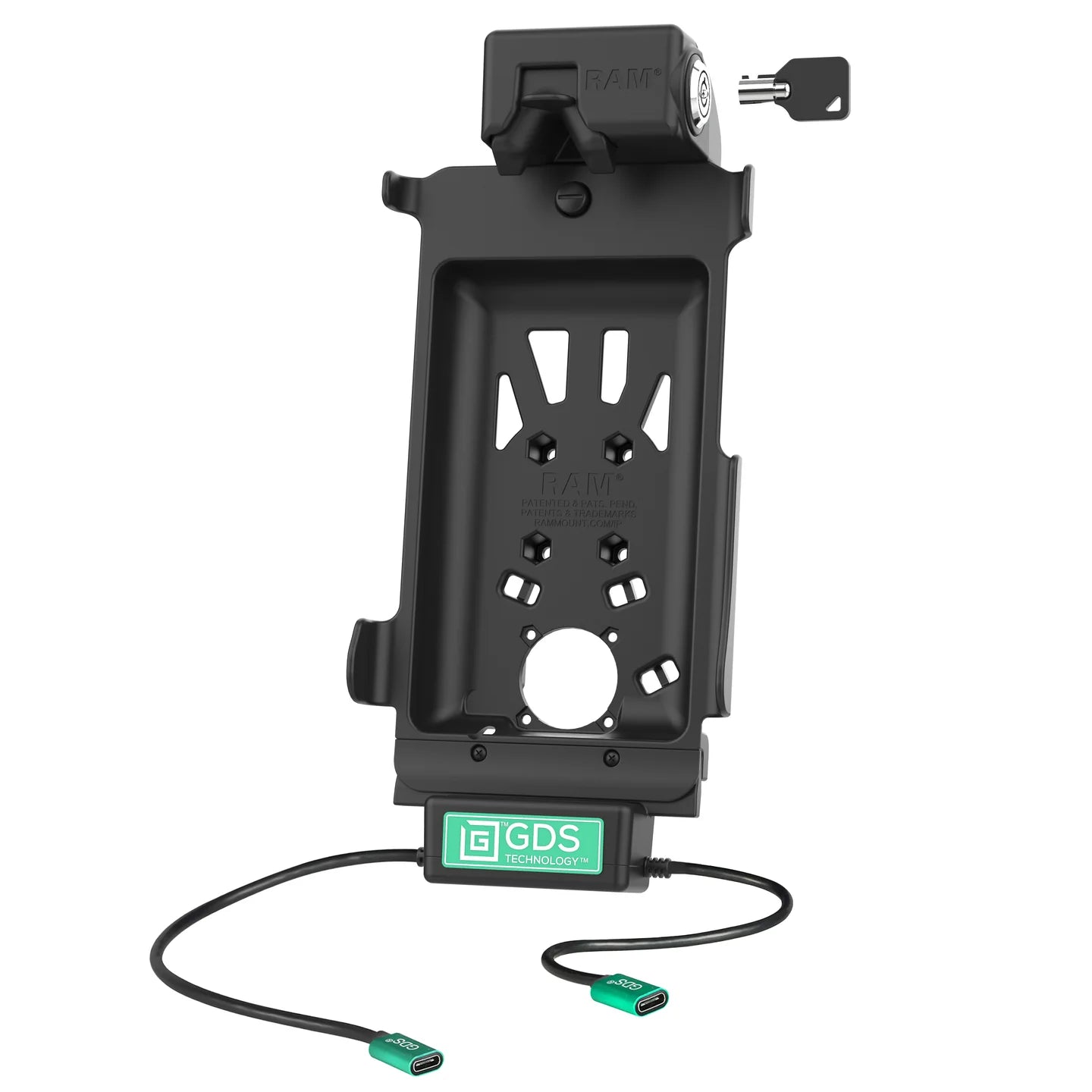

The Locking GDS® Tough-Dock™ + USB-C Data for Tab Active5 & 3 (RAM-GDS-DOCKL-SAM62C-CU) is a vehicle dock designed to support the Samsung Tab Active5 & 3 in an IntelliSkin® Next Gen protective sleeve. This fleet-oriented solution uses a USB Type-C power connector and USB Type-C peripheral connector to supports charging and data syncing capabilities. The GDS® Tough-Dock™ is compatible with RAM® ball and socket systems using the integrated 4-hole AMPS hole pattern. The GDS® Tough-Dock™ is backed by a 3-year warranty. This dock will keep your tablet charged with any Power Delivery charging source (see Complete Your Solution tab). Always Protected. Always Connected.®

• Designed specifically for the Samsung Tab Active5 & 3 in an IntelliSkin® Next Gen protective sleeve

• Compatible with any Power Delivery chargers including GDS® Charge™ accessories (PD required)

• RAM® Mounts Compatible™ and compatible with the GDS® Hand-Stand™ Hand Strap and Kckstand attachment

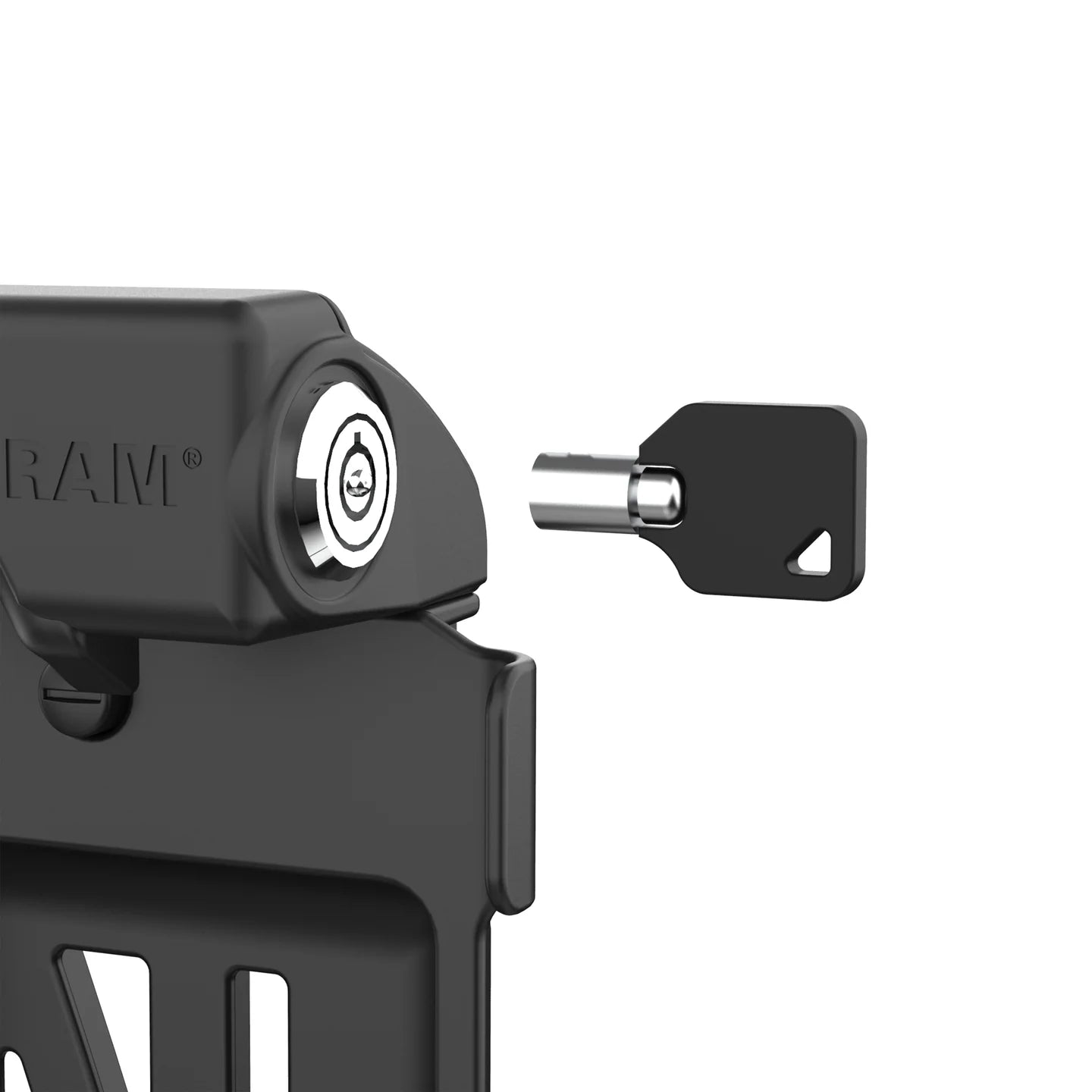

• Keyed lock for theft deterrence

• Backed by a 3-year warranty

hardware included:

(4) #8-32 x 5/8" Machine Screws
(4) #8-32 Nylock Nuts
(2) Keys

hole pattern:

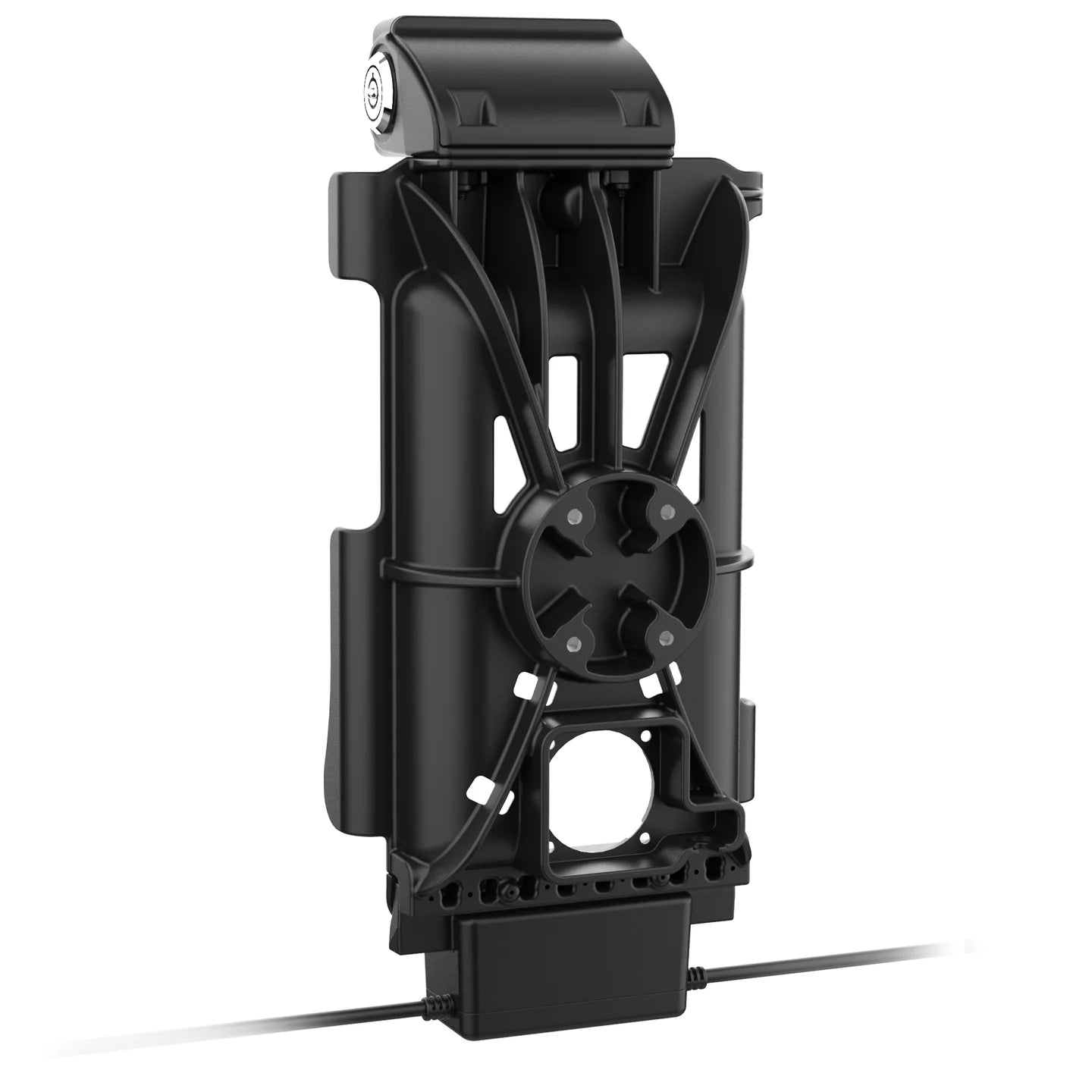

4-Hole AMPS: 1.181" x 1.496"

materials:

High strength composite

packaging type:

Poly Bag

output voltage:

Type-C Tablets: 5V - 12V @ 3A max
mUSB Tablets: 5V @ 1.5A max
Each Peripheral: 5V @ 900mA max

power output:

15W

input connector:

USB Type-C
Dual USB Type-C for Single Peripheral

peripheral output:

500mAh

Warranty:

3 year warranty

Weight:

1.45 lb

Samsung

Sell Sheet
