RAM-GDS-DOCKL-SAM80CPU

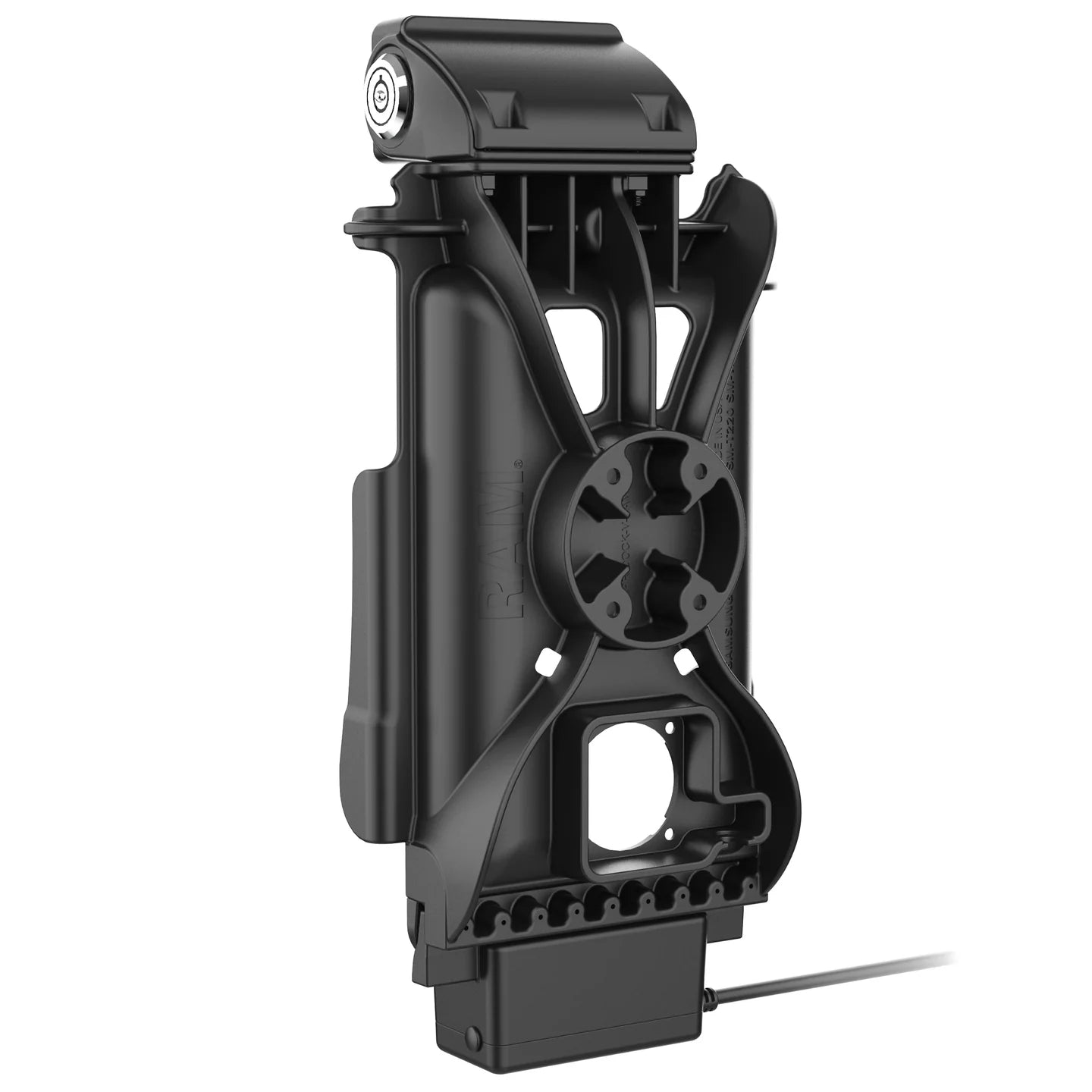

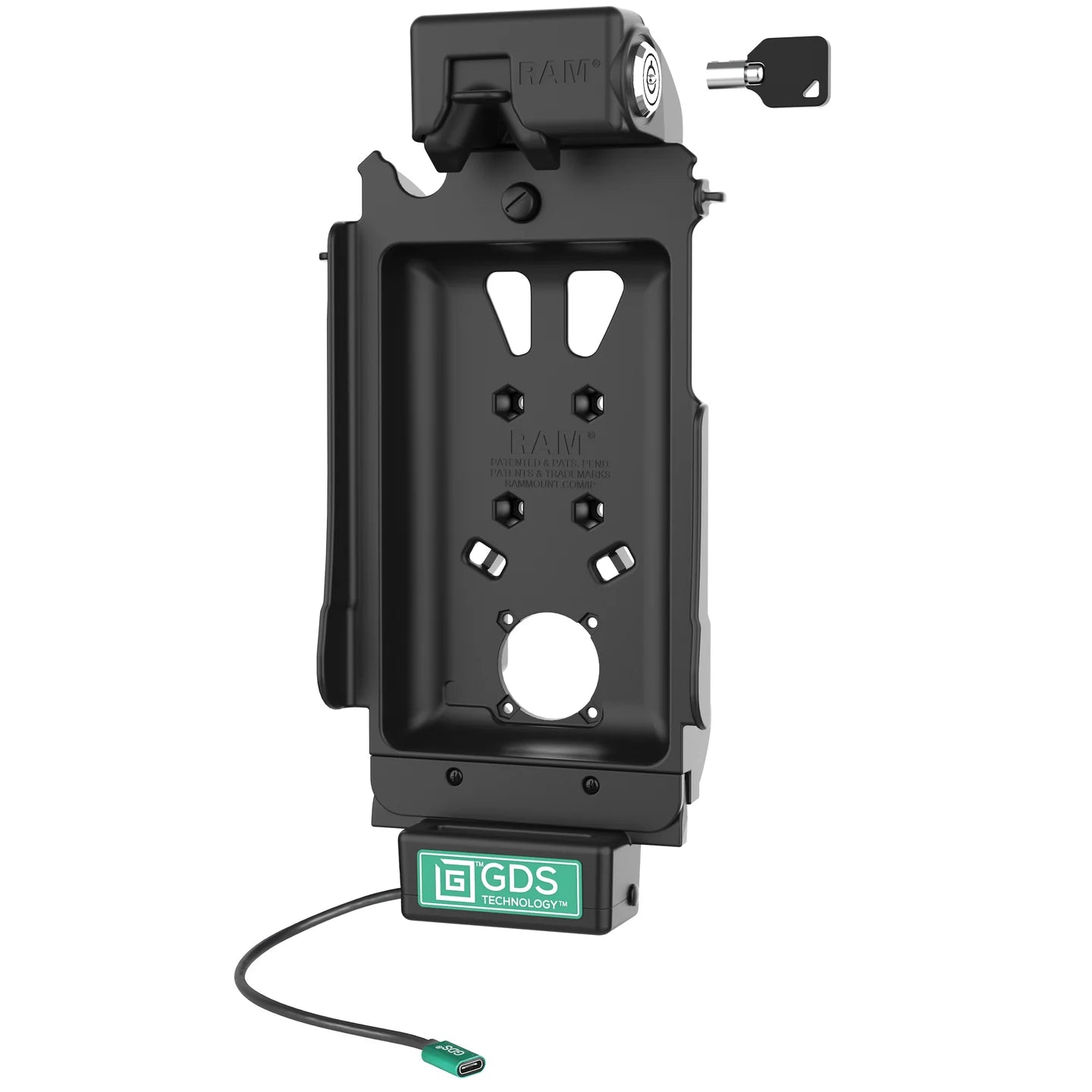

Locking GDS® Tough-Dock™ with USB Type-C for Samsung Tab A7 Lite 8.7" - RAM-GDS-DOCKL-SAM80CPU

$195.49 $218.99

In Stock - Ships for Free!

SPECS & FEATURES

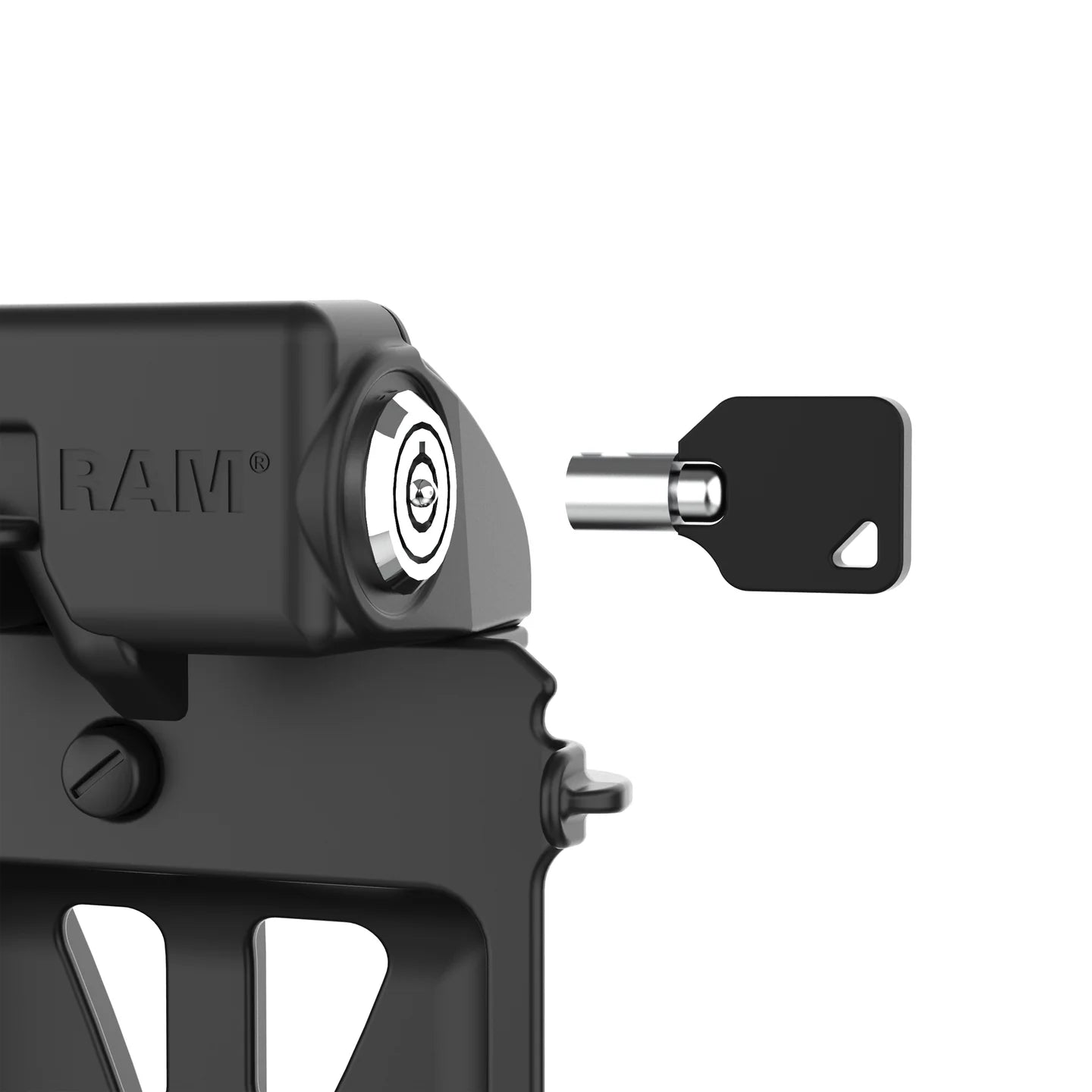

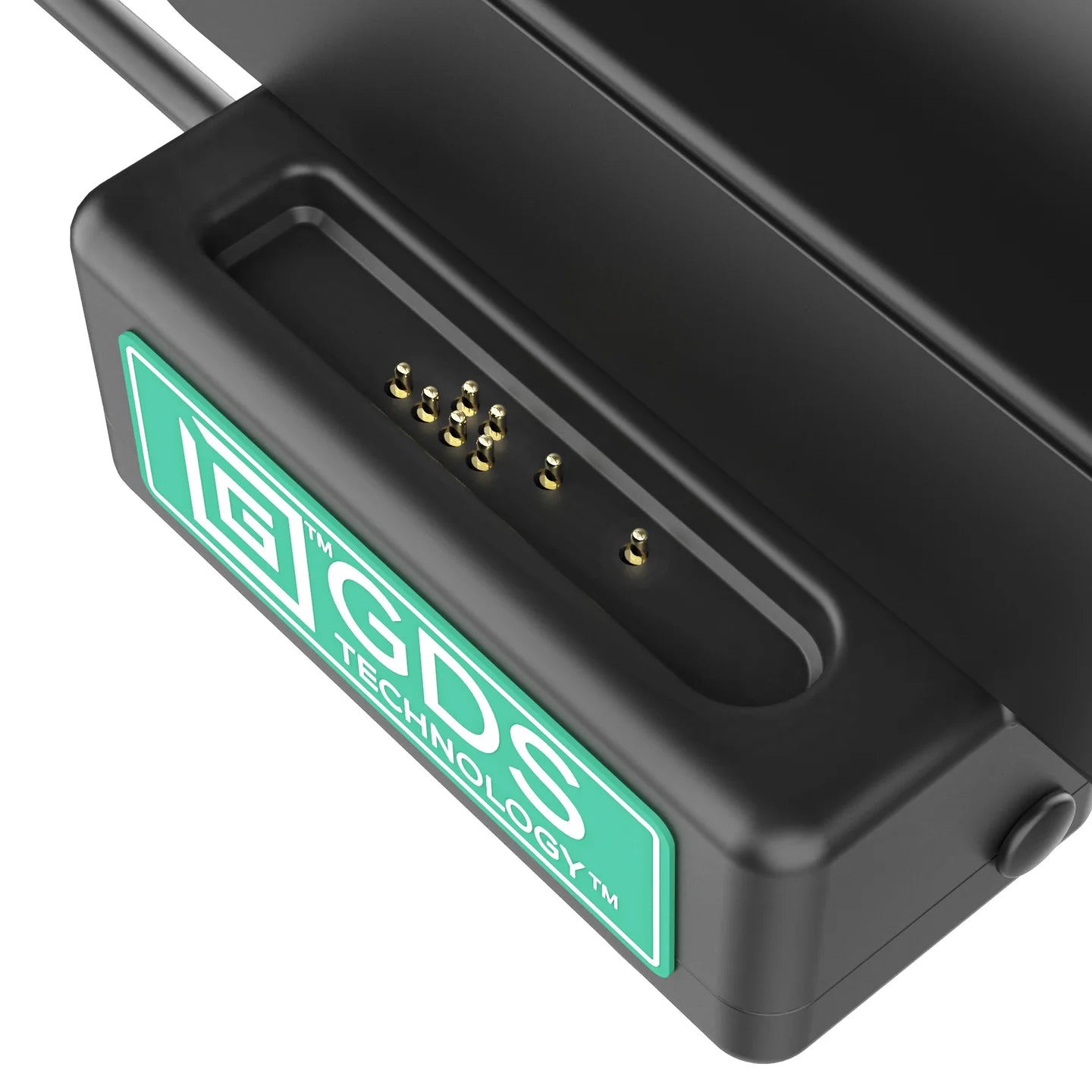

Spring-loaded key-locking vehicle dock featuring GDS® Technology™ uses an integrated pogo pin connector to provide high speed charging

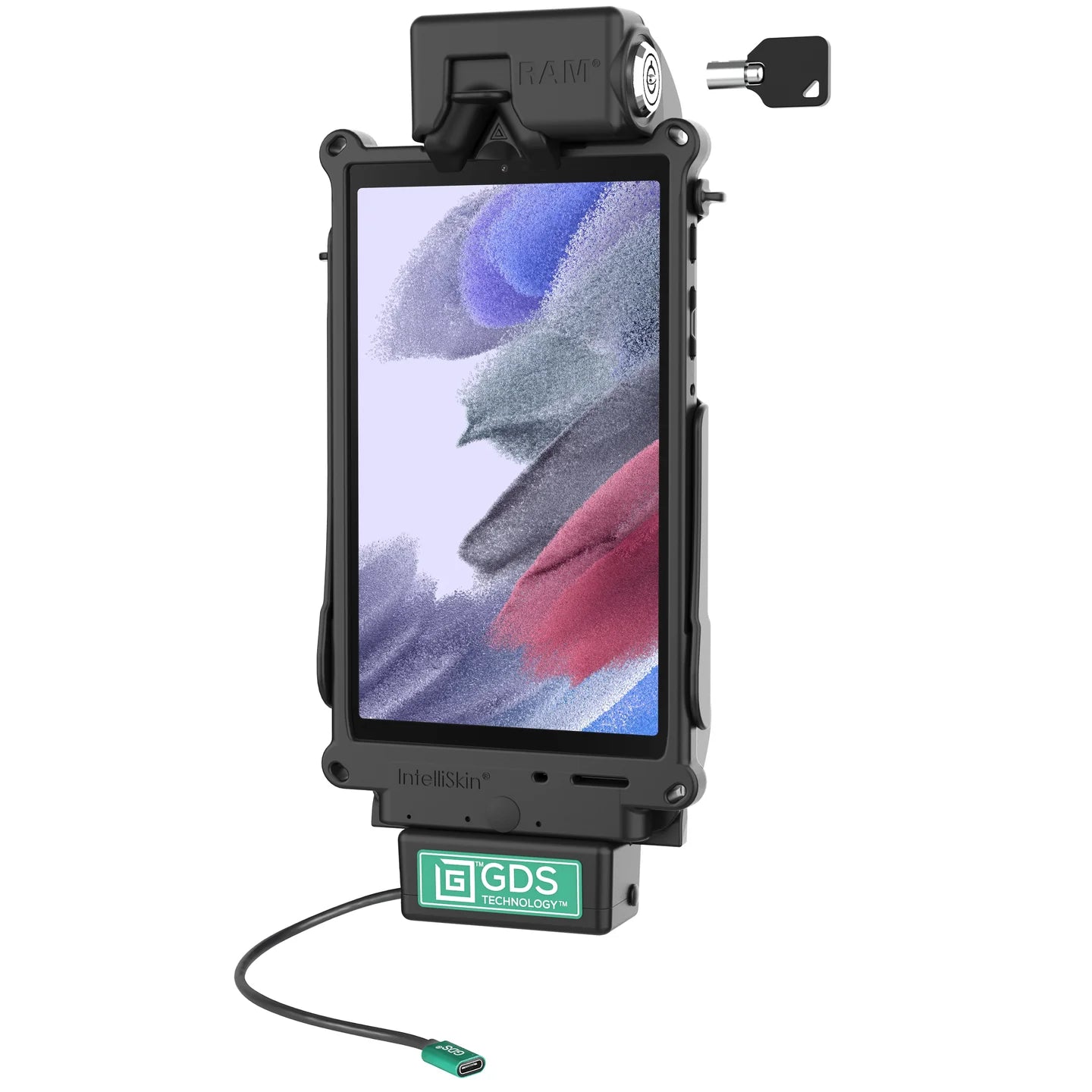

Designed specifically for the Samsung Galaxy Tab A7 Lite 8.7" (SM-T220 & SM-T225) wrapped in an IntelliSkin® Next Gen protective sleeve
Incorporated into the bottom docking cup is a USB Type-C Female connector for providing high speed charging to the dock
RAM® Mounts Compatible™ and compatible with the GDS® Hand-Stand™ Hand Strap and Kickstand attachment
Backed by a 3-year warranty

PRODUCT INFORMATION

OVERVIEW

The GDS^® Tough-Dock^™ is the newest vehicle dock in the GDS^® Tech^™ line of vehicle docks with a keyed locking system designed to support the Samsung Galaxy Tab A7 Lite 8.7" (SM-T220 & SM-T225) in an IntelliSkin^® Next Gen protective sleeve for your fleet. Using a USB Type-C power connector, the GDS^® Tough-Dock^™ supports high speed charging capabilities while docked. The GDS^® Tough-Dock^™ is compatible with RAM^® ball and socket systems and requires a 4-hole AMPS pattern ball adapter. The GDS^® Tough-Dock^™ is backed by a 3-year warranty.

HARDWARE INCLUDED

(4) #8-32 x 5/8" Machine Screws
(4) #8-32 Nylock Nuts
(2) Keys

HOLE PATTERN

4-Hole AMPS: 1.181" x 1.496"

MATERIALS

High strength composite

PACKAGING TYPE

Poly Bag

OUTPUT VOLTAGE

5V - 12V @ 3A

POWER OUTPUT

15W

INPUT CONNECTOR

USB Type-C

WEIGHT

1.16 lbs.

WARRANTY STATUS

3 year warranty

COMPONENTS

GDS® Tough-Dock™ & Cool-Dock™ Locking Top Latch - RAM-GDS-DOCKLHU

GDS® Tough-Dock™ Body For Samsung Tab A8 10.5 SM-X200 - RAM-GDS-DOCKB-SAM83U

GDS® Powered Dock Cup for IntelliSkin® Next Gen Tablets GDS® Powered Dock Cup For IntelliSkin® Next Gen Tablets - RAM-GDS-DOCK-V10PU

COMPATIBLE DEVICES

Samsung

Galaxy Tab A7 Lite 8.7" (SM-T220 & SM-T225) with IntelliSkin® Next Gen

INSTRUCTIONS

GDS^® Technology^™ Catalog

COMPLETE YOUR SOLUTION

RAM® Tough-Claw™ Large Clamp Double Ball Mount with Round Plate RAM Large Tough-Claw™ Base With Double Socket Arm And 1.5" Round Base Adapter - RAP-401-202U

RAM® Universal Backing Plate Mount - RAM-101U-B-XAT1

RAM® Pod HD™ 30" Vehicle Mount with Round Plate RAM Universal No-Drill RAM POD HD Vehicle Mount, 18" LONG Length Pole, Double Socket Arm & 2.5" Round Base AMPs Hole Pattern - RAM-316-HD-18-202U

RAM® Horizontal 6" Swing Arm Mount with Ball & Socket Round Plate RAM® Horizontal 6" Swing Arm Mount With Swivel Ball & Socket Joint - RAM-109H-3U

RAM® 4" Square Post Clamp Mount with Round AMPS Plate - C Size RAM 4" Max Width Clamp Mount With C Size 1.5" Ball Medium Double Socket Arm & 2.5" Round Plate AMPs Hole Pattern - RAM-101U-247-4

RAM® 3" Square Post Clamp Mount with Round AMPS Plate - Medium Arm RAM 3" Max Width Clamp Mount With C Size 1.5" Ball Medium Double Socket Arm & 2.5" Round Plate AMPs Hole Pattern - RAM-101U-247-3

RAM C Size 1.5" Ball Mount With Short Double Socket Arm & 2/2.5" Round Plate AMPs Hole Pattern - RAM-101U-B

RAM® Double U-Bolt Rail Mount for Smaller Rails - C Size Medium RAM® Double U-Bolt Rail Mount For Smaller Rails - RAM-101U-235

RAM® Twist-Lock™ Triple Suction Cup Mount with Round Plate RAM Triple Suction Cup Base With Medium Length Double Socket Arm & 2.5" Round Base AMPs Hole Pattern - RAP-365-101U

COMPATIBLE BASES

RAM® Round Plate with Ball - C Size RAM 2.5" Round Plate With AMPs Hole Pattern & C Size 1.5" Ball - RAM-202U

RAM® Round AMPS Plate with Ball RAM D Size 2.25" Ball On Round Plate With AMPS Hole Pattern - RAM-D-254U

COMPATIBLE PRODUCTS

IntelliSkin® Next Gen with LED Light for Samsung Tab A7 Lite 8.7” IntelliSkin® Next Gen With LED Light For Samsung Tab A7 Lite 8.7” - RAM-GDS-SKIN-SAM80-NG-LED

RAM® Standard Bracket Adapter for Speakers & Microphones Standard RAM® Speaker/Microphone Bracket Adapter - RAM-101-MIC2U

RAM® Short Accessory/Display Bracket - RAM-DIS-103-1U

ACCESSORIES

GDS® Hardwire USB Type-C Power Delivery Charger GDS® Hardwire USB Type-C Power Delivery Charger - RAM-GDS-CHARGE-V3FC-1U

GDS® Hardwire Charger with USB Type-C Connector & USB Type A Port GDS® Hardwire Charger With USB Type-C Connector & USB Type A Port - RAM-GDS-CHARGE-V3FCA-1U

GDS® Hardwire Charger With USB Type-C & Dual USB Type A Ports - RAM-GDS-CHARGE-V3FCA2-1U

GDS® Modular 30-64V Hardwire Charger With Type-C Cable - RAM-GDS-CHARGE-USBC-V8BU

GDS® Genuine USB Type-C .8 Meter Extension Cable - RAM-GDS-CAB-USBC-CMCFU

GDS® Type-C and Type A 2-Port Cigarette Charger GDS® Type-C And Type A 2-Port Cigarette Charger - RAM-GDS-CHARGE-CIGC

GDS® Type-C and Type-A 48W Premium 2-Port Wall Charger GDS® Type-C And Type-A 48W Premium 2-Port Wall Charger - RAM-GDS-CHARGE-USBC2W

GDS® Fan Accessory For GDS® Tough-Dock™ - RAM-GDS-FAN1U
