RAM-GDS-DOCKLF-SAM67CU
Out of Stock
( Chat Live to get an ETA )

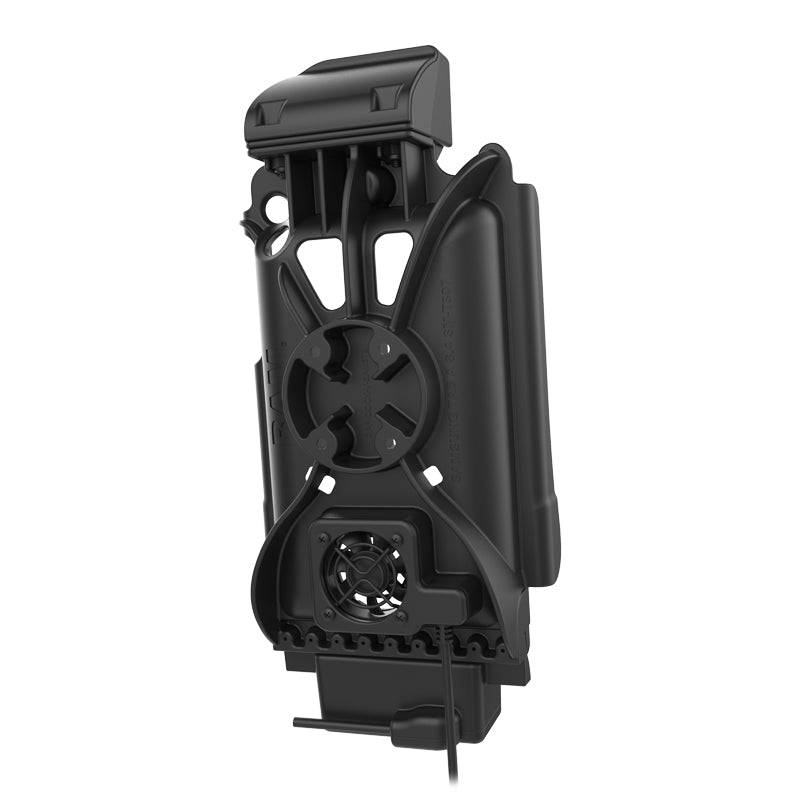

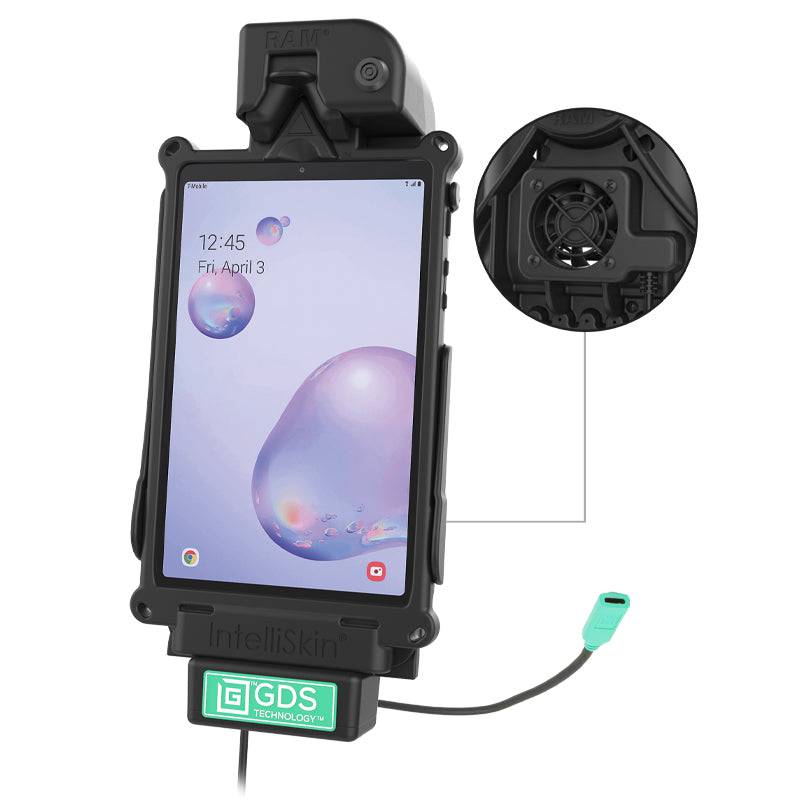

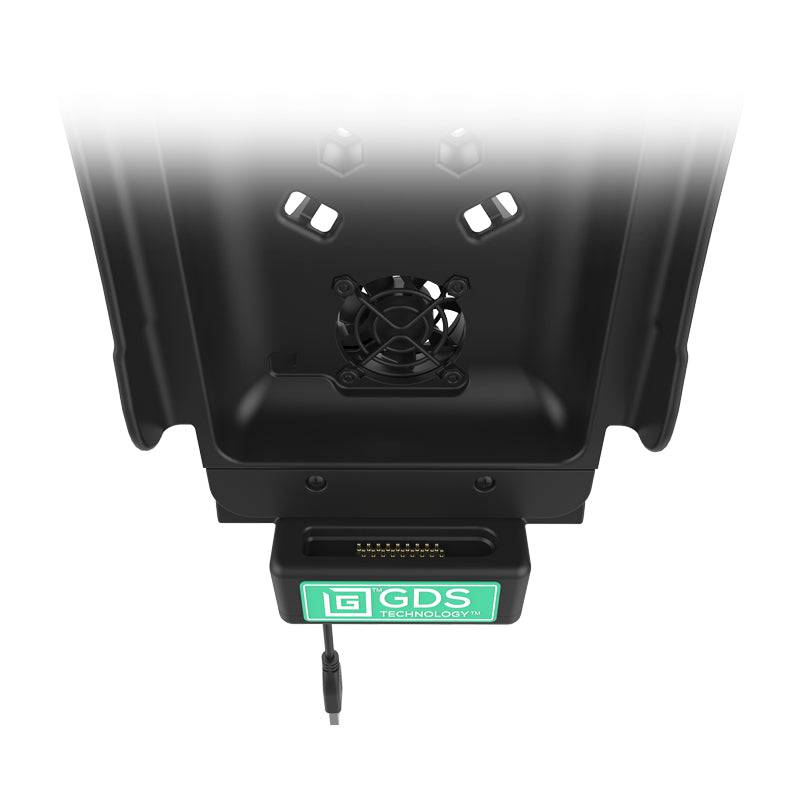

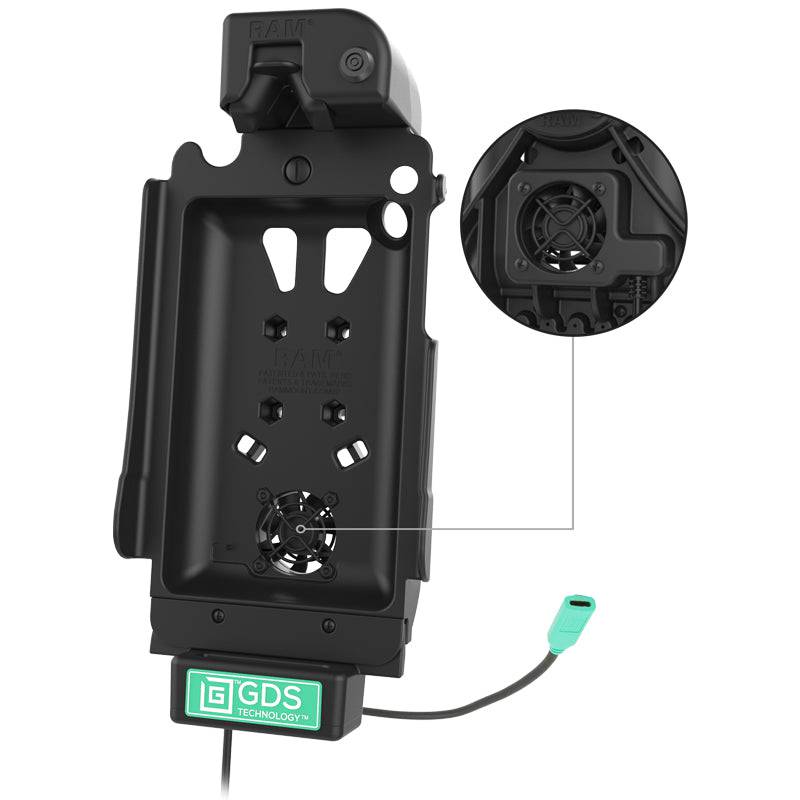

The GDS® Cool-Dock™ is the upgraded version of the GDS® Tough-Dock™ including a built-in 12-VDC Axial cooling fan with a 2.2 meter long hardwire power cord and a keyed locking system. The GDS® Cool-Dock™ is the turnkey vehicle dock in the GDS® Tech™ line of vehicle docks designed to support the Samsung Galaxy Tab A 8.4 (2020) in a Next Gen IntelliSkin® protective sleeve for your fleet. Using a USB Type-C connector, the GDS® Cool-Dock™ supports data sync and fast charging capabilities for the Samsung Galaxy Tab A 8.4 (2020). The GDS® Cool-Dock™ contains a 4-hole AMPS pattern; compatible with RAM® ball and socket mounting systems. The GDS® Cool-Dock™ is backed by a 3-year warranty. Galaxy Tab A 8.4 (SM-T307) with IntelliSkin® Next Gen
Specs & Features
PRODUCT INFORMATION
OVERVIEW
HARDWARE INCLUDED
(4) #8-32 x 5/8" Machine Screws
(4) #8-32 Nylock Nuts
(2) Keys
4-Hole AMPS: 1.181" x 1.496"
HOLE PATTERN
High strength composite
MATERIALS
Poly Bag
PACKAGING TYPE
5V - 20V @ 3A
OUTPUT VOLTAGE
60W
POWER OUTPUT
USB Type-C
INPUT CONNECTOR
5Gbps
TRANSFER SPEED
1.35 lbs.
WEIGHT
3 year warranty
WARRANTY STATUS
ADDITIONAL INFORMATIONThe 3.5mm audio jack is blocked while in the dock. If access to this port is needed
COMPONENTS COMPATIBLE DEVICES
Samsung
Instructions COMPLETE YOUR SOLUTION
