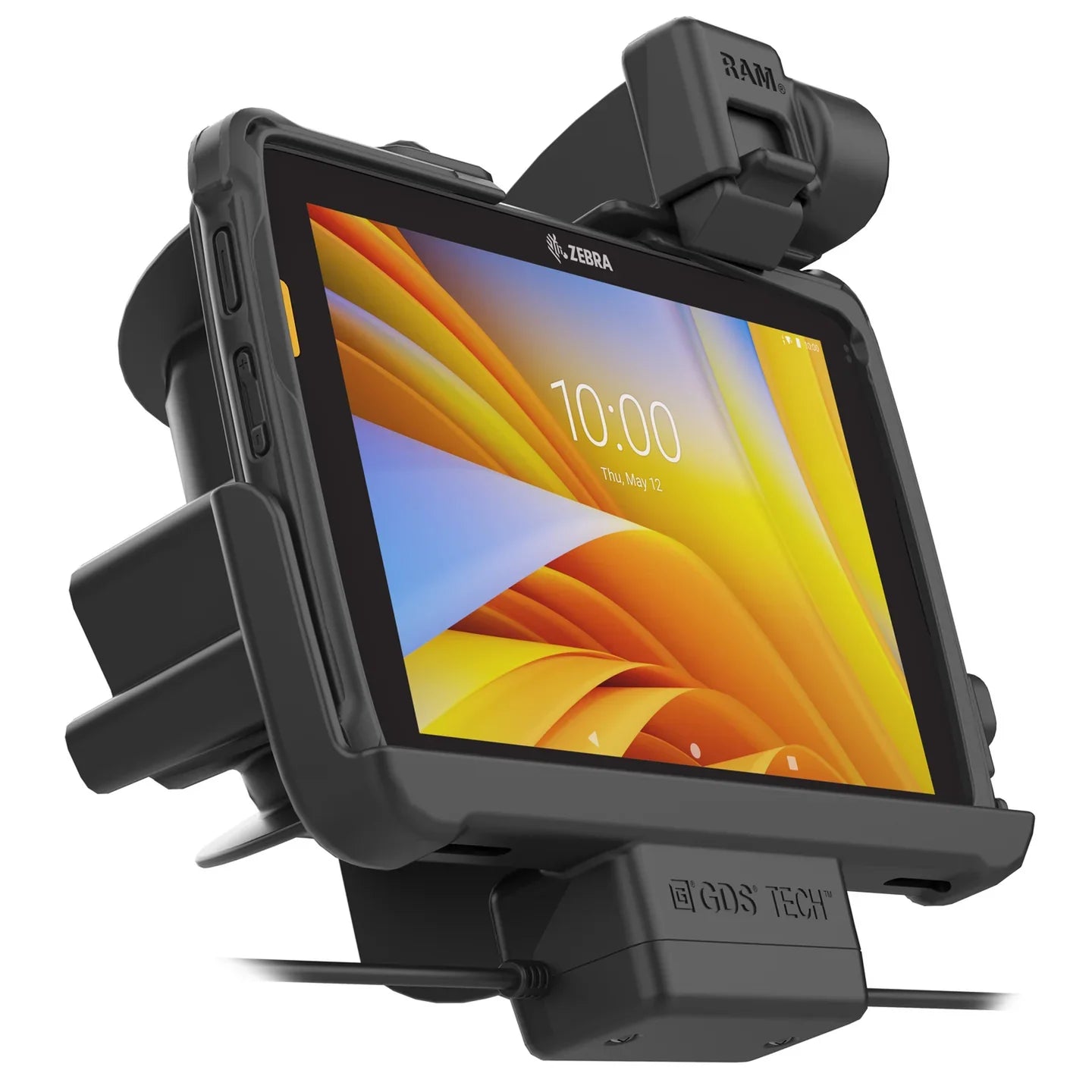

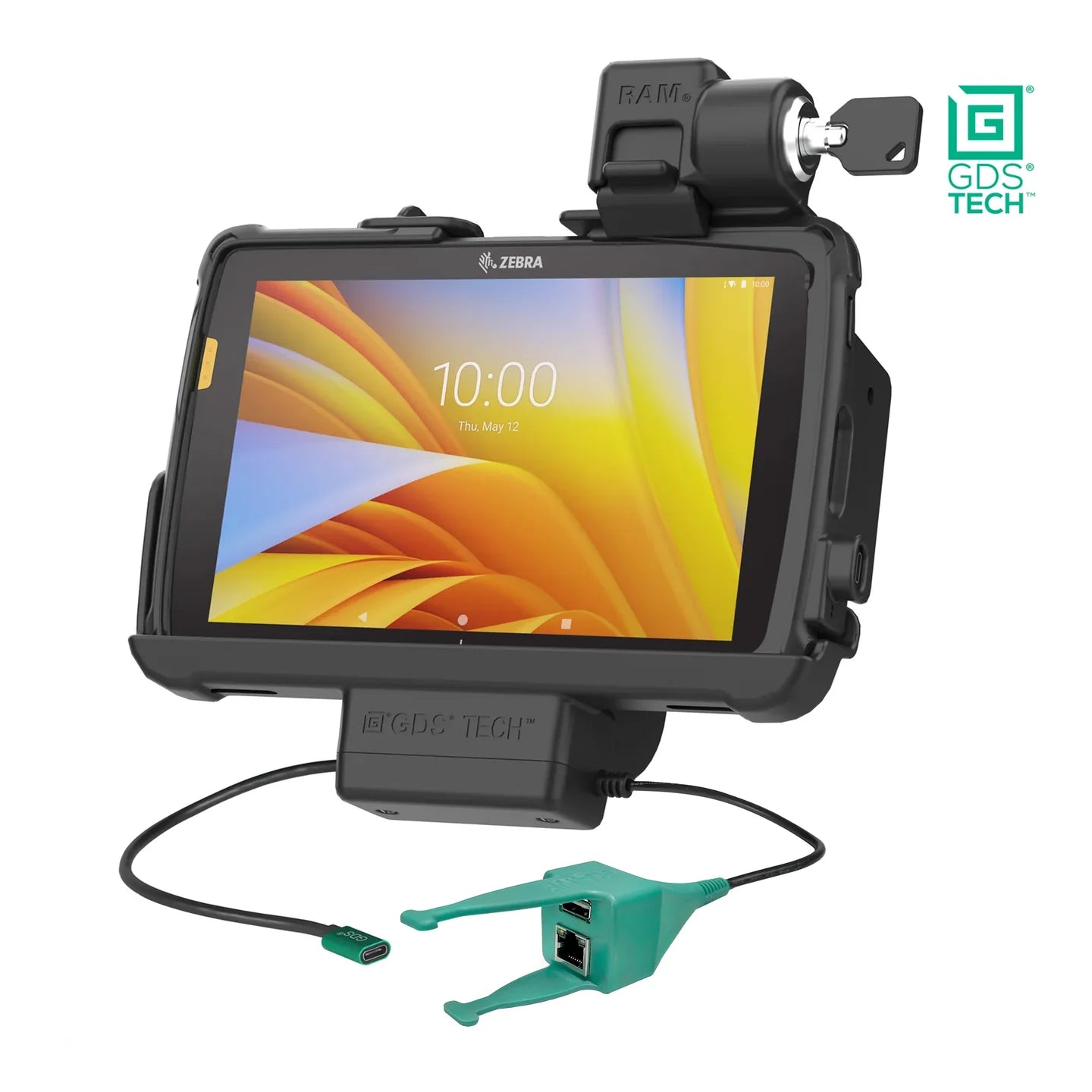

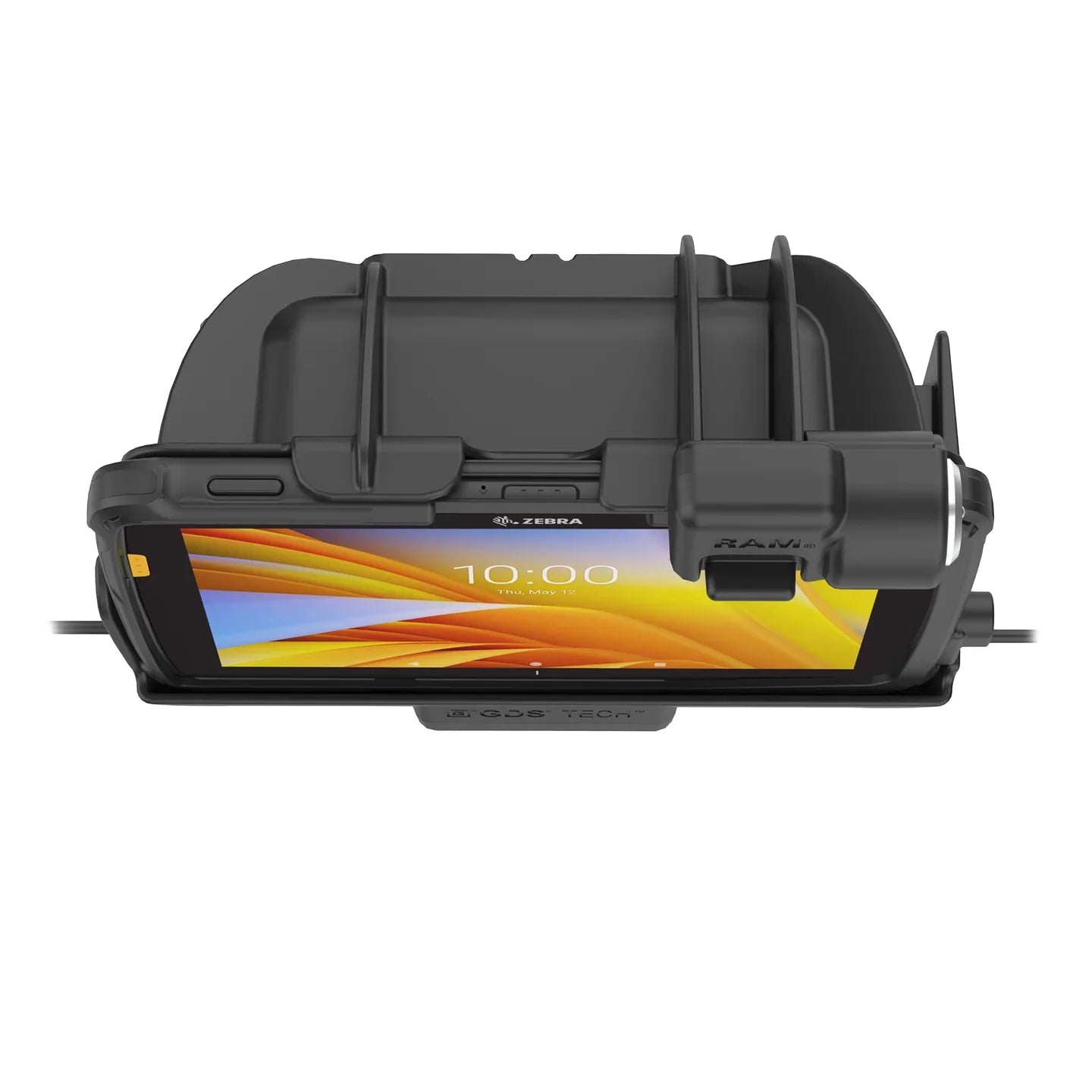

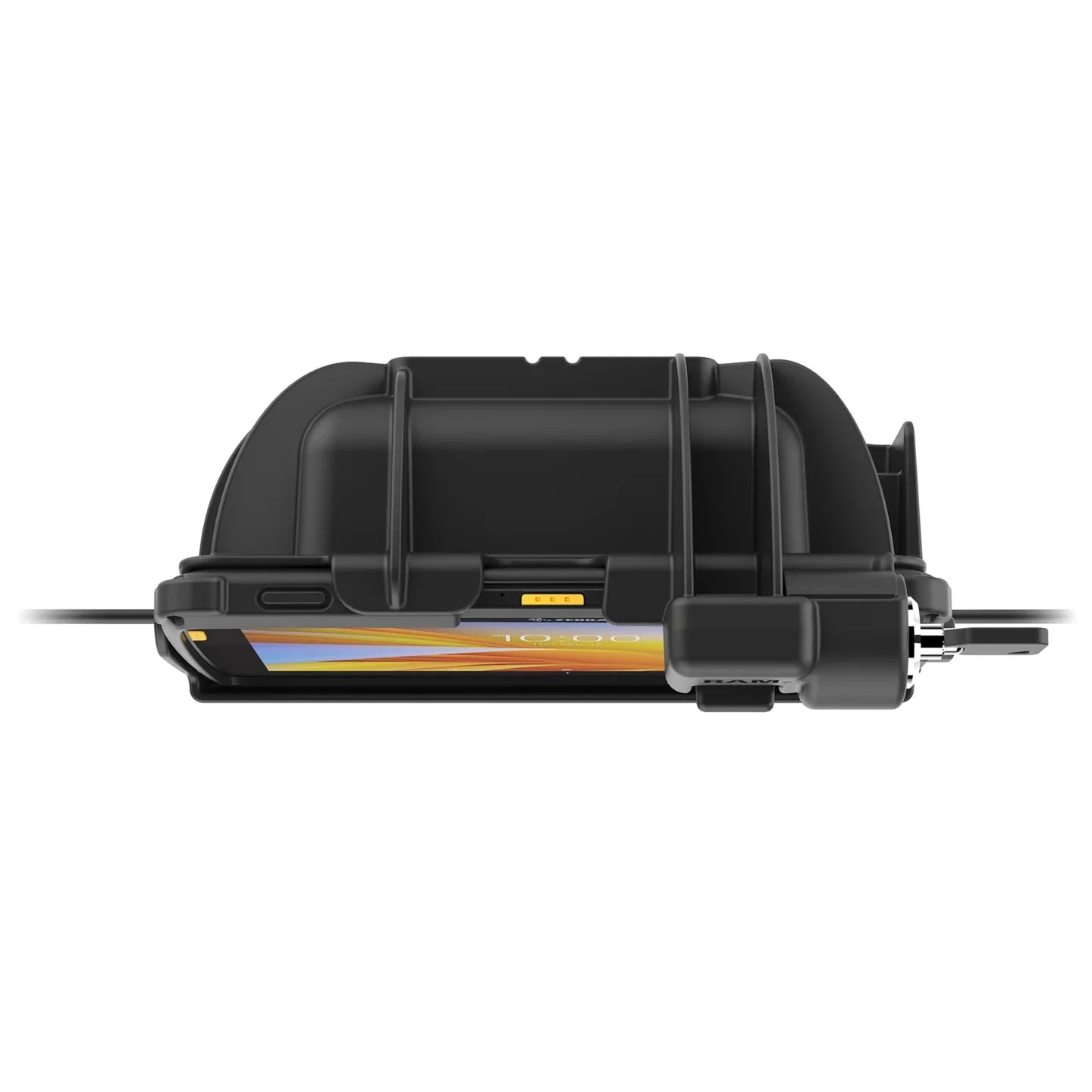

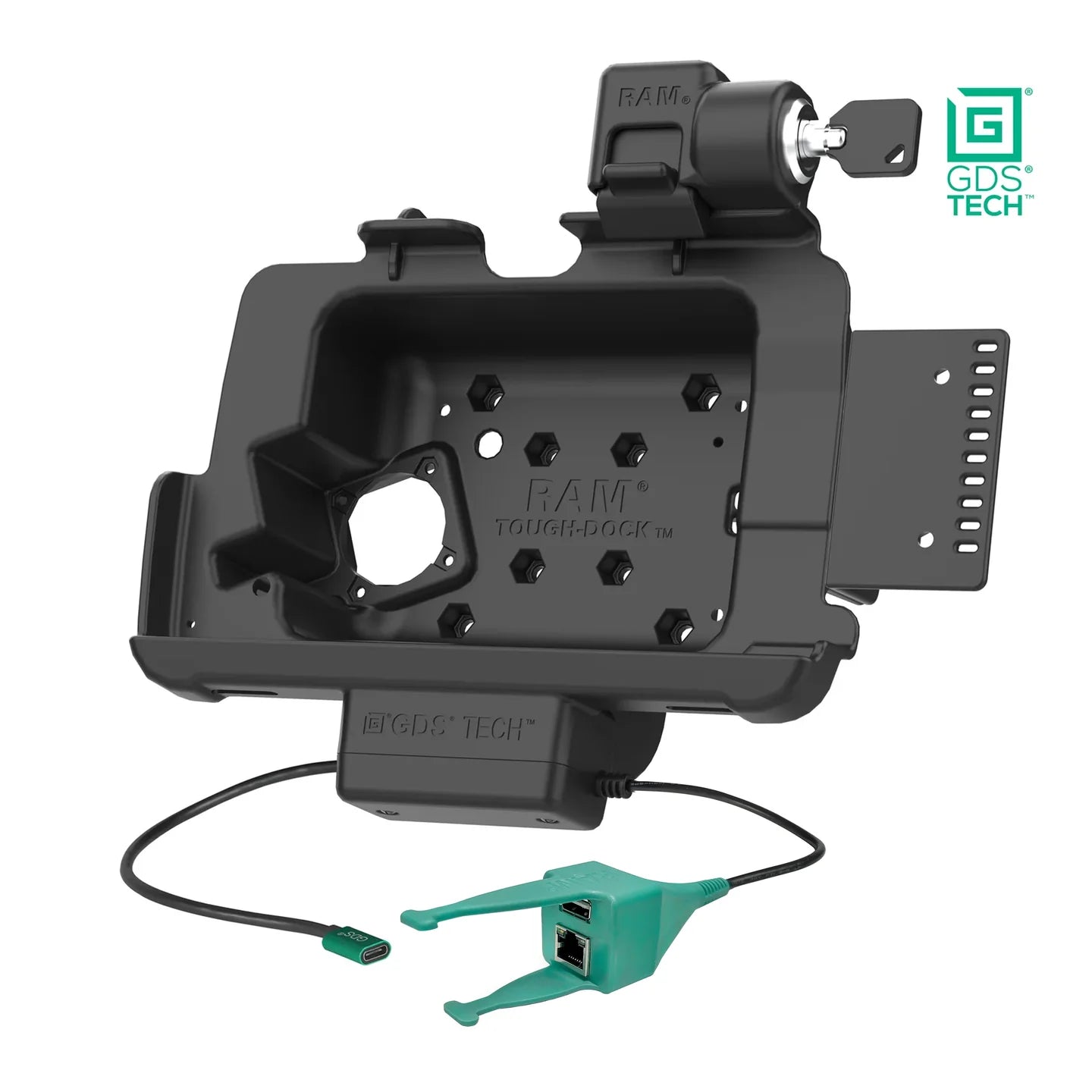

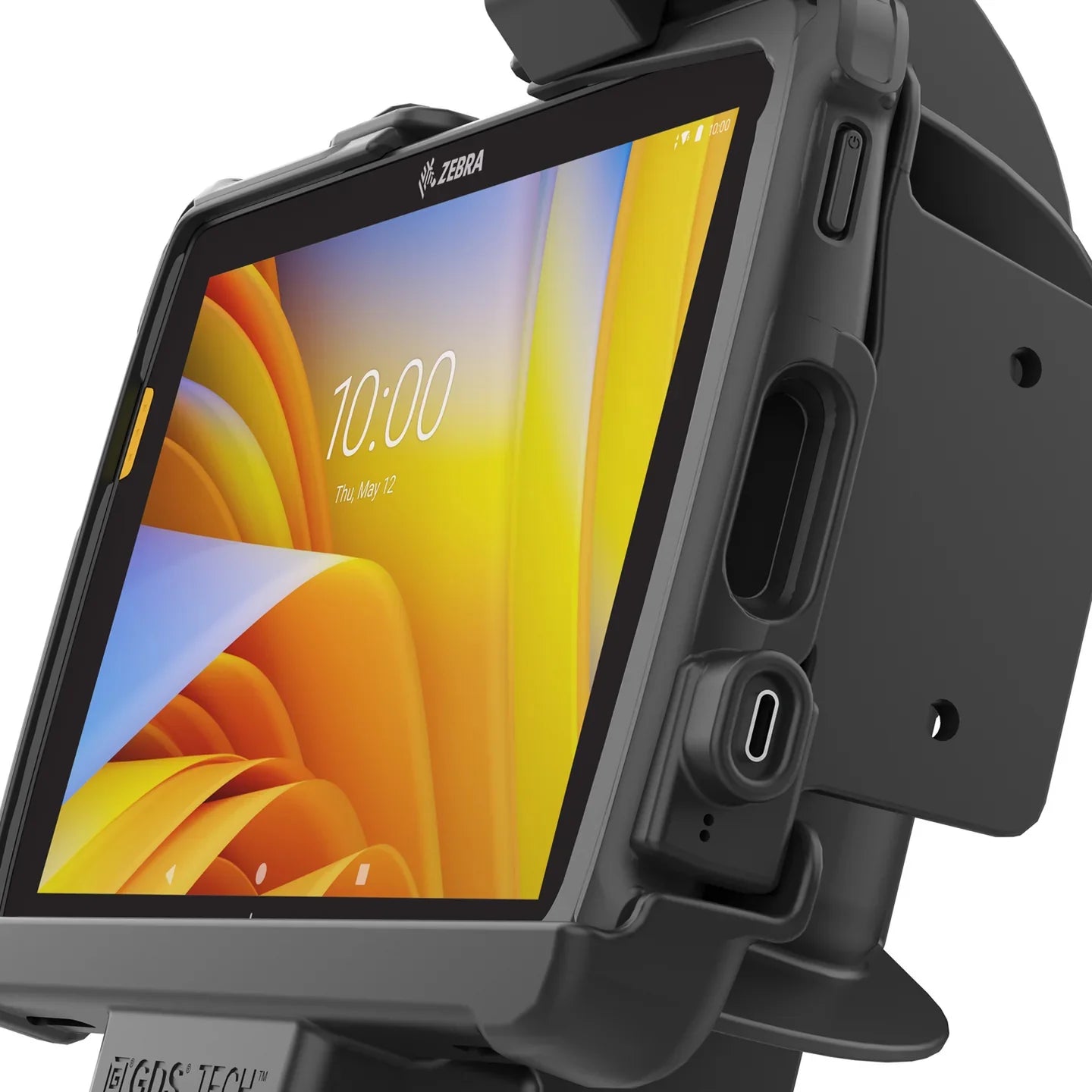

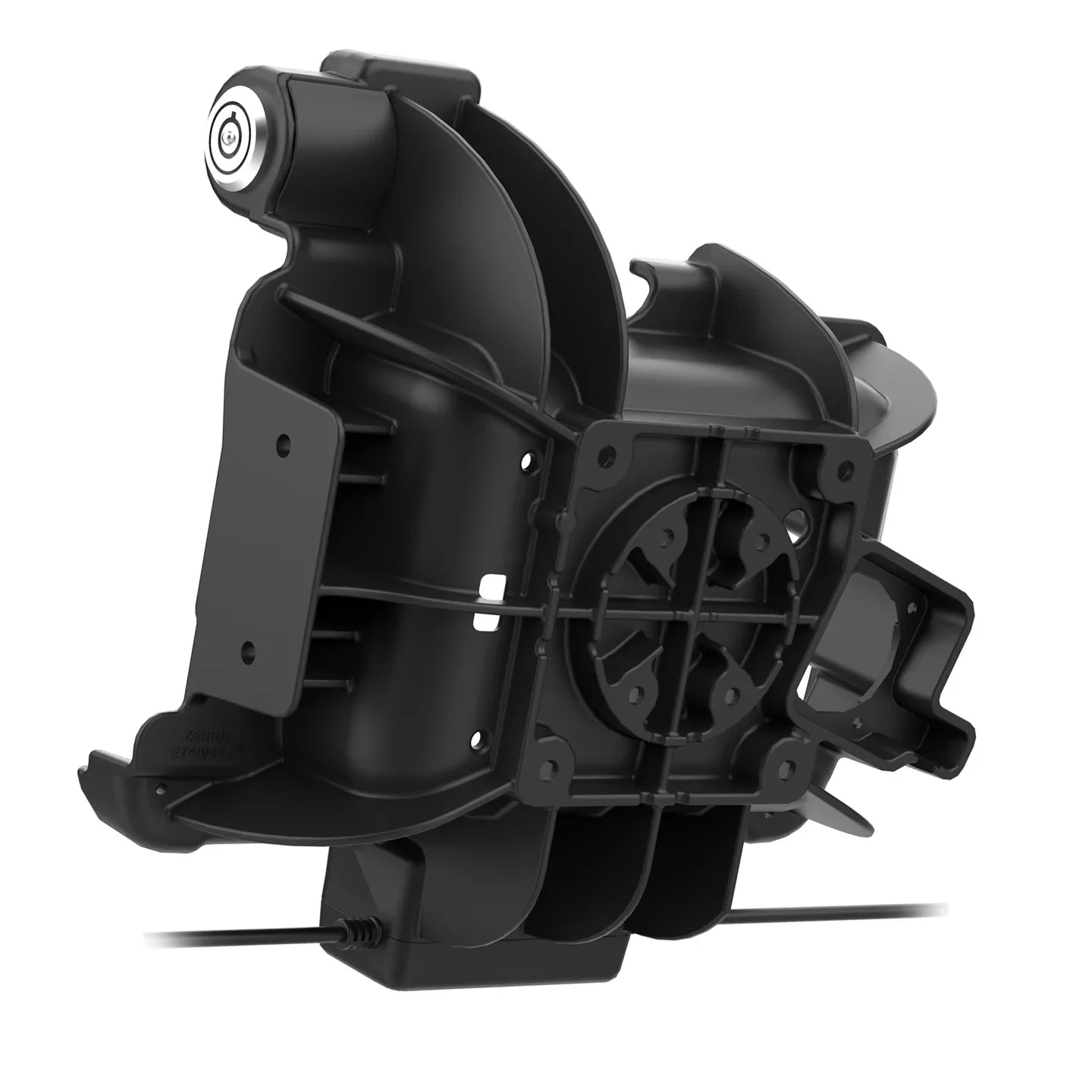

Locking GDS® Dock + USB-A & RJ45 for Zebra ET4x 8" with IntelliSkin® - RAM-GDS-DOCKL-ZE20-RJ45AU

The Locking GDS® Power + Dual USB-A & RJ45 Dock for Zebra ET4x 8" with IntelliSkin® (RAM-GDS-DOCKL-ZE20-RJ45AU) features GDS® Technology™ for data and charging capabilities and a key lock for theft deterrence, the GDS® Vehicle Dock for Zebra ET40 & ET45 8" enterprise tablets with IntelliSkin® Next Generation protective sleeve allows you to connect one peripheral and maintain a secure internet connection while keeping the device charged through the pogo pin contacts when the device is docked.

Power is provided by connecting to the dock's USB Type-C connector, while peripheral support is provided by the built-in dual USB Type-A and RJ45 (ethernet) cord. The dock also allows the tablet's scanning function to work on the side, as well as tablet add-ons such as the Zebra Expansion Back and PowerPack Battery. This vehicle dock is compatible with C and D size RAM® 4-hole AMPS and 75mm x 75mm VESA pattern bases for attaching a double socket arm in order to complete your mounting solution.

Take the solution a step further by taking advantage of the built-in 2-hole mounting plate compatible with RAM® 2-hole diamond base for additional device mounting such as a phone or other handheld device. Always Protected. Always Connected.®

• Locking powered dock featuring GDS® Technology™ with data and charging capabilities for the Zebra ET40 & ET45 8" tablets with IntelliSkin® Next Gen protective sleeve via USB Type-C for power and dual USB Type A & RJ45 (ethernet) connector; MIL-STD 810G Shock and Vibration tested

• When connected to a power source, integrated pogo pins provide power to the device while docked; Dock accommodates tablet add-ons such as the Expansion Back and PowerPack Battery; tablet scanning works while tablet is docked

• Compatible with C and D size RAM® 4-hole AMPS and 75mm x 75mm VESA pattern bases for attaching a double socket arm; ball and socket technology allows for near-infinite adjustability

• Built-in 2-hole mounting plate for additional device mounting such as a phone; compatible with RAM® 2-hole diamond bases and accessory side bracket

• Backed by a 3-year warranty

hardware included:
(2) Keys
(1) Side bracket for accessory mounting
(4) #8-32 x 5/8” Machine Screws
(2) #8-32 x 1/2” Machine Screws
(6) #8-32 Nylock Nuts
(4) #10-24 x 5/8” Machine Screws
(4) #10-24 Nylock Nuts
(2) Small Cable Ties

hole pattern:
75 x 75mm VESA
4-Hole AMPS: 1.181" x 1.496"

materials:
High strength composite

packaging type:
Poly Bag

output voltage:
Type-C Tablets: 5V - 12V @ 3A max
mUSB Tablets: 5V @ 1.5A max

power output:
15W

input connector:
USB Type-C (Power In)

input cable length:
215mm

output connector:
(1) USB Type-A & (1) RJ45 Female

output cable length:
215mm

peripheral output:
900mAh

Warranty:
3 year warranty

Weight:
1.69 lb

IntelliSkin® is required for this dock. See RAM-GDS-SKIN-ZE20C-NG for compatible IntelliSkin®.
