RAM® Aqua Box® Pro 20 with Composite Double Ball Diamond Plate Mount - RAP-B-102-AQ7-2CU

The RAP-B-102-AQ7-2CU consists of a (2 qty) diamond bases, double socket arm and large AQUA BOX^® Pro 20 case. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles. With the AQUA BOX^® Pro, you have access to side buttons and full use of the touchscreen. Weather resistant and splash proof, this unique patented design allows access to all side buttons on the phone while in the case. Are you one of those people that can be a little rough on things? Our PVC Vinyl screen is replaceable so if you start to lose that crystal clear appearance, we’ve got you covered…literally. Allowing easy operation of the touch screen while in the case, the compact and sleek design means traveling with your AQUA BOX^® Pro is never a hassle. Think an enclosure will slow you down? Think again. Send text messages, listen to music, take photos or capture video, make calls all while protecting your phone.

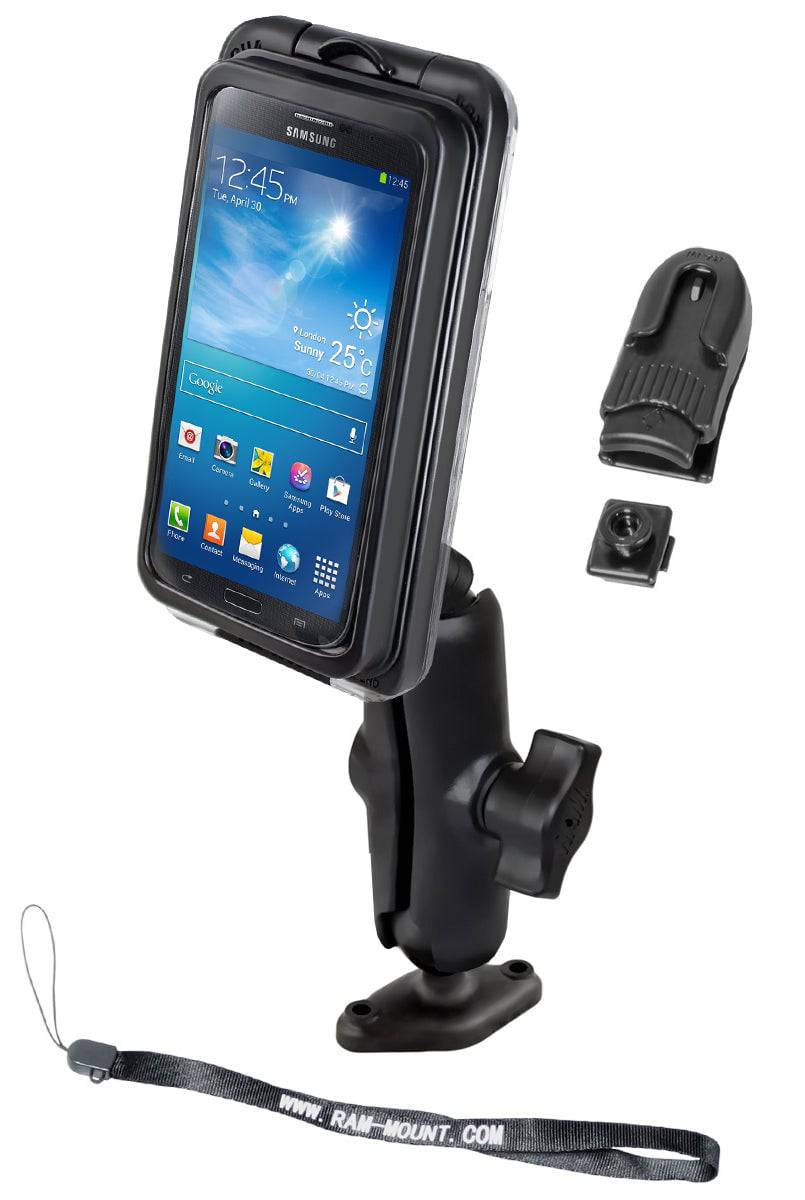

HARDWARE INCLUDED

(1) Cradle Clip
(2) #8-32 x 1/2" Machine Screws
(2) #8-32 x 5/8" Machine Screws
(2) #8-32 x 3/4" Machine Screws
(2) #8-32 Nylock Nuts
(1) Wrist Strap
(1) 1/2" Thick Foam Strip
(1) Belt Clip
(1) Belt Clip Adapter

INTERNAL DIMENSIONS

Width: 2.33"
Height: 4.9"
Depth: 0.35"

SOCKET-TO-SOCKET LENGTH

3"

HOLE PATTERN

2-Hole AMPS: 1.912"

BALL/SOCKET SIZE

B Size (1")

WEIGHT CAPACITY

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

MATERIALS

High strength composite

PACKAGING TYPE

Poly Bag

WEIGHT

0.75 lbs.
