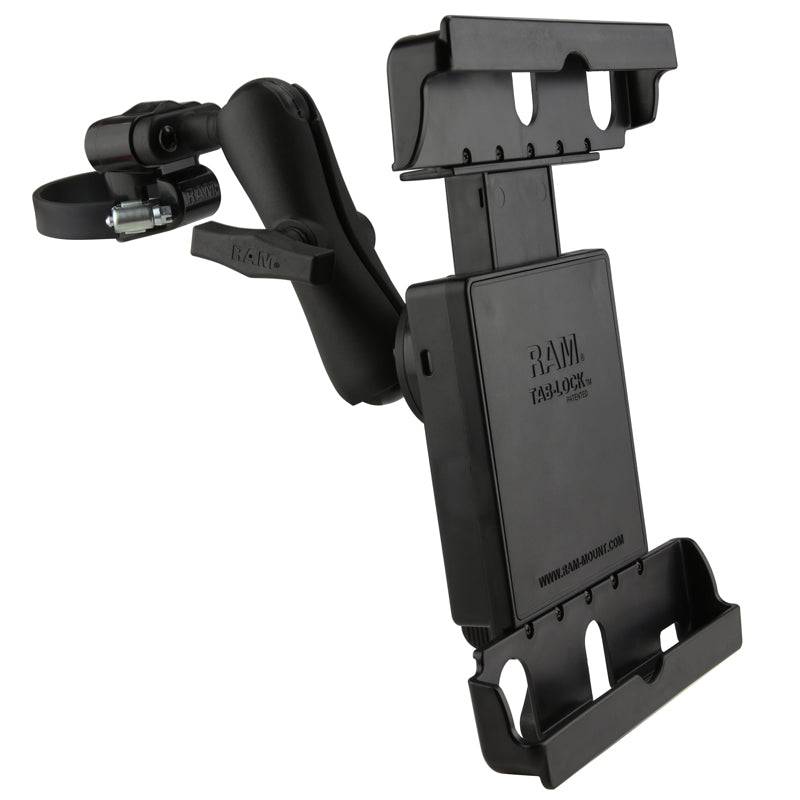

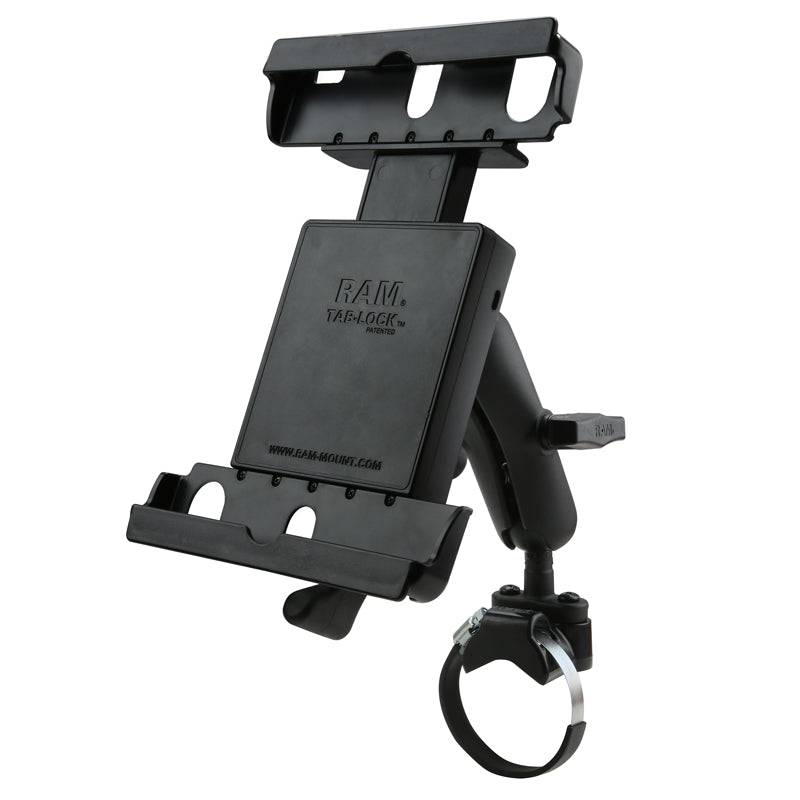

RAM® ATV/UTV Rail Mount for 9"-10.5" Tablets with Heavy Duty Cases - RAM-231Z-2-TABL20U

  • Spring-loaded holder secures most 9"-10.5" tablets with cases; interchangeable end cups allow you to modify the holder when upgrading devices
  • Includes rail and bar base for UTVs and ATVs with strap clamp and U-bolt components, 4-hole AMPS pattern ball adapter, and C size medium length double socket arm; ball and socket technology allows for near-infinite adjustability
  • Made of powder-coated, marine-grade aluminum and high-strength composites for durability and reliability in the most demanding environments
  • Backed by a lifetime warranty


This heavy duty ATV/UTV mount is the perfect solution for securing most 9" tablets with case to virtually any roll bar or handlebar. Designed for a clean installation, the hose clamp base accommodates most common tubing sizes on UTV’s and ATV's, allowing for the placement of the RAM rubber ball base. Safely concealing a strap clamp in a compact housing, you won’t have to worry about exposed sharp edges or unwanted loosening. Included in the kit is a zinc coated metal u-bolt, allowing you to modify the mount to accommodate mounting location. The base also includes black cover caps to be placed over the exposed ends of the u-bolt. The included RAM® Tab-Lock tablet holder offers a secure fit with easy access to the mounted tablet. The spring loaded design makes it easy to insert and remove your tablet, along with keeping it secure in mobile applications. The custom end cups are designed to optimize the functionality of your tablet, enabling access to all ports and tablet functions. The Tab-Lock cradle is compatible with any tablet that will fit the dimensions listed below. It is important to verify the dimensions of your tablet when determining the overall size.


Assembly Hardware
(1) Strap Clamp Adapter
(2) 1/4"-20 x 1" Machine Screws
(2) 1/4"-20 Nylock Nuts
(1) Zinc Worm Drive Strap Clamp
(1) 6" Rubber Strip
(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
(2) Rubber Caps
(1) U-Bolt Spacer


Height Range: 9.25" - 12.125"
Width Range: 6.55" - 7.43"
Depth Range: .3" - .875"


U-Bolt: .5" - 1.25" diameter
Strap Clamp: 1.57" - 3.15" diameter




C Size (1.5")


Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs


Marine-grade aluminum
High strength composite


Poly Bag


2.8 lbs.


iPad (5th Generation) with Case

iPad (6th Generation) with Case

iPad (7th Generation) with Case

iPad (8th Generation) with Case

iPad (9th Generation) with Case

iPad 9.7 (2017) with Case

iPad 9.7 (2018) with Case

iPad Air with Case

iPad Air 2 with Case

iPad Pro 10.5 (2nd Generation) with Case


ZenPad 10 with Case

ZenPad 3S 10 with Case

ZenPad Z10 with Case


MediaPad M2 10.0 with Case


Tab 2 A10-70 with Case

Tab 4 10 with Case

Tab 4 10 Plus with Case

Tab3 10 Business with Case

Yoga Tab 3 10 with Case


G Pad 10.1 with Case

G Pad II 10.1 with Case

G Pad X 10.1 with Case

G Pad X II 10.1 with Case


Surface Go with Case

Surface Go 2 with Case


Galaxy Tab 10.1 with Case

Galaxy Tab 3 10.1 with Case

Galaxy Tab 8.9 with Case

Galaxy Tab A 9.7 with Case

Galaxy Tab A 10.5 with Case

Galaxy Tab Pro 10.1 with Case

Galaxy Tab S2 9.7 with Case

Galaxy Tab S3 9.7 with Case

Galaxy Tab S4 10.5 with Case

Galaxy Tab S6 with Case

Galaxy Tab S7 with Case


Xperia Tablet Z with Case


MatrixPad Z4 10"
