      Home / Products / RAM® Dashboard Mount with Backing Plate for 7"-8" Tablets with Cases - RAM-101B-TAB23U

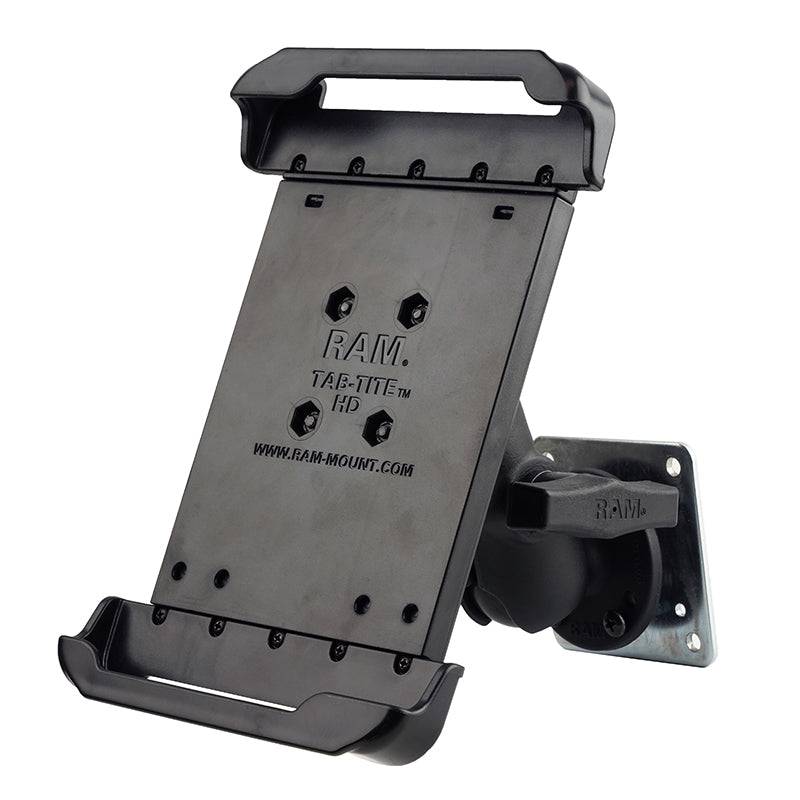

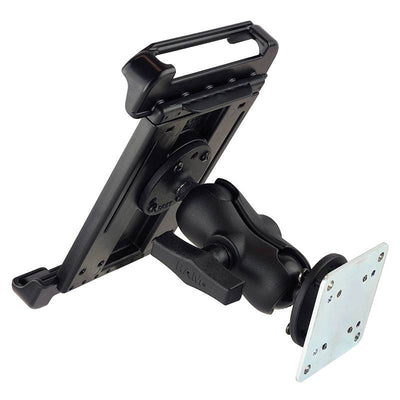

      RAM® Dashboard Mount with Backing Plate for 7"-8" Tablets with Cases - RAM-101B-TAB23U - OC Mounts
      RAM® Dashboard Mount with Backing Plate for 7"-8" Tablets with Cases - RAM-101B-TAB23U - OC Mounts
      RAM® Dashboard Mount with Backing Plate for 7"-8" Tablets with Cases - RAM-101B-TAB23U - OC Mounts
      RAM® Dashboard Mount with Backing Plate for 7"-8" Tablets with Cases - RAM-101B-TAB23U - OC Mounts

      RAM-101B-TAB23U

      RAM® Dashboard Mount with Backing Plate for 7"-8" Tablets with Cases - RAM-101B-TAB23U

      More on the way!    ( Chat Live to get an ETA )

      Low Price Guarantee: Submit a price match for this RAM Mount Item.
      • Spring-loaded holder secures 7"-8" tablets with a case; interchangeable end cups allow you to modify the holder when upgrading devices
      • Drill-down mounting solution; choose either round plate featuring the AMPS hole pattern for attachment to compatible device holders
      • 3" x 3" steel backing plate attaches to a variety of RAM® Mounts ball bases
      • Ball and socket technology allows for near-infinite adjustability
      • Backed by a lifetime warranty

      OVERVIEW

      The RAM® Tab-Tite™ bundle is a rugged mount including the RAM® Tab-Tite™, RAM® Universal Double Ball Mount with Two Round Plates, and RAM® Backing Plate Adapter. The RAM® Tab-Tite™ spring loaded, quick release holder offers a secure fit with easy access to the mounted tablet. The spring loaded design makes it easy to insert and remove your tablet, along with keeping it secure in mobile applications. The custom end cups are designed to optimize the functionality of your tablet, enabling access to all ports and tablet functions. The RAM-101U-B consists of a short double socket arm and two 2.5" diameter round bases with the universal AMPS hole pattern. Designed into the mount is a 1.5" diameter patented rubber ball and socket system with adjustment points at both socket ends of the arm. Rubber ball and socket technology allows for almost infinite adjustment and perfect viewing angles. The included 3” x 3” steel backing plate with #10-24 threaded holes attaches to a variety of RAM® Mounts ball bases.

      HARDWARE INCLUDED

      Assembly Hardware
      (1) 3" x 3" Steel Backing Plate
      (4) #10-24 x 1" Thread Locking Screws
      (4) #10-24 Nylock Nuts

      HOLDER DIMENSIONS

      Height Range: 8.32" - 10.92"
      Width Range: 4.43" - 5.3"
      Depth Range: .13" - .62"

      SOCKET-TO-SOCKET LENGTH

      2.5"

      HOLE PATTERN

      4-Hole AMPS: 1.181" x 1.496"
      3-Hole 120-Degree: 1.812" Diameter

      BALL SIZE

      C Size (1.5")

      WEIGHT CAPACITY

      Standard Use: 4 lbs
      Heavy-Duty Use: 3 lbs

      MATERIALS

      Marine-grade aluminum
      High strength composite
      Powder coated steel

      PACKAGING TYPE

      Poly Bag

      WEIGHT

      1.98 lbs.

      RAM Tab-Tite™ Cradle For 7-8" Tablets In A Heavy Duty Case - RAM-HOL-TAB23U

      RAM C Size 1.5" Ball Mount with Short Double Socket Arm & 2/2.5" Round Plate AMPs hole pattern - RAM-101U-B

      3 X 3 Backer Plate W/ AMPS And 1.5" X 2" Hole Patterns With Hardware - RAM-202-225BU

      Samsung

      Galaxy Tab 4 8.0 with Otterbox Defender Case

      Galaxy Tab A 8.0 (2017) with Case

      Galaxy Tab A 8.0 (2018) with Case

      Galaxy Tab A 8.0 (2019) with Case

      Galaxy Tab S 8.4 with Otterbox Defender Case

      Galaxy Tab E 8.0 with Verizon Rugged Case

      Galaxy Tab Active2

       RAM® Tab-Tite™ Assembly Guide - PDF
