RAM® Double Ball Mount - Composite Backing Plate Short - RAM-101-B-SAE1P

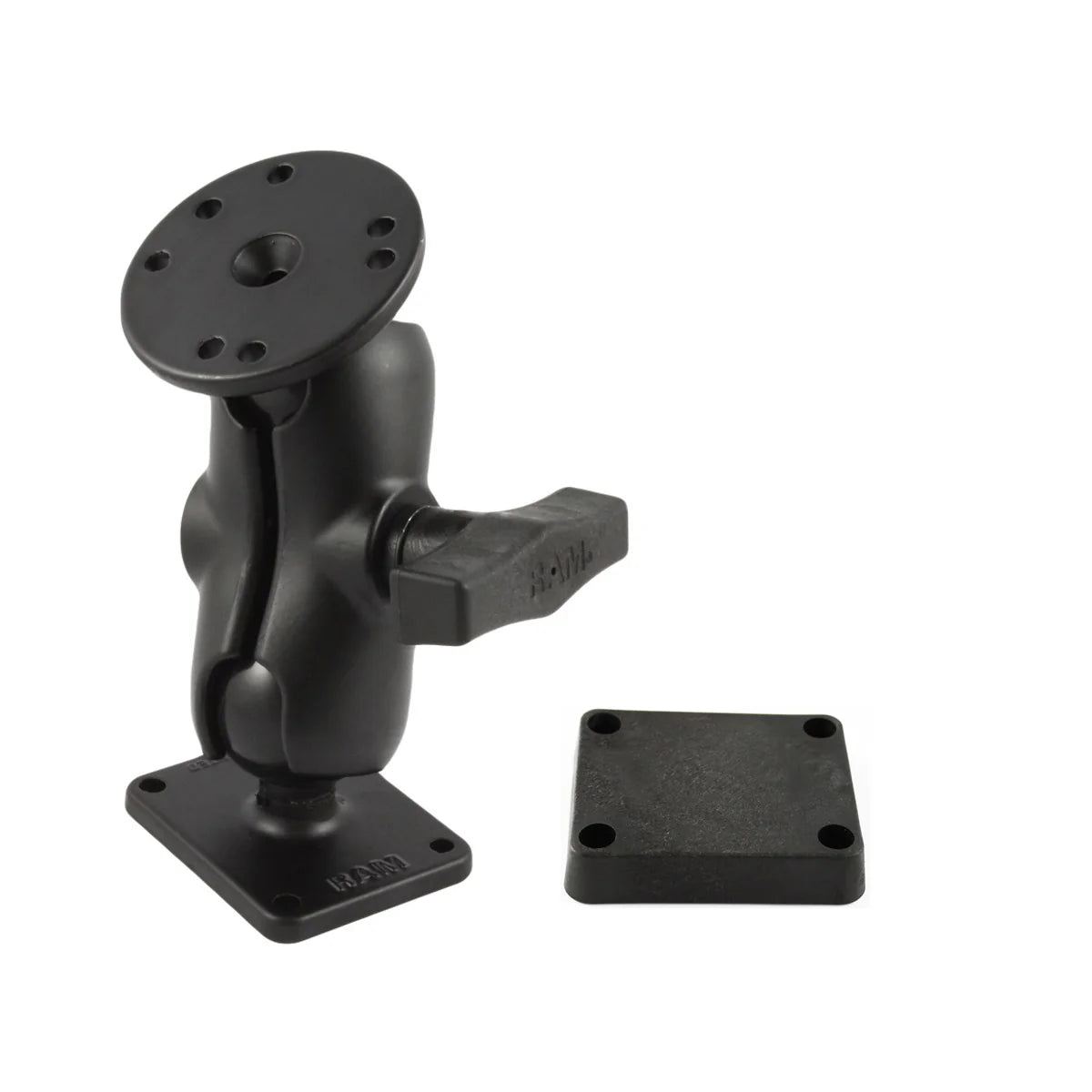

The RAM-101-B-SAE1P consists of a 3.56" double socket arm, 2.5" diameter round base with the universal AMPS hole pattern, 2" x 2.5" rectangular base that has pre-drilled holes at each corner of the base plate and composite backer plate.

Designed into the mount is a 1.5" diameter patented rubber ball and socket system with adjustment points at both socket ends of the arm. Rubber ball and socket technology allows for almost infinite adjustment and perfect viewing angles. This kit also comes with a backing plate.

• Drill-down double ball mount with 2.5 round plate and 1.5" x 2" rectangular plate connects to RAM® components containing the universal AMPS hole pattern

• Included C size 1.5" RAM® rubber ball and short double socket arm; ball and socket technology allows for near-infinite adjustability

• Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments

• Backed by a lifetime warranty

hardware included
(1) 2" x 2.5" Composite Backing Plate
(1) 8" Zip Tie
(4) #10-24 x 1.5" Machine Screws
(4) #10-24 Nylock Nuts
(1) #8 x 1/2" Sheet Metal Screw
(1) #8 Washer
(1) 5/16" Wire Clip

product dimensions
Overall Height: 5.225"

socket to socket length
2.5"

hole pattern
Round Plate:
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter
Rectangular Plate: 1.5" x 2"

plate size
Round Plate: 2.5" Diameter
Rectangular Plate: 2" x 2.5"

ball size
C Size (1.5")

weight capacity
Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs

materials
Marine-grade aluminum
High strength composite

packaging type
Box

Weight
1.17 lb
