RAM-138-S-SNM1PL-V7B1U

RAM® Double Ball Mount for Sonim XP5s with Speaker & Hardwire Bundle - RAM-138-S-SNM1PL-V7B1U

$331.34 $389.99

In Stock - Ships for Free!

Low Price Guarantee: Submit a price match for this RAM Mount Item.

SPECS & FEATURES

Bundle for Sonim XP5s includes powered locking holder, speaker, microphone and mounting bracket for all-in-one communication
Spring-loaded, powered RAM® EZ-Roll'r™ style form-fit cradle provides a perfect fit for your device without a case while keeping the device charged
Key lock and RAM® Pin-Lock™ for theft deterrence
RAM® Components backed by lifetime warranty; cradle backed by a 3-year warranty

PRODUCT INFORMATION

OVERVIEW

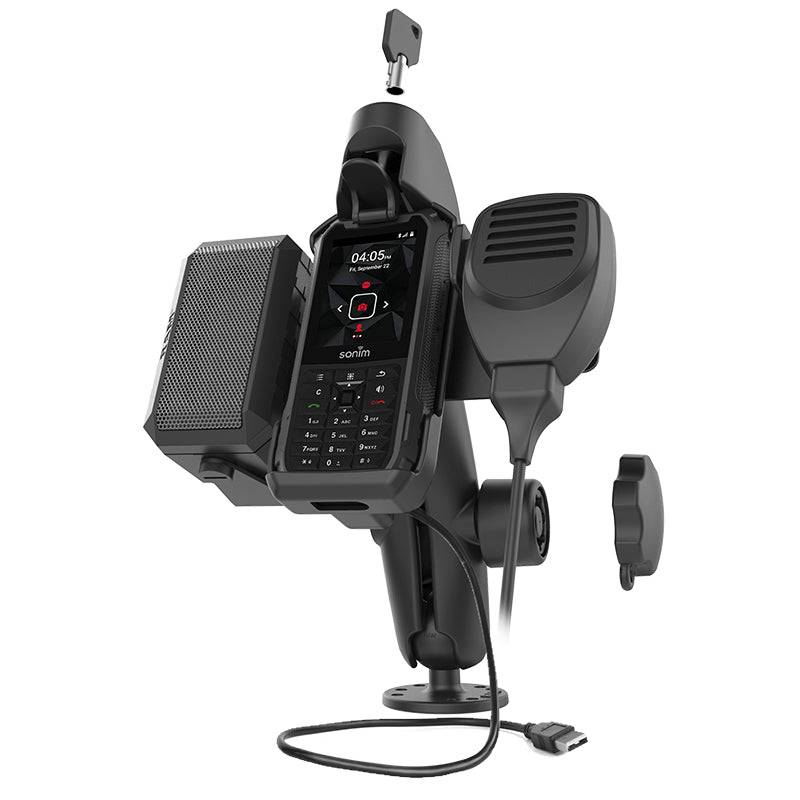

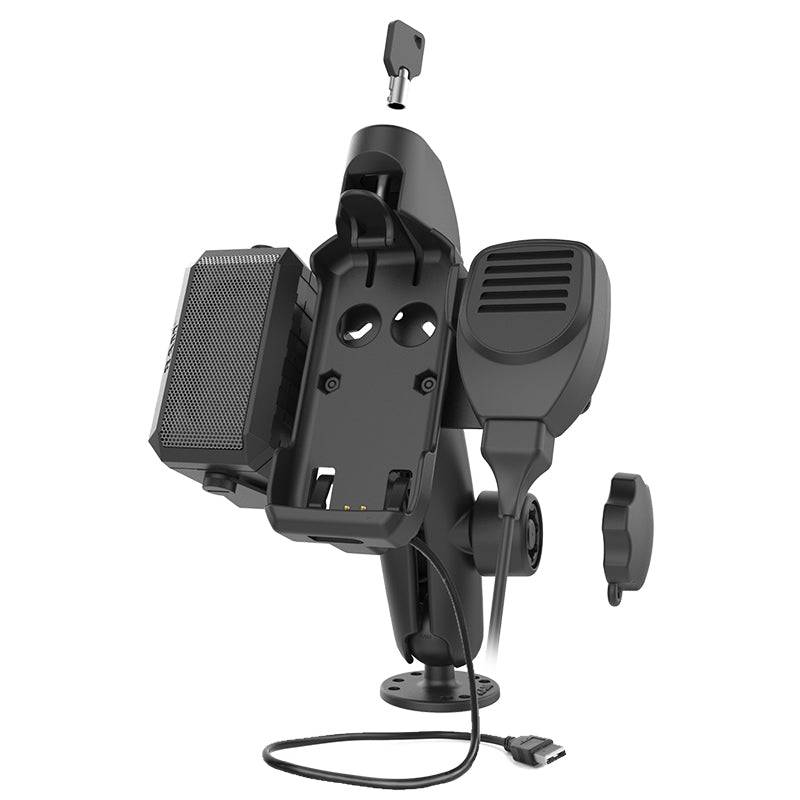

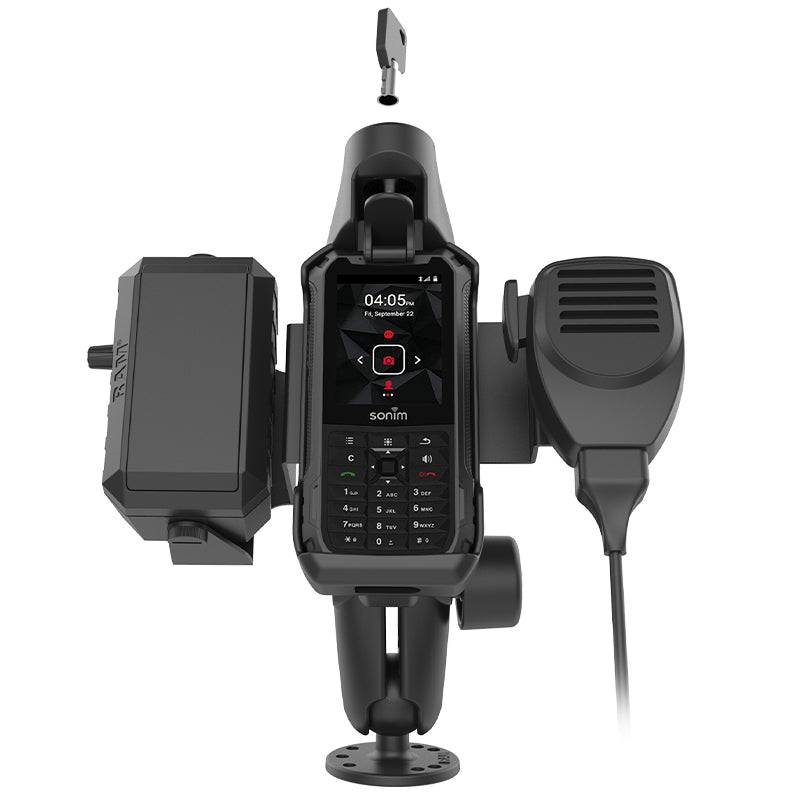

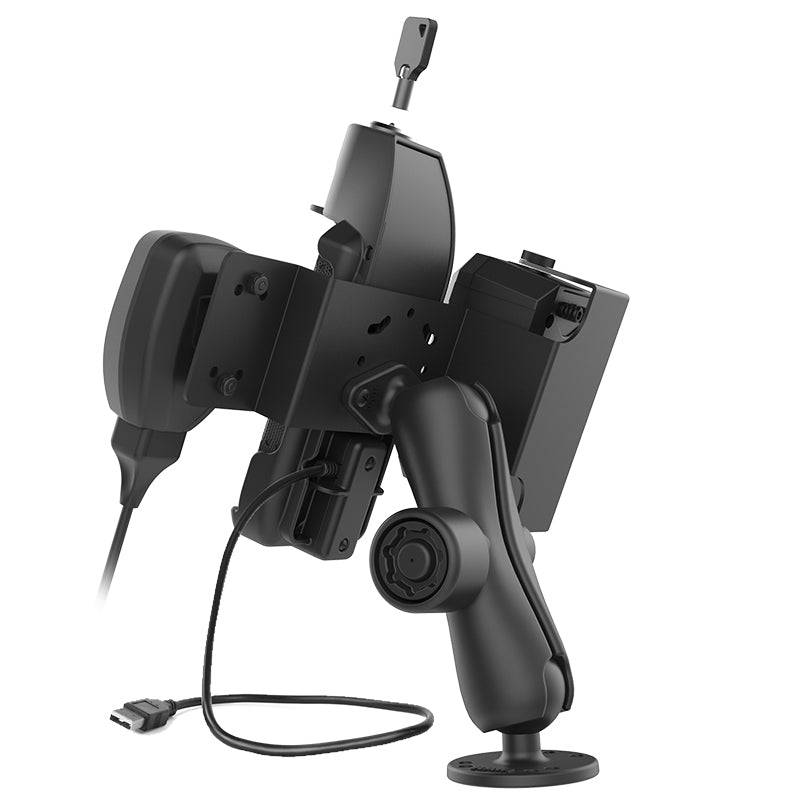

This Sonim XP5s bundle includes the RAM^® EZ-Roll'r^™ Powered Key Locking Cradle for Sonim XP5s, double ball mount with RAM^® Pin-Lock^™ Security Knob, and a mounting bracket containing a speaker and microphone. This bundle secures your Sonim XP5s and keeps your peripherals together and connected as one unit. The powered cradle features two integrated pogo pins that provide charging capabilities to the device through a male USB Type A connector, and includes key lock for extra security and peace of mind. The provided speaker connects to the Sonim usit using an included 10-pin to 3.5 audio adapter cable. Included with the complete bundle is a 10-30V modular vehicle hardwire charger.

HARDWARE INCLUDED

Assembly Hardware
(2) Keys for Holder
(1) Key for Locking Knob
(1) 10-pin to 3.5 Audio Adapter Cable
(1) Modular Hardwire Charger

SPEAKER SPECIFICATIONS

Independently adjustable volume knob
Max volume level: 100dB
8Ω / 10W rated speaker

SOCKET-TO-SOCKET LENGTH

4.66"

HOLE PATTERN

4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter

PLATE SIZE

2.5" Diameter

BALL/SOCKET SIZE

C Size (1.5")

WEIGHT CAPACITY

Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs

MATERIALS

Marine-grade aluminum
High strength composite
Powder-Coated Steel

PACKAGING TYPE

Poly Bag

INPUT VOLTAGE

10V - 30V DC

OUTPUT VOLTAGE

5-9VDC

OUTPUT CURRENT

2.5A max

INPUT CONNECTOR

Charger: Female USB Type A

INPUT CABLE LENGTH

1.2 Meters including 2 Pole Flat Marine Connector

OUTPUT CABLE LENGTH

.2 Meters

OPERATING TEMPERATURE

-10°C to +70°C

STORAGE TEMPERATURE

-40°C to +70°C

COMPLIANCE

Over Voltage Protection
Short Circuit Protection
Reverse Polarity Protection
RoHS Compliance
WEEE Compliance
SAE J-1113-5 Load Dump (Transient Voltage)
Moisture Resistant

CERTIFICATIONS

CE Certification
e-Mark Certification
RCM Certification
FCC Certification

WEIGHT

4.15 lbs.

WARRANTY STATUS

3 year warranty

COMPONENTS

RAM® EZ-Roll'r™ Powered Locking Dock For Sonim XP5s - RAM-HOL-SNM1PLU

RAM® Bracket Adapter For PTT Speakers & Microphones - RAM-101-MIC3U

RAM 1.5" Ball Flat Surface Mount With 2.5" Round Base & Diamond Base - RAM-138

Mixed Combination RAM® Pin-Lock™ Security Knob And Key Knob For 1.5" Diameter C Size Arms - RAP-S-KNOB5U

RAM® 3.5mm Audio Connector For Sonim SecureAudio - RAP-CAB-SNM1U

COMPATIBLE DEVICES

Sonim

XP5s

INSTRUCTIONS

Instructions for Modular Hardwire Charger - PDF

RAM® Speaker & Mic Bracket Assembly for Sonim Devices - PDF

ACCESSORIES

Mounting Plate For 60mmx60mm VESA Monitors - RAM-202-225B-1U
