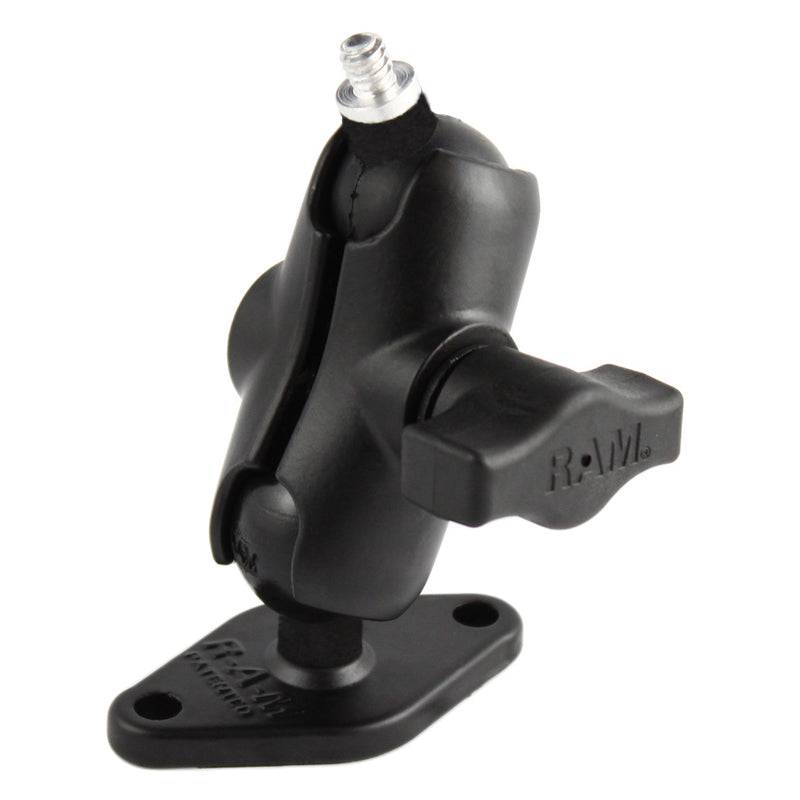

RAM® Double Ball Mount with Diamond Plate and 1/4"-20 Threaded Stud - RAM-B-102-A-237U

OVERVIEW

The RAM-B-102-A-237U consists of a short double socket arm, diamond base and 1" diameter rubber ball, connected to a 1/4"-20 camera thread. The male thread matches most standard camera and camcorder female threads found on the bottom of the camera. The diamond bases measure 2.43" x 1.31" diamond base and contain two holes 1.912" from center to center, positioned at both ends of the diamond base. Designed into the mount is a 1" diameter patented rubber ball and socket system with adjustment points at both ends of the socket arm; this with a twist of the arm knob, allows for infinite articulation and optimum viewing angles.

SOCKET-TO-SOCKET LENGTH

3"

HOLE PATTERN

2-Hole AMPS: 1.912"

BALL/SOCKET SIZE

B Size (1")

WEIGHT CAPACITY

Standard Use: 2 lbs
Heavy-Duty Use: 1 lbs

MATERIALS

Marine-grade aluminum

PACKAGING TYPE

Poly Bag

WEIGHT

0.31 lbs.

RAM 1" Ball With 1/4-20 Male Threaded Post For Cameras - RAM-B-237U

RAM Short Double Socket Arm for B Size 1" Balls - RAM-B-201U-A

RAM Diamond Plate 2.43" x 1.31" with B Size 1" Ball - RAM-B-238U

Cameras

that contain 1/4"-20 Female Threaded Hole

 Drawing File - Diamond Ball Plate - PDF
