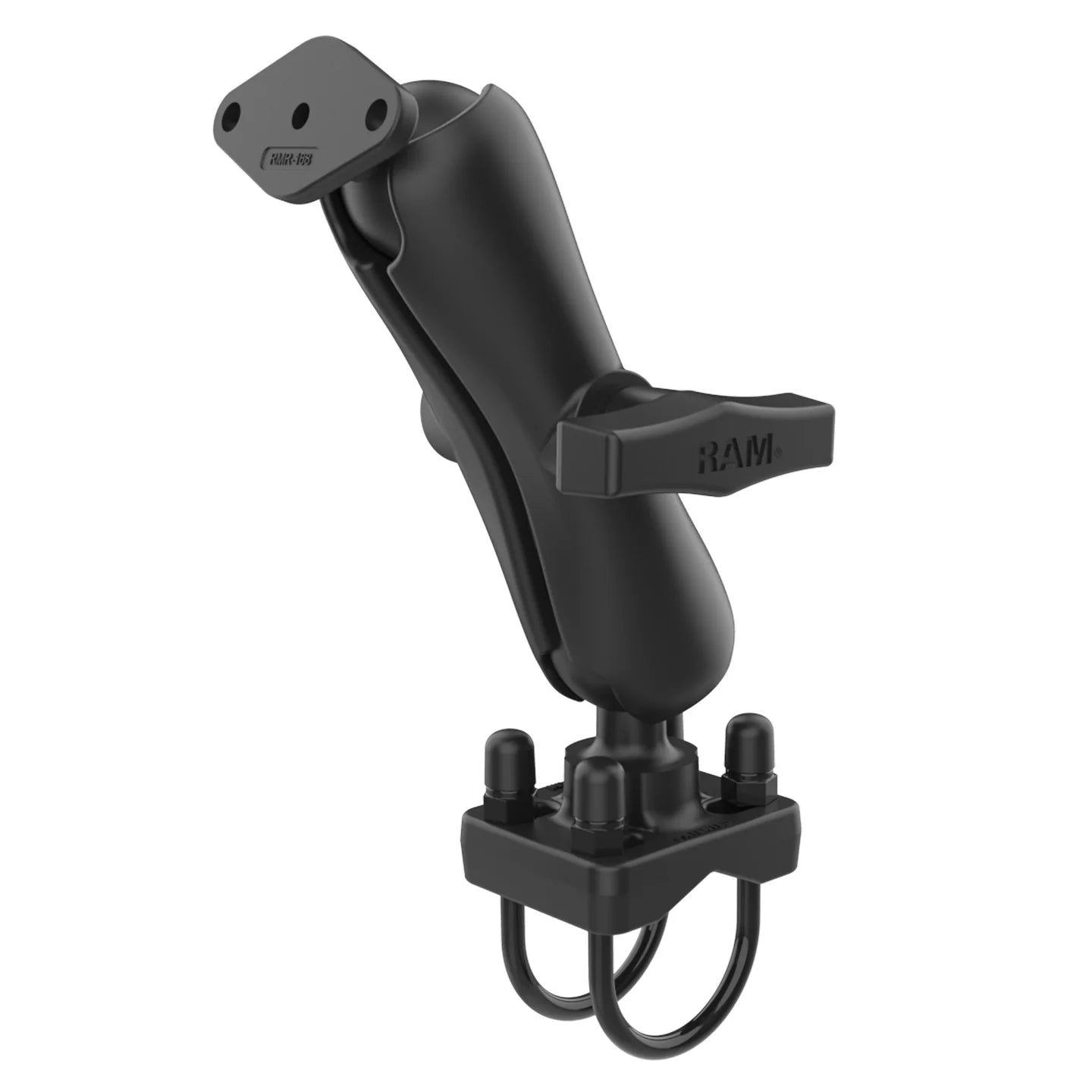

RAM® Double U-Bolt Rail Mount for Larger Rails with Diamond Plate - RAM-138U-235-1

The RAM® Double U-Bolt Rail Mount for Larger Rails with Diamond Plate (RAM-138U-235-1) is everything you need to secure a RAM® device holder to rails ranging from 1.25" to 1.5" in diameter. The base is made of stainless steel double for durability and reliability in the most demanding environments. The included rubber caps for the U-bolts are anti-snag, ideal for high-traffic or industrial settings.

• RAM® U-Bolt base secures to rails ranging from 1.25 inches to 1.5 inches in diameter

• Ideal mounting base for phones, tablets, cameras, and much more; diamond base features 2-hole AMPS pattern compatible with RAM® holders and docks

• Bundle features C size components; double u-bolt base, medium length arm, and diamond base

• Made of high-strength composite and powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments

• Backed by a lifetime warranty

hardware included:
(2) 1/4"-20 U-Bolts for 1.25" - 1.5" Rails
(4) 1/4"-20 Nylock Nuts
(4) Rubber Caps

clamp range:
1.25" - 1.5" diameter

socket to socket length:
4.66"

hole pattern:
2-Hole AMPS 1.912"

ball size:
C Size (1.5")

weight capacity:
Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs

materials:
Marine-grade aluminum

packaging type:
Poly Bag

Weight:
1.42 lb
