RAM-101U-B-235
$64.49 $71.49
In Stock

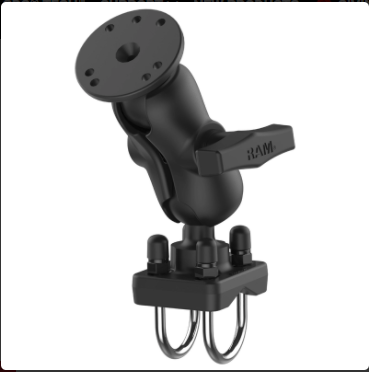

- Ships for Free! The RAM-101U-B-235 consists of a short double socket arm, one round 2.5" diameter round base with the universal AMPS hole pattern and stainless steel double u-bolt base that will fit pipes from 1" to 1.25" in diameter. Designed into the mount is a 1.5" diameter patented rubber ball and socket system with adjustment points at both socket ends of the arm. Rubber ball and socket technology allows for almost infinite adjustment and perfect viewing angles. (2) 1/4"-20 U-Bolts for 1" - 1.25" Rails 2.5" 4-Hole AMPS: 1.181" x 1.496" C Size (1.5") Standard Use: 4 lbs Marine-grade aluminum Poly Bag 1.23 lbs.
PRODUCT INFORMATION
OVERVIEW
HARDWARE INCLUDED
(4) 1/4"-20 Nylock Nuts
(4) Rubber CapsCLAMP RANGE
1" - 1.25" diameter
SOCKET-TO-SOCKET LENGTH
HOLE PATTERN
3-Hole 120-Degree: 1.812" DiameterBALL/SOCKET SIZE
WEIGHT CAPACITY
Heavy-Duty Use: 3 lbsMATERIALS
PACKAGING TYPE
WEIGHT
COMPONENTS
RAM Short Double Socket Arm for C Size 1.5" Balls - RAM-201U-B
KNOB W LOCK & 5/16"-18 BRASS HOLE C SIZE - RAM-KNOB5LU
Mixed Combination RAM® Pin-Lock™ Security Knob And Key Knob For 1.5" Diameter C Size Arms - RAP-S-KNOB5U
