RAM-D-202-25-C-202-KNOB9HU
$143.99 $161.49
In Stock

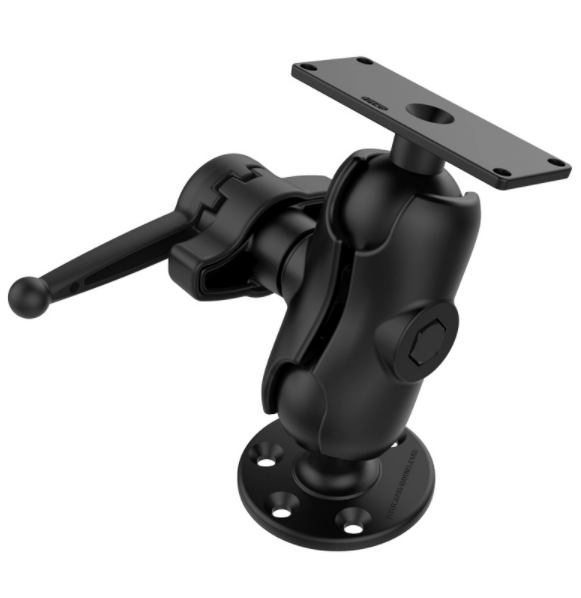

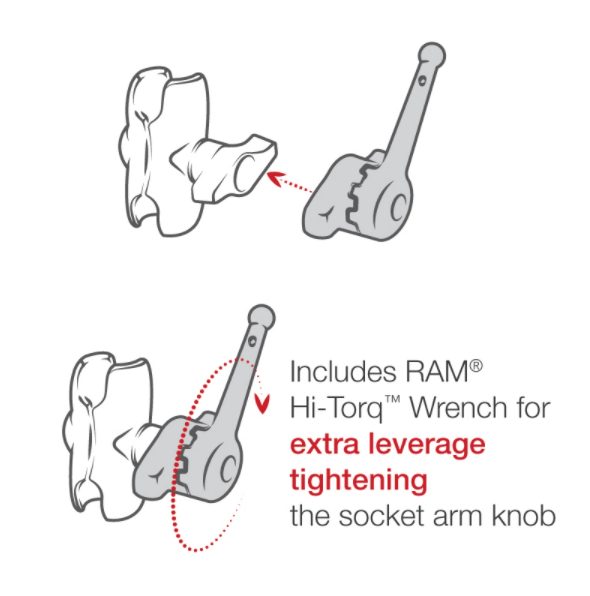

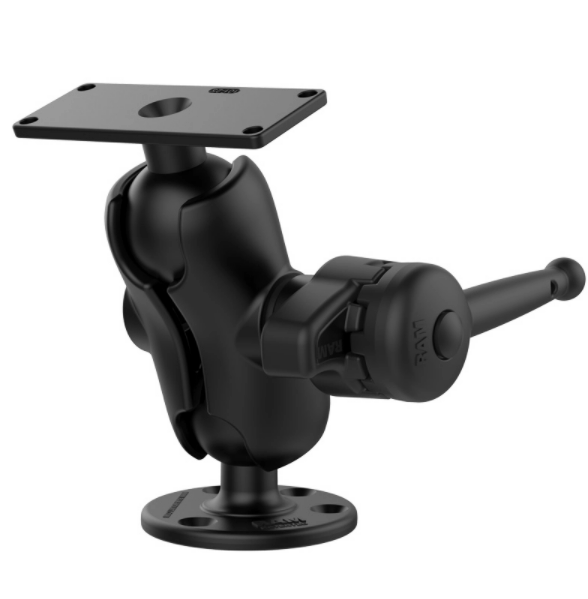

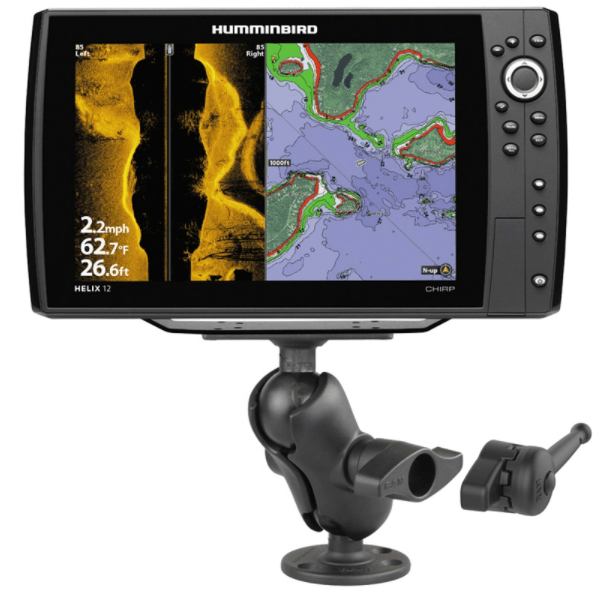

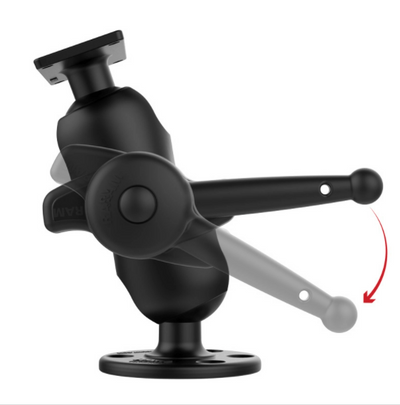

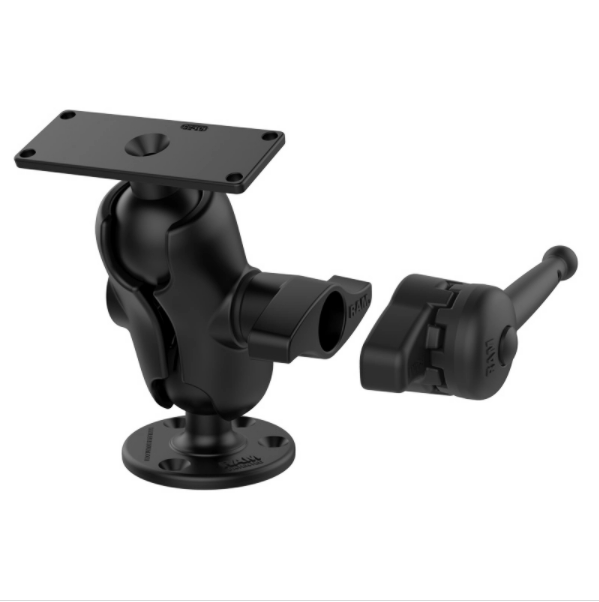

- Ships for Free! This powder-coated, marine-grade aluminum Humminbird mount consists of a short length double socket arm, a 3.68" diameter round base with a 2.25" D size ball, a RAM® Hi-Torq™ Wrench, and one 1.5" x 4.5" rectangular plate with a 2.25" D size ball. The round plate contains two mounting holes at 180-degrees and three mounting holes at 120-degrees. The 1.5" x 4.5" rectangular plate contains a 4-hole pattern compatible with various Humminbird models including the Helix 8, 9, 10, 12, 15, Solix 10, 12 15, and Apex 13 & 16. The rubber ball and socket technology provides shock and vibration damping, and allows for near-infinite adjustability so you can position your device at the perfect viewing angle. Apex 13 Apex 16 Helix 8 Helix 9 Helix 10 Helix 12 Helix 15 Solix 10 Solix 12 Solix 15
Specs & Features
PRODUCT INFORMATION
OVERVIEW
PRODUCT DIMENSIONS
Overall Height: 7.875"
3.6"
SOCKET-TO-SOCKET LENGTH
Rectangular Plate: 1.5" x 4.5"
HOLE PATTERN
Round Plate: See Drawing
PLATE SIZE
Top Plate: 2" x 5"
Bottom Plate: 3.68" Diameter
BALL/SOCKET SIZE
D Size (2.25")
Standard Use: 6 lbs
WEIGHT CAPACITY
Heavy-Duty Use: 5 lbs
MATERIALS
Marine-grade aluminum
PACKAGING TYPE
Poly Bag
WEIGHT
3.5 lbs.
COMPONENTS
COMPATIBLE DEVICES
Humminbird
INSTRUCTIONS
RAM® Drill-Down Ball Mount For Humminbird Helix 8, 9, 10, 12 & 15 - RAM-D-202-25-C-202U
RAM Hi-Torq™ Wrench For 2.25" Dia. D Size Ball Arms & Mounts - RAM-KNOB9HU
On Water Catalog - PDF
Mixed Combination RAM® Pin-Lock™ Security Nut And Key Knob For 2.25"/3.38" Diameter D/E Size Arms - RAP-S-NUT5U
