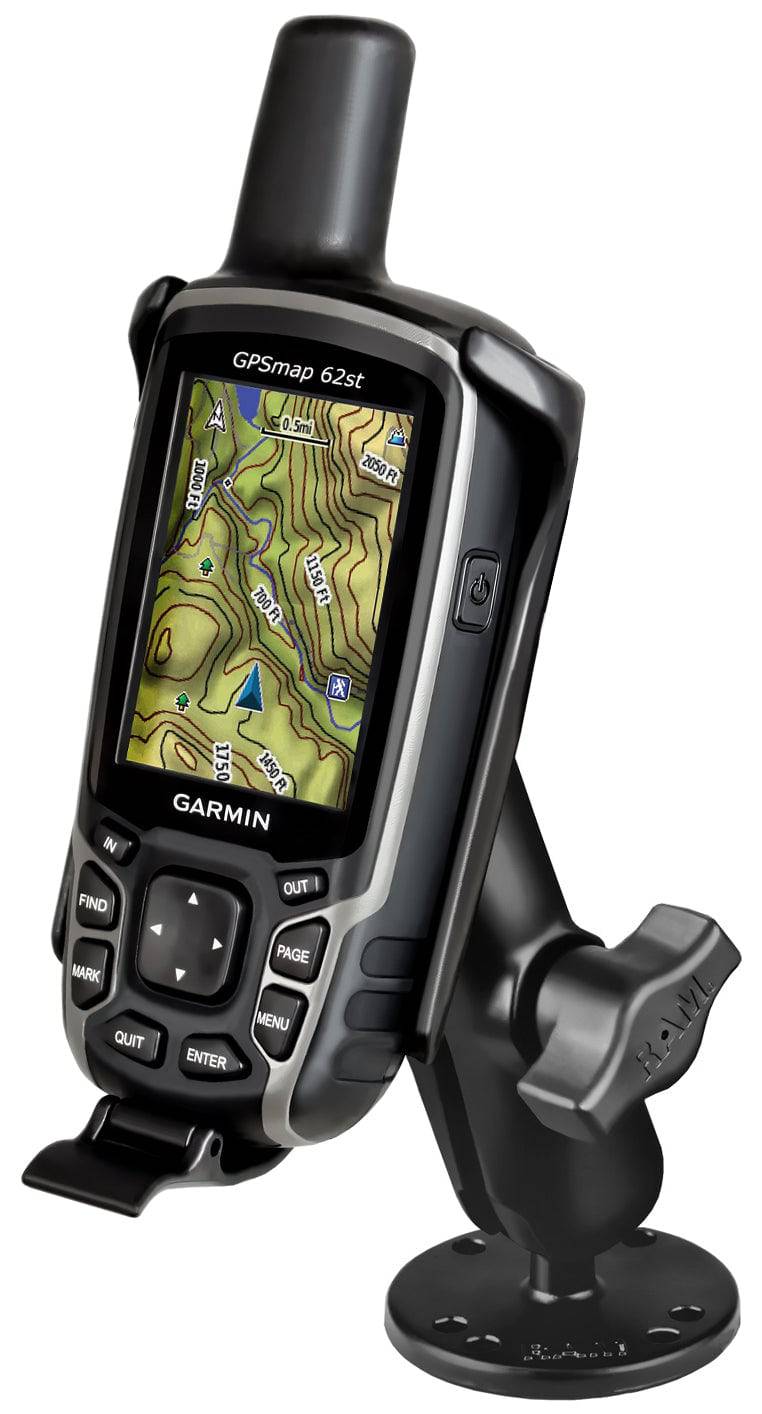

RAM® Drill-Down Mount for Garmin Astro 320, GPSMAP 62 & 64 Series - RAM-B-138-GA41U

• This RAM® GPS Holder was designed specifically for the Garmin Astro 320, GPSMAP 62 & 64 Series GPS devices

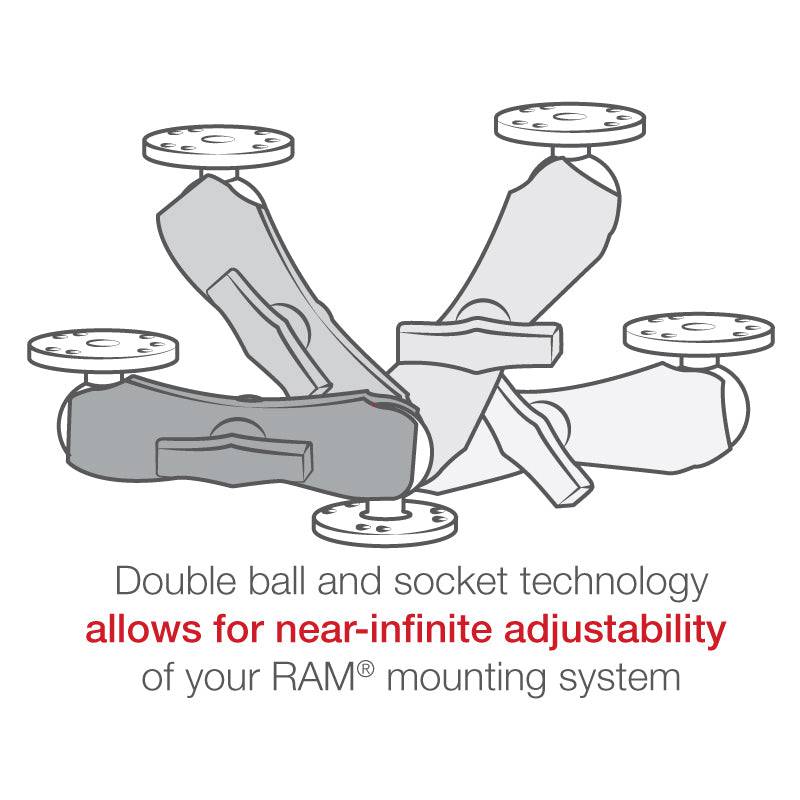

• Includes drill-down 2.5" round base and medium length, B size RAM® double socket arm; ball and socket technology allows for near-infinite adjustability
• Made of powder-coated, marine-grade aluminum, stainless steel components, and high-strength composite for durability and reliability in the most demanding environments
• Backed by a lifetime warranty

OVERVIEW

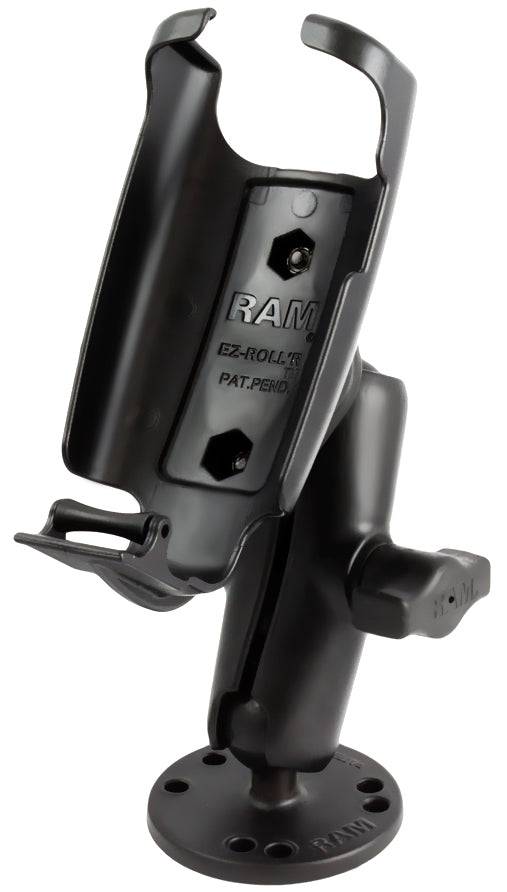

The RAM-B-138-GA41U consists of a 2.5" diameter round base with the universal AMPS hole pattern, double socket arm, diamond adapter base and high strength composite cradle. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles.

HARDWARE INCLUDED

Assembly Hardware

SOCKET-TO-SOCKET LENGTH

3"

HOLE PATTERN

4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter

PLATE SIZE

2.5" Diameter

BALL/SOCKET SIZE

B Size (1")

WEIGHT CAPACITY

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

MATERIALS

Marine-grade aluminum
High strength composite

PACKAGING TYPE

Poly Bag

WEIGHT

0.65 lbs.
