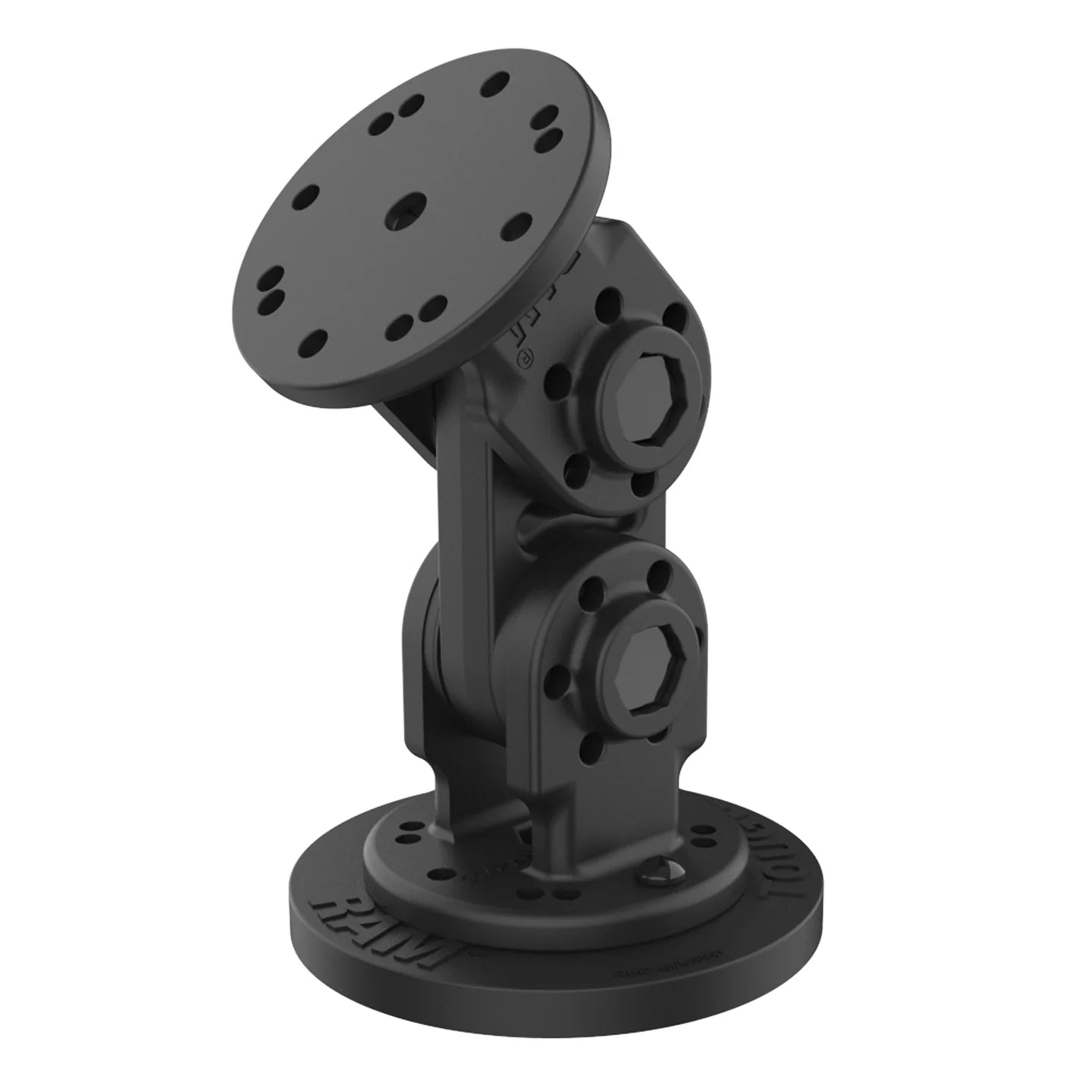

RAM® Dual Straight Pivot Magnetic Mount - RAP-101-PV4-2S-NK-MAG88U

The RAM® Dual Straight Pivot Magnetic Mount (RAP-101-PV4-2S-NK-MAG88U) is a dual articulating, magnetic mounting solution. One end features both 2-hole and 4-hole AMPS patterns to easily install any RAM® holder or GDS® dock while the other end features the RAM® Tough-Mag™ magnetic base.

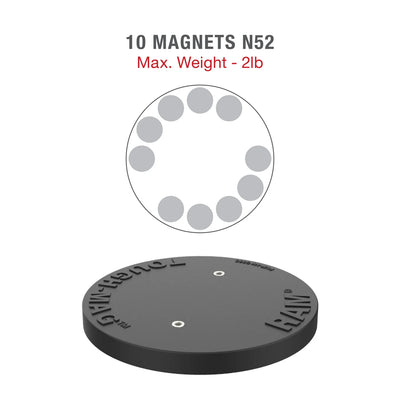

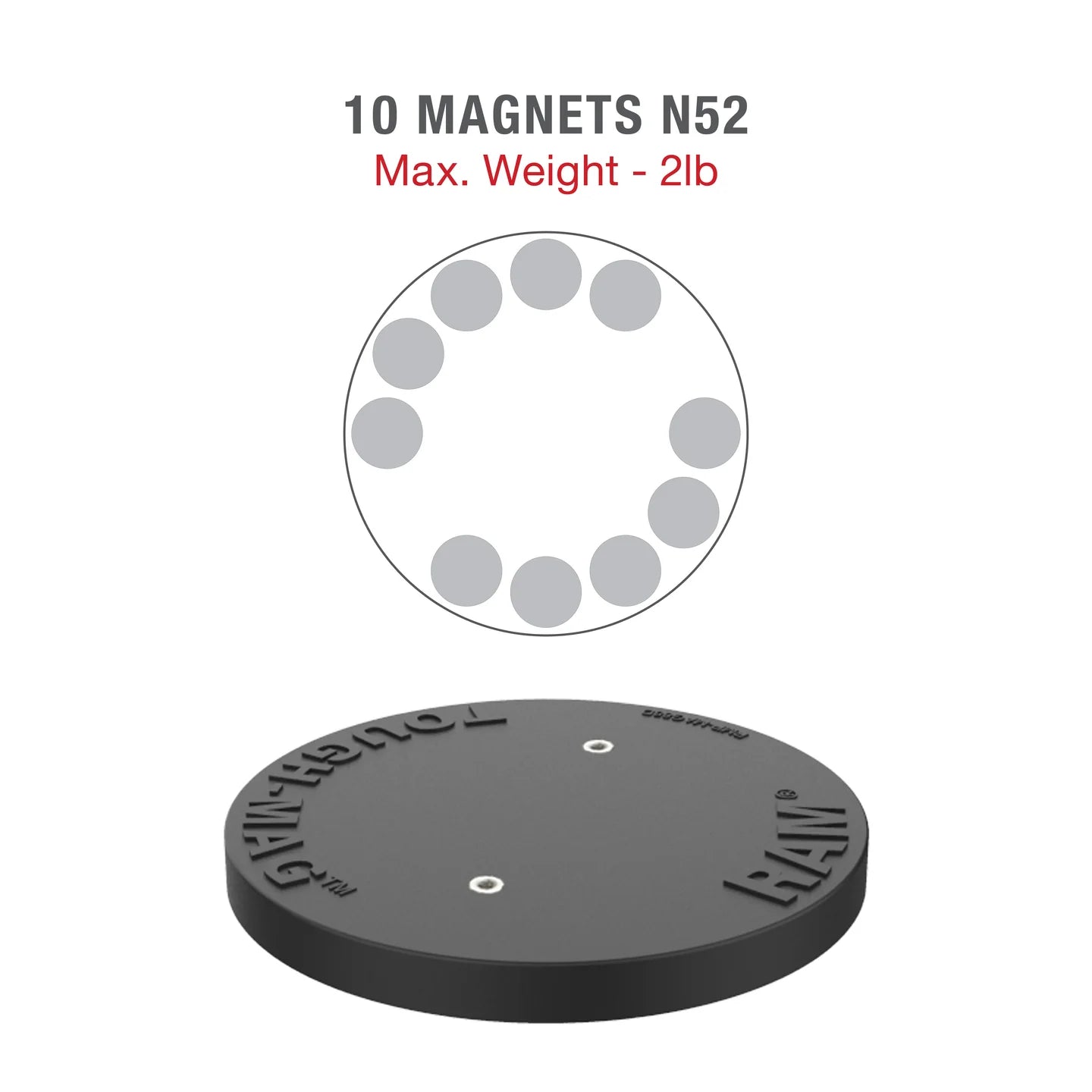

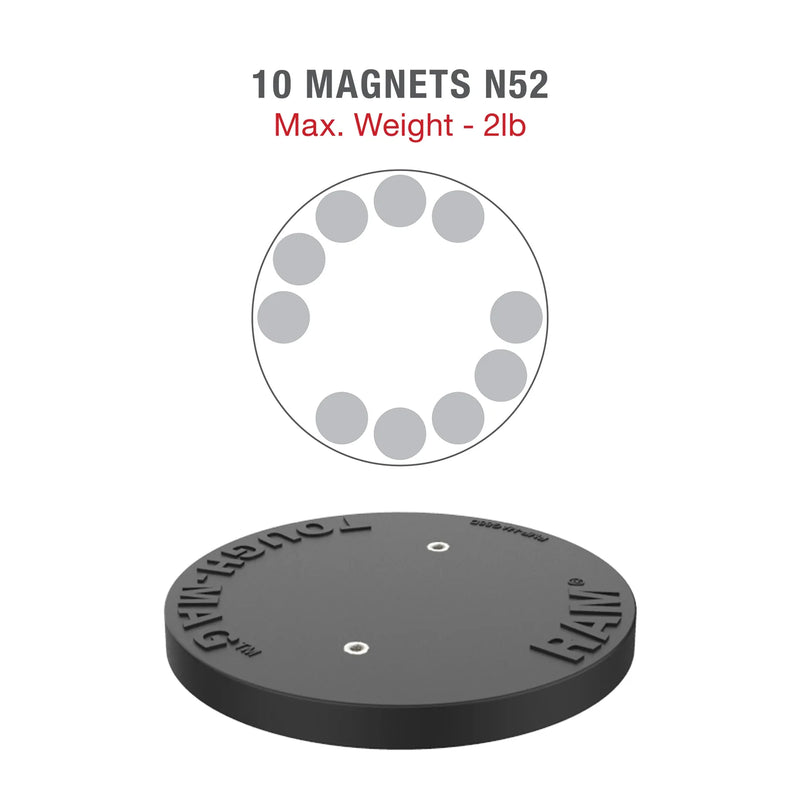

This solution uses tooth-lock washers to allow users to pivot their device up to 180-degrees on each joint and utilizes a barrel nut instead of traditional adjustment knobs to provide tamper resistance, ideal for high-traffic environments. The RAM® Tough-Mag™ base features 10 industrial-strength N52 grade magnets that magnetize to any ferrous metal surface and rubber coating that protects the metal surface you're attaching to.

• Low-profile, magentic mounting solution for heavy-duty environments

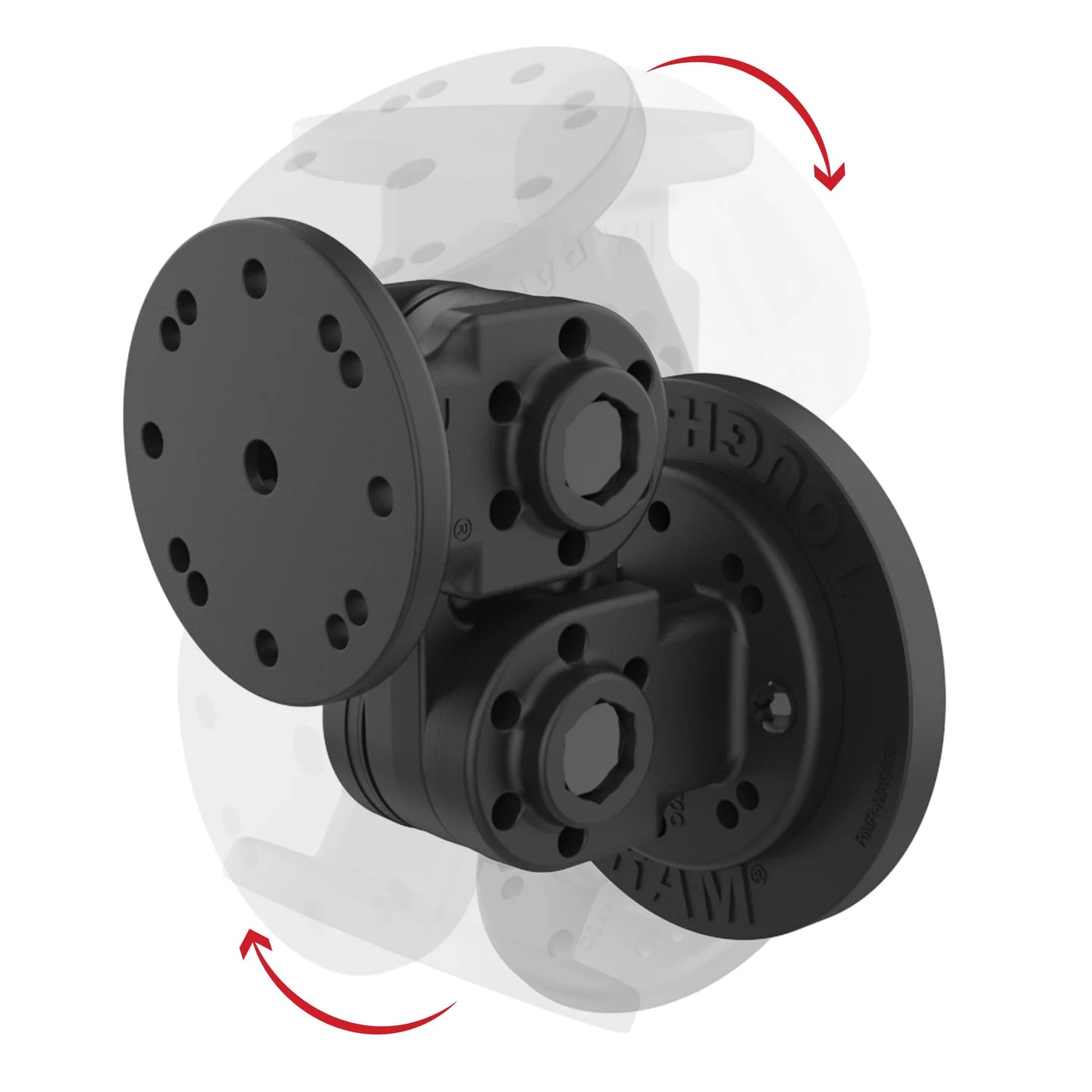

• Dual articulation joints pivot up to 180-degrees on each joint; barrel nut provide tamper resistance

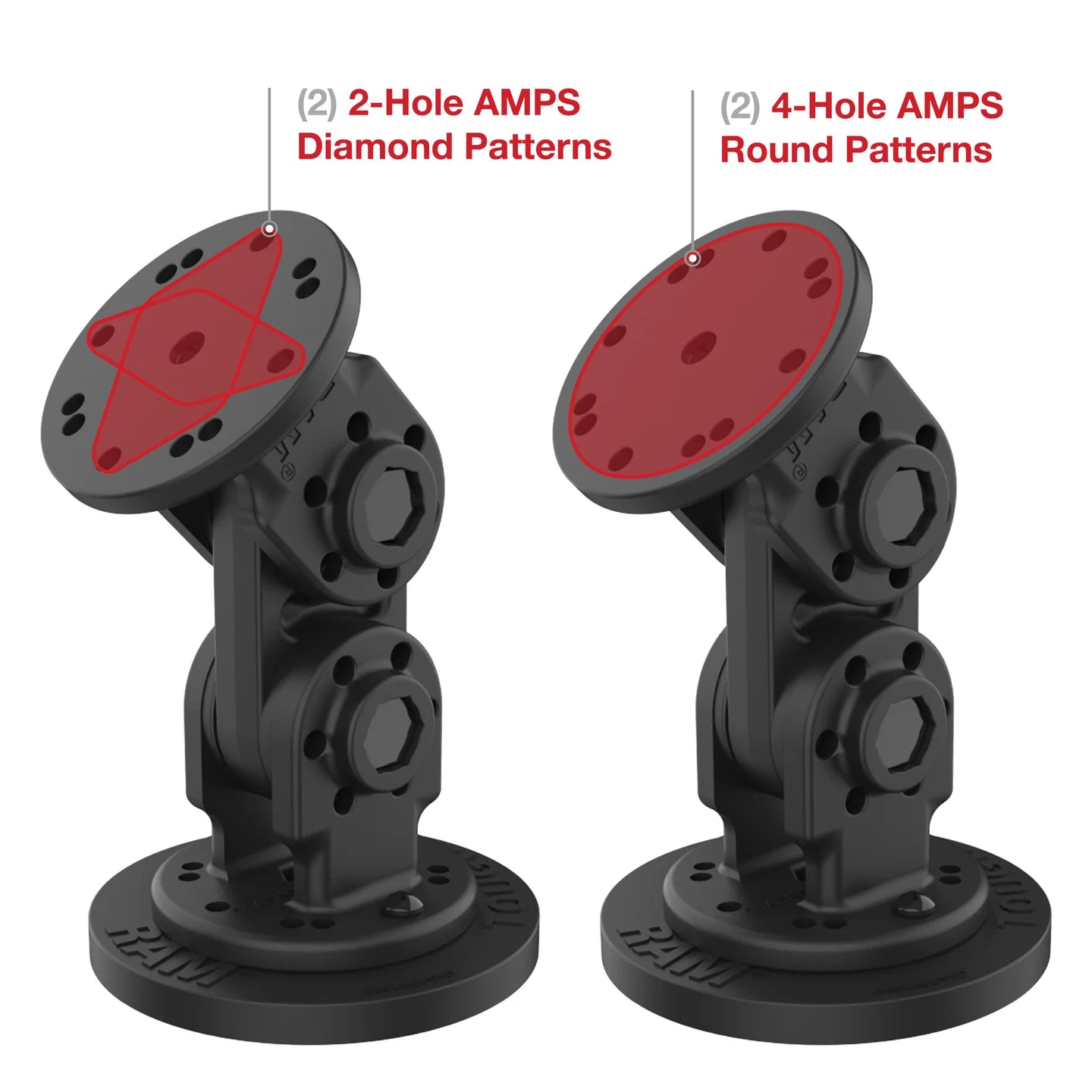

• One end features two 2-hole AMPS and two 4-hole AMPS patterns, second end features the RAM® Tough-Mag™ 88mm base

• Made of high-strength composites for durability and reliability in the most demanding environments

• Backed by a lifetime warranty

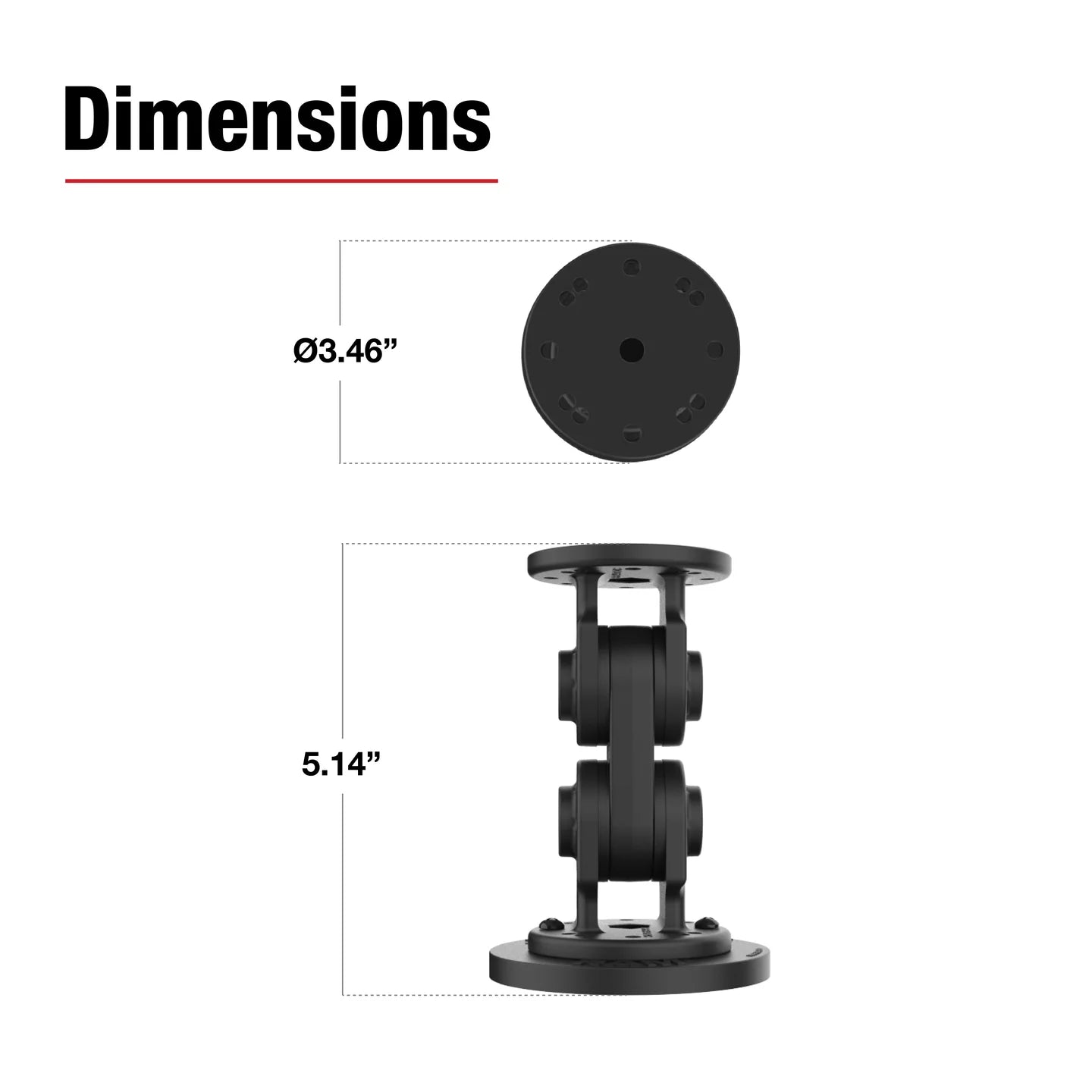

product dimensions:
Overall Height: 5.14"

hole pattern:
4-Hole AMPS: 1.181" x 1.496"
2-Hole AMPS: 1.912"

plate size:
Top Plate: 2.5" Diameter
Magnetic Base: 3.46" Diameter

materials:
High strength composite
N52 Magnets (Qty 10)

packaging type:
Poly Bag

Weight:
0.82 lb
