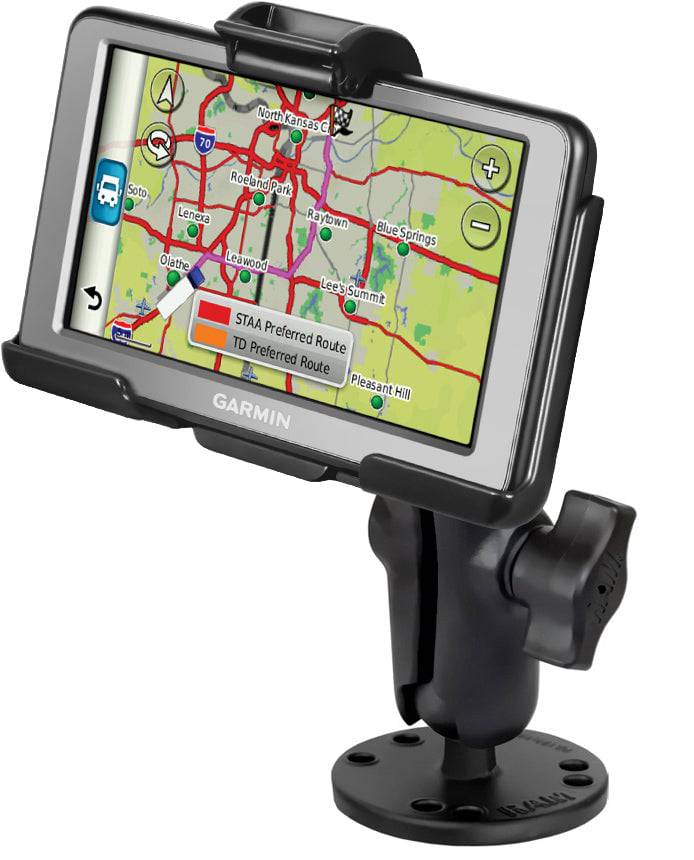

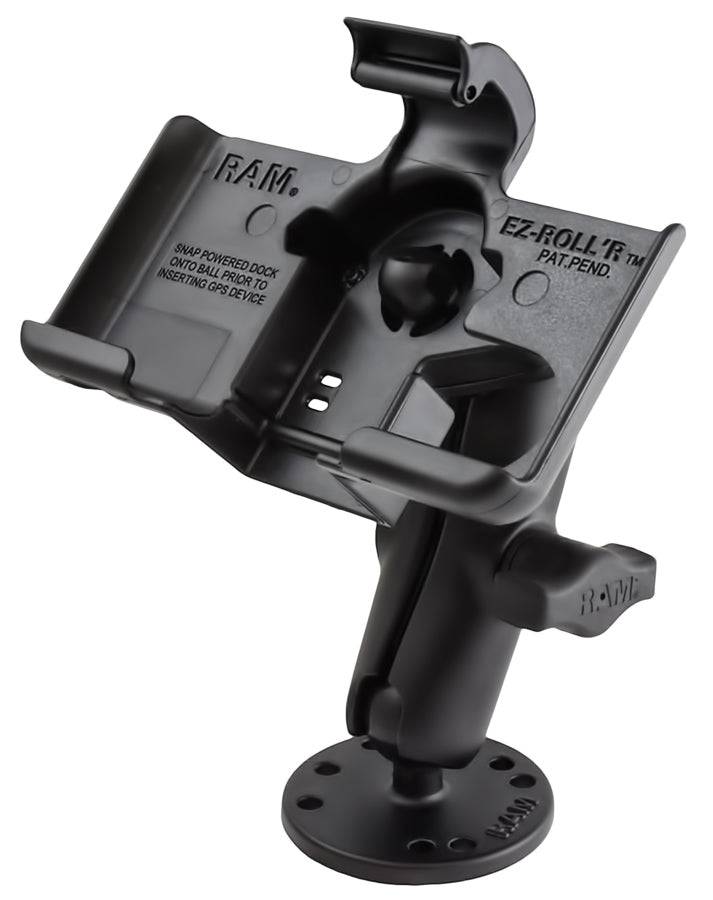

RAM® EZ-Roll'r™ Drill-Down Mount for Garmin dezl™ 560LMT & 560LT - RAM-B-138-GA43U

OVERVIEW

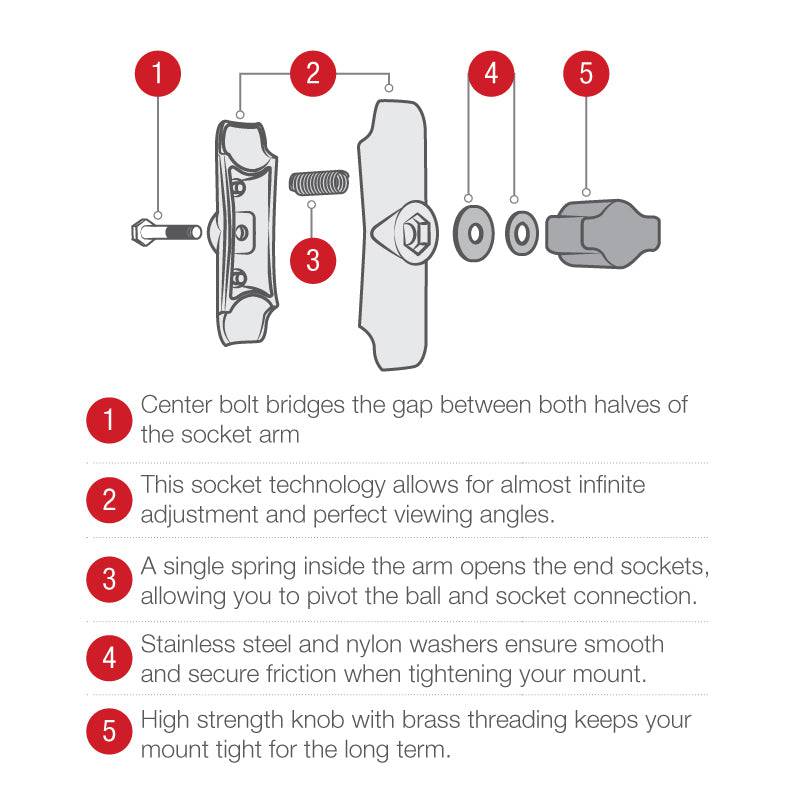

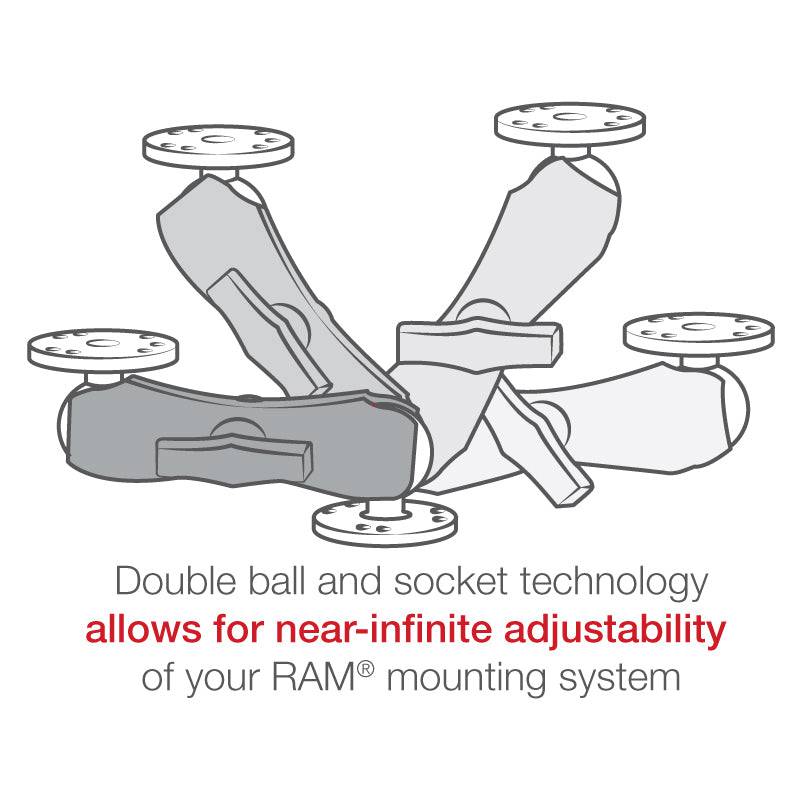

The RAM-B-138-GA40 consists of a double socket arm, 2.5" diameter round base with the universal AMPS hole pattern, diamond adapter base and custom high strength composite cradle for the Garmin GPSMAP^® 78 series. Designed into the mount is a 1" diameter patented rubber ball and socket system with adjustment points at the base and cradle. With a twist of the arm knob, you can move the flat surface GPSMAP^® mount to your optimum viewing position.

HARDWARE INCLUDED

Assembly Hardware

SOCKET-TO-SOCKET LENGTH

3"

HOLE PATTERN

4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter

PLATE SIZE

2.5" Diameter

BALL/SOCKET SIZE

B Size (1")

WEIGHT CAPACITY

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

MATERIALS

Marine-grade aluminum
High strength composite

PACKAGING TYPE

Poly Bag

WEIGHT

0.65 lbs.
