RAM® Flat Surface Mount for Zebra Printer Docks - RAM-101U-ZE1

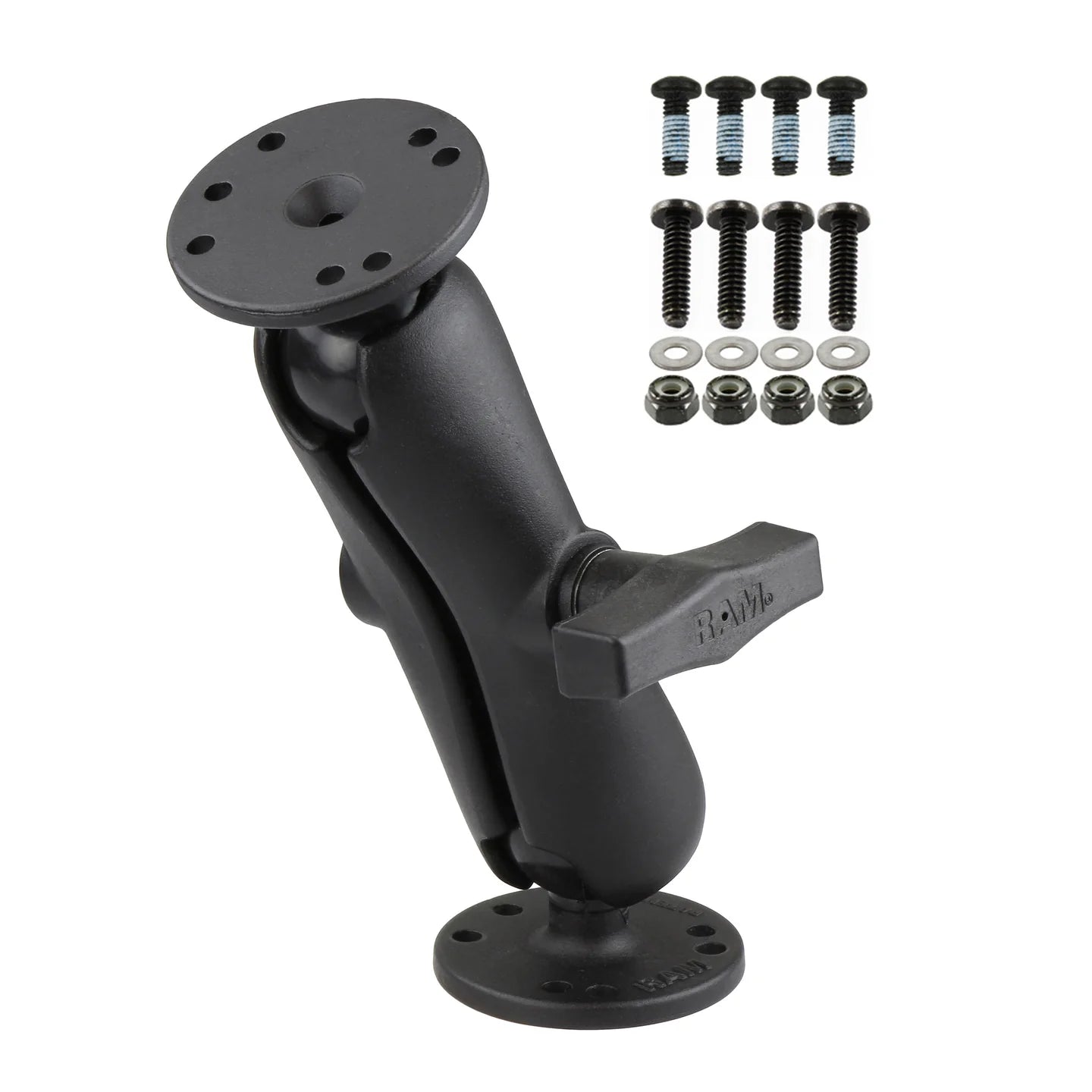

The RAM-101U-ZE1 consists of a medium length double socket arm, two 2.5" diameter round bases that contain the universal AMPS hole pattern and hardware to attach to the Zebra RW 420 printer. The mount is designed with a 1.5" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles. The included RAM’s patented design dampens shock and vibration, helping to extend the life of your device.

• Flat surface drill-down mount for Zebra printer OEM docks

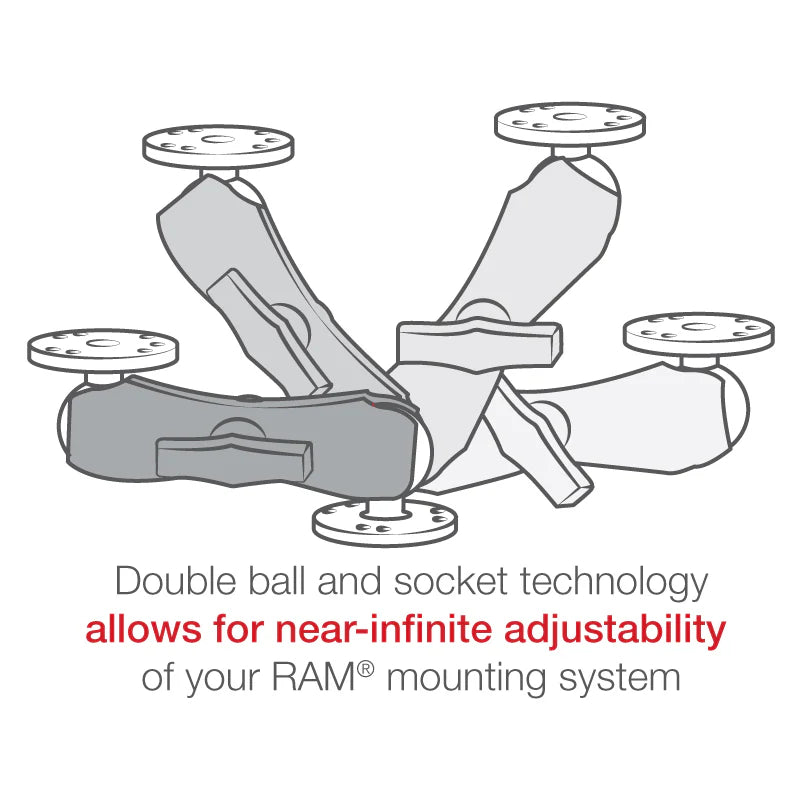

• Includes two round ball bases and C size medium length double socket arm; ball and socket technology allows for near-infinite adjustability

• Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments

• Backed by a lifetime warranty

hardware included
(4) #10-24 x 3/4" Machine Screws
(4) #10 Stainless Steel Flat Washers
(4) #10-24 Nylock Nuts
(4) #8-32 x 1/2" Machine Screws

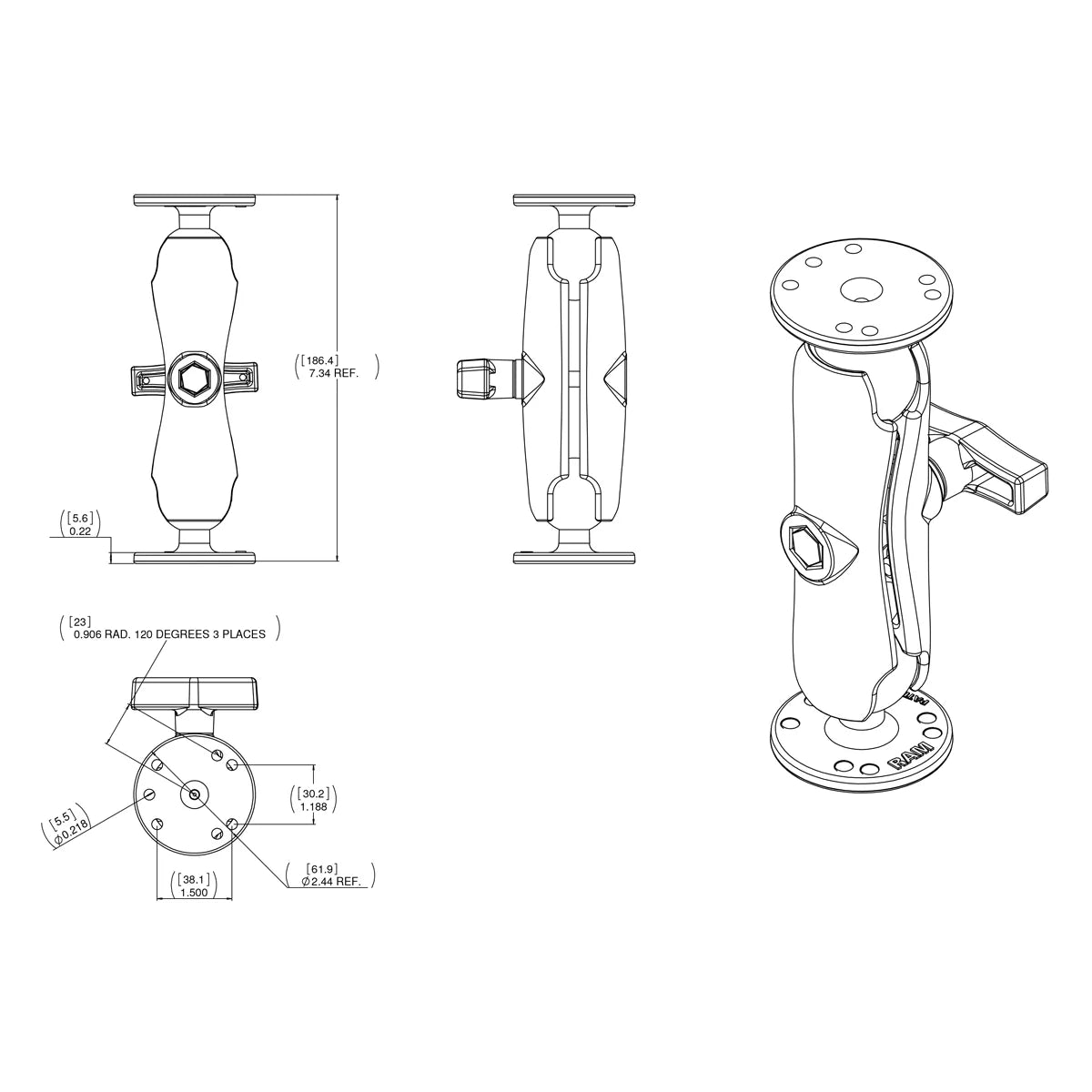

product dimensions
Overall Height: 7.35"

socket to socket length
4.66"

hole pattern
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter

ball size
C Size (1.5")

weight capacity
Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs

materials
Marine-grade aluminum

Weight
1.21 lb
