RAM® Handlebar U-Bolt Mount for Garmin Astro 220, GPS 60, GPSMAP + More - RAM-B-149-GA12

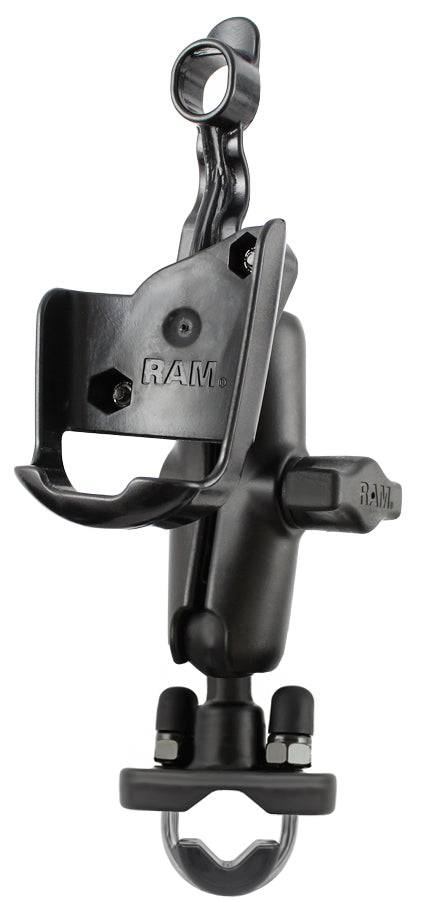

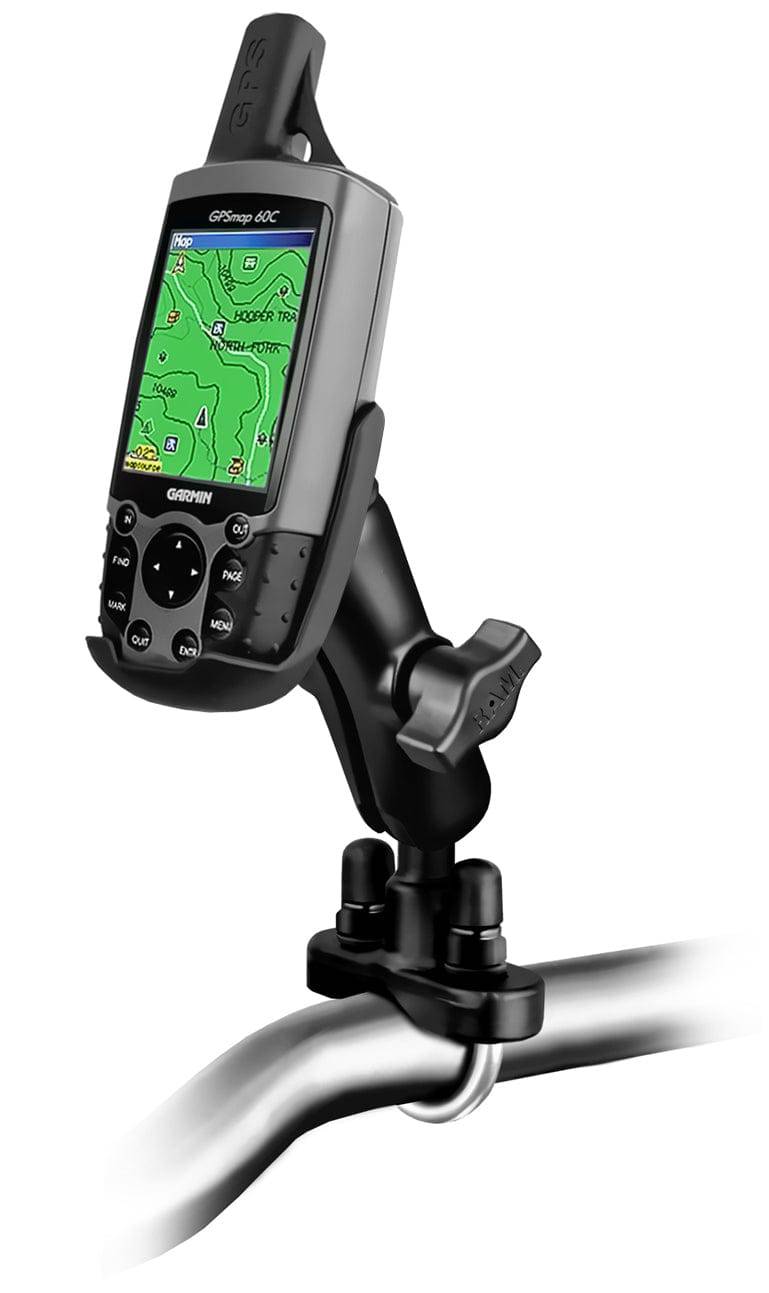

The RAM-B-149-GA12 consists of a stainless steel u-bolt base, double socket arm, diamond adapter base and custom high strength composite cradle for the Garmin Astro 220 and the Garmin GPSMAP^® 60 series. Designed into the mount is a 1" diameter patented rubber ball and socket system with adjustment points at the base and cradle. With a twist of the arm knob, you can move the motorcycle GPSMAP^® mount to your optimum viewing position. Included in this package is a GPS safety lanyard clip and hardware that will accommodate rails from 0.50" to 1" in diameter.

HARDWARE INCLUDED

Assembly Hardware
(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(2) 1/4"-20 Nylock Nuts
(2) Rubber Caps
(1) U-Bolt Spacer

CLAMP RANGE

.5" - 1" diameter

SOCKET-TO-SOCKET LENGTH

3"

BALL/SOCKET SIZE

B Size (1")

WEIGHT CAPACITY

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

MATERIALS

Marine-grade aluminum
High strength composite

PACKAGING TYPE

Retail Bag

WEIGHT

0.54 lbs.

ADDITIONAL INFORMATION

• This mount requires the standard belt clip button which is included with the purchase of the GPS unit from Garmin.
