RAM-B-149-GA40U

RAM® Handlebar U-Bolt Mount for Garmin GPSMAP 73, 78, 78S, 78SC - RAM-B-149-GA40U

OVERVIEW

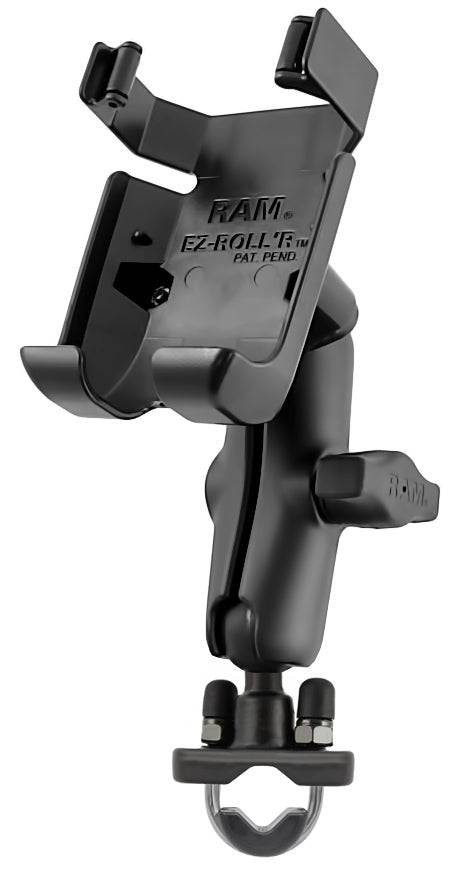

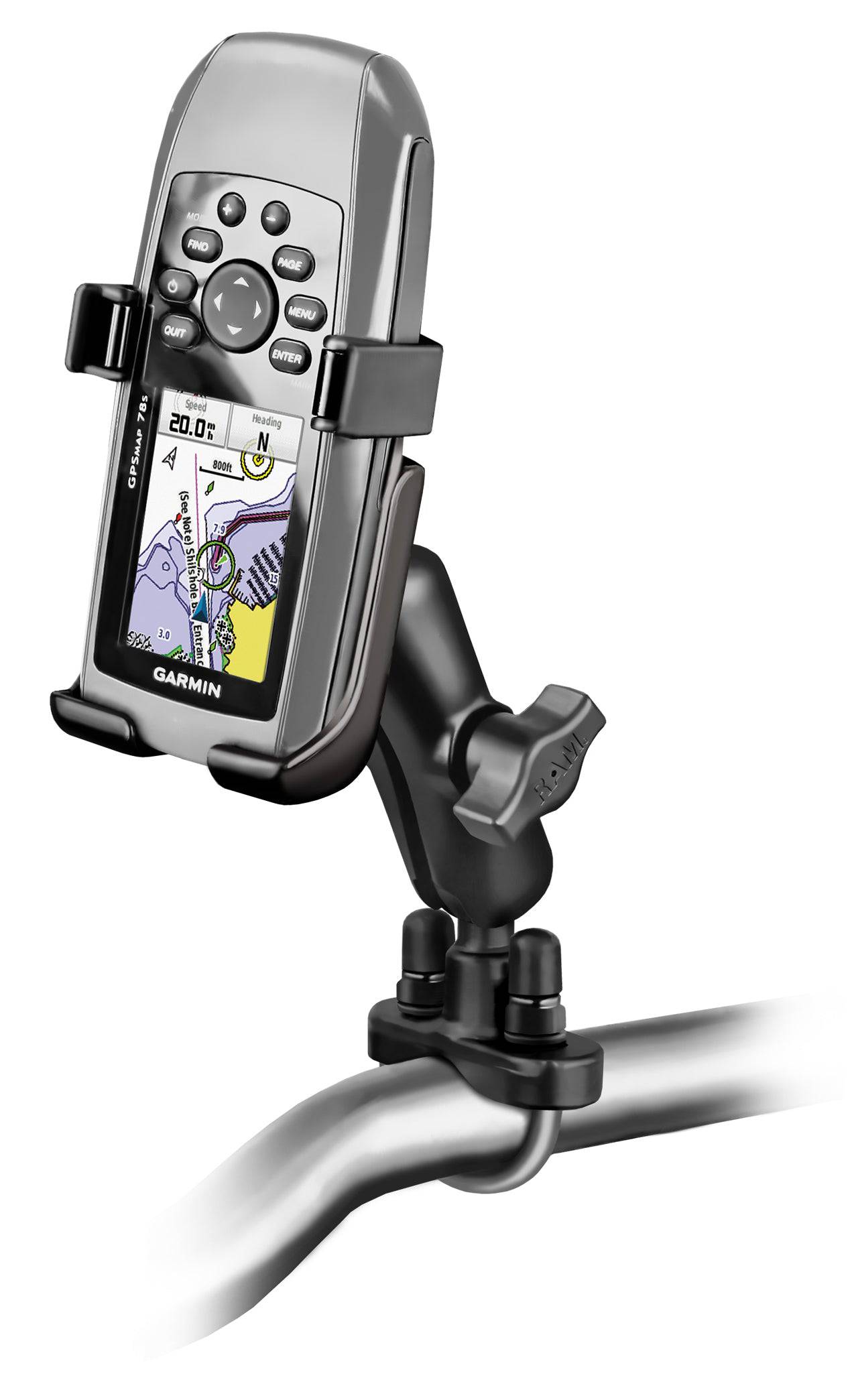

The RAM-B-149-GA40U consists of a double socket arm, stainless steel u-bolt base, diamond adapter base and custom high strength composite cradle for the Garmin GPSMAP® 78 series. Designed into the mount is a 1" diameter patented rubber ball and socket system with adjustment points at the base and cradle. With a twist of the arm knob, you can move the motorcycle GPSMAP® mount to your optimum viewing position. Included in this package is hardware that will accommodate rails from 0.50" to 1" in diameter.

HARDWARE INCLUDED

Assembly Hardware
(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(2) 1/4"-20 Nylock Nuts
(2) Rubber Caps
(1) U-Bolt Spacer

CLAMP RANGE

.5" - 1" diameter

SOCKET-TO-SOCKET LENGTH

3"

BALL/SOCKET SIZE

B Size (1")

WEIGHT CAPACITY

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

MATERIALS

Marine-grade aluminum
High strength composite

PACKAGING TYPE

Poly Bag

WEIGHT

0.54 lbs.

Garmin

GPS 12H

GPS 73

GPSMAP 78

GPSMAP 78s

GPSMAP 78sc
