RAM® Heavy Duty Fishfinder Deck Mount - RAM-FF1U

The RAM® Heavy Duty Fishfinder Deck Mount (RAM-FF1U) is a robust, powder-coated aluminum bracket designed to support up to three fishfinders simultaneously. Whether you're trolling deep waters or scanning shallow coves, this heavy-duty mount helps you take in more data for smarter navigation and better results. Built for versatility, the Deck Mount features a wide array of pre-drilled hole patterns, making it compatible with popular fishfinder brands like Garmin®, Lowrance®, and Humminbird®. It also includes three sets of 4-hole AMPS patterns and three sets of tri-hole patterns for seamless integration with RAM® Mounts D size bases.

Need a secure mount at the stern? Pair the Deck Mount with the RAM® Foot Stabilizer for added support and stability in rough waters. Crafted from marine-grade aluminum, this fishfinder mounting bracket is corrosion-resistant and engineered to withstand harsh marine environments—lasting longer than your boat and standing up to the roughest conditions. In fact, we guarantee it with our Lifetime Warranty for all RAM® components.

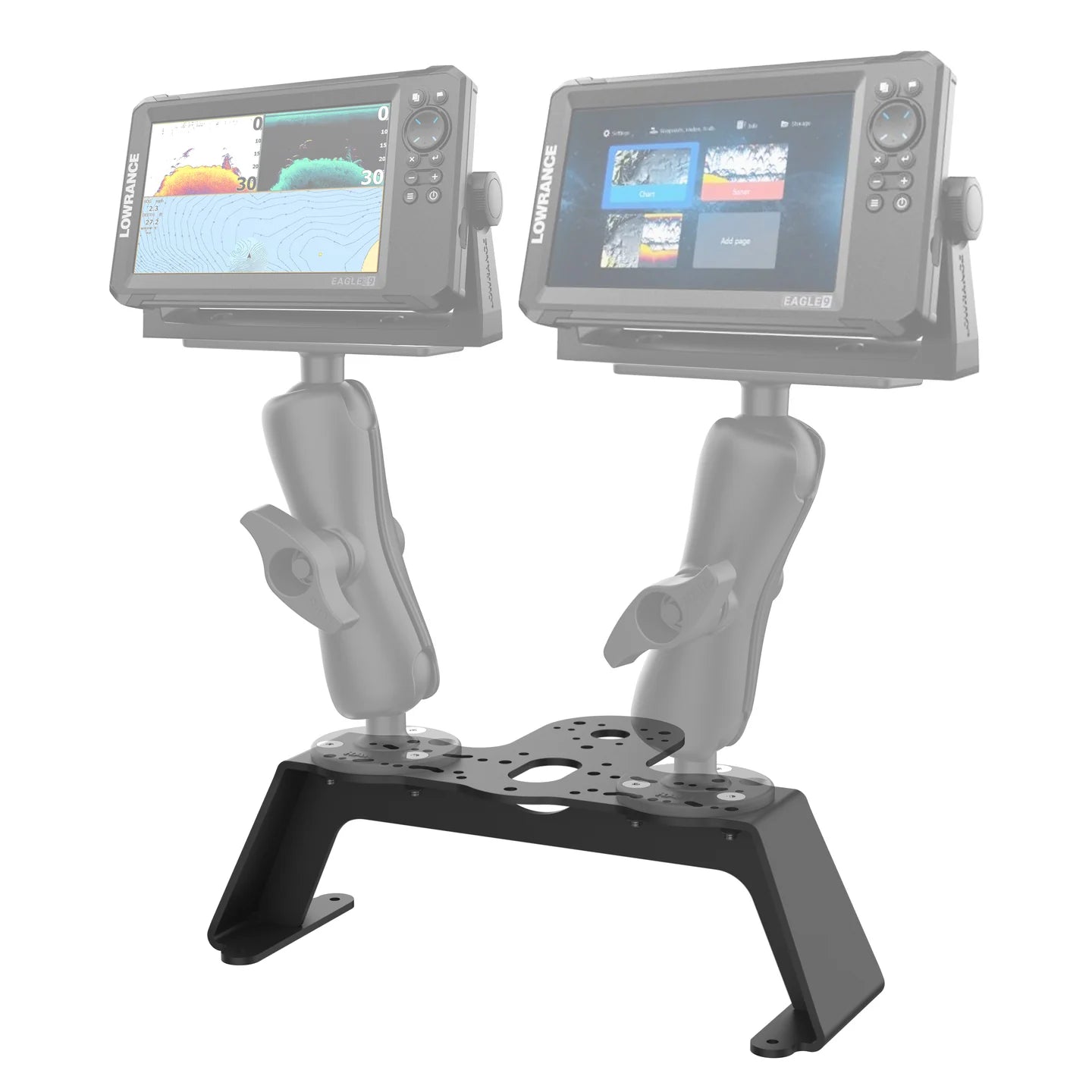

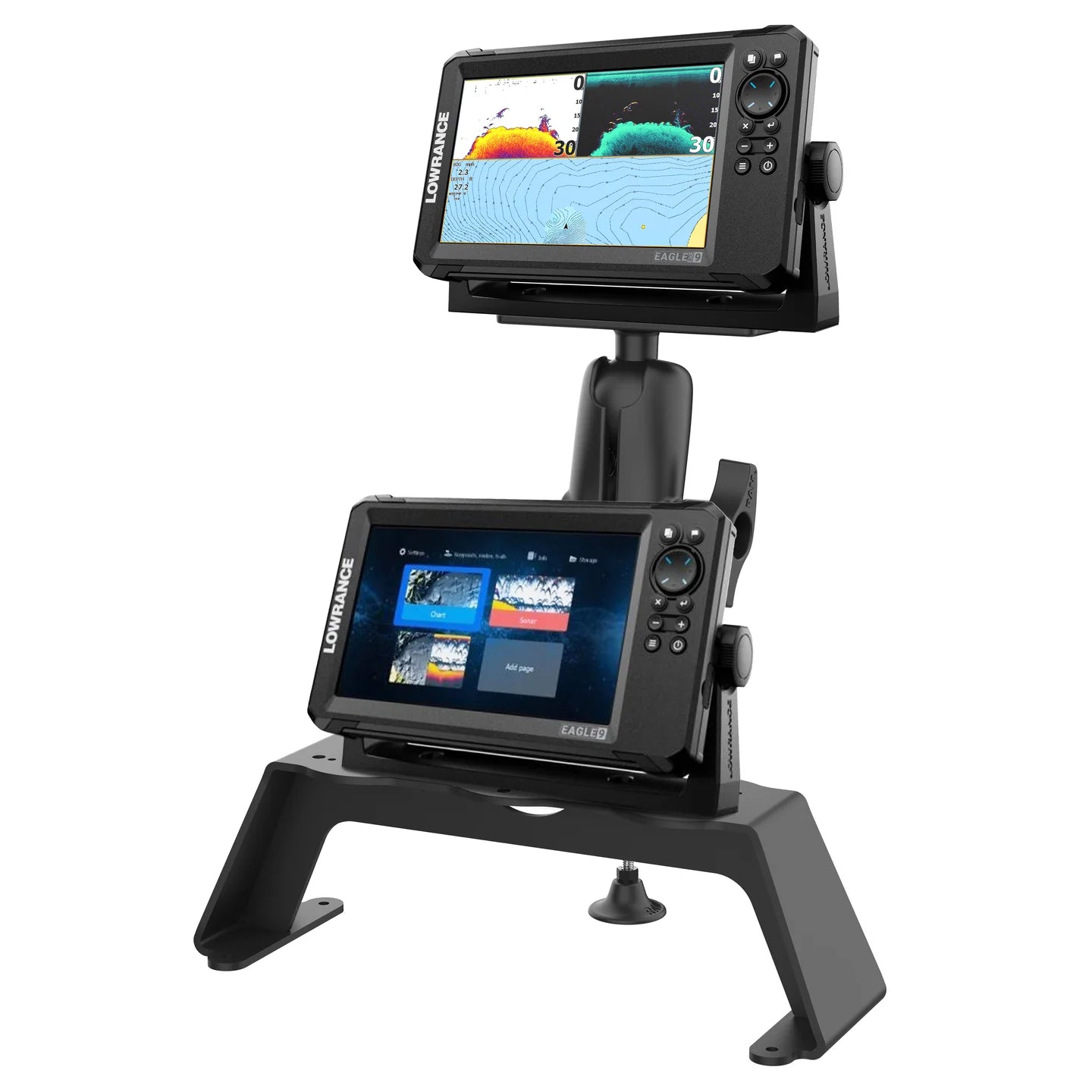

• Supports up to three fishfinders for maximum data intake; ideal for bow or rear-mounted fishfinder setups

• Compatible with Garmin®, Lowrance®, and Humminbird® mounting patterns

• Includes AMPS and tri-hole patterns for RAM® D size bases

• Marine-grade aluminum construction with powder-coated finish

• Back by a Lifetime Warranty

hardware included:
(6) 5/16"-18 x 1" Machine Screws
(6) 5/16"-18 Nylock Nuts
(8) #10-24 x 3/4" Machine Screws
(8) #10-24 Nylock Nuts

hole pattern:

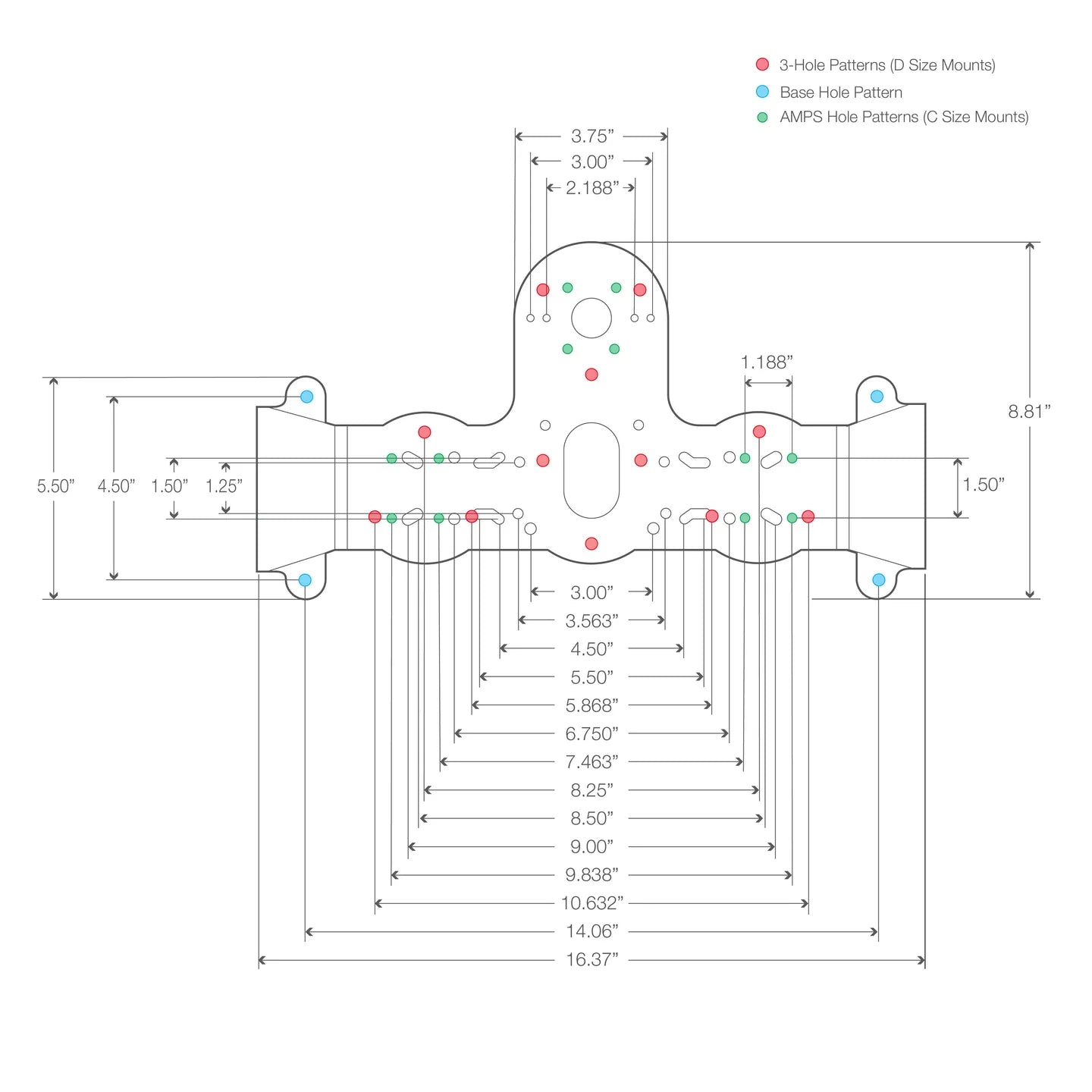

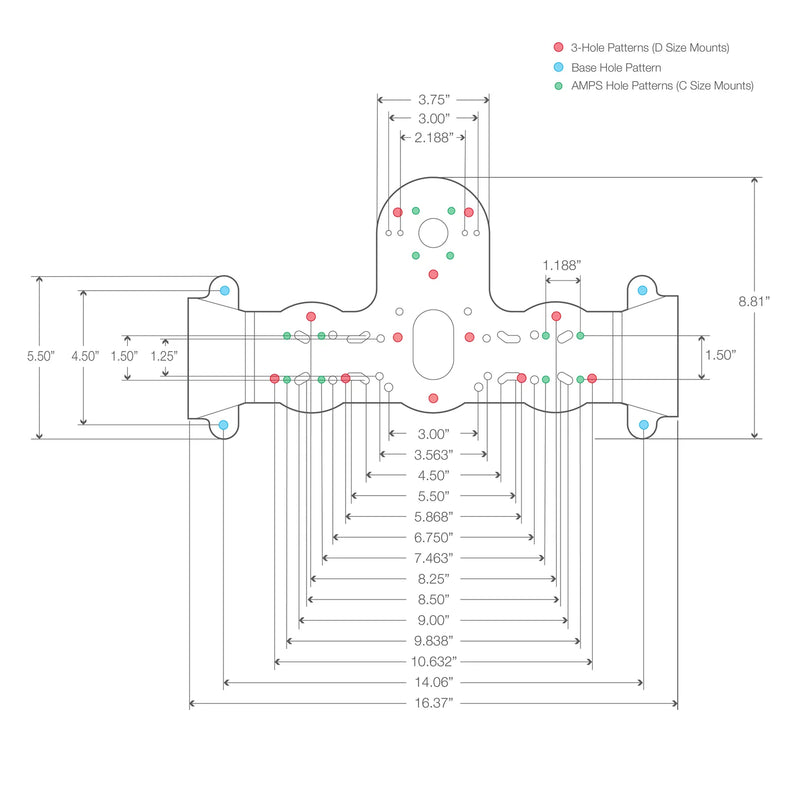

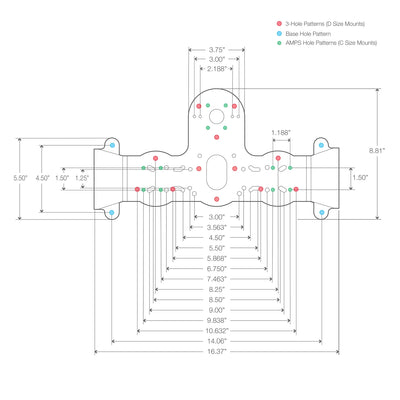

See Drawing

materials:
Marine-grade aluminum

packaging type:
Poly Bag
