      Home / Products / RAM® High-Strength Composite Double Ball 1" Rail Mount - RAP-B-149U
      RAM® High-Strength Composite Double Ball 1" Rail Mount - RAP-B-149U - OC Mounts
      RAM® High-Strength Composite Double Ball 1" Rail Mount - RAP-B-149U - OC Mounts
      RAM® High-Strength Composite Double Ball 1" Rail Mount - RAP-B-149U - OC Mounts
      RAM® High-Strength Composite Double Ball 1" Rail Mount - RAP-B-149U - OC Mounts

      RAP-B-149U

      RAM® High-Strength Composite Double Ball 1" Rail Mount - RAP-B-149U

      Out of Stock    ( Chat Live to get an ETA )

      OVERVIEW

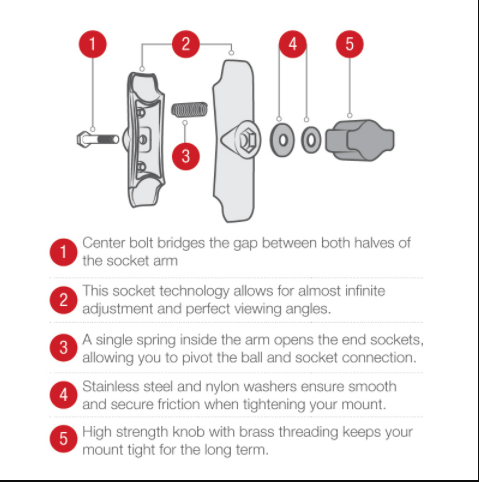

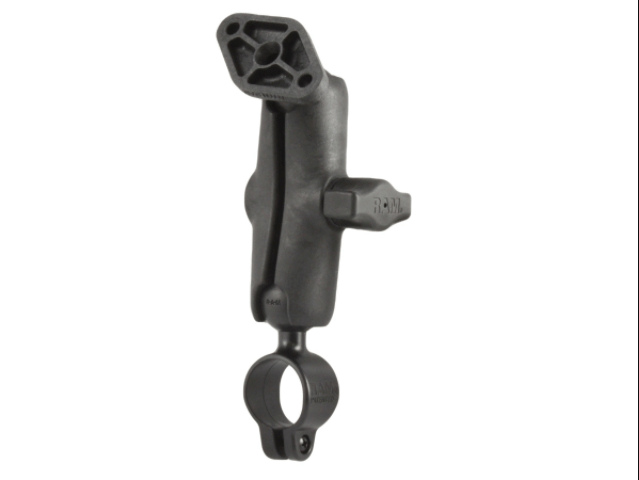

      The RAM high strength composite rail mount consists of the 1" diameter ball and socket system with universal diamond base. The rail base is designed to sit at right angles to the mounting rail and will accommodate rails up to 1" in diameter. Adjustment points at both socket ends allow for almost infinite adjustment and perfect viewing angles. High quality materials insure your device is safe, secure, and within easy reach.

      HARDWARE INCLUDED

       (1) #6-32 x 5/8" Machine Screw
      (1) #6-32 Nylock Nut


      CLAMP RANGE

       1" diameter


      SOCKET-TO-SOCKET LENGTH

       3"

      HOLE PATTERN

       2-Hole AMPS: 1.912"


      BALL/SOCKET SIZE

       B Size (1")


      WEIGHT CAPACITY

       Standard Use: 2 lbs
      Heavy-Duty Use: 1 lb


      MATERIALS

       High strength composite


      PACKAGING TYPE

       Poly Bag


      WEIGHT

       0.34 lbs.
