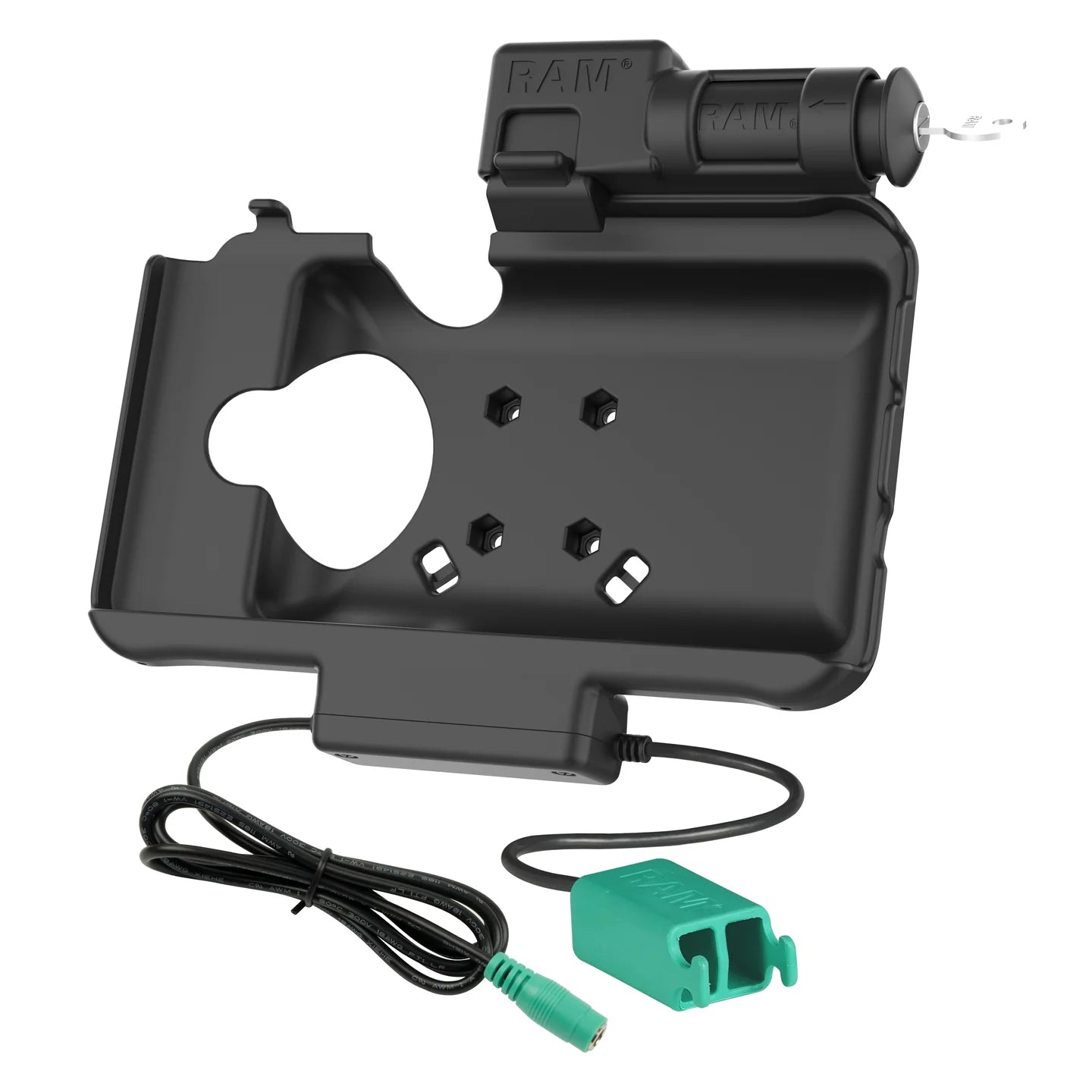

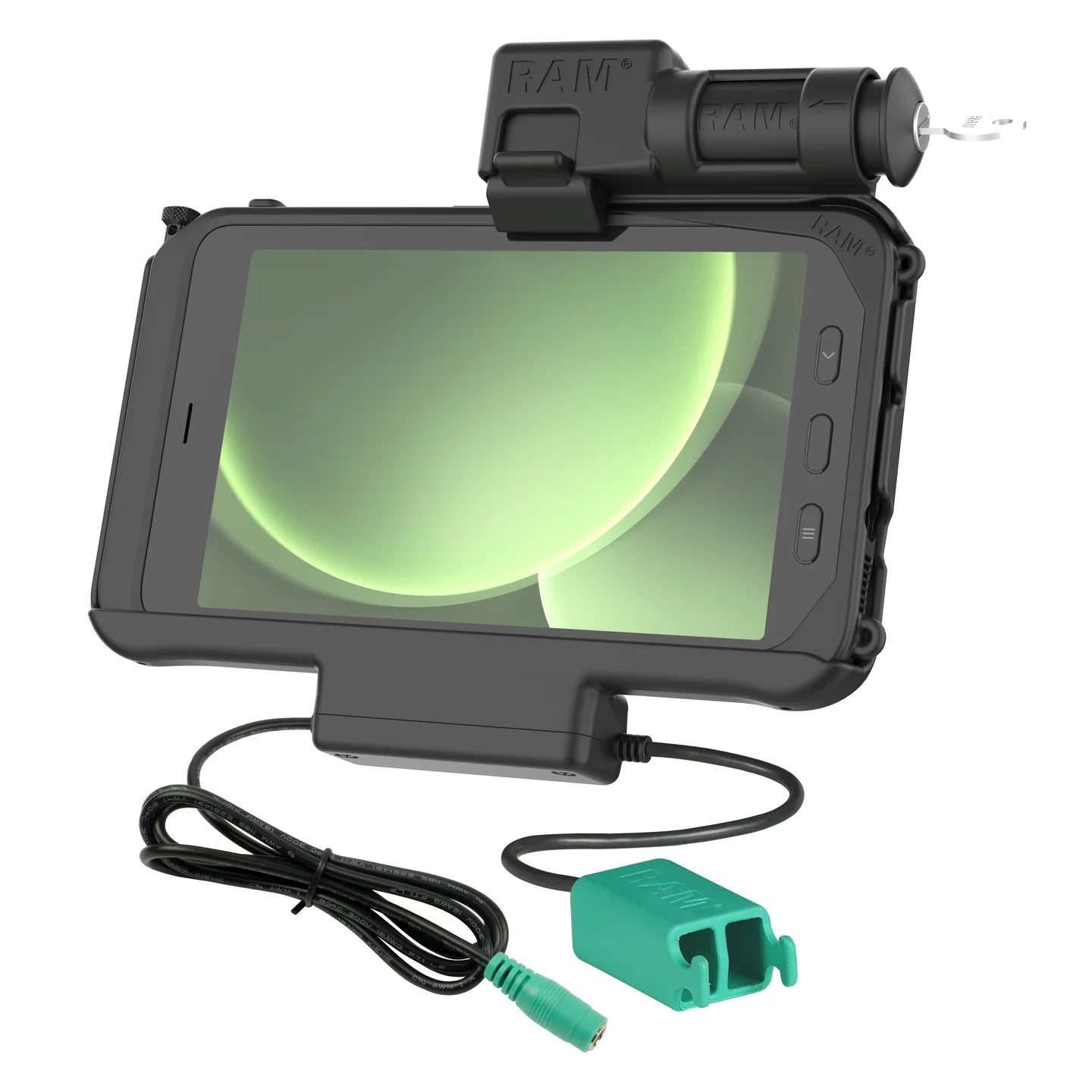

RAM® Key Locking Power + Dual USB Dock for Samsung Tab Active5 & 3 - RAM-HOL-SAM58PD2KLU

This RAM® EZ-Roll’r™ power cradle for the Samsung Tab Active5, Tab Active3 and 2 has been designed to meet the demands of field workers in a variety of applications including transportation, field sales, logistics, manufacturing, and much more. Power and data sync capabilities are provided to the device through GDS® pogo pins while taking advantage of this cradle's dual USB-A port supporting up to two peripherals making this the ideal, compact mounting solution for your mobile workstation. For security and theft deterrence, this powered cradle features a key lock. Access to the stylus remains while the device is docked. Included is a set of four nuts and bolts to connect the cradle to any RAM® components containing the universal 4-hole AMPS pattern. This cradle also contains space in the back allowing for a GDS® Hand-Stand™ attachment so you can easily take your Tab Active5, 3 & 2 from your vehicle, to your person, to your desk with zero hassle.

• Key locking powered cradle provides charging and data transfer capabilities for the Samsung Galaxy Tab Active5, Tab Active3 and2 through integrated pogo pin connector

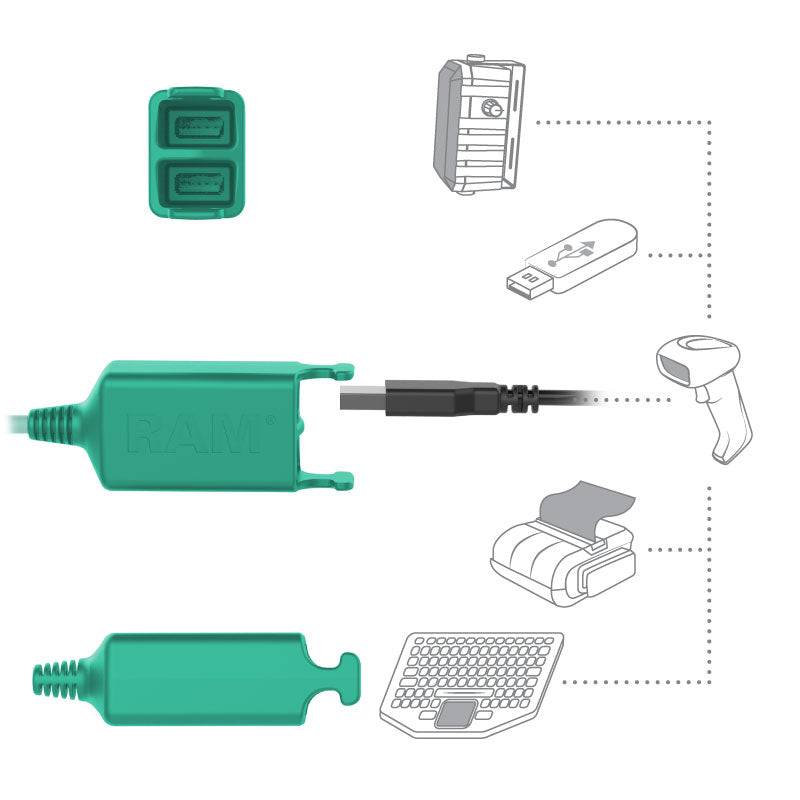

• Dual USB-A port supports up to two peripherals; mUSB port for power

• Extra space in the back of the cradle allows for GDS® Hand-Stand™ compatibility; contains 4-hole AMPS hole pattern for RAM® ball components

• Access to speakers, mics, and headphone jack remain while device is docked; allows access to the GDS® shoulder strap loops on RAM® Skin™

• Backed by a 3-year warranty

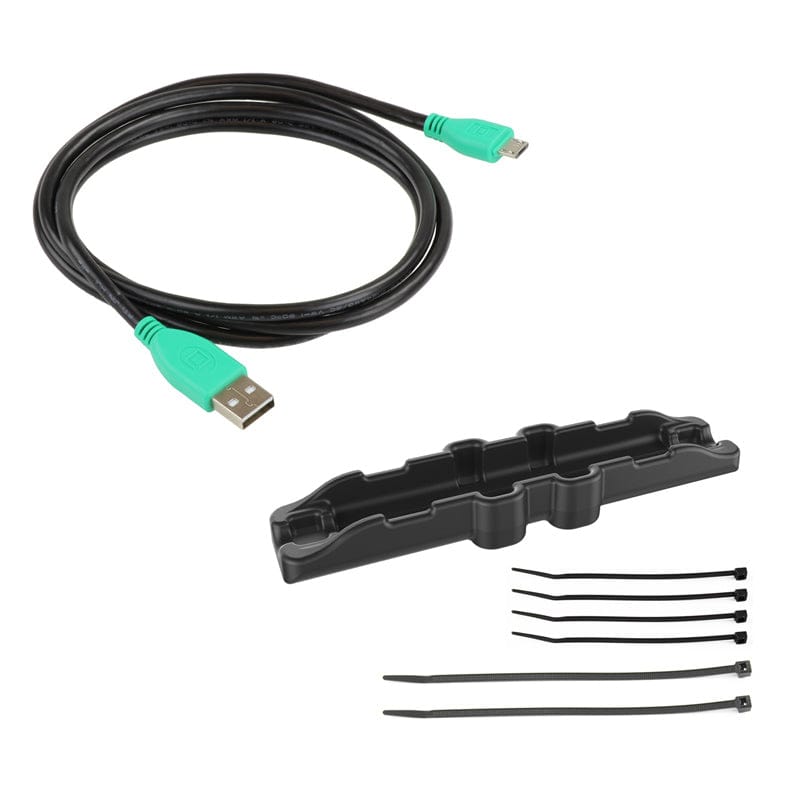

HARDWARE INCLUDED

Assembly Hardware
(4) #8-32 x 5/8" Machine Screws
(4) #8-32 Nylock Nuts
(1) GDS® Genuine USB 2.0 Straight Cable
(1) Optional Cable Clamp Housing
(4) Large Cable Ties
(6) Small Cable Ties

PRODUCT DIMENSIONS

Width: 9.25"
Height: 7.75"
Depth: 3"

HOLE PATTERN

4-Hole AMPS: 1.181" x 1.496"

MATERIALS

High strength composite

PACKAGING TYPE

Poly Bag

INPUT VOLTAGE

4.4VDC - 5.4VDC (USB power source dependent)

OUTPUT VOLTAGE

4.4VDC-5.4VDC (USB power source dependent)

POWER OUTPUT

500mA per USB port

INPUT CONNECTOR

mUSB 2.0 Female

INPUT CABLE LENGTH

.22 Meter

OUTPUT CONNECTOR

(2) USB 1.1 Type A

OUTPUT CABLE LENGTH

.22 Meter

TRANSFER SPEED

12Mbps

WEIGHT

1.25 lbs.

WARRANTY STATUS

3 year warranty

Samsung

• Tab Active5

• Tab Active3

• Tab Active2
