RAM-D-111-KNOB9HU

RAM® Large Marine Electronics Mount with RAM® Hi-Torq™ Wrench - RAM-D-111-KNOB9HU

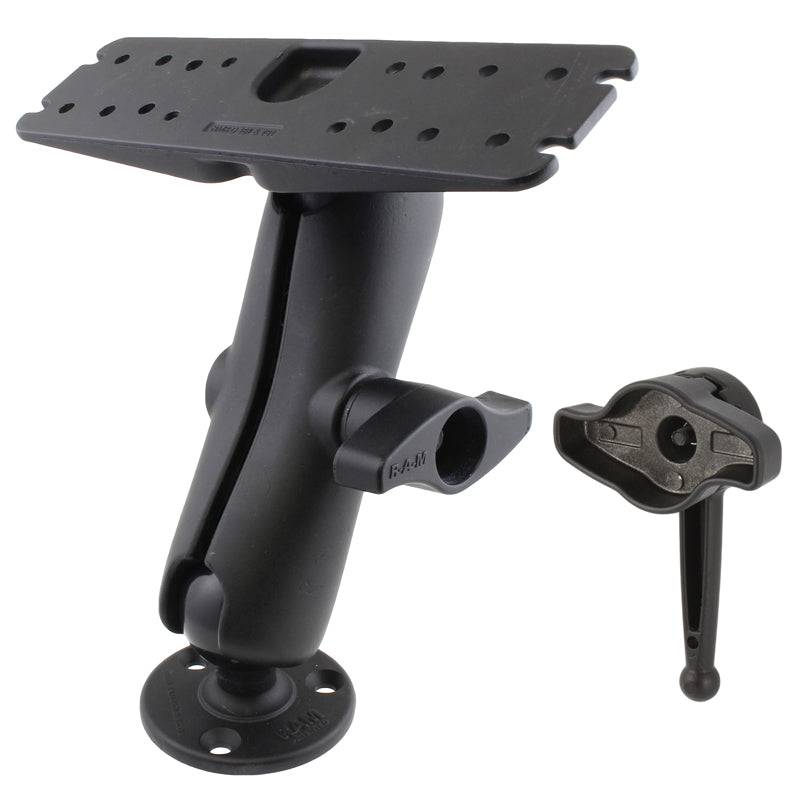

The RAM-D-111-KNOB9HU consists of a 3.68" diameter round base, STANDARD length double socket arm and 11" x 3" rectangular plate. The round base contains pre-drilled holes, including two holes at 180 degrees and three holes at 120 degrees. The rectangle plate contains different combinations of pre-drilled holes which will match up to many electronic devices and mounts, including Marine GPS, CB Radios, Ham Radios, Gimbal Brackets and more. Included with this mount is the RAM Hi-Torq Wrench; designed to be used with the knob found on "D" size ball arms and mounts. The wrench matches the shape of the knob and lets you give the arm an extra tight grip. This wrench was originally made for the military when using the RAM mounts in cold weather, and the knob could not be tightened by hand.

Dimensions:
Overall Length: 11.5"

Material:
Powder Coated Marine Grade Aluminum

Ball Size:
D Size 2.25" Rubber Ball

Weight Capacity:
Up to 6 pounds

Note:
The "U" in the part number reflects product packaged in poly bag. The 11" x 3" rectangle base is a universal mounting bracket with a selection of mounting hole locations. In certain applications additional holes may need to be drilled for proper fit with your electronic device.

Weight:
5.05 lbs.

  • Garmin GPSMAP 1222/xsv Touch
  • Garmin GPSMAP 1242xsv/Touch
  • Lowrance HDS Carbon 9
  • Lowrance HDS Carbon 12
  • Lowrance Elite-9 CHIRP
  • Lowrance Elite-9 Ti²
  • Lowrance Elite-12 Ti
  • Lowrance Elite-12 Ti²
  • Garmin Fishfinders and GPS Chartplotters
  • Humminbird Fishfinders and GPS Chartplotters
  • Lowrance Fishfinders and GPS Chartplotters
  • Raymarine Fishfinders and GPS Chartplotters
