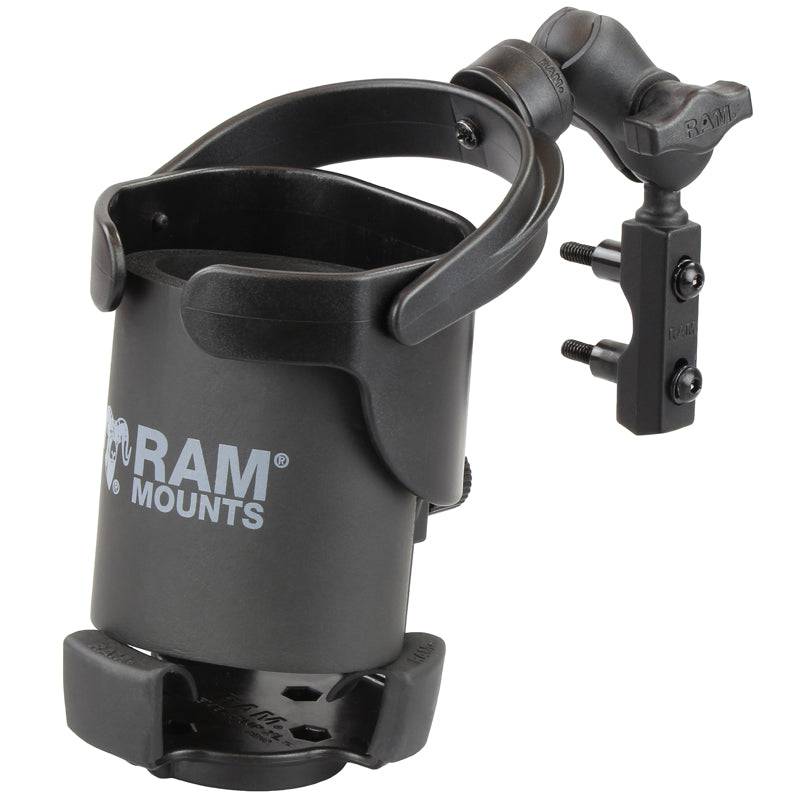

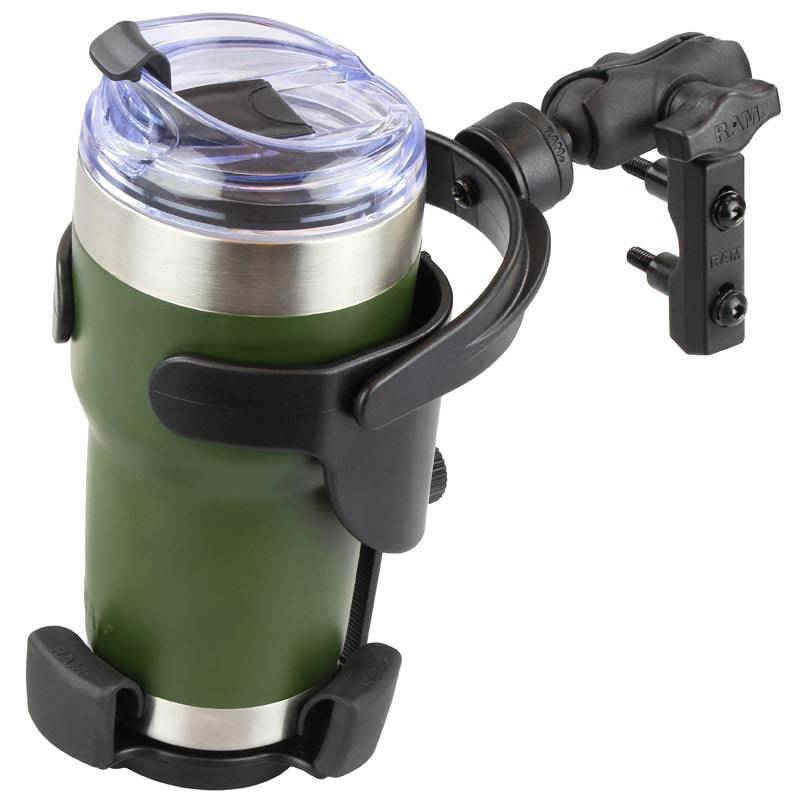

RAM® Level Cup™ XL 32oz Drink Holder with Brake/Clutch Reservoir Base - RAM-B-174-A-417U

OVERVIEW

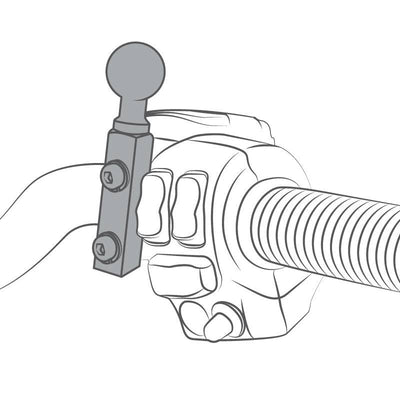

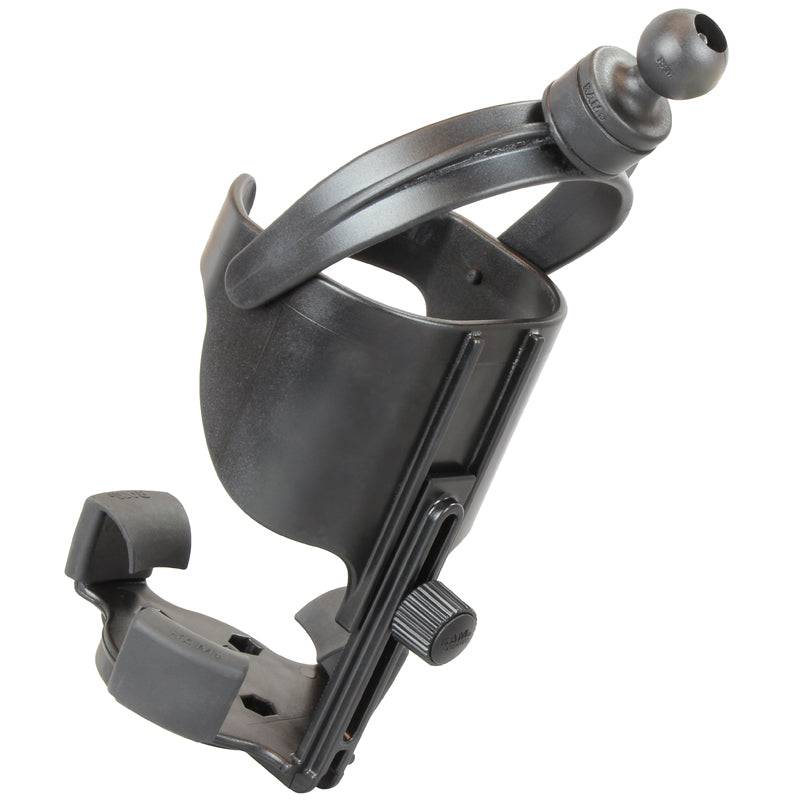

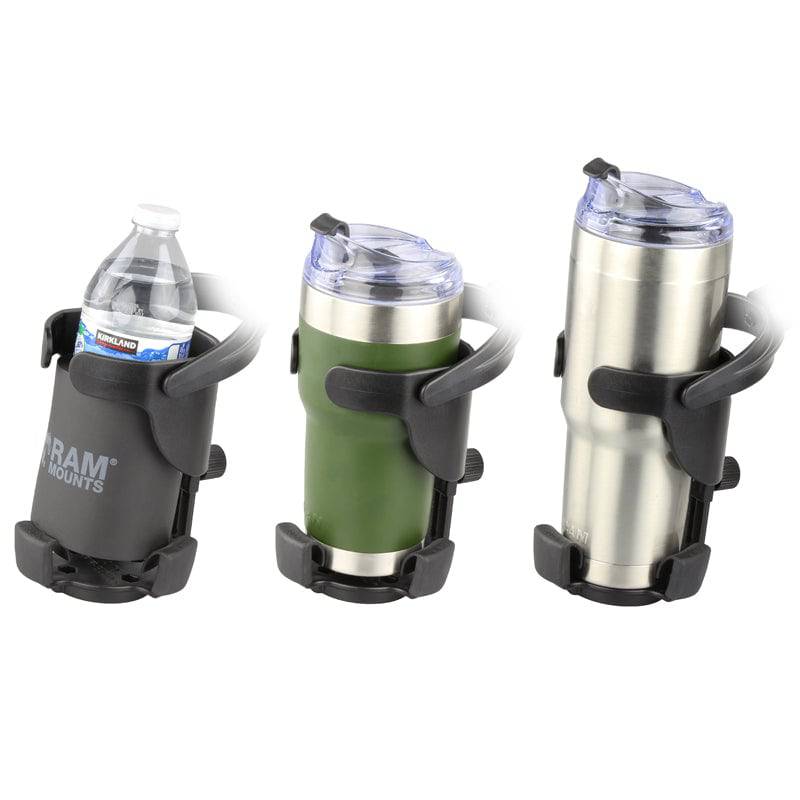

Designed for bigger insulated cups, plastic water bottles or even your reliable steel coffee cup, the Level Cup XL keeps your drink upright, regardless of the conditions. This kit includes a short arm and a combination base that attaches to rails or brake/clutch reservoirs on motorcycles and ATVs. The mounting base can accommodate rails from .5” through 1.25” and most standard handlebar sizes. The oversized opening cradles the biggest of gulps and the adjustable bottom piece moves up and down to accommodate taller cups. The rubber feet flex to fit various sized cups as well. RAM^® Mounts has refined the self-leveling action to keep your cups full.

HARDWARE INCLUDED

(3) Rubber Support Fins
(1) Glue Tube for Rubber Fins
(2) M6 x 55mm Hex Bolts
(2) #1/4-20 x 2" Hex Bolts
(2) 1/4"-20 x 2.5" Hex Bolts
(2) 1/2" Spacers
(2) 1/4" Split Lock Washers
(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
(2) 1/4"-20 Nylock Nuts
(2) Rubber Caps
(1) U-Bolt Spacer

DRINK SIZE

12-32 oz

CLAMP RANGE

.5" - 1.25" diameter

SOCKET-TO-SOCKET LENGTH

1.75"

BALL/SOCKET SIZE

B Size (1")

WEIGHT CAPACITY

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

MATERIALS

Marine-grade aluminum
High strength composite

PACKAGING TYPE

Poly Bag

WEIGHT

1.2 lbs.

Drawing File - Brake Clutch Reservoir Base - PDF

Brake/Clutch Reservoir Assembly Instructions 309-7 Series - PDF

Level Cup XL Instruction Guide - PDF
