RAM® Locking Powered Dock & Mount for Samsung Tab Active5 Pro & 4 Pro - RAM-HOL-SAM57CPKL-225-V7CU

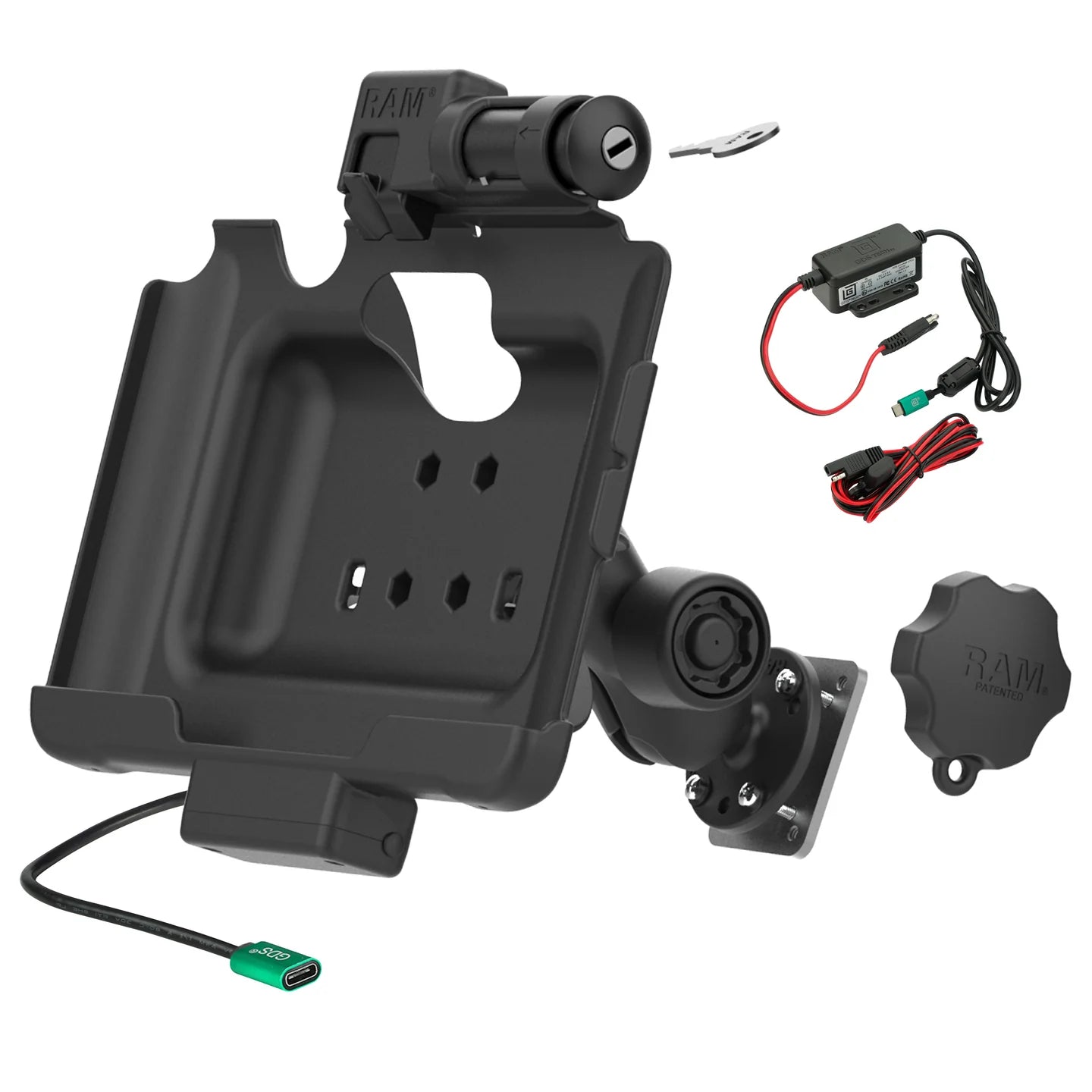

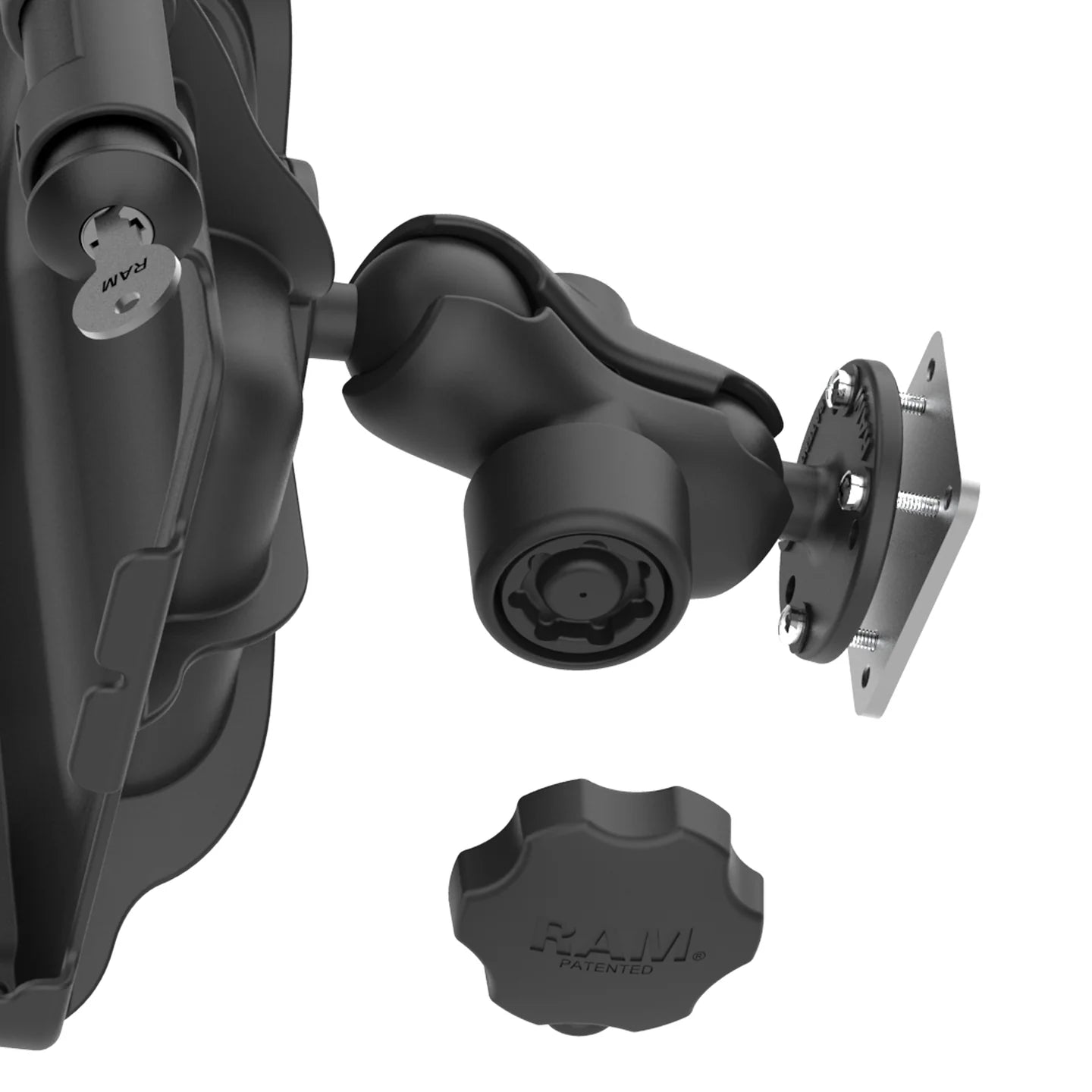

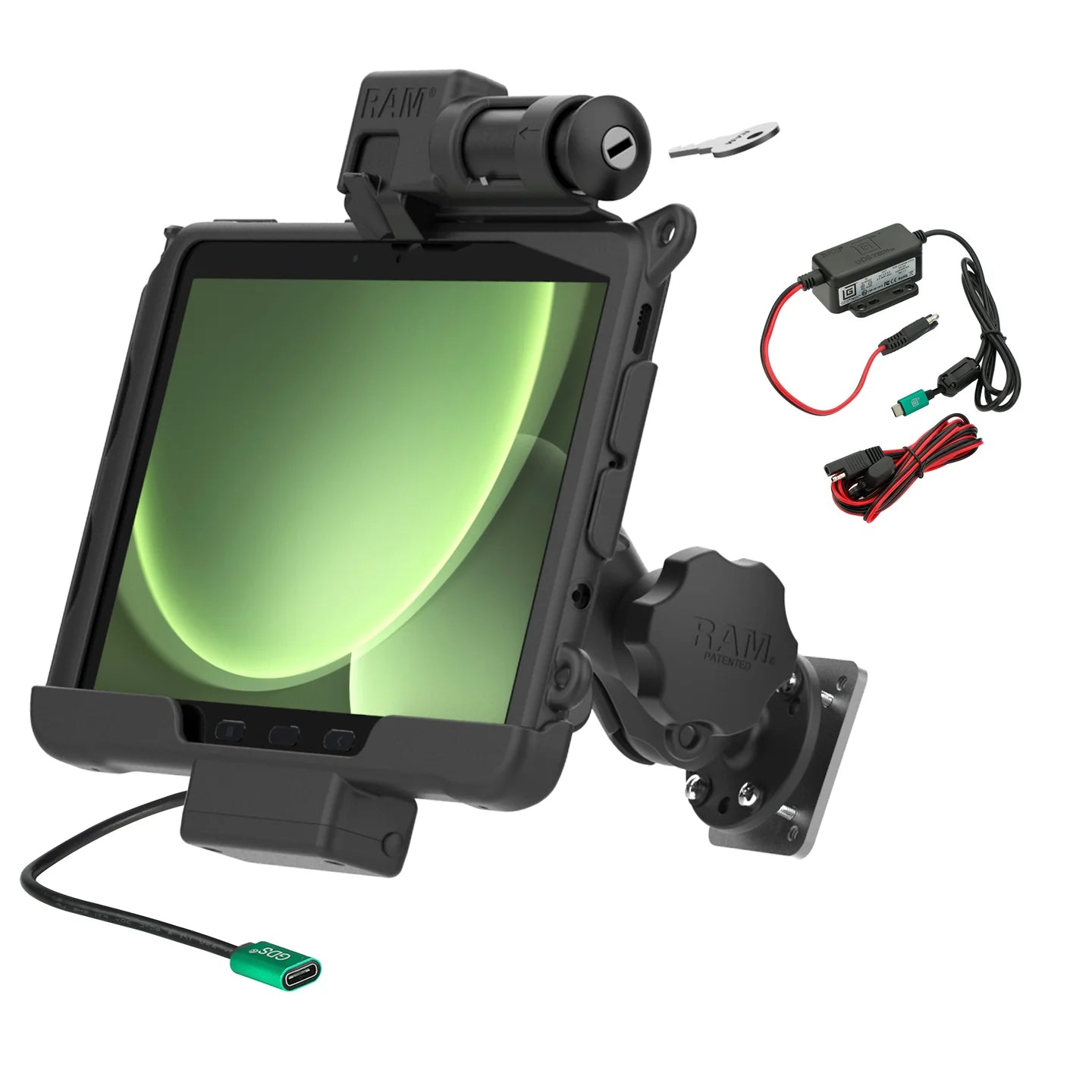

The RAM® Locking Powered Dock & Mount for Samsung Tab Active5 Pro & 4 Pro (RAM-HOL-SAM57CPKL-225-V7CU) is a comprehensive kit of everything needed to deploy the Samsung Tab Active Pro series in your fleet. It contains one locking RAM® USB-C Powered Dock for Tab Active5 Pro/4 Pro, a short C size double ball mount with backing plate and locking arm, cable clamp, and a hardwire charger.

The dock uses a USB Type-C female power connector and integrated pogo pins to provide power to the device while docked. It also features an easy docking and undocking process, simply place the device into the base of the dock and push it to snap into place. The RAM® Powered Dock is backed by a 3-year warranty.

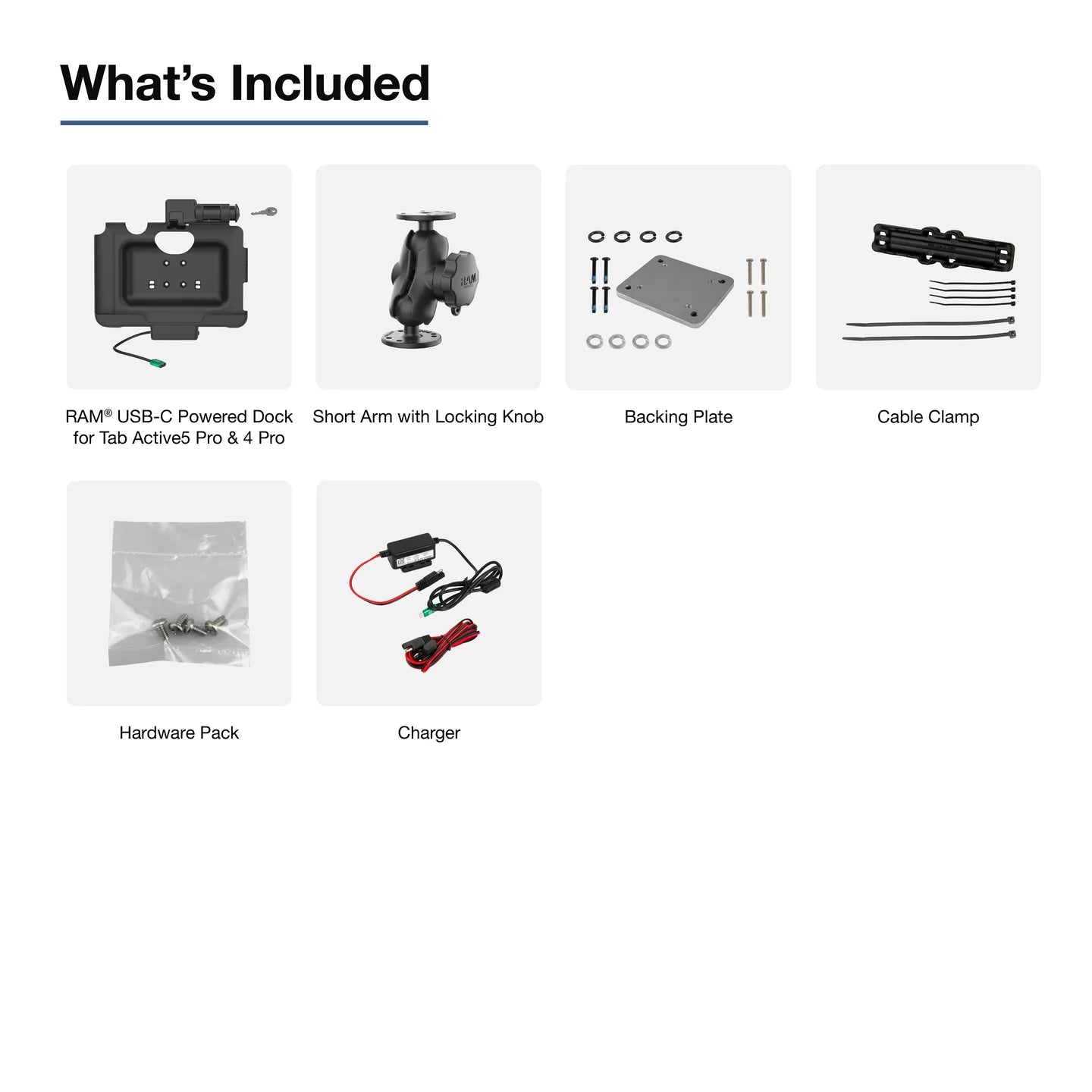

• Bundle includes the RAM® USB-C Powered Dock for Tab Active5 Pro & 4 Pro, short C size double ball mount with backing plate and locking arm, cable clamp, and a hardwire charger

• Key locking powered dock supports the Samsung Galaxy Tab Active5 Pro, Tab Active4 Pro, and Tab Active Pro with factory Samsung case or with RAM® Skin™; powered through integrated pogo pin connector

• Next gen charging with integrated pogo pin docking contacts that match the Tab Active5 Pro's pogo pads for a fumble-free charging experience and port-protection

• Backed by a 3-year warranty

hardware included:
2 Keys
Assembly Hardware
Hardwire Charger with USB-C Connector
Cable Clamp Kit

socket to socket length:
2.5"

hole pattern:
4-Hole AMPS: 1.181" x 1.496"

materials:
Marine-grade aluminum
High strength composite

packaging type:
Poly Bag

input voltage:
10-30VDC

output voltage:
5.42-9VDC

output current:
2.5A max

input connector:
Bare Wire

input cable length:
2.5 Meters

output connector:
USB Type-C Male

output cable length:
1 Meter

operating temperature:
-10°C to +70°C

storage temperature:
-40°C to +70°C

regulatory:
Over Voltage Protection
Short Circuit Protection
Reverse Polarity Protection
RoHS Compliance
WEEE Compliance
SAE J-1113-5 Load Dump (Transient Voltage)
Moisture Resistant

certifications:
CE Certification
E-Mark Certification
RCM Certification
FCC Certification
UL 62368-1 Certificaton

Warranty:
3 year warranty

Weight:
3.0 lb

Samsung

• Galaxy Tab Active5 Pro

• Galaxy Tab Active4 Pro

• Galaxy Tab Active Pro
