RAM® No-Drill™ Mount for '12-24 RAM 2500-5500 + More - RAM-VB-178A-SW2

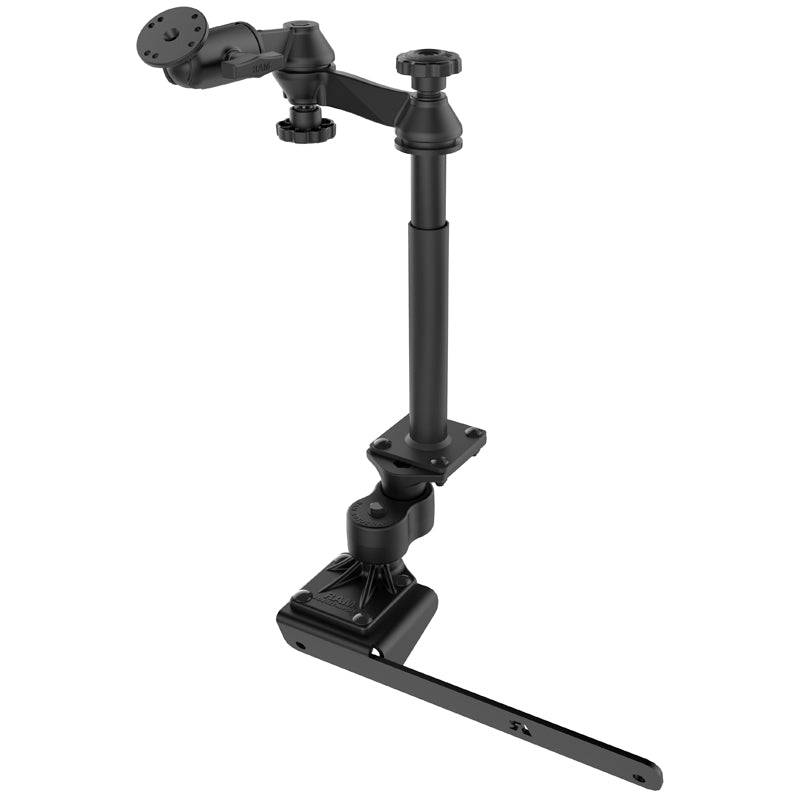

This RAM^® No-Drill^™ mounting system installs quickly and easily into a range of Ram 1500 Classic and Ram 2500-5500 trucks using the existing hardware of the passenger side seat rails. This configuration provides a telescoping feature that ranges from 12” to 18”. Dual swing arms provide articulation and 12” of reach for passenger and driver access to the mounted device.

The round ball base attached to the end of the swing arm supports a variety of tablet and laptop holders, while RAM^® rubber ball and socket technology provides additional adjustability as well as shock and vibration isolation.

HARDWARE INCLUDED

Assembly Hardware
(2) M8-1.25 x 60mm Hex Bolts
(2) 3/4" Stand-Offs
(2) 5/16" Flat Washers

HOLE PATTERN

4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter
Seat Bolt Distance: 13.25" center to center

PLATE SIZE

2.5" Diameter

BALL/SOCKET SIZE

C Size (1.5")

MATERIALS

Powder coated steel
Marine grade-aluminum

PACKAGING TYPE

Box

ADDITIONAL INFORMATION

Low profile design limits intrusion on passenger side leg space. Base will not interfere with levers or factory installed console or 4WD lever. Base designed to accommodate trucks with power take-off (PTO.)

 RAM No-Drill Seat Bases Instructions 178 Series - PDF

 RAM® Adjust-A-Pole™ Instructions - PDF

 Upper Tele-Pole Assembly Guide - PDF

 No-Drill™ Laptop Base for the Ram 2500-5500 (Recommended for 2012-2023 Models) - RAM-VB-178A

RAM Double Swing Arm with 8" Male Tele-Pole™, 9" Female Tele-Pole™ & 2.5" Round Base AMPs Hole Pattern - RAM-VP-SW1-89

• RAM

• 1500 (2012-2018)
• 1500 Classic (2019-2023) Will Not Fit 5th Gen Body Style
• 2500 - 5500 (2012-2024)
