icon

RAM-VB-196-1-SW1

RAM® No-Drill™ Universal Laptop Mount with Reverse Configuration - RAM-VB-196-1-SW1

  • Custom, RAM® No-Drill™ mounting base offers lowest profile in the industry
  • Universal adjustable base accomodates a wide range of vehicles (see Additional Information)
  • Patented ball and socket mounting system offers shock and vibration damping

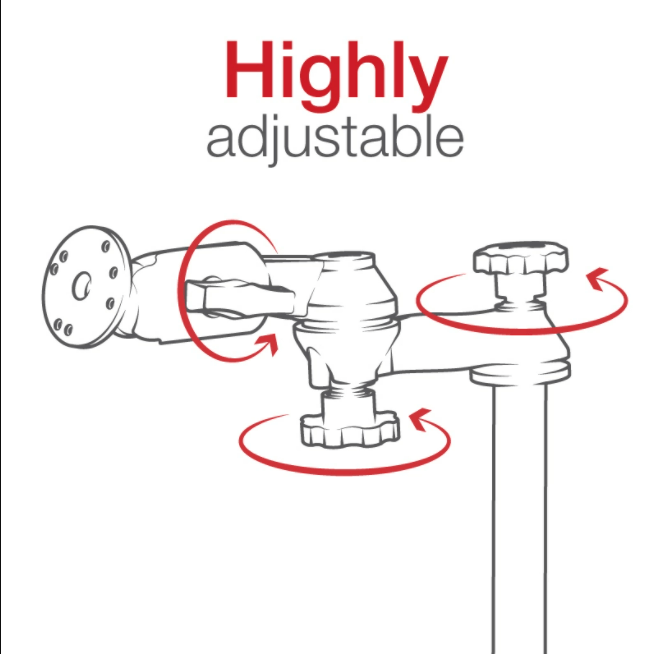

  • Dual articulating swing arm offers the simplest and most comfortable adjustment points in the industry
  • Backed by a lifetime warranty

OVERVIEW

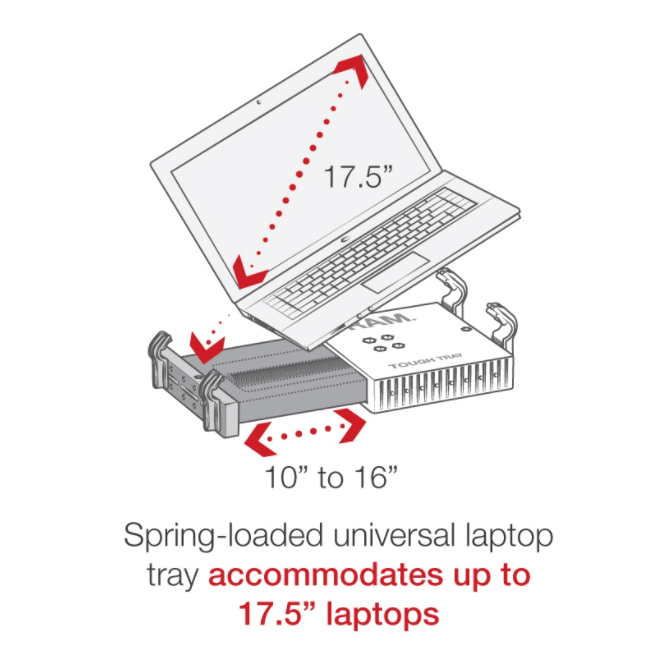

The RAM® Reverse Configuration Universal No-Drill Laptop features a heavy-duty steel mounting base designed to fit a variety of vehicles. Using the front bench or passenger side seat rail bolts as attachment points, existing hardware is used to secure the laptop mount base in the vehicle. The included RAM Tough-Tray is spring loaded to accommodate 10" to 17" laptops. The tray features four adjustable retaining arms with rubber grips. These arms can be moved both vertically and horizontally, enabling a custom fit for varying thicknesses of laptops and access to ports or drives. A screen support and USB light are also available to accessorize the tray. Hole patterns on perimeter of tray facilitate the mounting of additional RAM systems to support phones or other electronics.

HARDWARE INCLUDED

Assembly Hardware
Stabilizer Foot


PRODUCT DIMENSIONS

Height Range: 18.25" - 24"


TRAY DIMENSIONS

Width Range: 10" - 16"
Side Arm Clamp Height: .5" - 1.75"
Tray Depth: 10"
Tray Thickness: 2.125"


HOLE PATTERN

Seat Bolt Distance: 9"-18.875" center to center


BALL/SOCKET SIZE

C Size (1.5")


MATERIALS

Powder coated steel
Marine grade-aluminum
High strength composite


PACKAGING TYPE

Box


WEIGHT

14.0 lbs.
