RAM® No-Drill™ Universal Vehicle Floor Mount - RAM-VB-196-SW2

At OC Mounts, we’re proud to bring you the most innovative RAM® products that make mounting devices in your vehicle quicker and easier than ever. One of the best products in our collection is the RAM® No-Drill™ Universal Vehicle Laptop Mount. Compatible with a range of vehicles, it attaches to your ride using the existing hardware on the passenger side. The seat rails provide attachment and support with a configuration that includes a unique telescoping feature and dual swing arms. To find out whether this is the right RAM® floor mount for you, read on for additional details and specifications.

RAM® Floor Mount Features

Innovative technology from the RAM® ball and socket arrangement provides more adjustability and better vibration isolation for devices in moving vehicles. Other features that guarantee this universal vehicle laptop mount performance include:

• Low-profile mounting and telescoping pole for height adjustment between 12” - 18”
• Compatible with a variety of tablet and laptop cradles
• Dual swing arms have a 12” reach for both driver and passenger access
• Material: Powder-coated steel and marine-grade aluminum
• Dimensions: 15.75" - 21.5" height range
• Hole Pattern: 4-Hole AMPS: 1.181" x 1.496" | 3-Hole 120-Degree: 1.812" Diameter
• Plate Size: 2.5" Diameter
• Seat Bolt Distance: 9"-18.875" center to center
• Ball Size: C Size 1.5"
• Weight Capacity: 4 lbs.

All necessary hardware comes with your universal no-drill laptop mount, including the assembly hardware and stabilizer foot. This product is also backed by our unbeatable lifetime warranty.

If you’re wondering whether this universal vehicle laptop mount will work in your ride, reach out to our team for additional guidance.

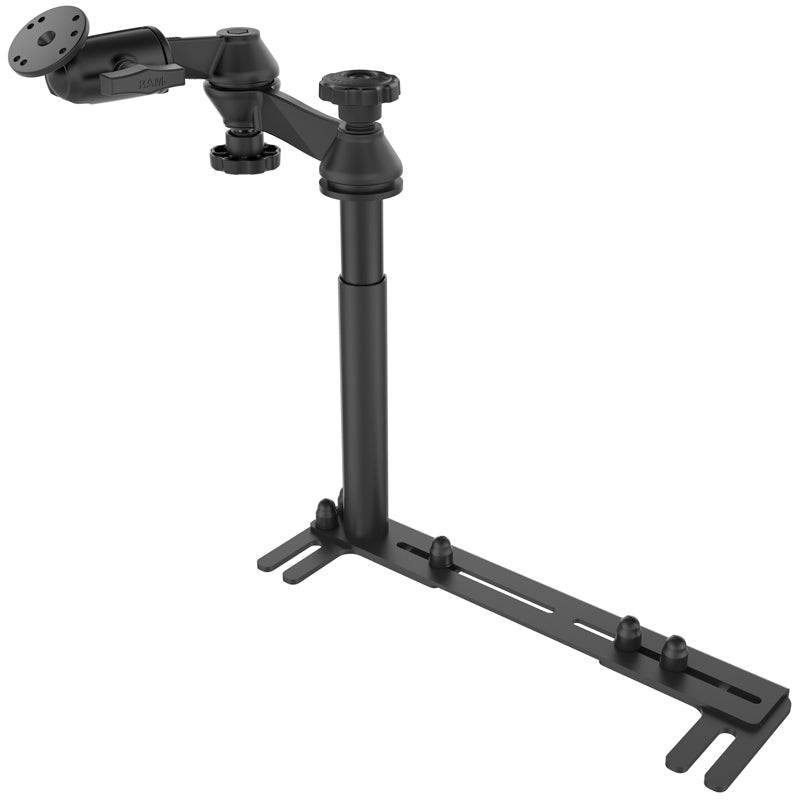

RAM® No-Drill™ base offers low-profile mounting; telescoping pole allows for height adjustments

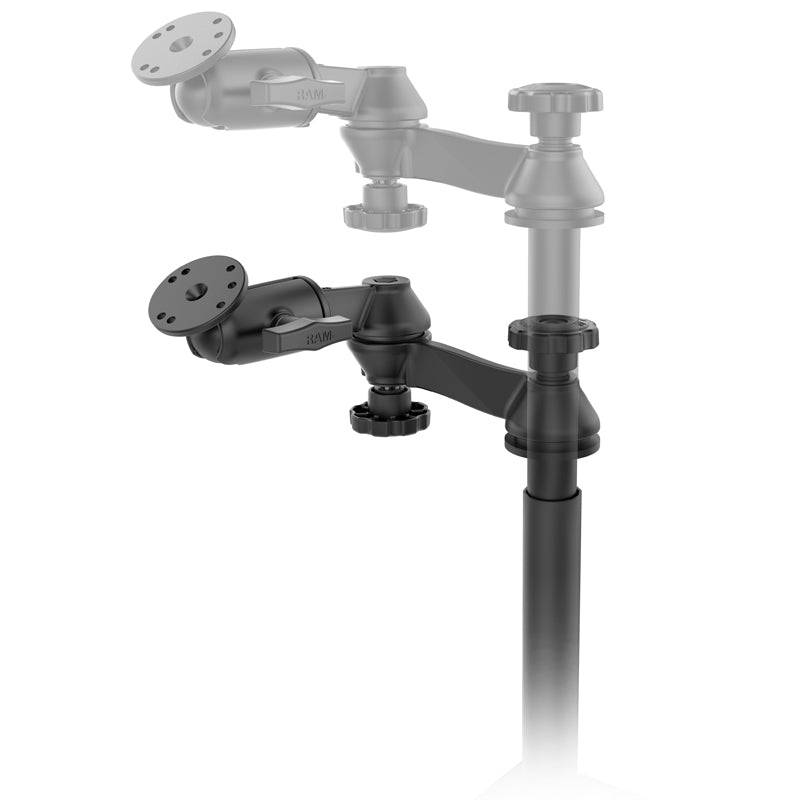

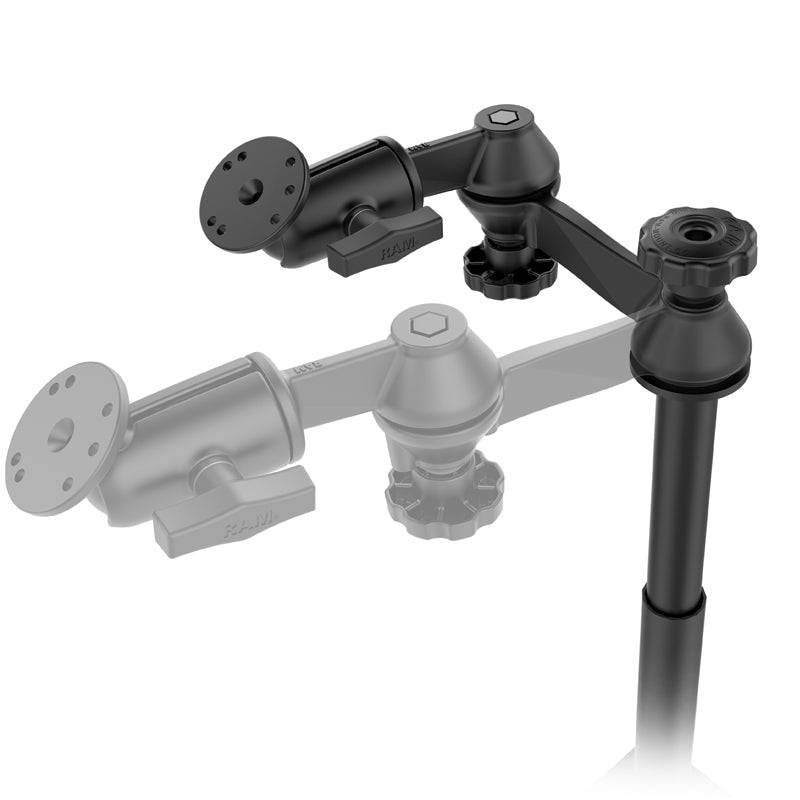

Dual articulating swing arm allows for ideal device placement; compatible with a variety of tablet and laptop holders

Made of powder-coated steel and marine-grade aluminum

Backed by a lifetime warranty

HARDWARE INCLUDED

Assembly Hardware
Stabilizer Foot

PRODUCT DIMENSIONS

Height Range: 15.75" - 21.5"

HOLE PATTERN

4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter
Seat Bolt Distance: 9"-18.875" center to center

PLATE SIZE

2.5" Diameter

BALL/SOCKET SIZE

C Size (1.5")

WEIGHT CAPACITY

4 lbs

MATERIALS

Powder coated steel
Marine grade-aluminum

PACKAGING TYPE

Box

ADDITIONAL INFORMATION

Will this mount install in your vehicle? Learn more by following the steps in this document:

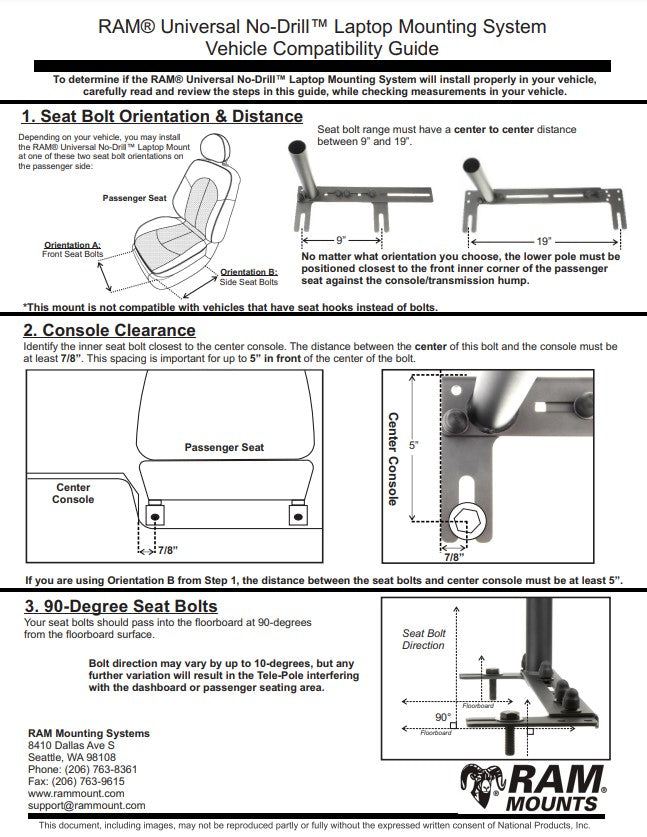

Universal Vehicle Laptop Mount Compatibility Guide

 RAM-VB-196 - PDF

 Upper Tele-Pole Assembly Guide - PDF

RAM Universal No-Drill™ Vehicle Base - RAM-VB-196

RAM Double Swing Arm with 8" Male Tele-Pole™ & 2.5" Round Base AMPs Hole Pattern - RAM-VP-SW1-8
