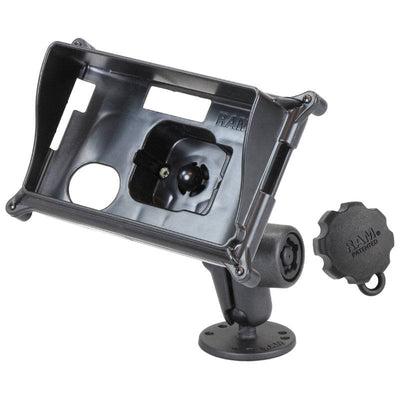

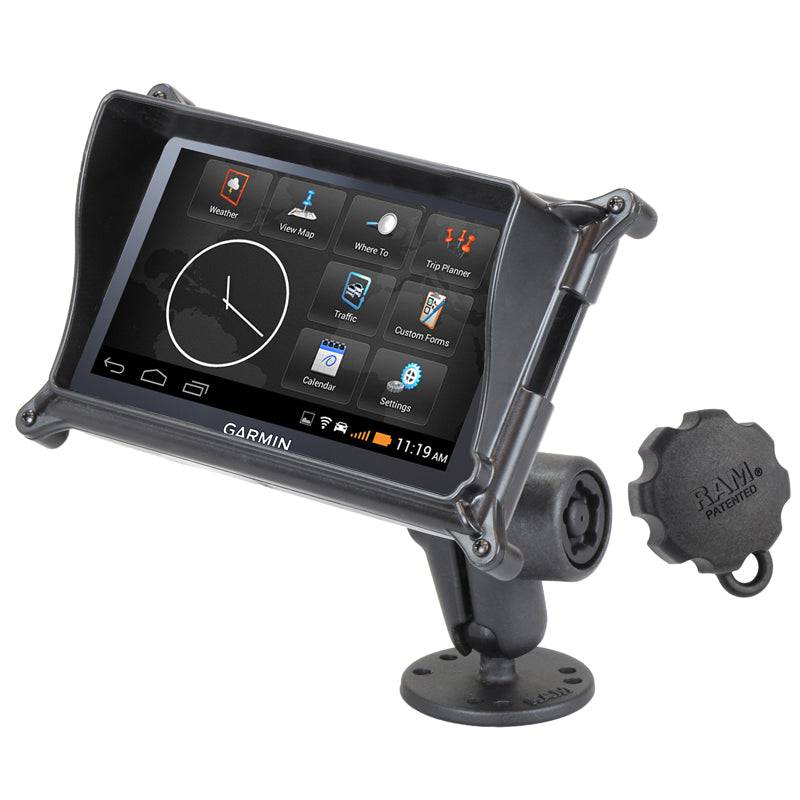

RAM® Pin-Lock™ Drill-Down Locking Mount for Garmin fleet 660/670 - RAM-B-138-S5-GA66LU

OVERVIEW

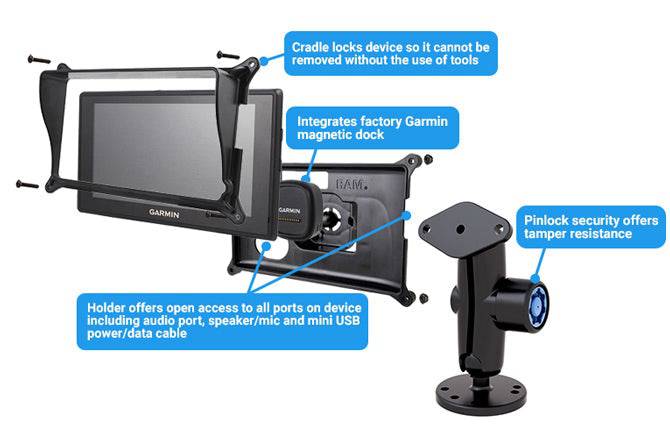

The RAM-B-138-S5-GA66LU consists of a double socket arm, Pin-Lock security knob/key knob with 5-pin pattern, 2.5" diameter round base with the universal AMPS hole pattern, diamond adapter base and custom high strength composite locking case for the Garmin fleet 660/670. The locking case features the ability to secure your Garmin fleet 660/670 in place adding much needed protection and enables full access to the screen, power plug, and memory card slot. The case consists of a front and back cover that can be secured together using standard pop rivets or security screws. The locking case also features a unique cable retention system that prevents accidental unplugging of the USB cable. Paired with a RAM Pin-Lock security knob/key knob, this solution is the ideal accessory for deterring theft or accidental removal of the mounted GPS device.

HARDWARE INCLUDED

Assembly Hardware
(1) RAM Pin-Lock Security Key

SOCKET-TO-SOCKET LENGTH

3"

HOLE PATTERN

4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter

PLATE SIZE

2.5" Diameter

BALL SIZE

B Size (1")

WEIGHT CAPACITY

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

MATERIALS

Marine-grade aluminum
High strength composite

PACKAGING TYPE

Poly Bag

WEIGHT

1.0 lbs.

ADDITIONAL INFORMATION

The "U" in the part number reflects product packaged in poly bag. Designed for use with third party EOBR equipment and recording hours of service in compliance with CSA (compliance, safety, accountability) initiative. To learn more visit the Federal Motor Carrier Safety Administration (FMCSA) website. For more information about Garmin Commercial Solutions and PND-based Mobile Resource Management (MRM) Solutions, visit the Garmin website.
