RAM® Pin-Lock™ Universal Marine Electronic Mount - RAM-S-111U

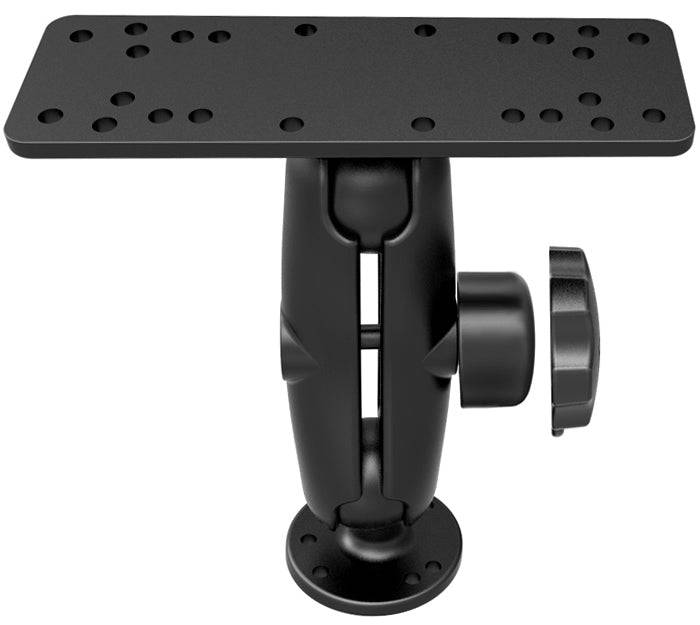

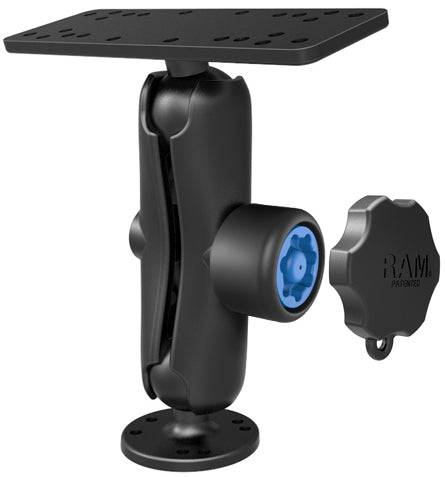

The RAM-S-111U consists of a 2.5" diameter round base, STANDARD LENGTH double socket arm, 6.25" x 2" rectangle base, RAM mixed combination Pin-Lock^™security nut and key knob. The 6.25" x 2" rectangle base is a universal mounting bracket with a selection of mounting hole locations. In certain applications additional holes may need to be drilled for proper fit with your electronic device.

Overall Height:
7.35"

Weight Capacity:
Up to 4 lbs.

Plate Hole Patterns - PDF

RAM® Pin-Lock™ security solutions are designed to withstand the harshest environments where RAM® Mounts are commonly used. With an emphasis on aesthetics and function, RAM® security nuts/knobs are low profile and only add a small amount of additional bulk to your system when compared to the standard knob included. At a fraction of the cost of currently available keyed locking knobs, the additional peace of mind and tamper resistance comes at a very affordable price.

Material:
Powder Coated Marine Grade Aluminum and High Strength Composite

Ball Size:
C Size 1.5" Rubber Ball

Note:
The "U" in the part number reflects product packaged in poly bag.

RAM® Pin-Lock™ Security Knob Instructions - PDF

RAM® Pin-Lock™ Security Knob for 1.5" Double Ball & Socket Mounts

RAM® Pin-Lock™ Security Knobs - Locking Accessory for any RAM Mount!

RAM 6.25" x 2" Universal Electronics Base with 1.5" Ball - RAM-111BU

RAM Double Socket Arm with RAM® Pin-Lock™ Security Knob and Key Knob for C Size 1.5" Balls - RAM-201-SU

RAM 2.5" Round Plate with AMPs Hole Pattern & C Size 1.5" Ball - RAM-202U

• Garmin GPSMAP 722xs
• Garmin GPSMAP 742xs
• Garmin Striker Plus 5cv
• Garmin Striker Plus 7cv
• Garmin Striker Plus 7sv
• Lowrance HDS Carbon 7
• Lowrance HDS LIVE 7
• Garmin Fishfinders and GPS Chartplotters
• Humminbird Fishfinders and GPS Chartplotters
• Lowrance Fishfinders and GPS Chartplotters
• Raymarine Fishfinders and GPS Chartplotters
